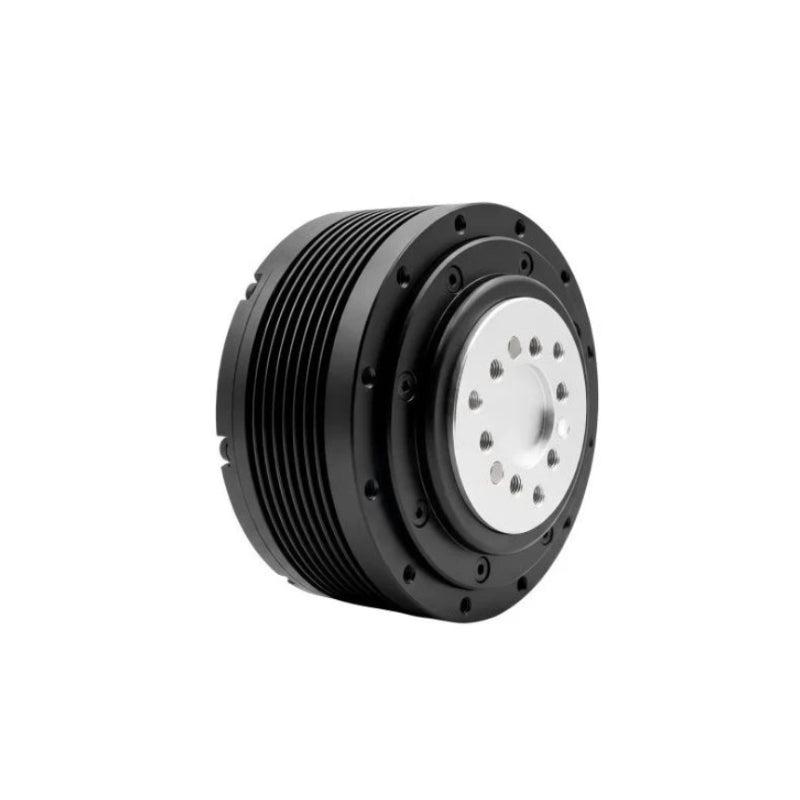

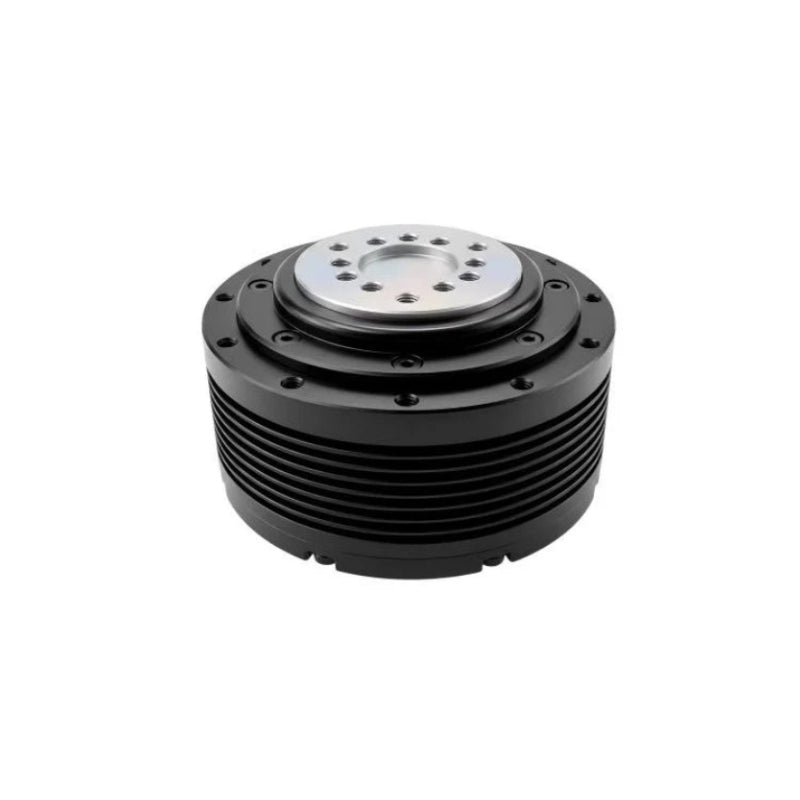

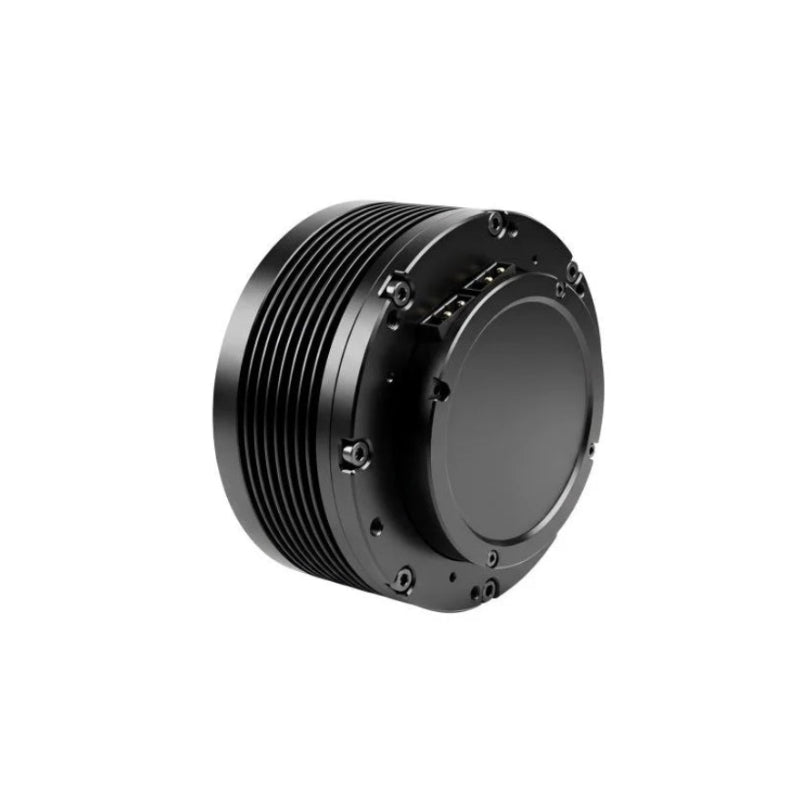

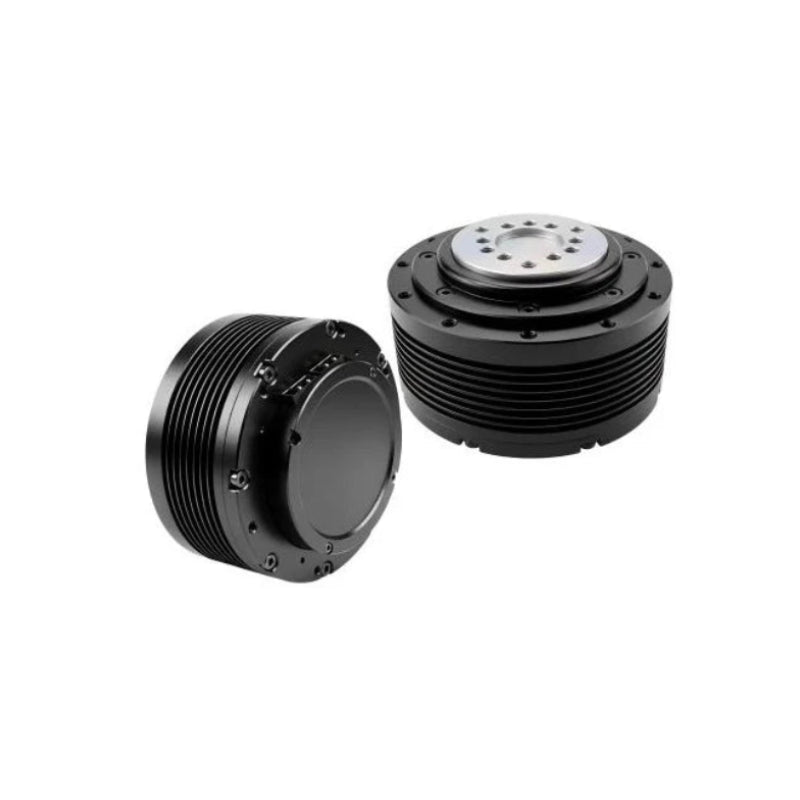

SteadyWin TT8116-9 Motor
Product description
SteadyWin TT8116-9 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | TT8116-9 |
| Rated Voltage | 24 VDC |
| Rated Current | 20 A |
| Peak Current | 50 A |
| Rated Torque | 20 Nm |
| Peak Torque | 40 Nm |
| Number of Pole Pairs | 21 |
| Reduction Ratio | 9:1 |
| Weight | 0.95 kg |
| Torque Constant | 0.45 Nm/A |
| Stall Torque | 60.07 Nm |
| Stall Current | 57.75 A |
| Phase Inductance | 70 μH |
| Phase Resistance | 0.121 Ω |
| Rated Speed | 100 RPM |
| Max Speed | 172.9 RPM |
| Encoder Resolution | 14 bits |
| Number of Encoders | 2 |
| Encoder Type | Magnetic (Single-turn, absolute position per output shaft revolution) |
| Communication Interface | CAN 1 Mbps |
