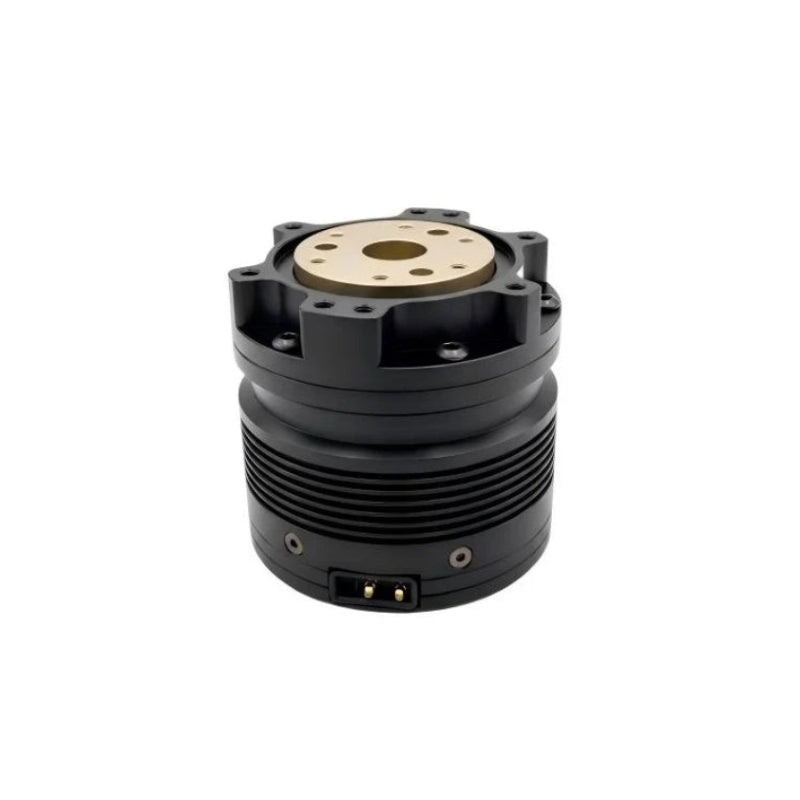

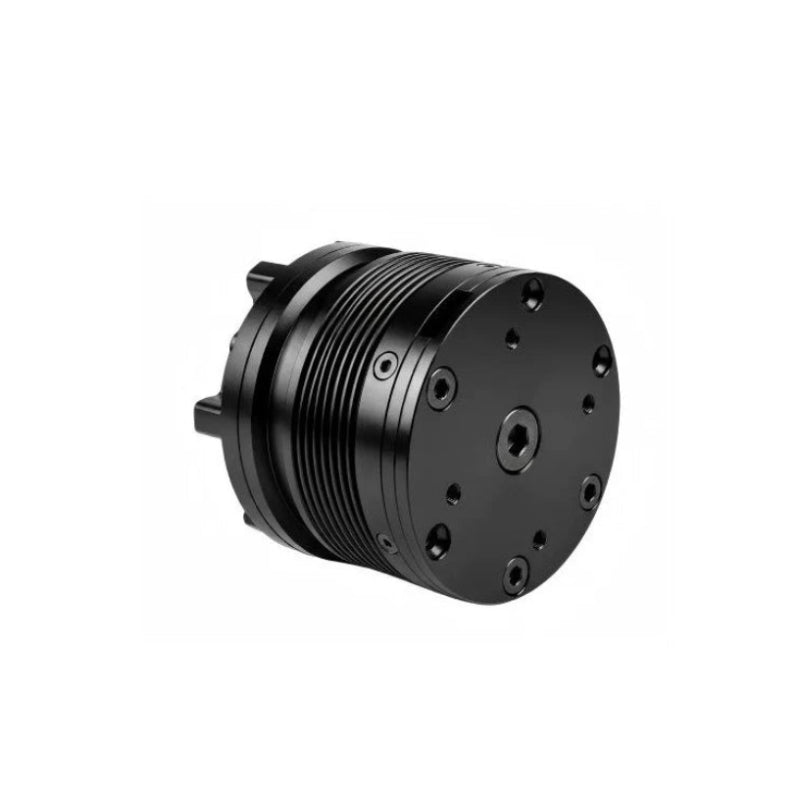

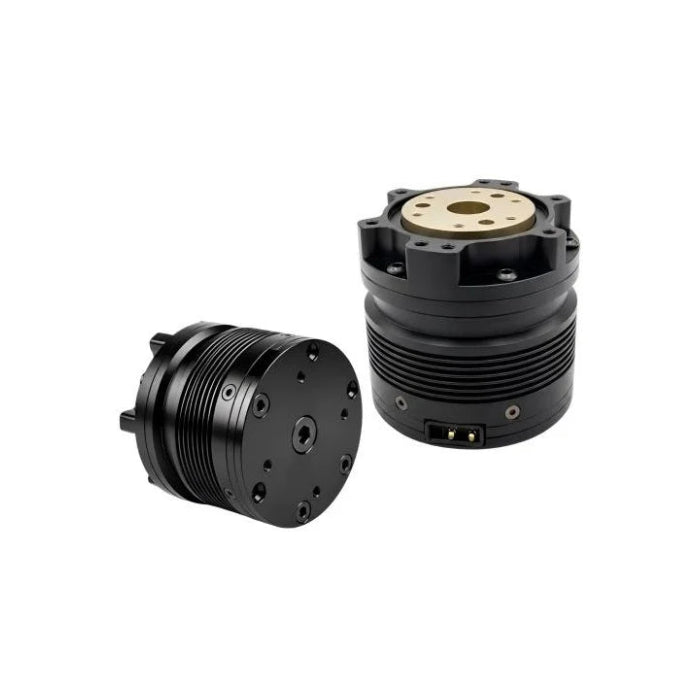

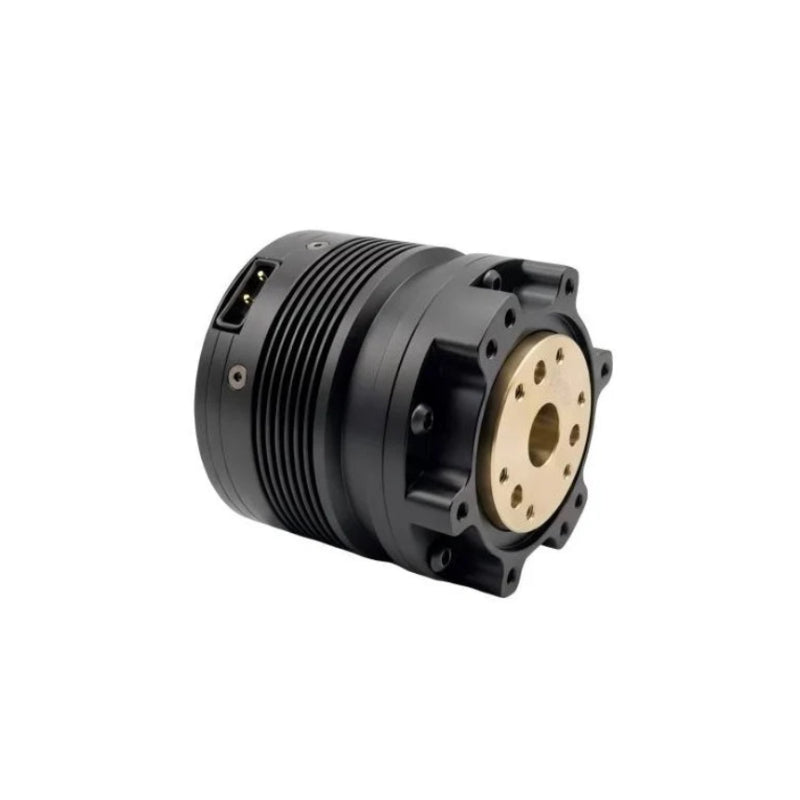

SteadyWin TT4510-36 Motor
Product description
SteadyWin TT4510-36 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | TT4510-36 |
| Rated Voltage | 24 VDC |
| Rated Current | 4.8 A |
| Number of Pole Pairs | 14 |
| Weight | 0.4 kg |
| Torque Constant | 0.864 Nm/A |
| Stall Torque | 39.73 Nm |
| Stall Current | 23.62 A |
| Rated Torque | 9.9 Nm |
| Phase Inductance | 185 μH |
| Phase Resistance | 0.6 Ω |
| Rated Speed | 74 RPM |
| Max Speed | 89.2 RPM |
| Encoder Resolution | 14 bits |
| Number of Encoders | 2 |
| Encoder Type | Magnetic (single-turn, absolute per revolution) |
| Torque | 9.9 Nm / 8.4 Nm / 6.7 Nm |
| Time | 5 min / 20 min / Thermal equilibrium |
| Speed | 74 RPM / 79 RPM / 82 RPM |
| Current | 4.8 A / 3.8 A / 3.1 A |
