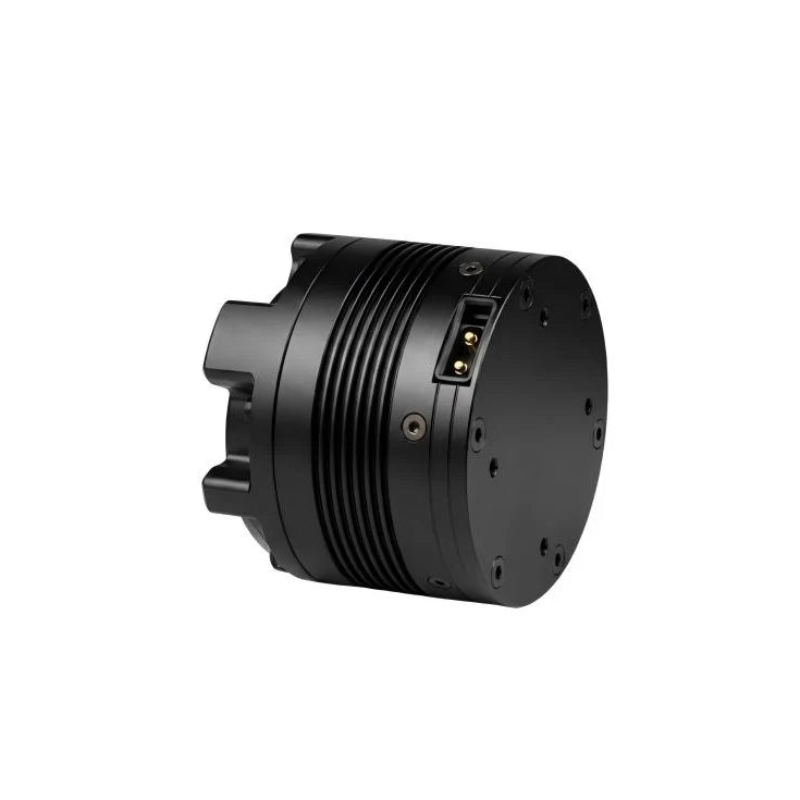

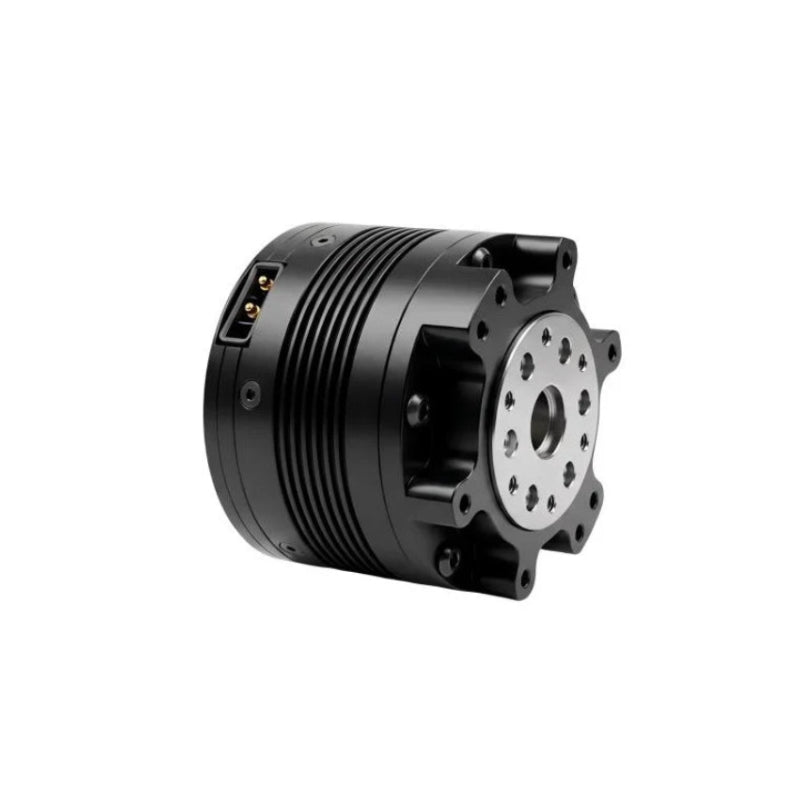

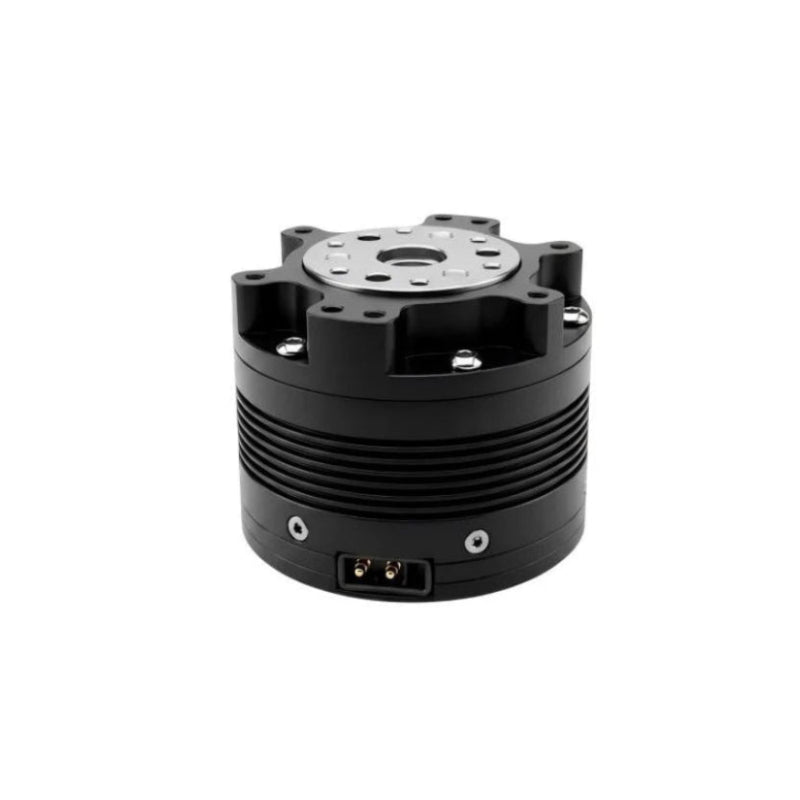

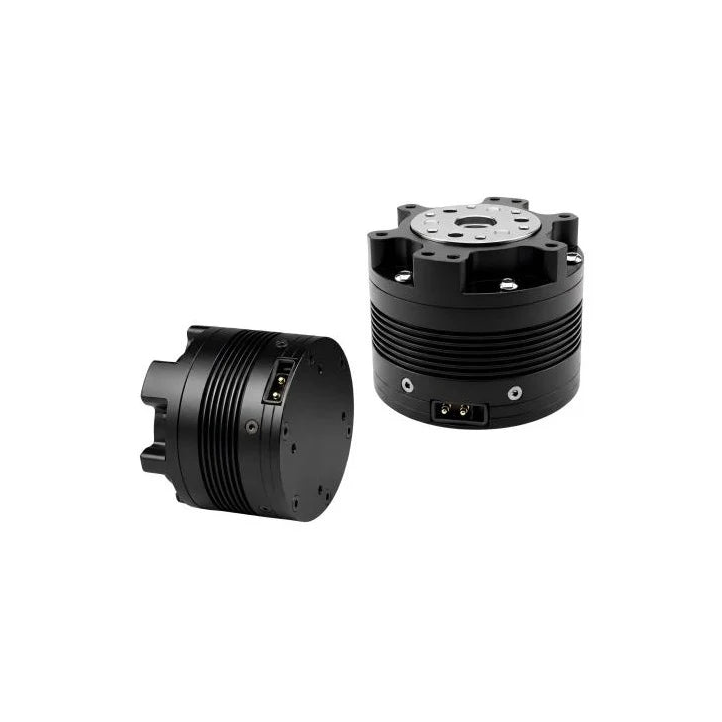

SteadyWin TT4510-10 Motor
Product description
SteadyWin TT4510-10 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | TT4510-10 |
| Rated Voltage | 24 VDC |
| Rated Current | 4.7 A |
| Number of Pole Pairs | 14 |
| Weight | 0.3 kg |
| Torque Constant | 0.24 Nm/A |
| Stall Torque | 11.95 Nm |
| Stall Current | 30.05 A |
| Rated Torque | 2.9 Nm |
| Phase Inductance | 185 μH |
| Phase Resistance | 0.6 Ω |
| Rated Speed | 280 RPM |
| Max Speed | 307.8 RPM |
| Encoder Resolution | 14 bits |
| Number of Encoders | 2 |
| Encoder Type | Magnetic (single-turn, absolute per revolution) |
| Torque | 2.90 Nm / 2.35 Nm / 1.84 Nm |
| Time | 5 min / 20 min / Thermal equilibrium |
| Speed | 280 RPM / 290 RPM / 301 RPM |
| Current | 4.7 A / 3.8 A / 3.1 A |
