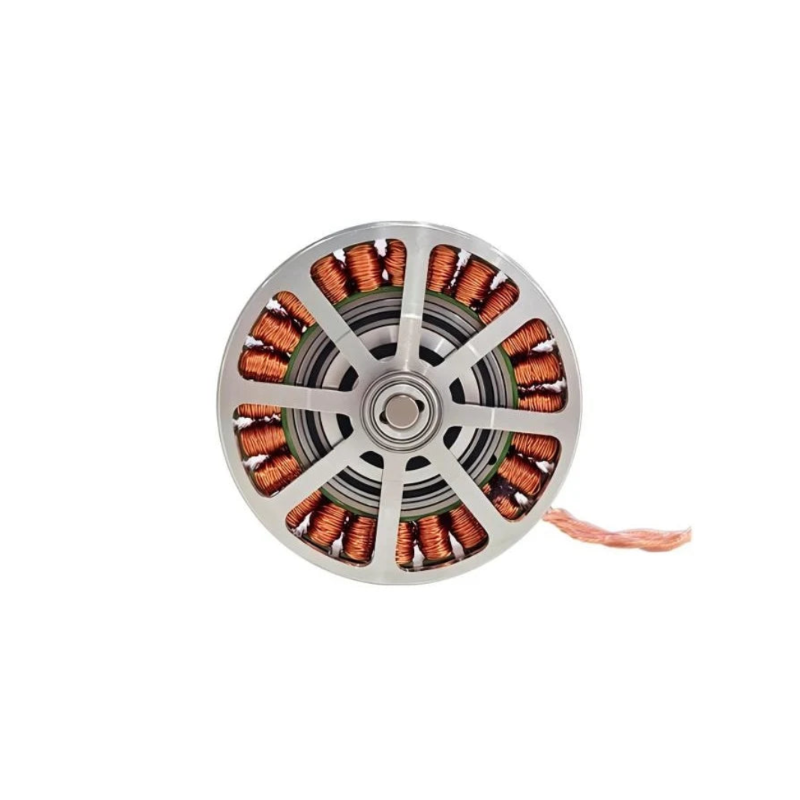

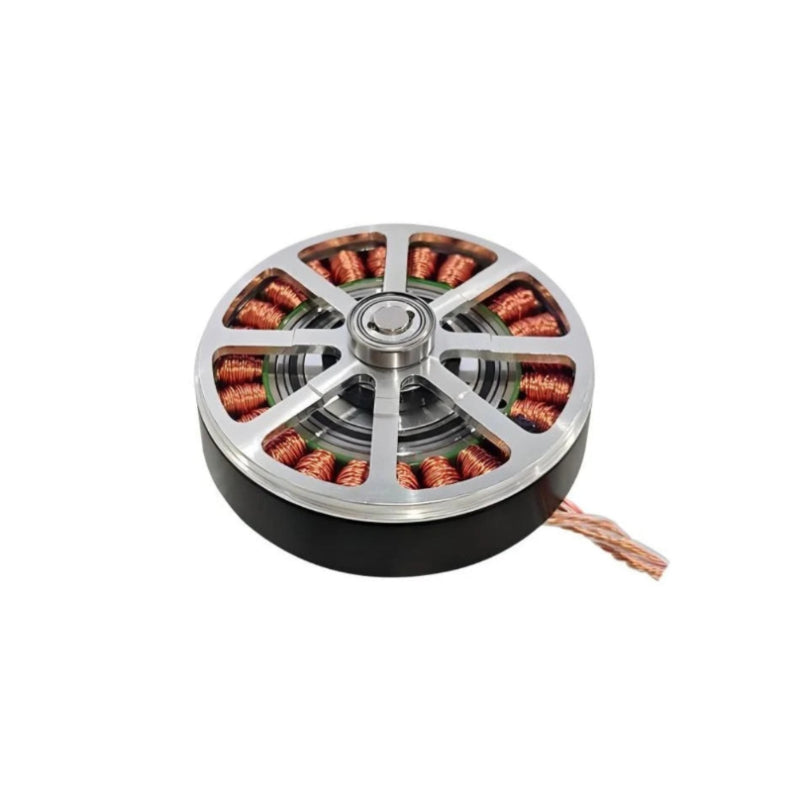

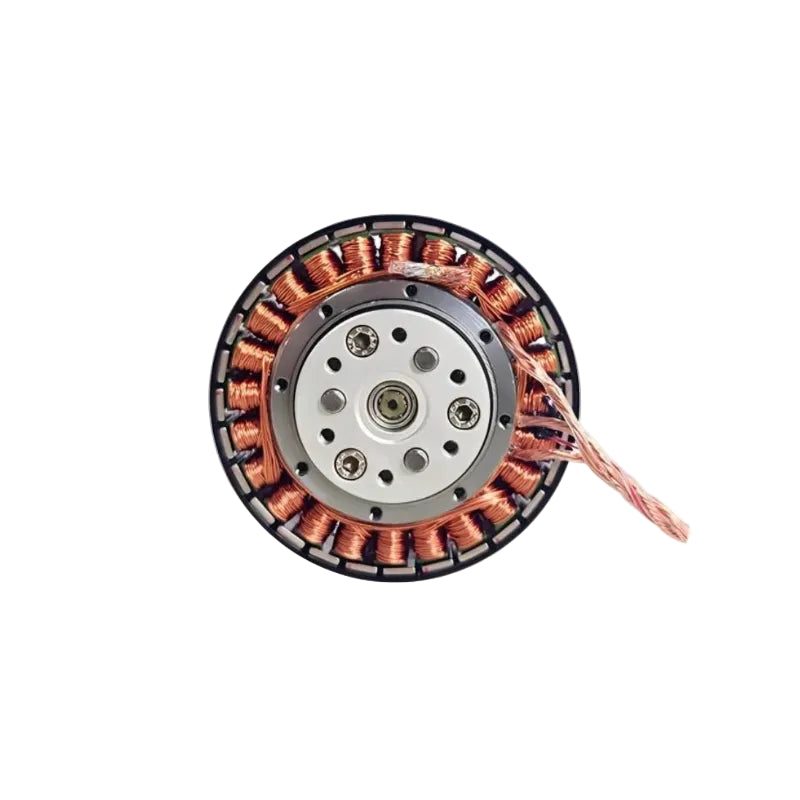

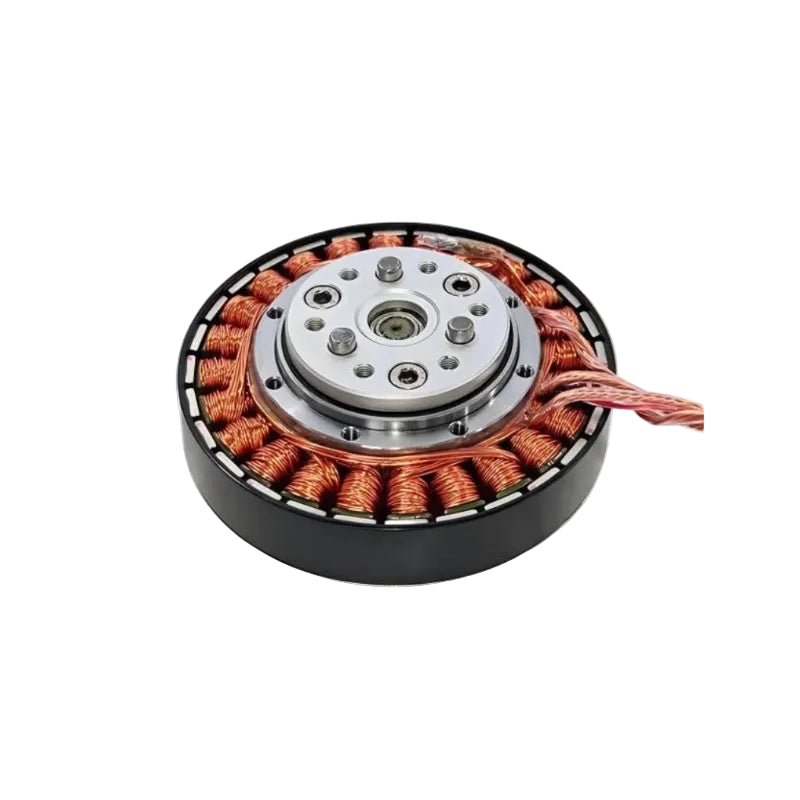

SteadyWin GWK6010-8 Motor
Product description
SteadyWin GWK6010-8 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Winding Type | Y |
| Testing Voltage | 24V |
| Rated Power | 295W |
| Nominal Torque | 5.68N.M |
| Stall Torque | 16.89N.M |
| Nominal Speed after Reducer | 383RPM |
| Max Speed after Reducer | 520RPM |
| Nominal Current | 12.3A |
| Stall Current | >30A |
| Phase to Phase Resistance | 0.85Ω |
| Phase to Phase Inductance | 0.04mH |
| Speed Constant | 21.67rpm/v |
| Torque Constant | 0.39N.M/A |
| Number of pole pairs | 14Pairs |
| Gear Rate | 1:8 |
| Gear Type | Planetary |
| Reducer Gear Material | STEEL |
| Reducer Gear Backlash | 15arcmin |
| Motor Weight without Driver | 260.5g |
| Size without Driver | Ø67.5*30.5mm |
| Max Axial Load | 225N |
| Max Radial Load | 900N |
| Protection Grade | IP54 |
| Working Temperature | -20~65℃ |
