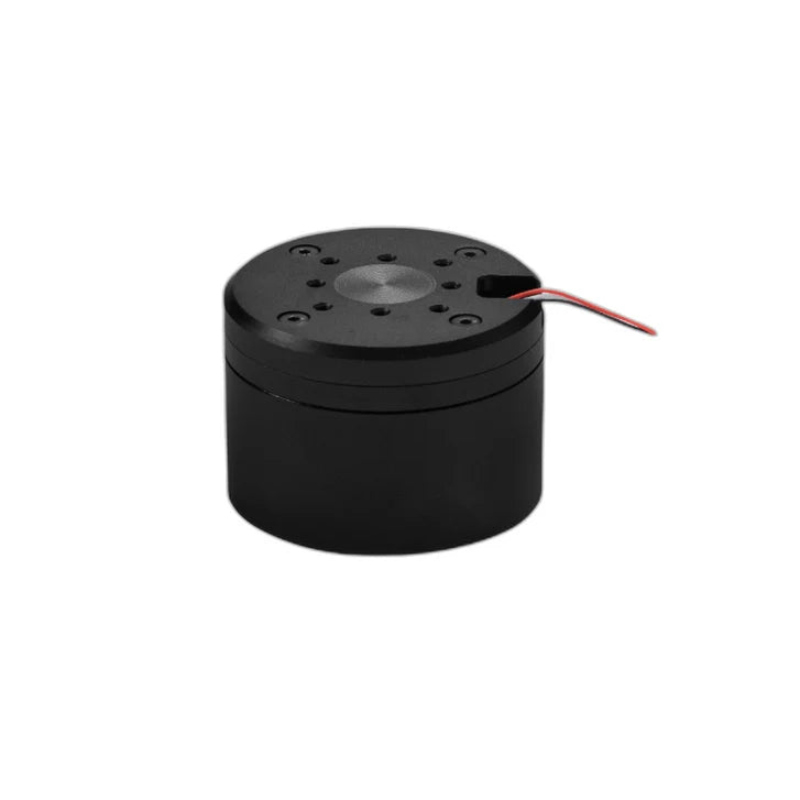

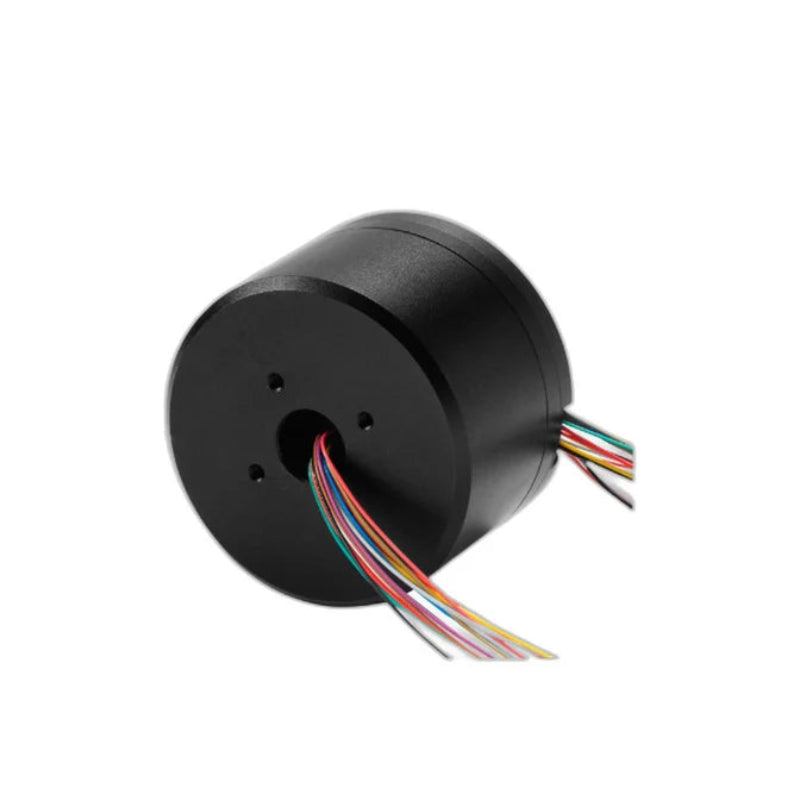

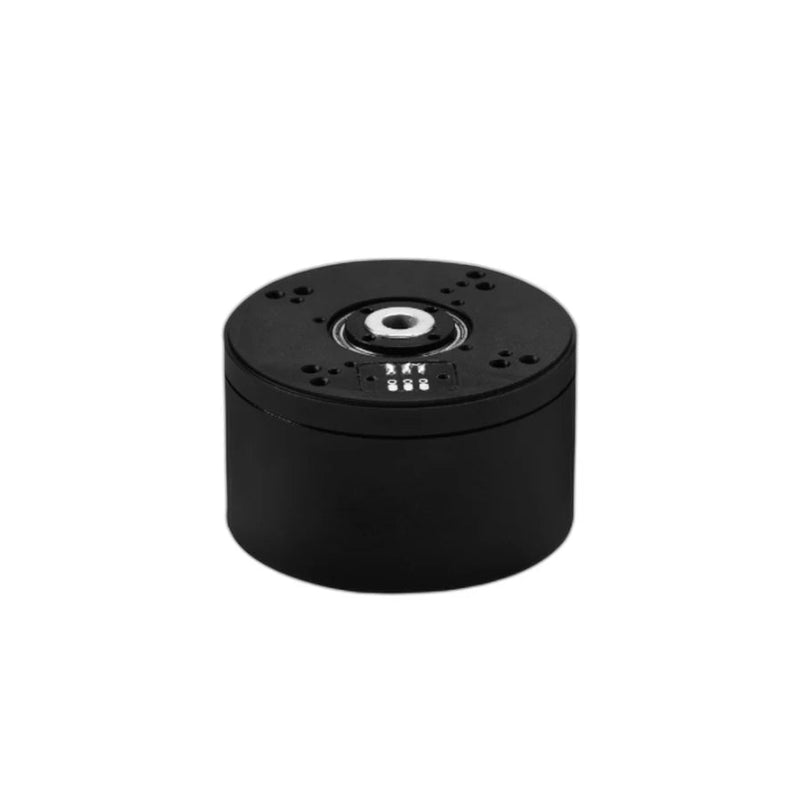

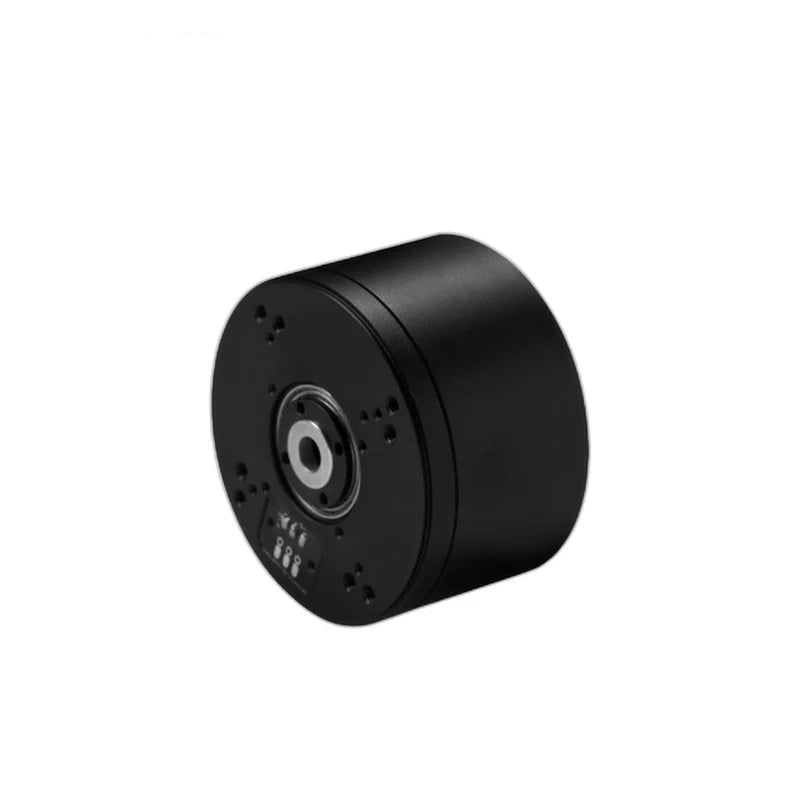

SteadyWin GB5225 Motor
Product description
SteadyWin GB5225 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | GB5225 |
| Nominal Voltage | 24V |
| Nominal Torque | 1.26N·m |
| Nominal Speed | 221RPM |
| Max Speed | 612RPM |
| Nominal Current | 1.28A |
| Stall torque | 1.9N·m |
| Stall current | 1.94A |
| Winding turns of motor | 50T |
| Phase resistance | 11.8Ω |
| Phase inductance | 11.31mH |
| Speed constant | 14rpm/v |
| Torque constant | 0.98N.M/A |
| Rotor inertia | 933gcm^2 |
| Number of pole pairs | 11Pairs |
| Motor weight without encoder | 372g |
| Motor weight with encoder | 396g |
| Max demagnetize temperature | 120℃ |
| Working Temperature | 20~80℃ |
| Encoder type | AS5048A/AS5600 |
