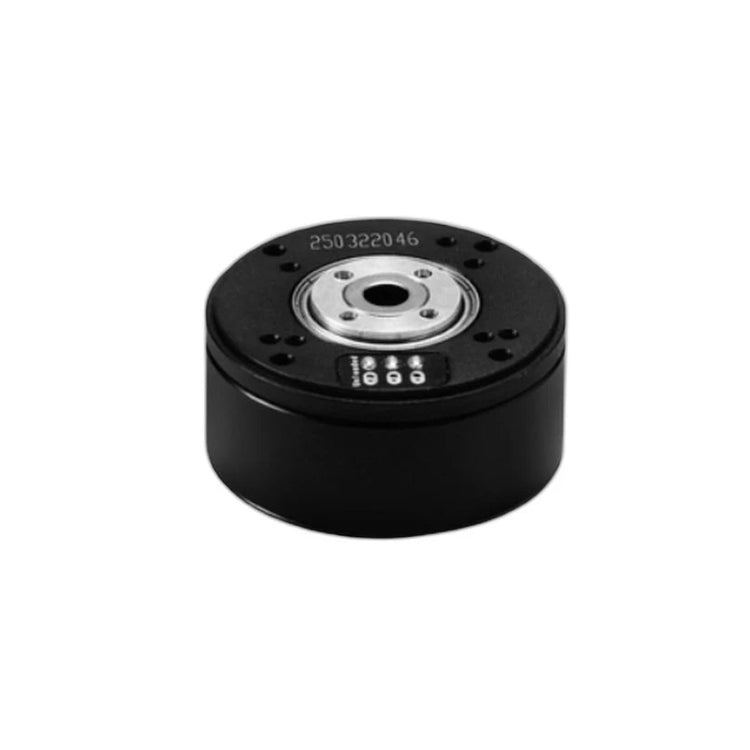

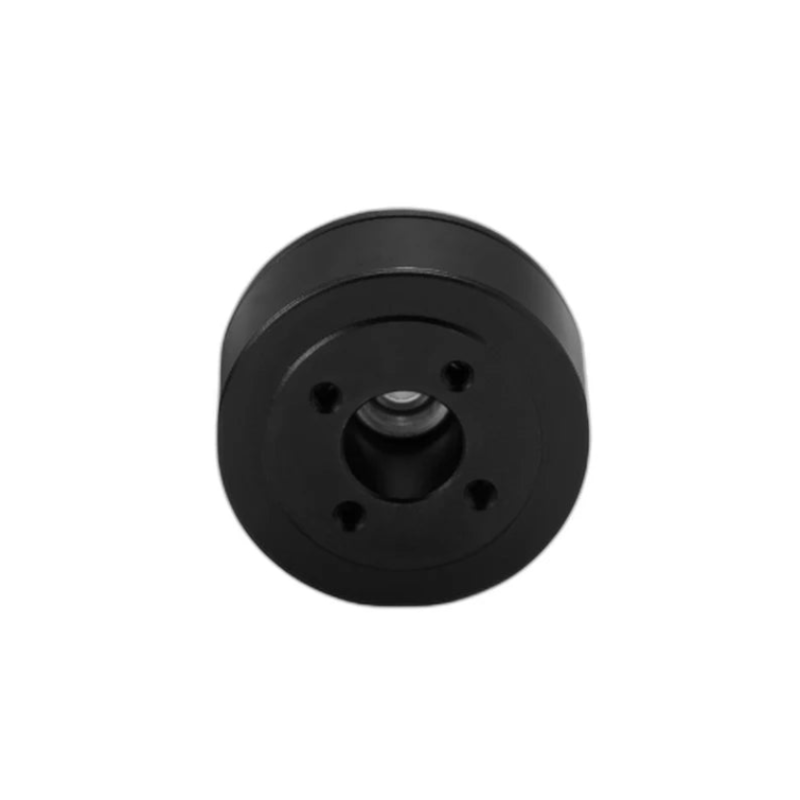

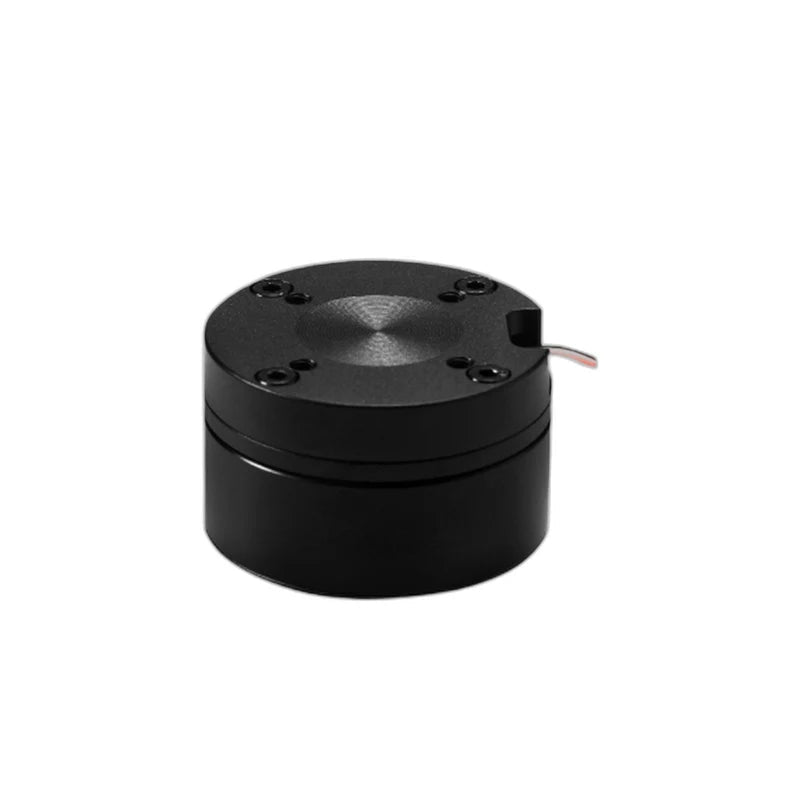

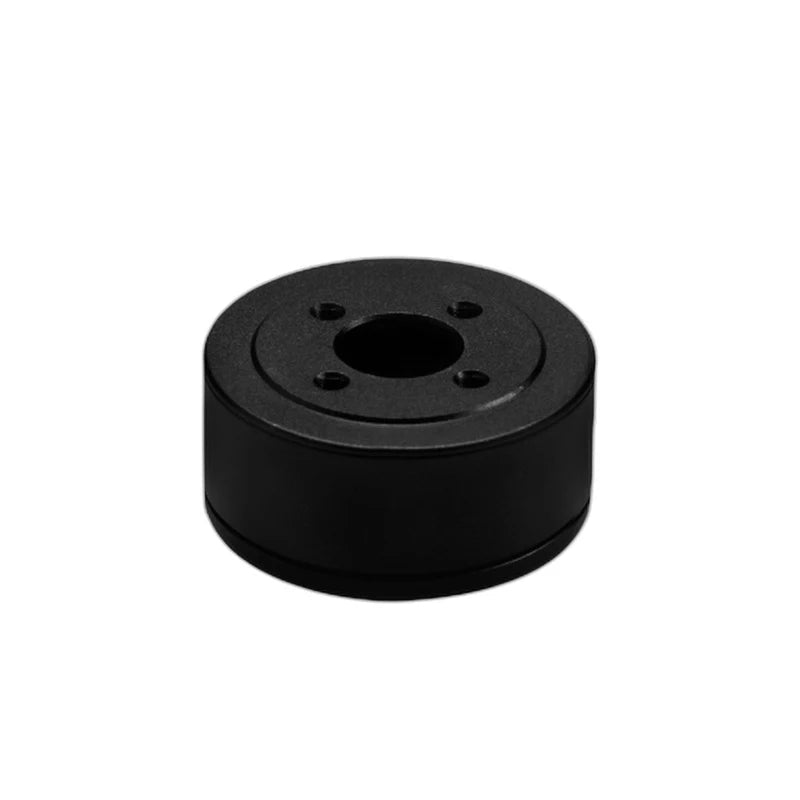

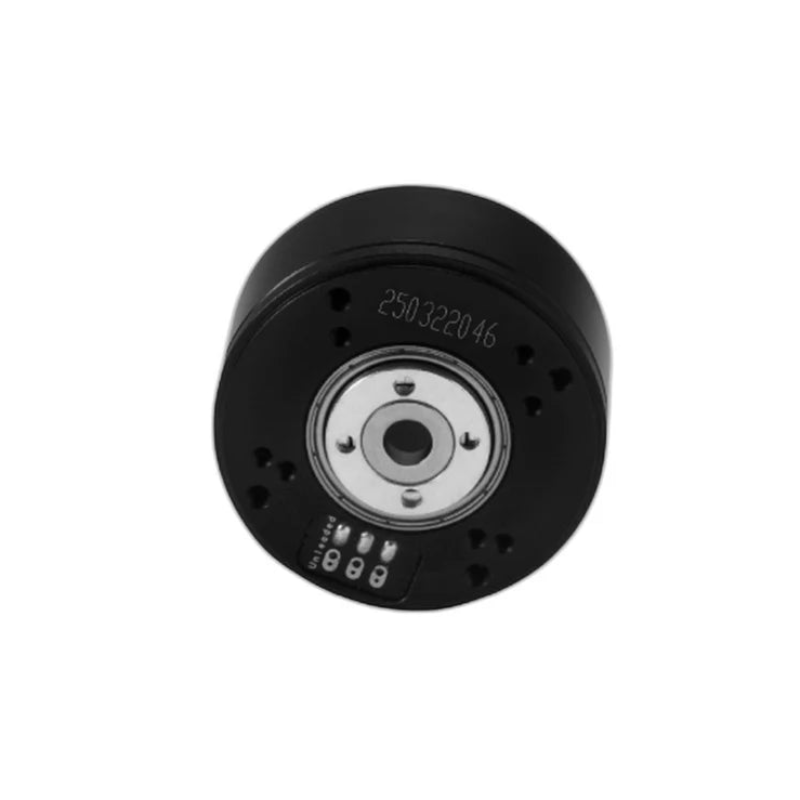

SteadyWin GB3510 Motor
Product description
SteadyWin GB3510 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | GB3510 |
| Nominal Voltage | 12V |
| Nominal Torque | 0.11N·m |
| Nominal Speed | 363RPM |
| Max Speed | 965RPM |
| Nominal Current | 0.53A |
| Stall torque | 0.16N·m |
| Stall current | 0.8A |
| Phase resistance | 8.8Ω |
| Winding turns of motor | 40T |
| Phase inductance | 3.95mH |
| Speed constant | 45rpm/v |
| Torque constant | 0.2N.M/A |
| Rotor inertia | 81gcm^2 |
| Number of pole pairs | 11Pairs |
| Motor weight without encoder | 76g |
| Motor weight with encoder | 89g |
| Working Temperature | 20~80℃ |
| Max demagnetize temperature | 120℃ |
| Encoder type | AS5048A/AS5600 |
