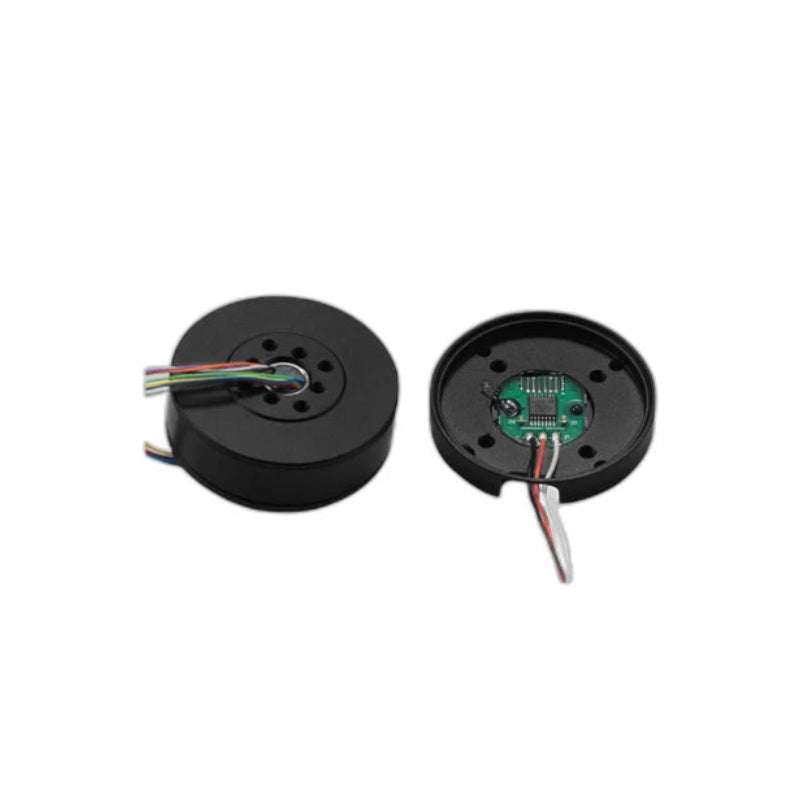

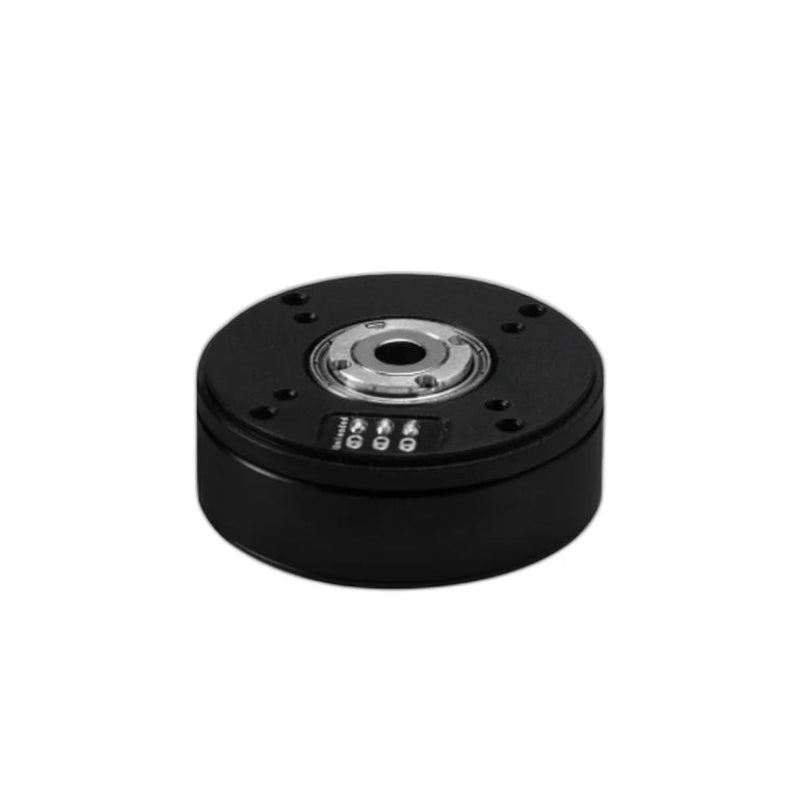

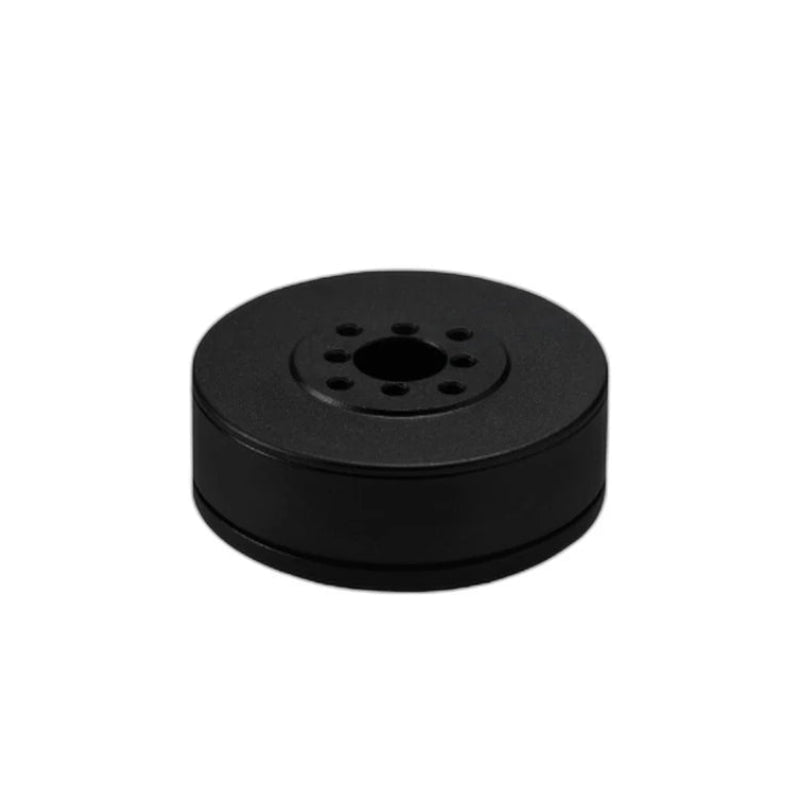

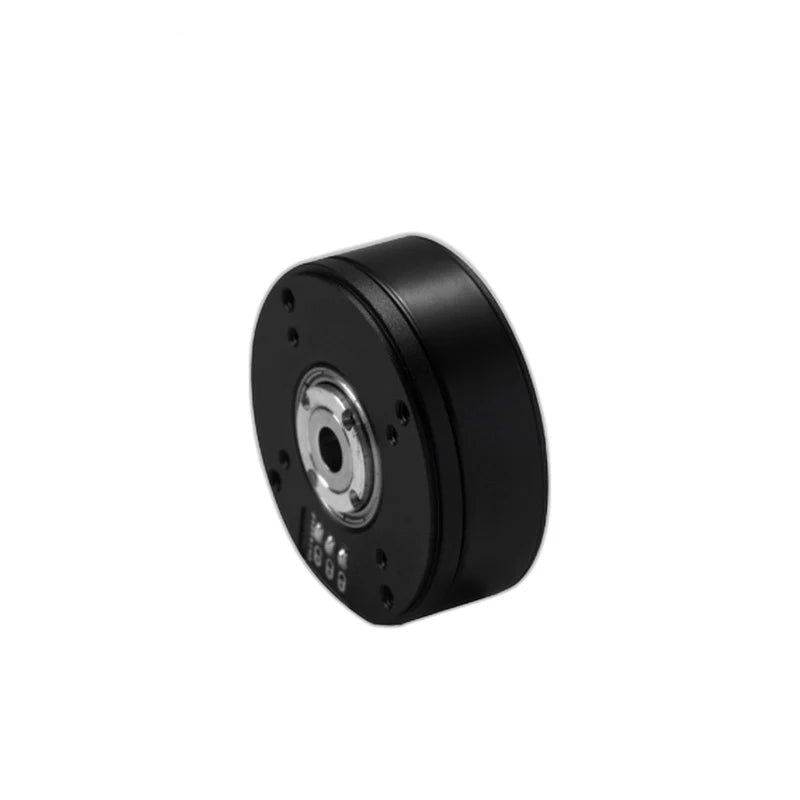

SteadyWin GB3506 Motor
Product description
SteadyWin GB3506 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | GB3506 |
| Nominal Voltage | 12V |
| Nominal Torque | 0.09N·m |
| Nominal Speed | 467RPM |
| Max Speed | 1610RPM |
| Nominal Current | 1.1A |
| Stall torque | 0.15N·m |
| Stall current | 1.9A |
| Winding turns of motor | 40T |
| Phase resistance | 6.34Ω |
| Phase inductance | 1.08mH |
| Speed constant | 117rpm/v |
| Torque constant | 0.08N.M/A |
| Rotor inertia | 56gcm^2 |
| Number of pole pairs | 11Pairs |
| Motor weight without encoder | 58g |
| Motor weight with encoder | 71g |
| Max demagnetize temperature | 120℃ |
| Working Temperature | 20~80℃ |
| Encoder type | AS5048A/AS5600 |
