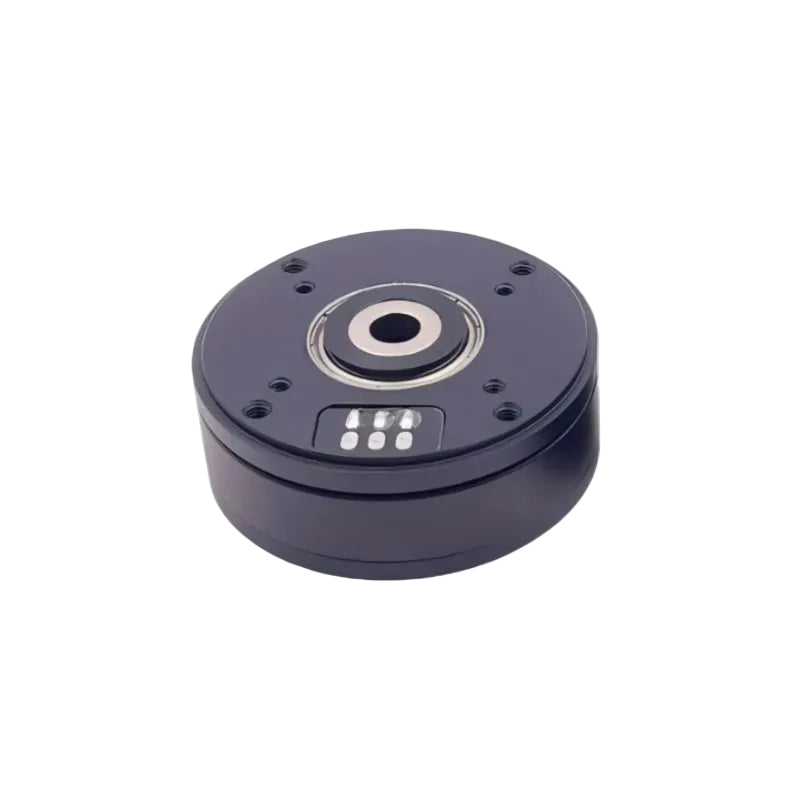

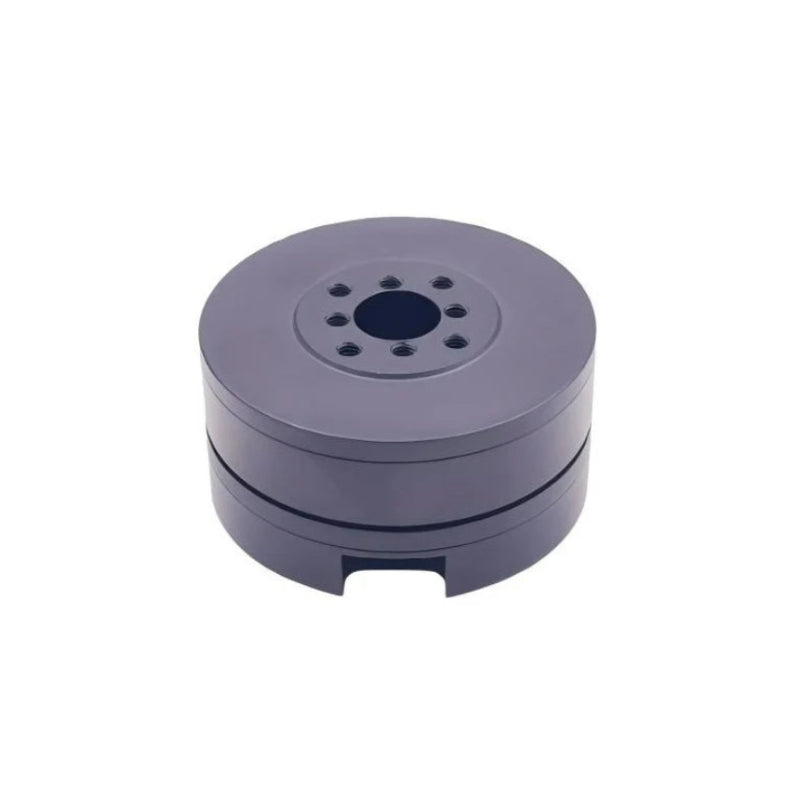

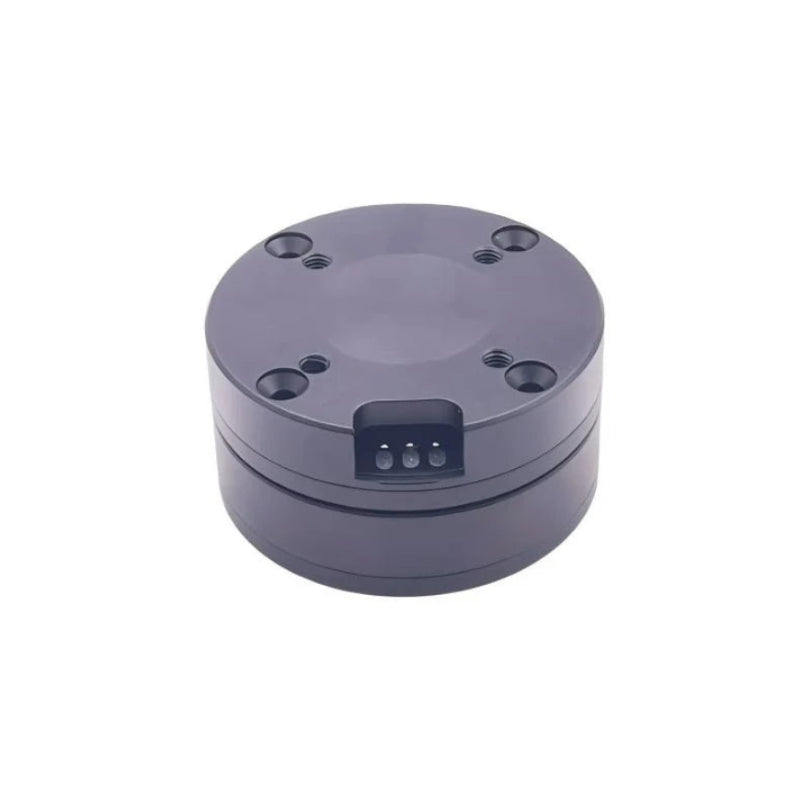

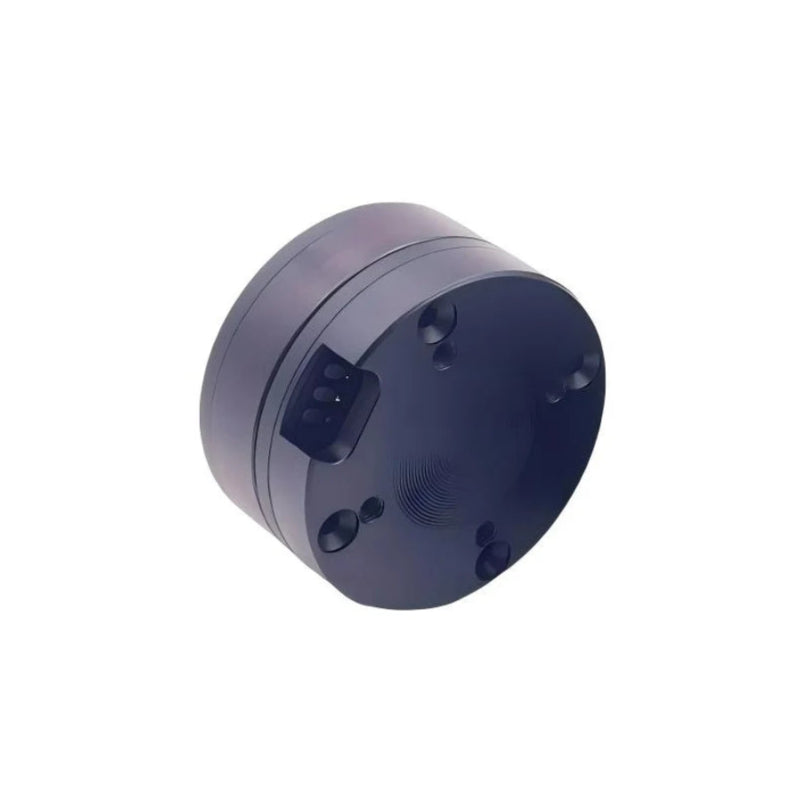

SteadyWin GB3505 Motor
Product description
SteadyWin GB3505 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Nominal voltage | 12 V |
| Nominal current | 1.1 A |
| Nominal torque | 0.09 N.M |
| Nominal speed | 467 rpm |
| Max speed | 1610 rpm |
| Stall torque | 0.15 N.M |
| Stall current | 1.9 A |
| Winding turns of motor | 40 T |
| Phase resistance | 6.34 Ω |
| Phase inductance | 1.08 mH |
| Speed constant | 117 rpm/v |
| Torque constant | 0.08 N.M/A |
| Rotor inertia | 56 gcm^2 |
| Number of pole pairs | 11 Pairs |
| Motor weight without encoder | 58 g |
| Motor weight with encoder | 71 g |
| Working temperature | 20~80 °C |
| Max demagnetize temperature | 120 °C |

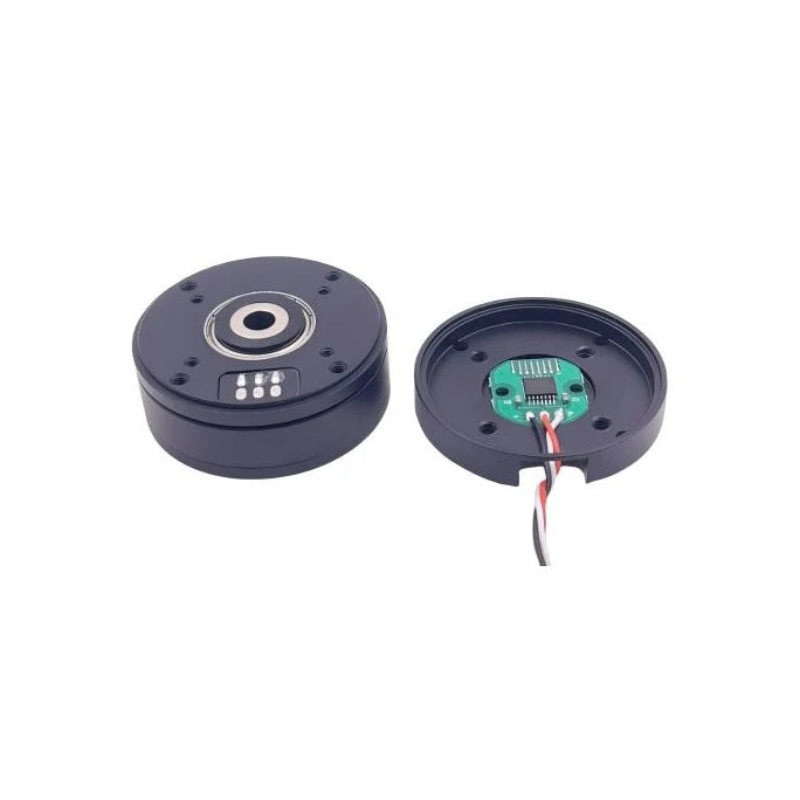

| Encoder type | AS5048A/AS5600 |
