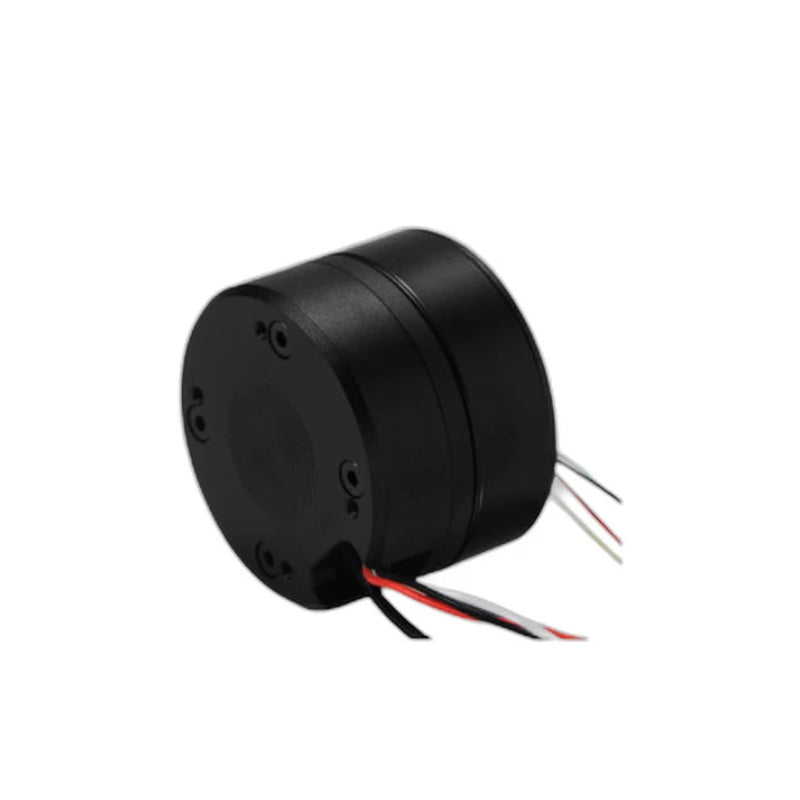

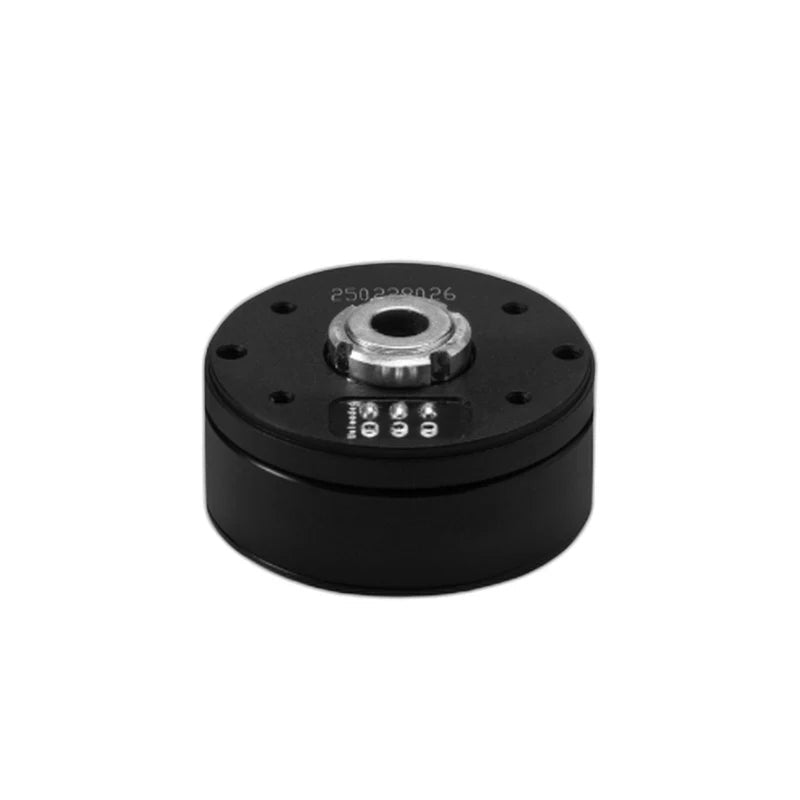

SteadyWin GB2806 Motor
Product description
SteadyWin GB2806 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | GB2806 |
| Nominal Voltage | 12V |
| Nominal Torque | 0.06N·m |
| Nominal Speed | 950RPM |
| Max Speed | 2335RPM |
| Nominal Current | 0.81A |
| Stall torque | 0.09N·m |
| Stall current | 1.22A |
| Winding turns of motor | 60T |
| Phase resistance | 5Ω |
| Phase inductance | 1.51mH |
| Speed constant | 121rpm/v |
| Torque constant | 0.07N.M/A |
| Rotor inertia | 51gcm^2 |
| Number of pole pairs | 7Pairs |
| Motor weight without encoder | 45g |
| Motor weight with encoder | 55g |
| Max demagnetize temperature | 120℃ |
| Working Temperature | 20~80℃ |
| Encoder type | AS5048A/AS5600 |
