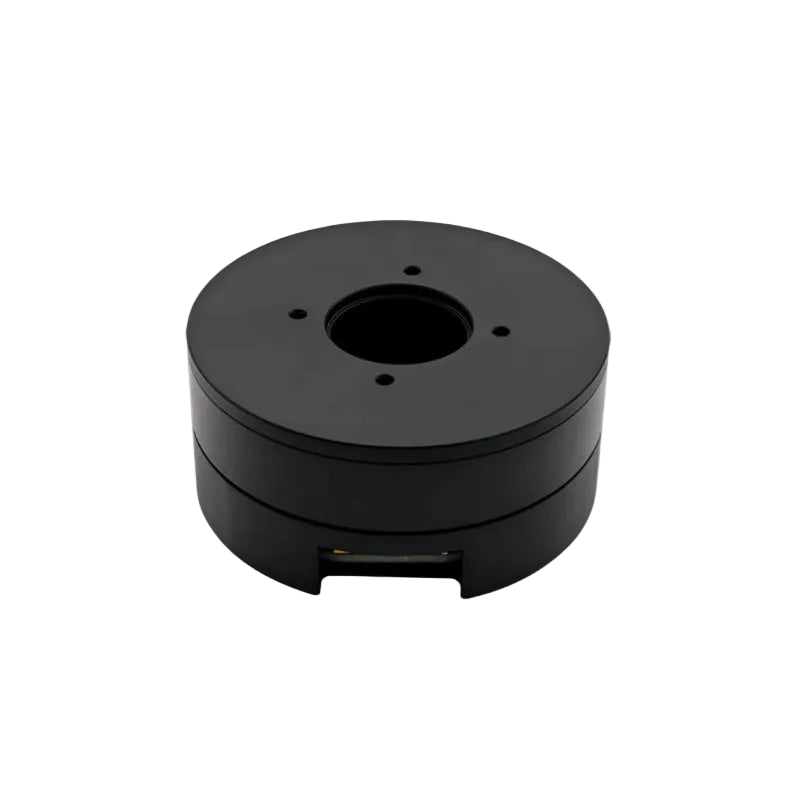

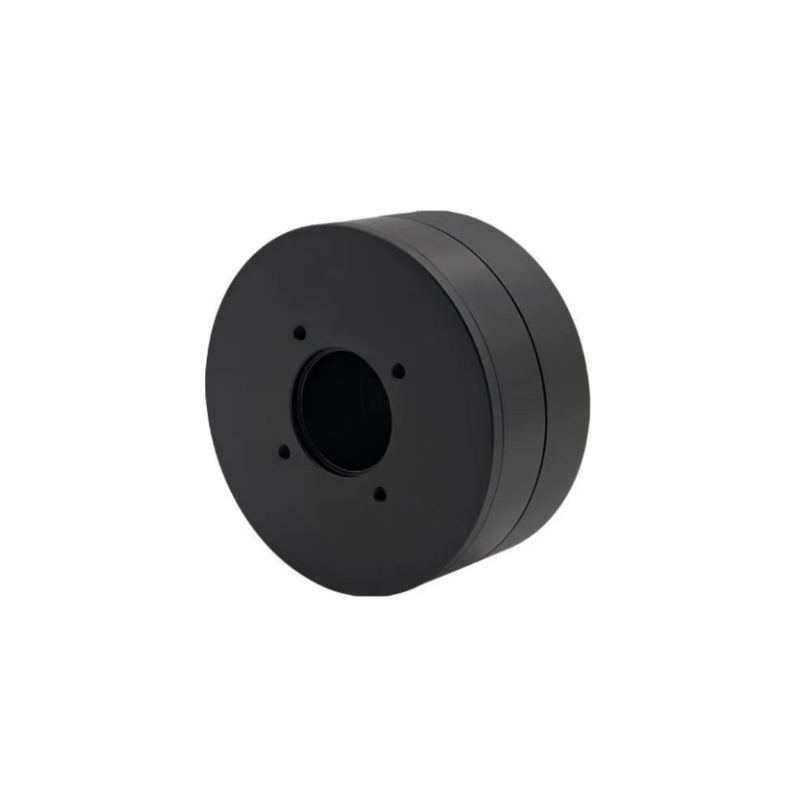

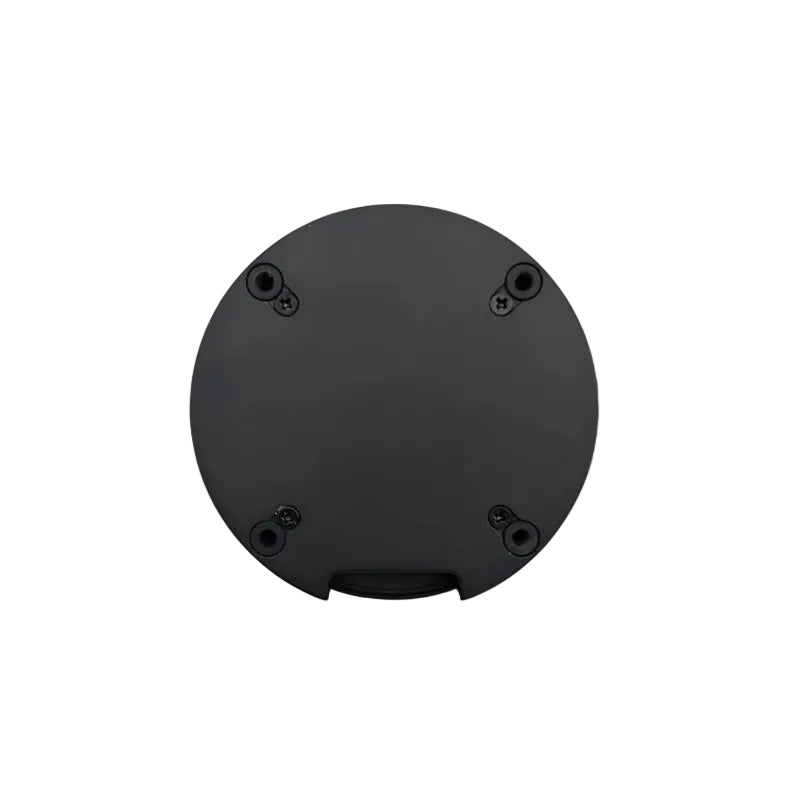

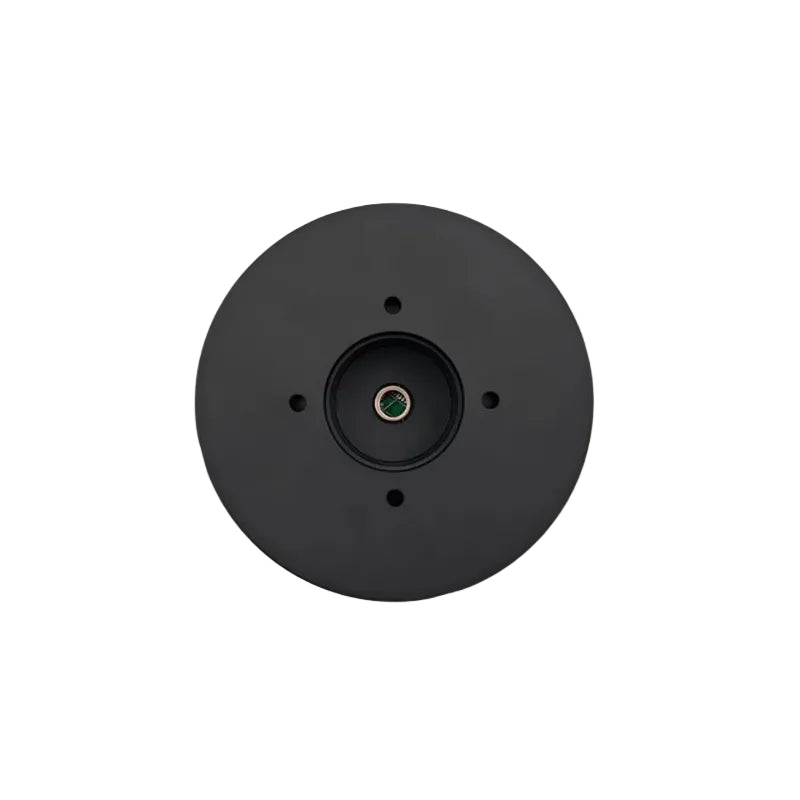

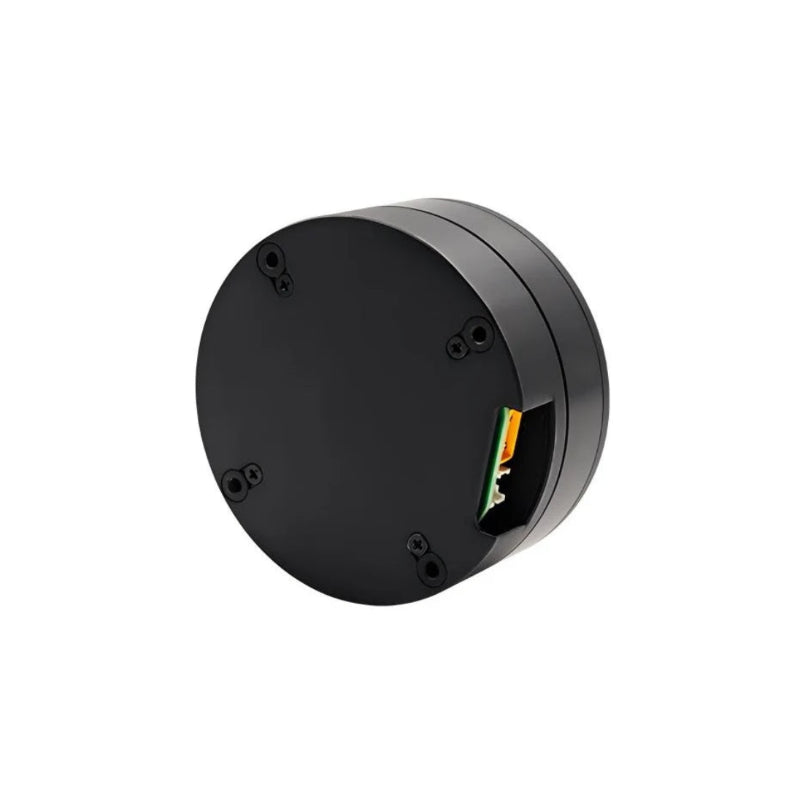

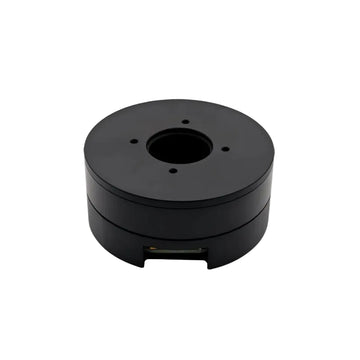

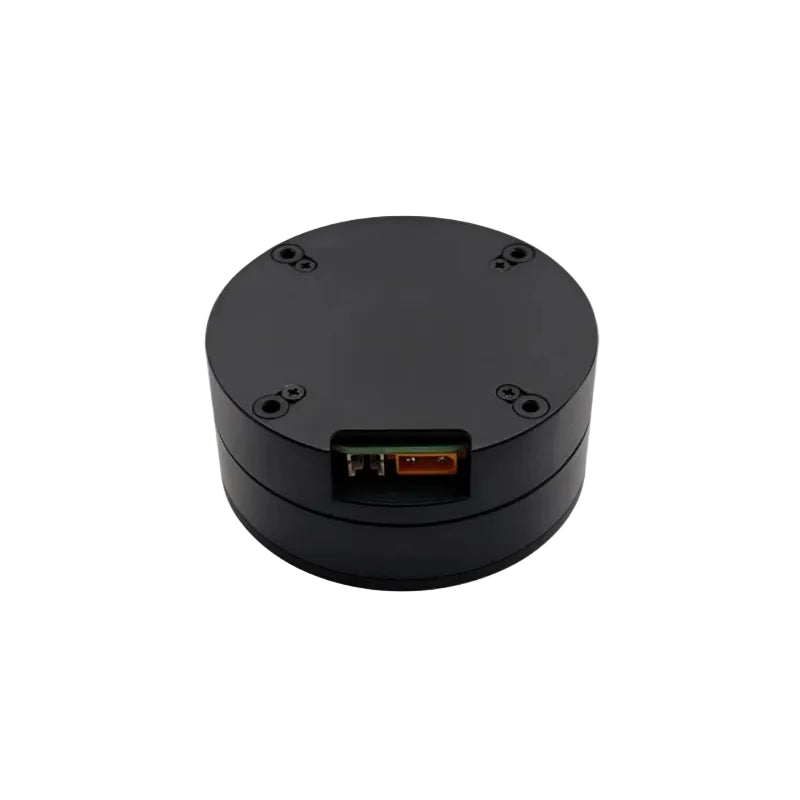

SteadyWin DD7010 Motor
Regular price
$123.00
Sale price
$123.00
Regular price
Unit price
SteadyWin DD7010 Motor
Product description
SteadyWin DD7010 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value(DD7010-2) | Value(DD7010-11) |
|---|---|---|
| Nominal voltage | 24V | 36V |
| Voltage range | 12~40V | 12~40V |
| Nominal current | 3.1A | 1.3A |
| Nominal power | 74.4W | 46.8W |
| Nominal torque | 0.8N.M | 0.8N.M |
| Nominal speed | 618rpm | 294rpm |
| No-load max speed | 924rpm | 564rpm |
| Peak torque | 1.93N.m | 1.59N.m |
| Peak current | 16A | 2.7A |
| Speed constant | 38.5rpm/v | 15.5rpm/v |
| Torque constant | 0.22N.M/A | 0.61N.M/A |
| Number of pole pairs | 14Pairs | 14Pairs |
| Phase resistance | 0.83Ω | 5.29Ω |
| Phase inductance | 0.68mH | 3.68mH |
| Rotor inertial | 672gcm^2 | 672gcm^2 |
| Communication | RS485 & CAN | RS485 & CAN |
| Encoder type | Single-turn absolute | Single-turn absolute |
| Resolution | 14bit | 14bit |
| Motor weight | 261g | 261g |
| Working temperature | -20~80℃ | -20~80℃ |
