Vbot Super Robot Dog
Regular price
$3,299.00
Sale price
$3,299.00
Regular price
Unit price

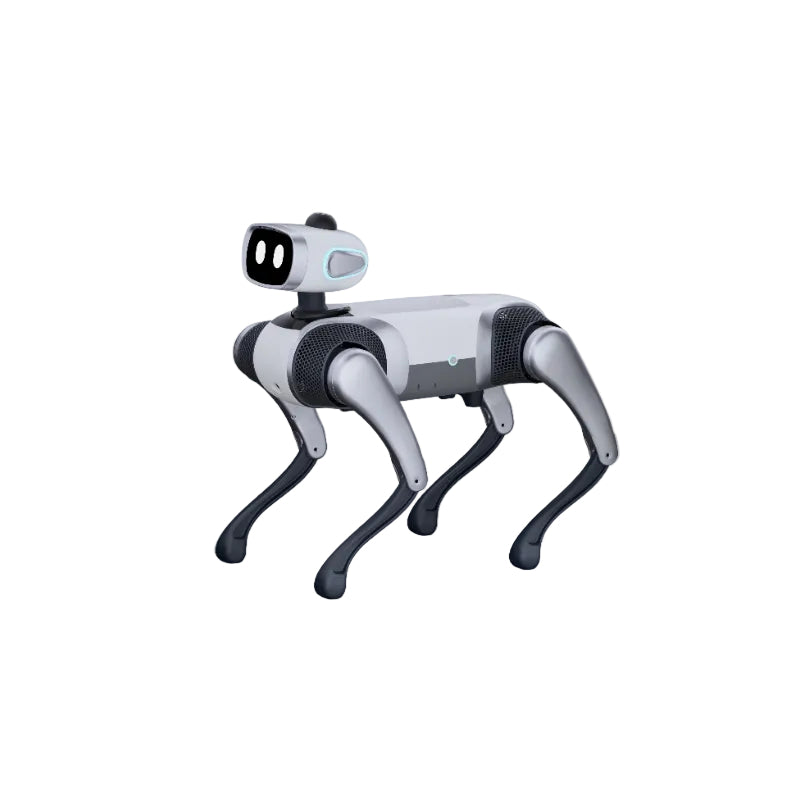

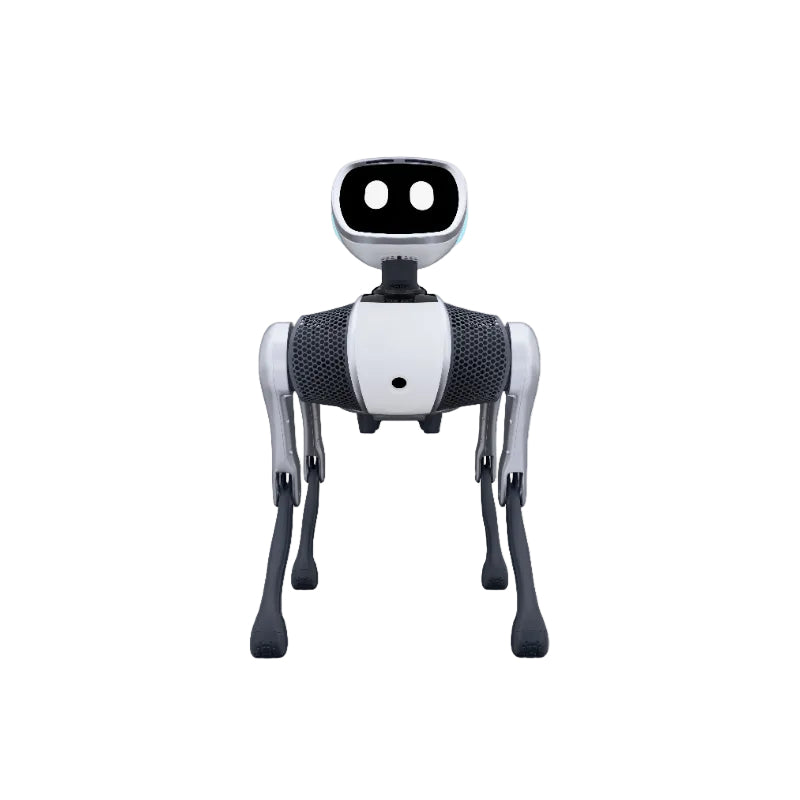

Vbot Super Robot Dog
Product description
Vbot Super Robot Dog Specifications
| PRODUCT PARAMETERS | |
| Basic parameters | |
| Standing size | 613 mm long, 339 mm wide, 569 mm high |
| Size lying down | 676 mm long, 350 mm wide, 343 mm high |
| Minimum floor space | 524mm long, 339mm wide, 343mm high |
| Overall machine weight | About 16kg |
| Number of joints | 14 |
| Standby time | Up to 7.5 hours |
| Low power mode standby | Up to 17 hours |
| Mobile battery life | About 3-5 hours |
| Charging time | 240W Type-C ultra-fast charging 2.7 hours 140W Type-C fast charging for 5 hours |
| communication | Cellular Network&Bluetooth&WiFi |
| Appearance | |
| Interactive expression screen | |
| Interactive ear lamp | |

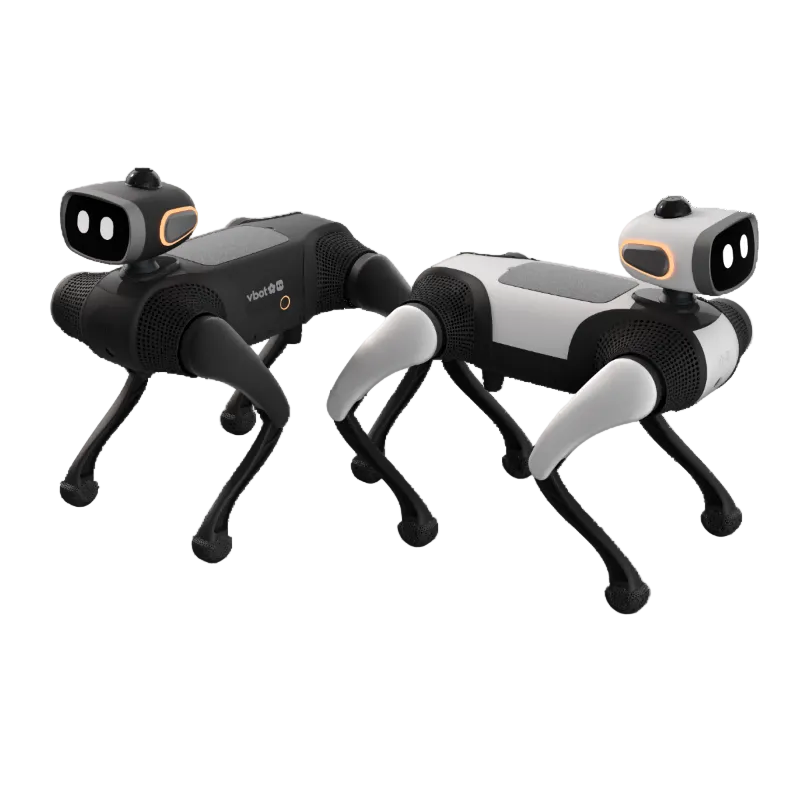

| color | white/black |
| Intelligent system | |
| AI computing power | 128TOPS |
| sensing camera | Depth binocular camera |
| lidar | 360-degree 16-line lidar |
| microphone | Quad array spatial microphone |
| Ultra-wideband communications | 360° high-precision UWB |
| Smart mobility | space base model |
| Intelligent pathfinding | |
| Smart follow | |
| Intelligent voice interaction | |
| large language model | |
| VLA visual behavior large model | |
| Remote guarding | |
| Video loop recording | |
| Power system | |
| Voltage platform | 48 volts |
| Battery capacity | 594 watt hours |
| Charging power | Up to 240 watts |
| Charging method | 140W Type-C fast charging (standard) 240W Type-C ultra-fast charging (optional) |
| Home wireless charging station | O(optional) |
| Motor maximum torque | 24.5 Nm |
| Movement speed | 4 kilometers per hour (OTA gradually improves) |
| Exercise weight bearing | 5kg |
| Maximum load | 12kg |
| Steady state drag | 50kg |
| Extreme drag | 100kg |
| External configuration | |
| Night light | |
| Foot end | 3D printed silent feet |
| Expand backplane | O(optional) |
| Anti-pinch joints | Fully covered with liquid silicone |
| Anti-pinch for big and small legs | 25mm safety limit |
Vbot Super Robot Dog — Edu Version Specifications
| PRODUCT PARAMETERS | |
| Basic Parameters | |
| Standing Dimensions | L 613 mm × W 339 mm × H 569 mm |
| Crouching Dimensions | L 676 mm × W 350 mm × H 343 mm |
| Minimum Footprint | L 524 mm × W 339 mm × H 343 mm |
| Overall Weight | Approx. 16 kg |
| Number of Joints | 14 |
| Standby Duration | Up to 7.5 hours |
| Low-Power Standby | Up to 17 hours |
| Mobile Endurance | Approx. 3–5 hours |
| Charging Time | 240 W Type-C Ultra-Fast Charge: 2.7 hours |
| Communication | Cellular Network & Bluetooth & Wi-Fi |
| Appearance | |
| Interactive Expression Display | ● |
| Interactive Ear Lights | ● |
| Color Options | White / Black |
| Intelligent System | |
| AI Computing Power | 128 TOPS |
| Perception Cameras | Depth Stereo Cameras |
| LiDAR | 360° 16-line LiDAR |
| Microphones | 4-array Spatial Microphones |
| Ultra-Wideband (UWB) | 360° High-Precision UWB |
| Intelligent Mobility | Spatial Foundation Model |
| Intelligent Pathfinding | ● |
| Intelligent Following | ● |
| Intelligent Voice Interaction | ● |
| Large Language Model (LLM) | ● |
| VLA Vision-Language-Action Model | ● |
| Remote Guarding | ● |
| Loop Video Recording | ● |
| Power System | |
| Voltage Platform | 48 V |
| Battery Capacity | 594 Wh |
| Charging Power | Up to 240 W |
| Charging Method | 240 W Type-C Ultra-Fast Charge (Standard) |
| Home Wireless Charging Station | Optional |
| Max Motor Torque | 24.5 N·m |
