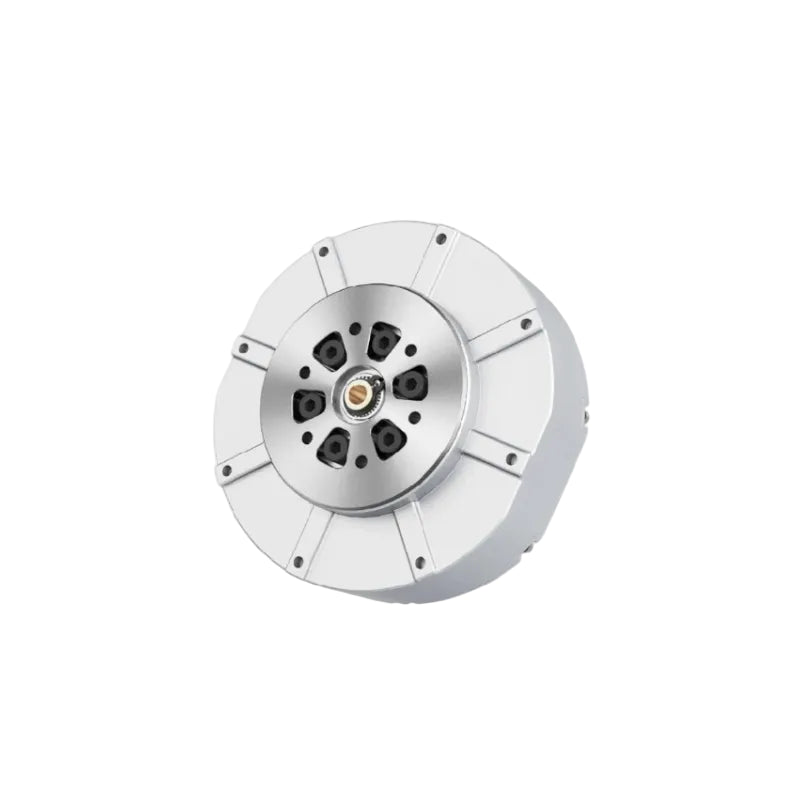

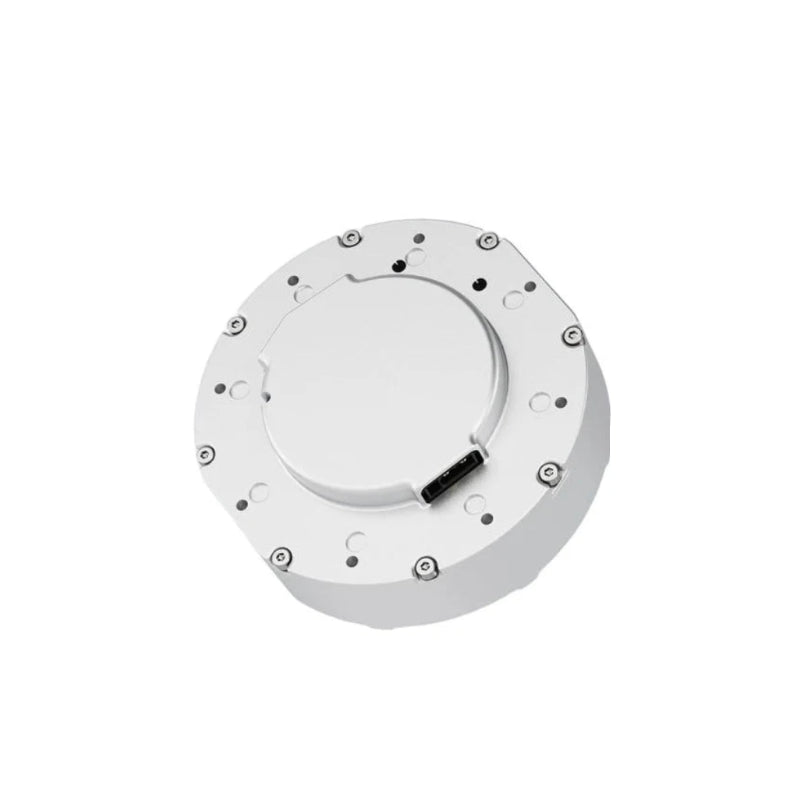

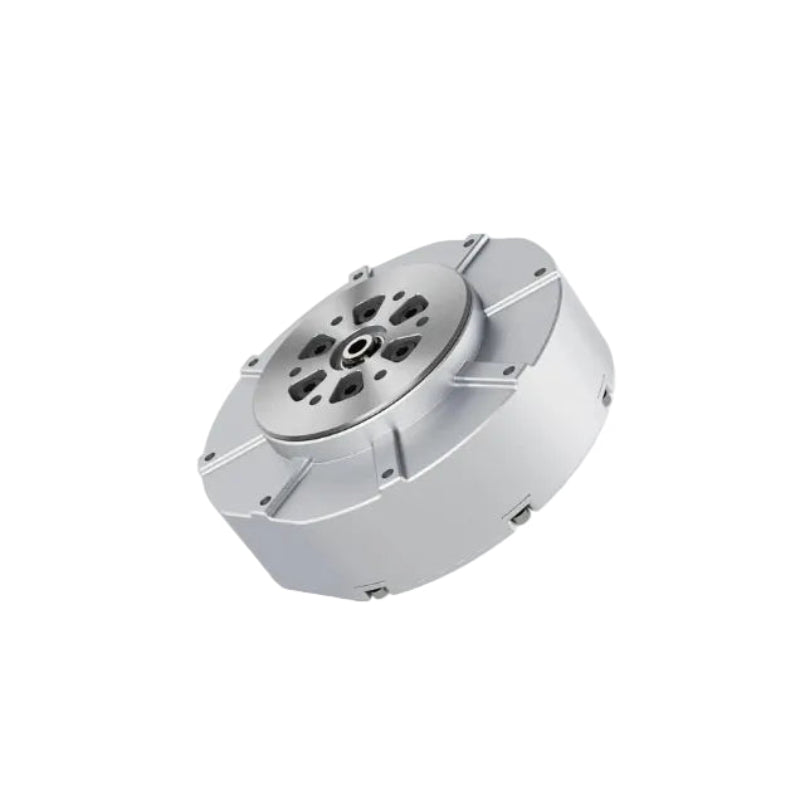

Unitree GO-M8010-6 Motor
Product description
Unitree GO-M8010-6 Specifications
| PRODUCT PARAMETERS | |
| Model | GO-M8010-6 |
| Weight | About 530g |
| Maximum Current | 40A |
| Maximum Rotational Speed | 30rad/s(@24VDC) |
| Reduction Ratio | 1:6.33 |
| Size | 96.5x92.5x42.3mm |
| Maximum Torque | 23.7NM |
| Torque Constant | 0.63895Nm/A |
| Communication Mode | RS-485 |
| Communication Baud Rate | 4Mbps |
| Communication Control Frequency | 6000Hz |
| Motor Encoder Resolution | 15bit |
| Operation Environment | -5°C~40°C |
| Working Voltage | 12V~30VDC 24VDC recommend |
| Motor Perceptual Feedback | Torque, Angle, Angular Velocity, Angular Acceleration, Temperature |
| Motor Control instruction | Torque, Angle, Angular Velocity, Stiffness, Damping |
