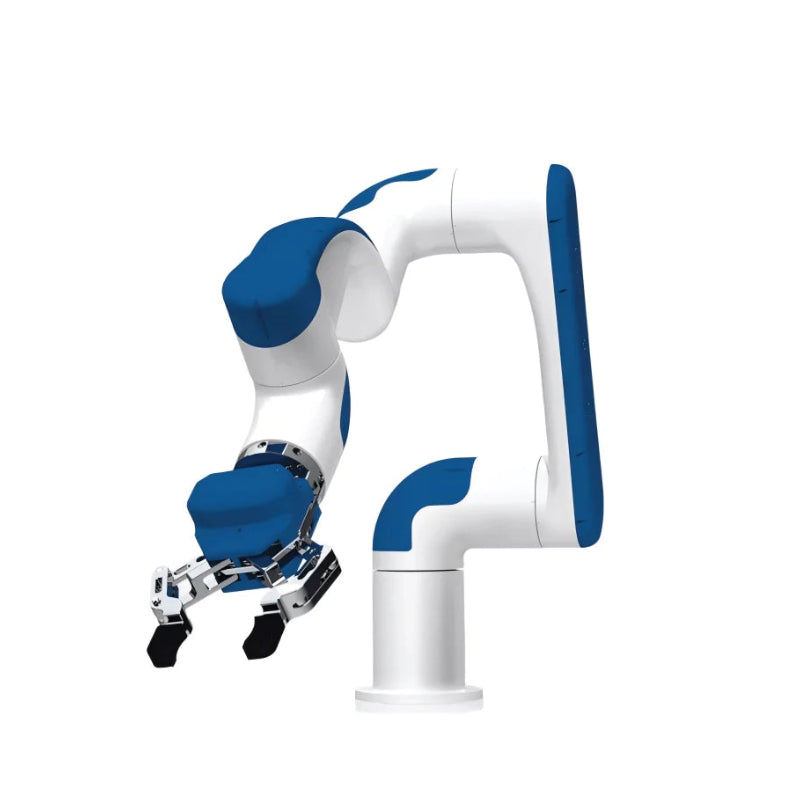

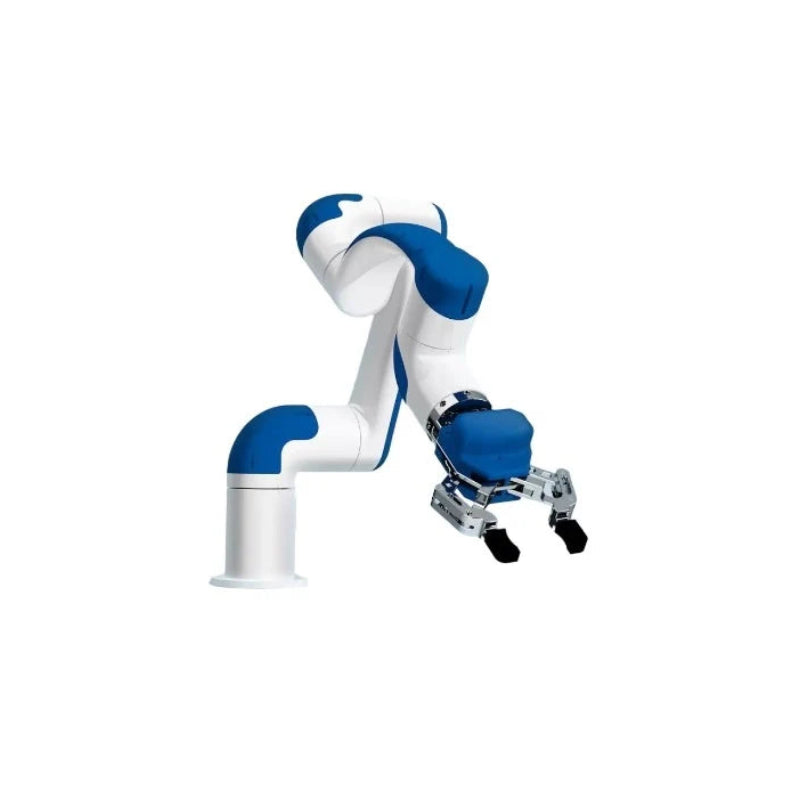

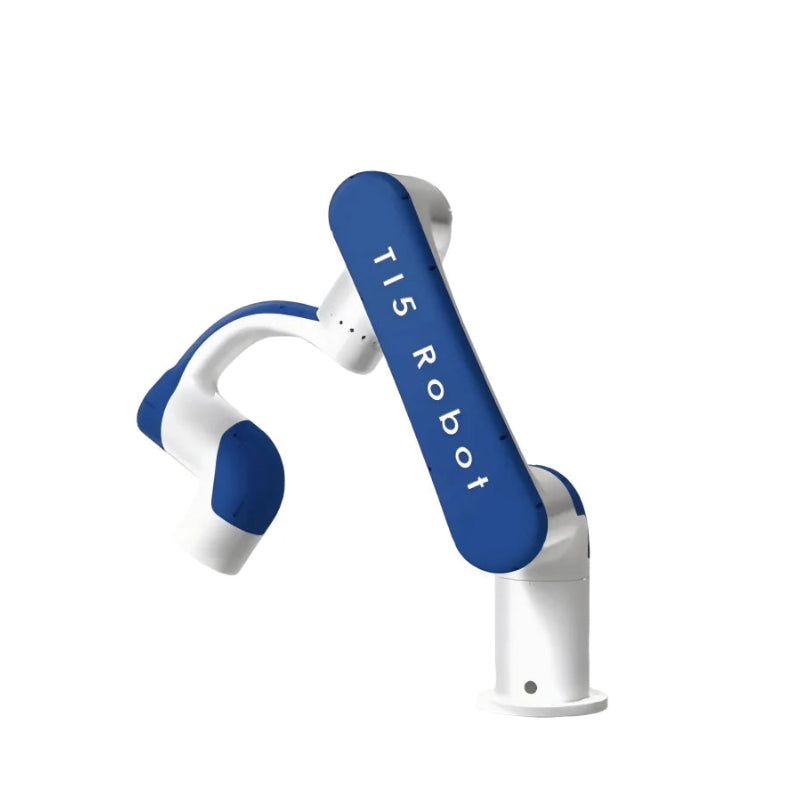

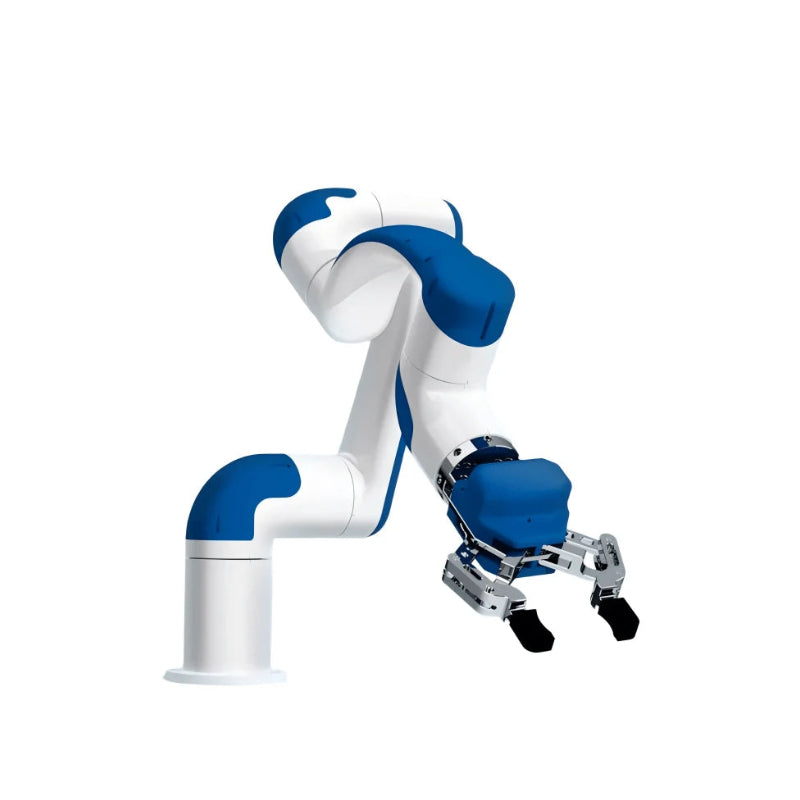

Ti5 ROBOT ARM Series
Regular price
$5,620.00
Sale price
$5,620.00
Regular price
Unit price
Ti5 ROBOT ARM Series
Product description
Ti5 ROBOT ARM Series Specifications
PRODUCT PARAMETERS
| Parameter | ||
|---|---|---|
| Name / Model | Ti5 Robot Arm-5 | Ti5 Robot Arm-3 |
| Mass | 18kg | 12kg |
| Payload | 5kg | 3kg |
| Working Radius | 900mm | 600mm |
| Repeatability | 0.05mm | 0.05mm |
| DOF | 6 | 6 |
| Power | 500W | 300W |
| Interfaces & Openness | ROS, PYTHON, C++ | ROS, PYTHON, C++ |
| Power Supply Voltage Range | 28～48V | 28～48V |
| Joint Range of Motion | J1(±180°), J2(±90°), J3(±135°), J4(±180°), J5(±150°), J6(±180°) | J1(±180°), J2(±90°), J3(±135°), J4(±180°), J5(±150°), J6(±180°) |
| Max. Joint Speed | 106°/s | 106°/s |
| IP Rating | IP50 | IP50 |
| Material | Aluminum alloy, Resin | Aluminum alloy, Resin |
| Operating Temperature Range | 0°C～50°C | 0°C～50°C |
| Power Supply | DC 48V, 10A; DC 28V, 20A | DC 48V, 10A; DC 28V, 20A |
| USB | USB3.0*4 | USB3.0*4 |
| HDMI | HDMI2.0 | HDMI2.0 |
| I/O Interface | SPI/12C/GPIO/UART | SPI/12C/GPIO/UART |
| Standard Cable Length | 1m | 1m |
