SteadyWin WK8115 Motor
Regular price
$35.00
Sale price
$35.00
Regular price
Unit price

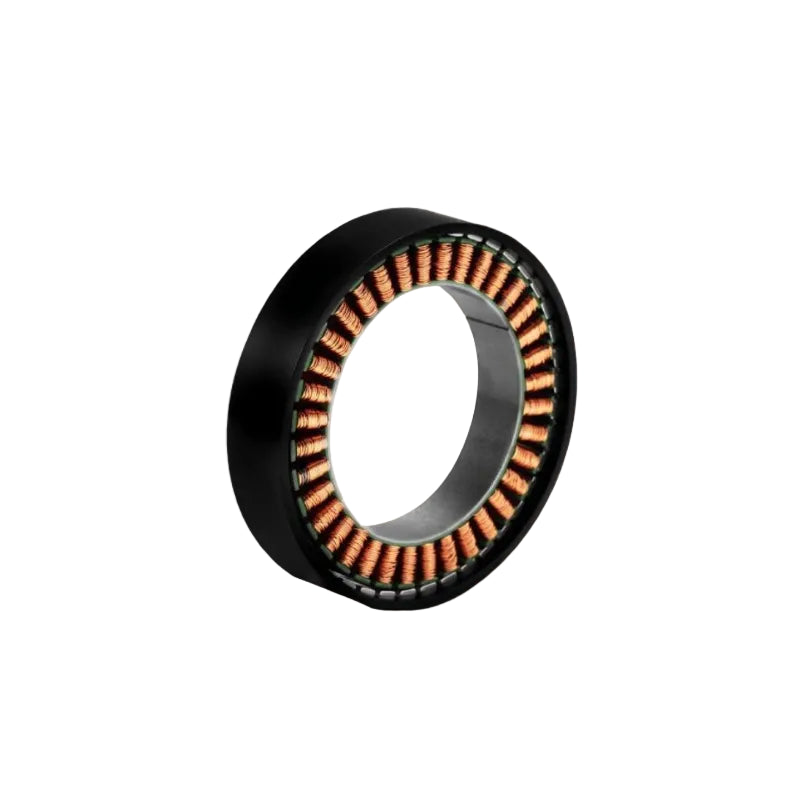

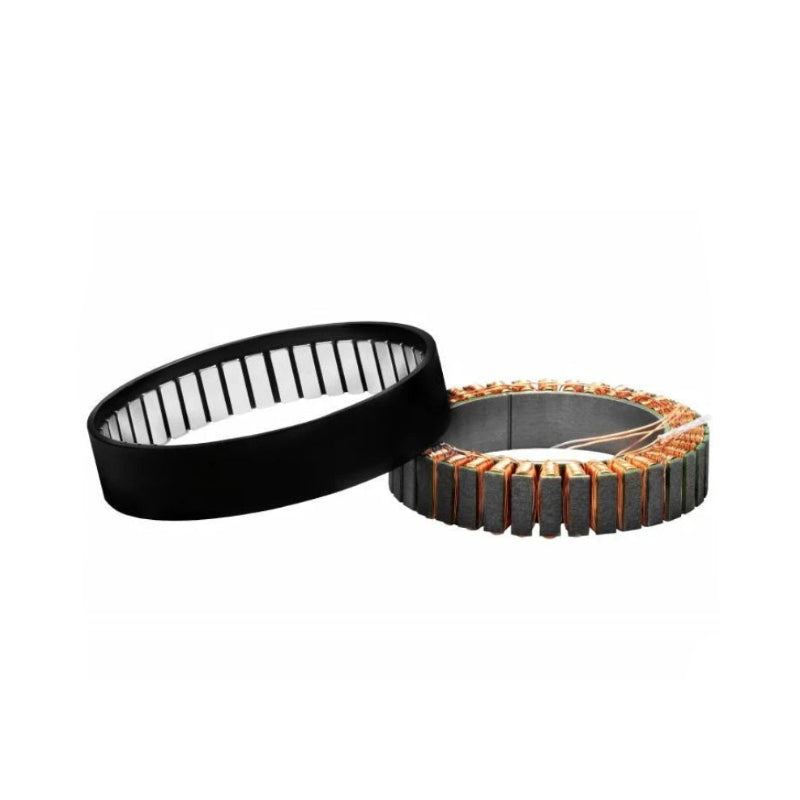

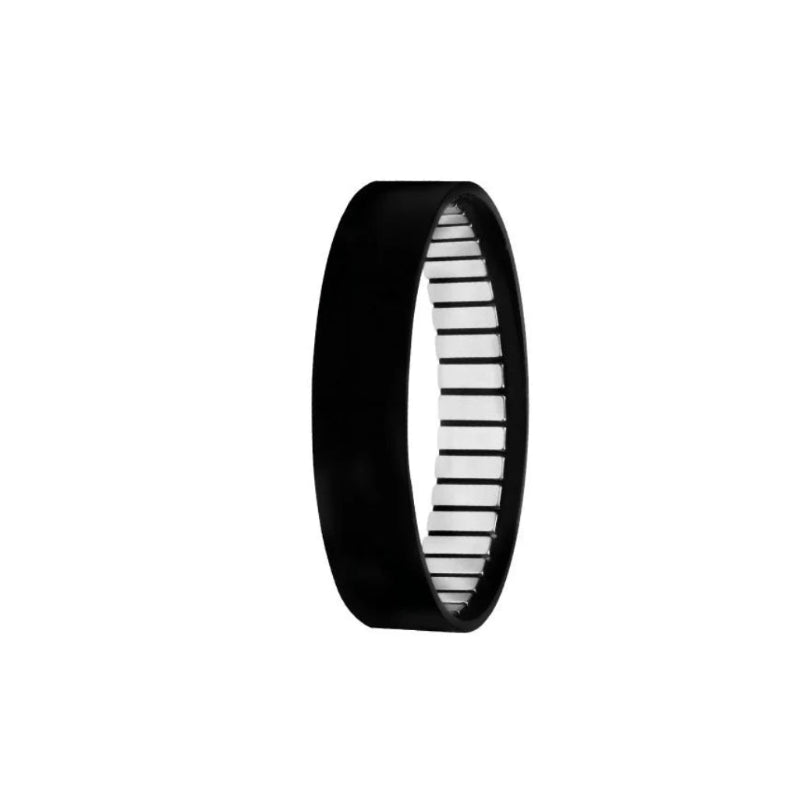

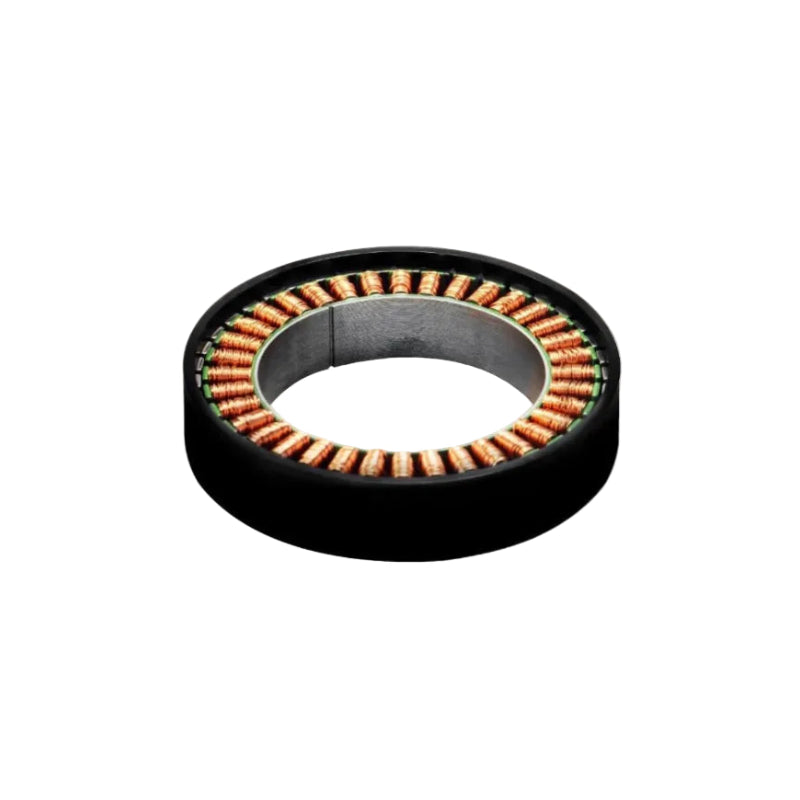

SteadyWin WK8115 Motor
Product description
SteadyWin WK8115 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value (WK8115-1) | Value (WK8115-4) |
|---|---|---|
| Nominal voltage | 24V | 36V |
| Nominal current | 5.8A | 2.1A |
| Nominal torque | 1.1N.M | 1.26N.M |
| Nominal speed | 954rpm | 372rpm |
| Max speed | 1146rpm | 534rpm |
| Stall torque | 5.17N.m | 4.11N.m |
| Stall current | 33.1A | 6.6A |
| Winding turns of motor | 8T | 30T |
| Interphase resistance | 0.35Ω | 3.81Ω |
| Interphase inductance | 0.25mH | 3.27mH |
| Speed constant | 48rpm/v | 15rpm/v |
| Torque constant | 0.19N.M/A | 0.67N.M/A |
| Rotor inertia | 2368gcm^2 | 2368gcm^2 |
| Number of pole pairs | 21Pairs | 21Pairs |
| Working temperature | -20~80℃ | -20~80℃ |
| Max demagnetize tempersture | 120℃ | 120℃ |

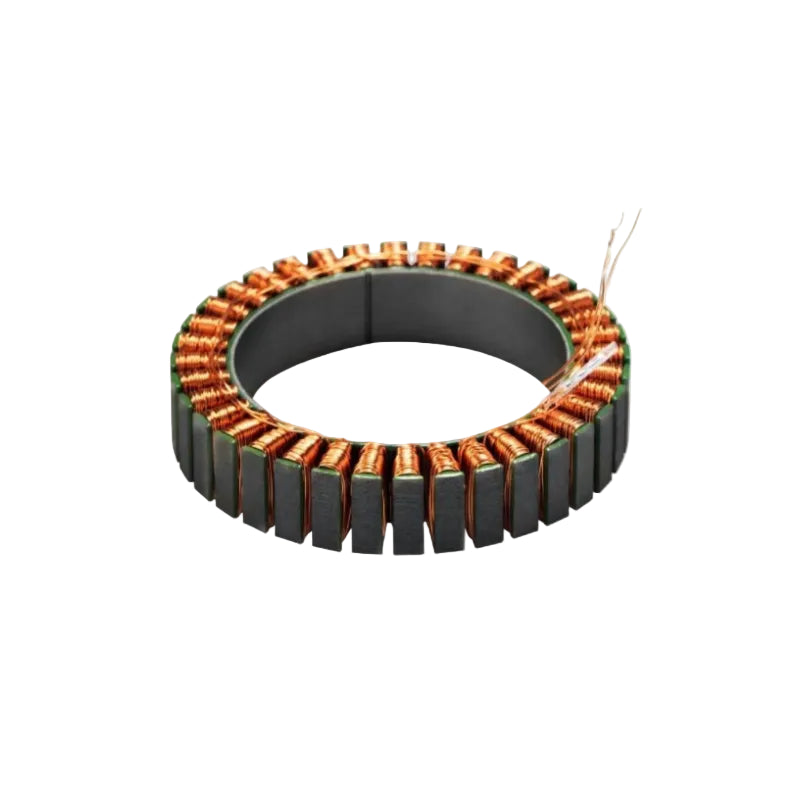

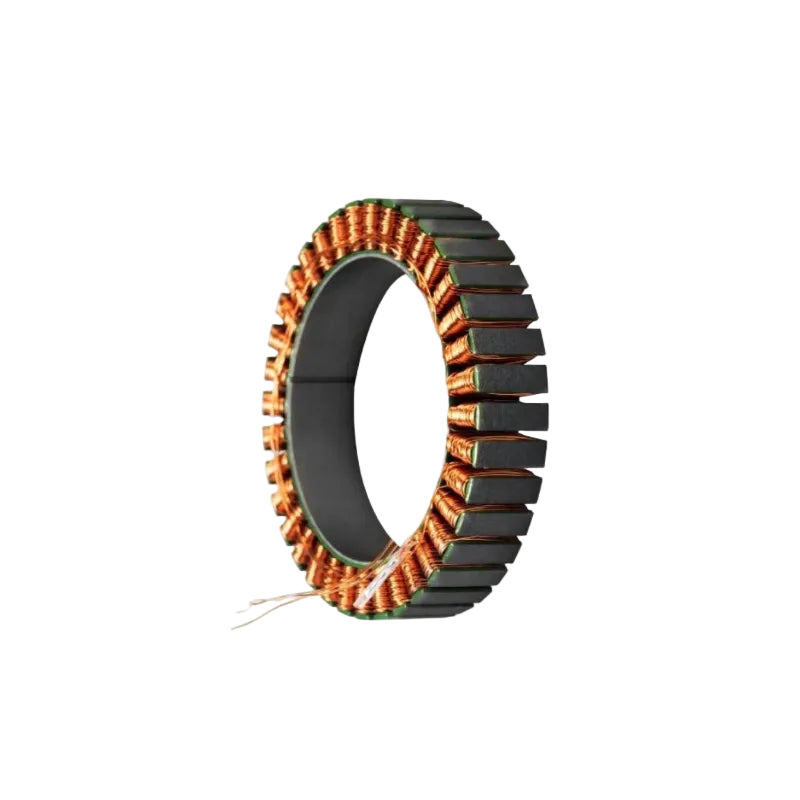

| Inner diameter of the stator | 58.5mm | 58.5mm |
| Motor size | Ø90*19mm | Ø90*19mm |
| Motor weight | 313g | 313g |
