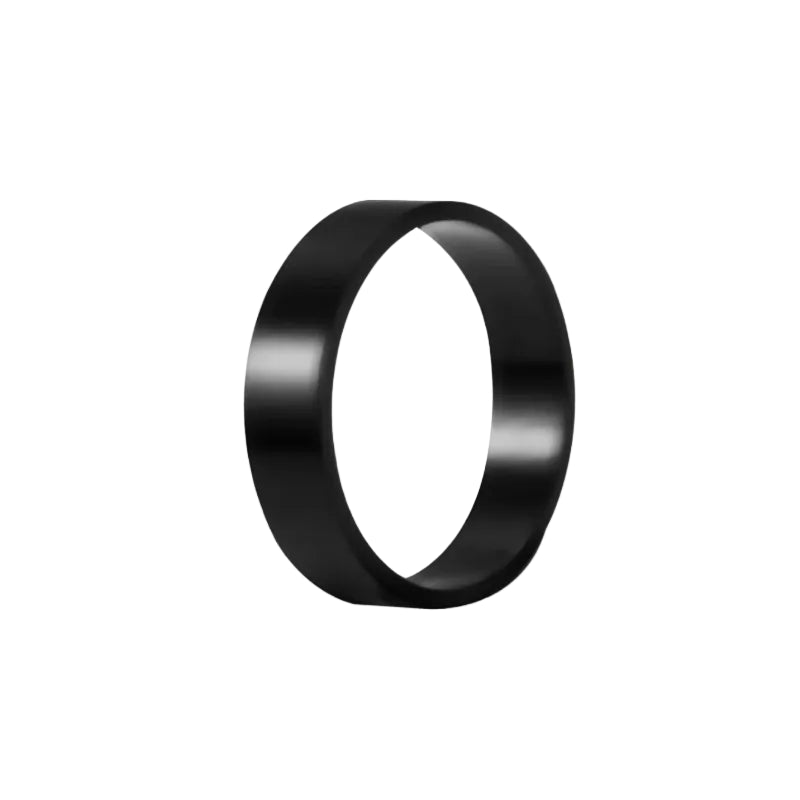

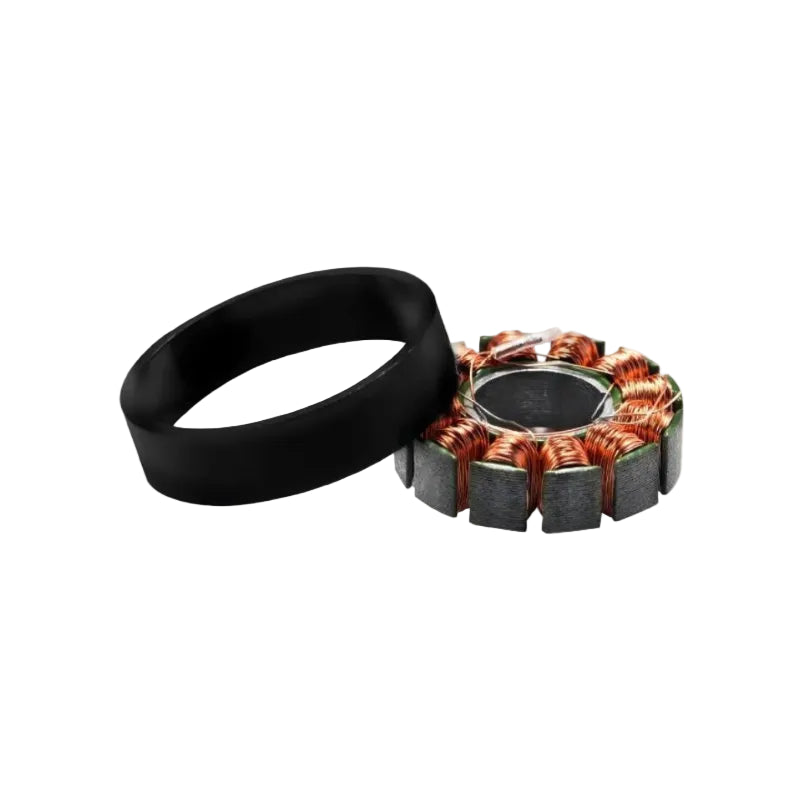

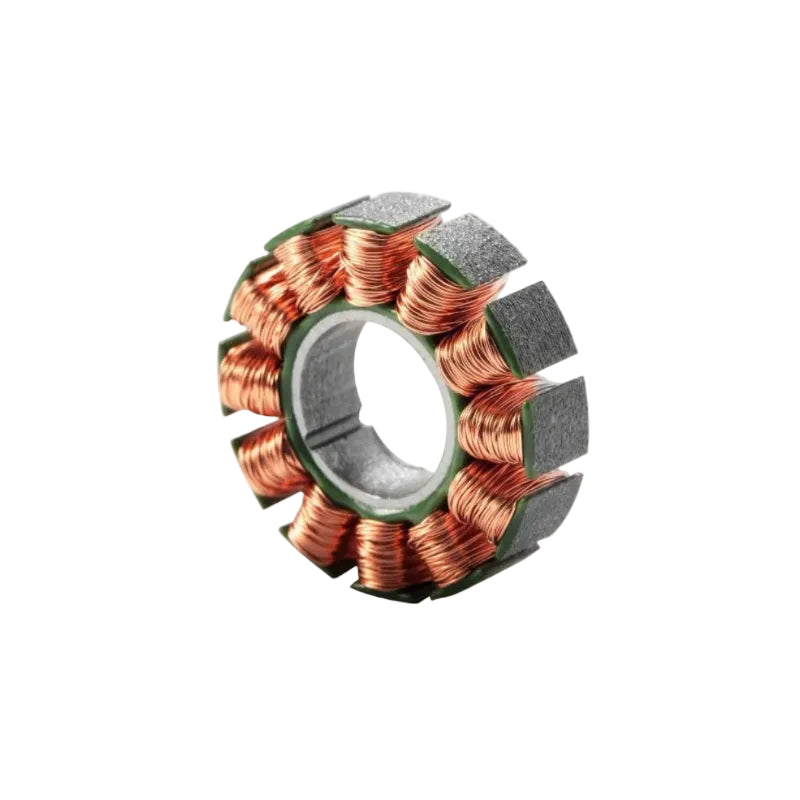

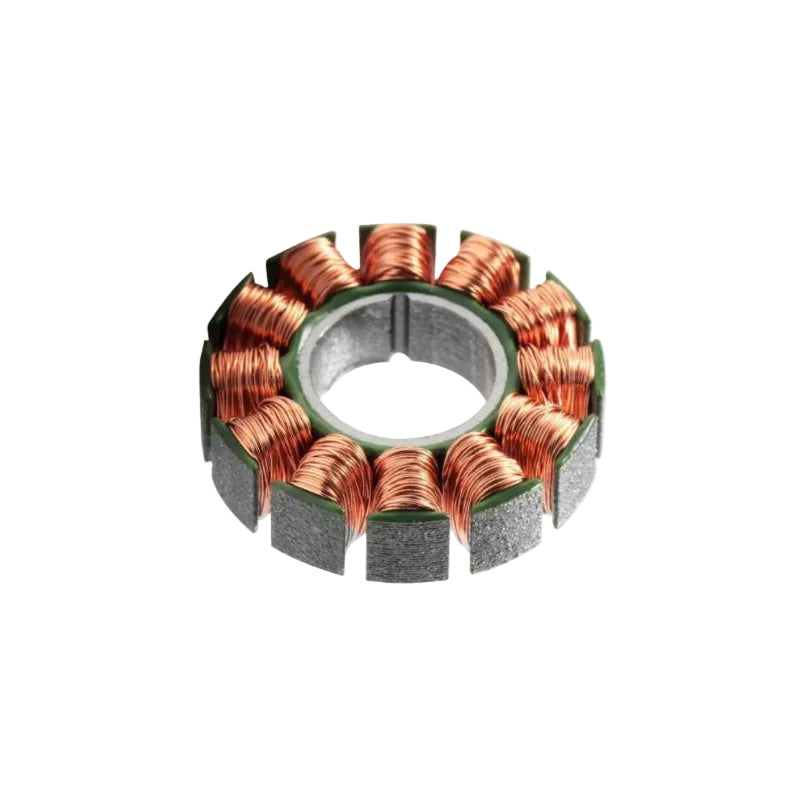

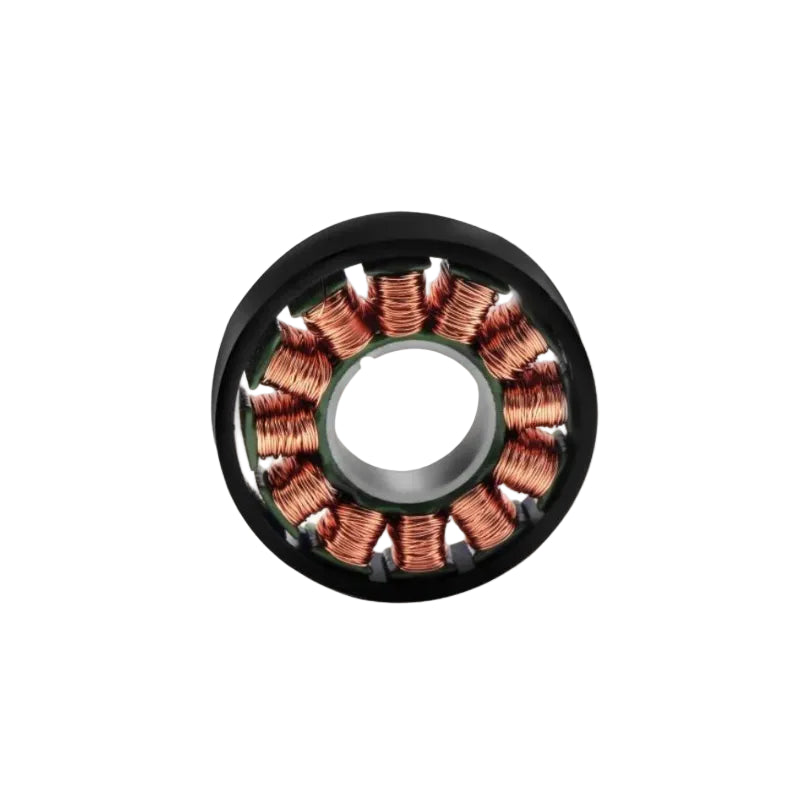

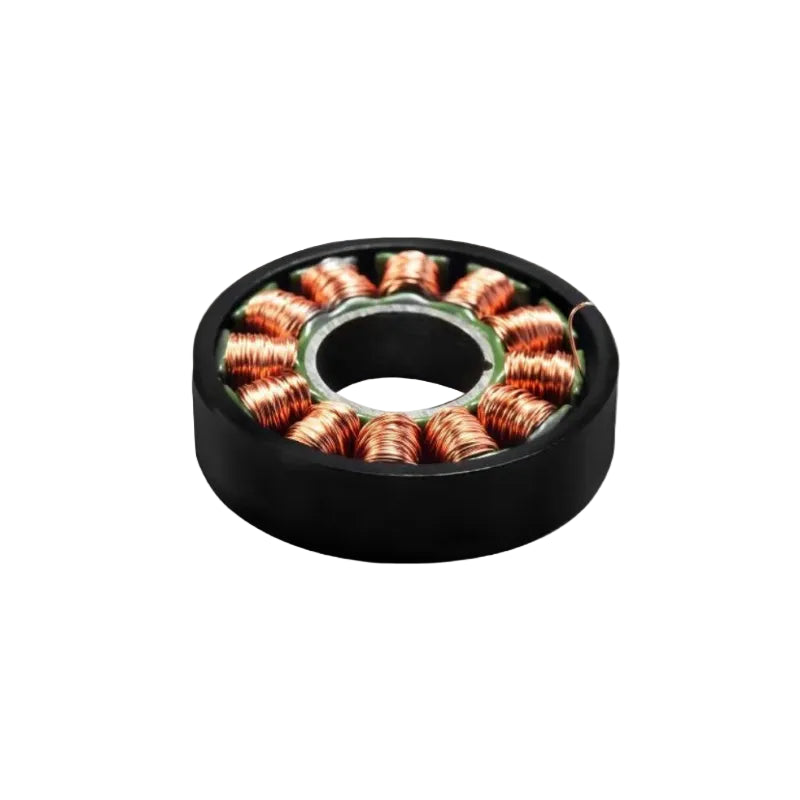

SteadyWin WK2205 Motor
Product description
SteadyWin WK2205 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value (WK2205) | Value (WK2205CH) |
|---|---|---|
| Nominal voltage | 12V | 12V |
| Nominal current | 0.66A | 0.66A |
| Nominal torque | 0.04N.M | 0.02N.M |
| Nominal speed | 792rpm | 792rpm |
| Max speed | 5630rpm | 5630rpm |
| Stall torque | 0.12N.M | 0.06N.M |
| Stall current | 1A | 1A |
| Winding turns of motor | 65T | 65T |
| Interphase resistance | 7.4Ω | 7.4Ω |
| Interphase inductance | 1.68mH | 1.68mH |
| Speed constant | 469rpm/v | 469rpm/v |
| Torque constant | 0.12N.M/A | 0.06N.M/A |
| Rotor inertia | 9gcm^2 | 5gcm^2 |
| Number of pole pairs | 7Pairs | 7Pairs |
| Working temperature | -20~80℃ | -20~80℃ |
| Max demagnetize tempersture | 120℃ | 120℃ |
| Inner diameter of the stator | 10mm | 10mm |
| Motor size | Ø26.3*9mm | Ø25.3*6.2mm |
| Motor weight | 14g | 12g |
