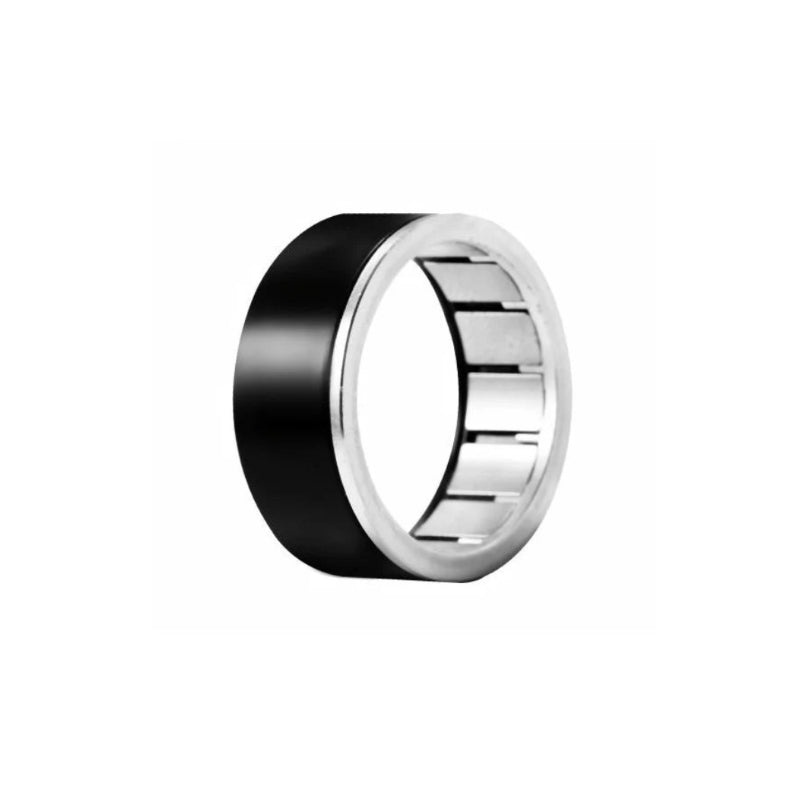

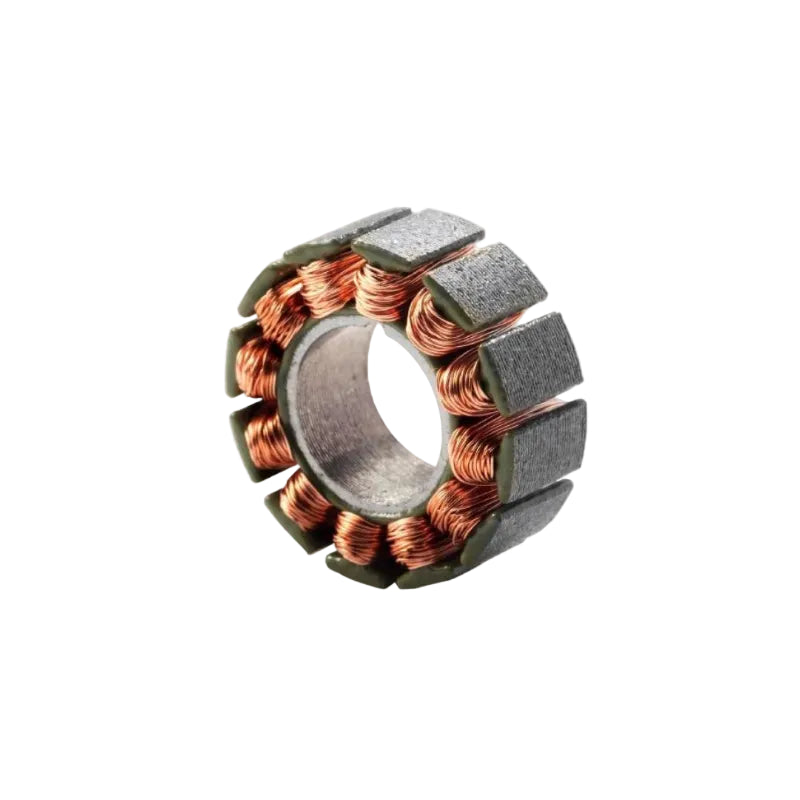

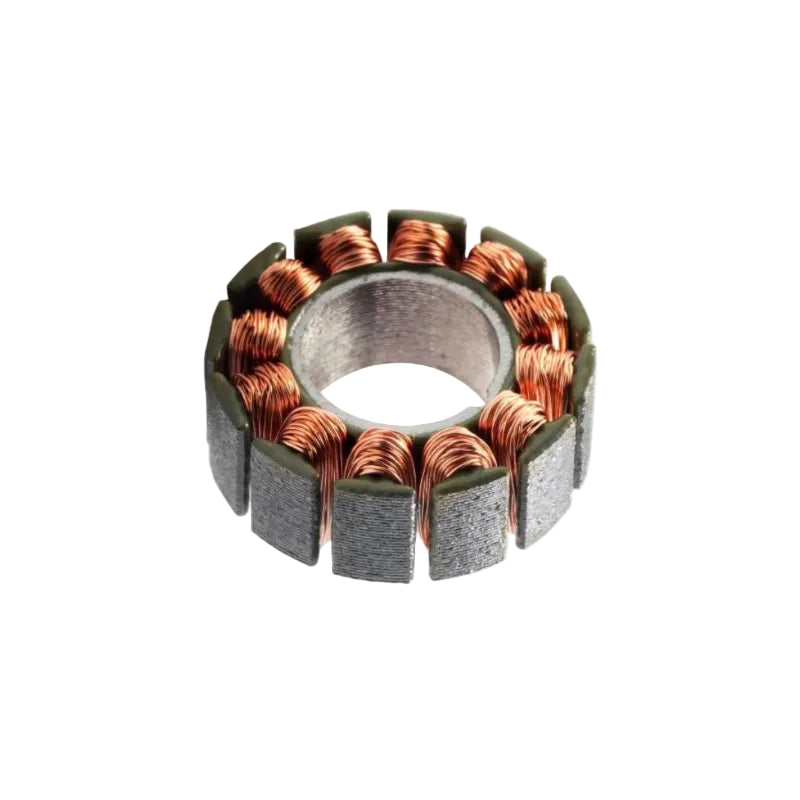

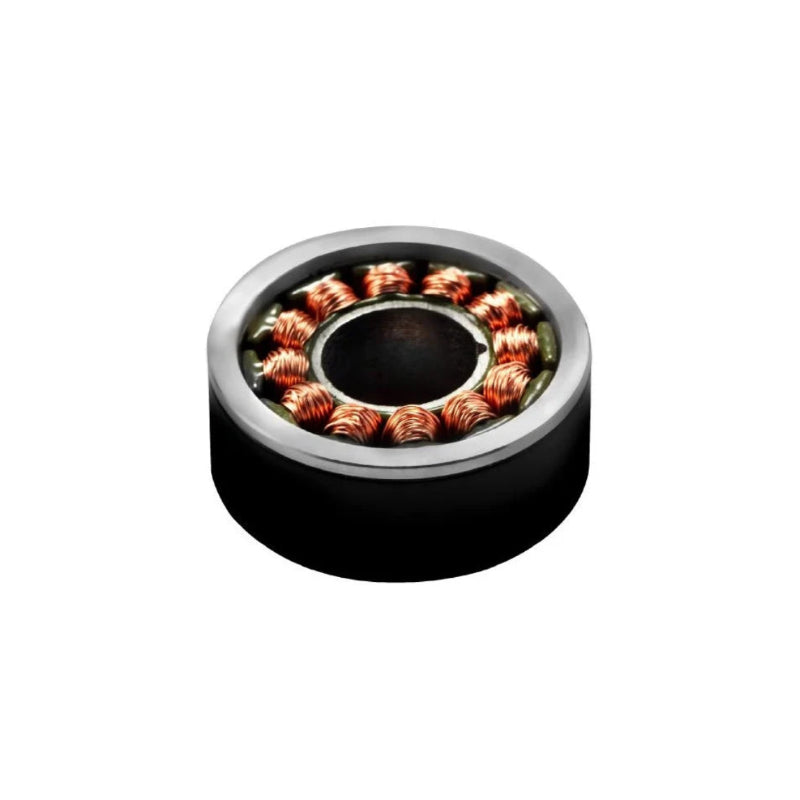

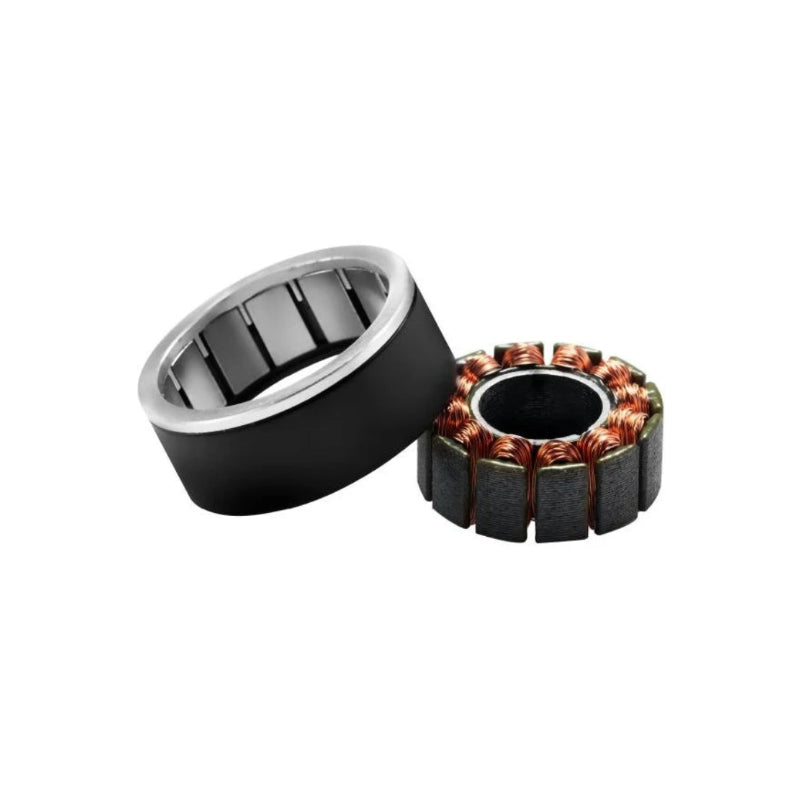

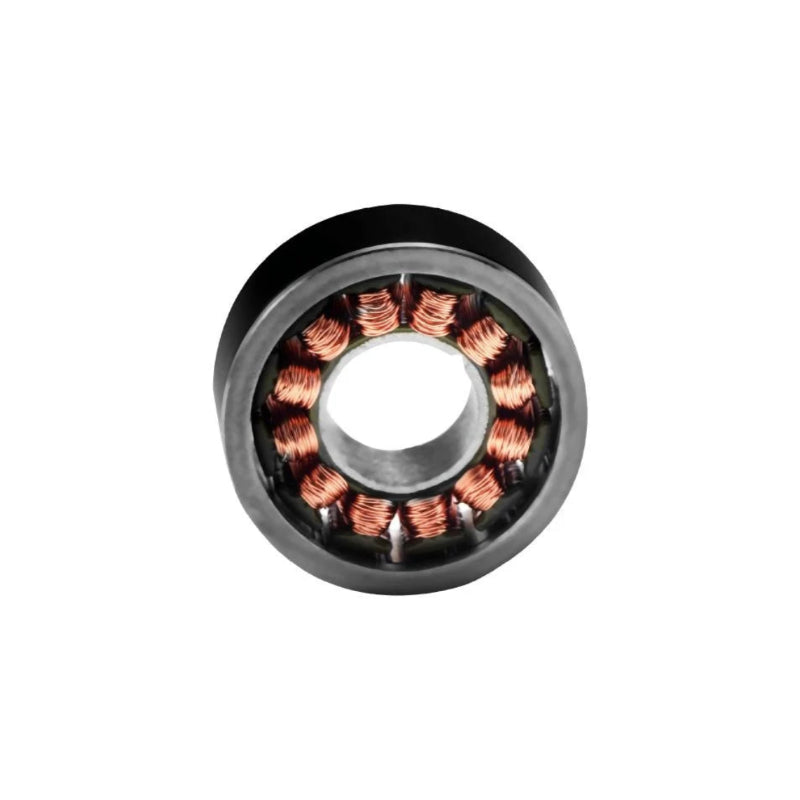

SteadyWin WK1806 Motor
Regular price
$23.00
Sale price
$23.00
Regular price
Unit price
SteadyWin WK1806 Motor
Product description
SteadyWin WK1806 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Nominal voltage | 12V |
| Nominal current | 0.66A |
| Nominal torque | 0.03N.M |
| Nominal speed | 800rpm |
| Max speed | 5017rpm |
| Stall torque | 0.06N.m |
| Stall current | 1A |
| Winding turns of motor | 45T |
| Interphase resistance | 5.64Ω |
| Interphase inductance | 1.06 mH |
| Speed constant | 418rpm/v |
| Torque constant | 0.06N.M/A |
| Rotor inertia | 6gcm^2 |
| Number of pole pairs | 7Pairs |
| Working temperature | -20~80℃ |
| Max demagnetize tempersture | 120℃ |
| Inner diameter of the stator | 9mm |
| Motor size | Ø22*8.5mm |
| Motor weight | 12g |
