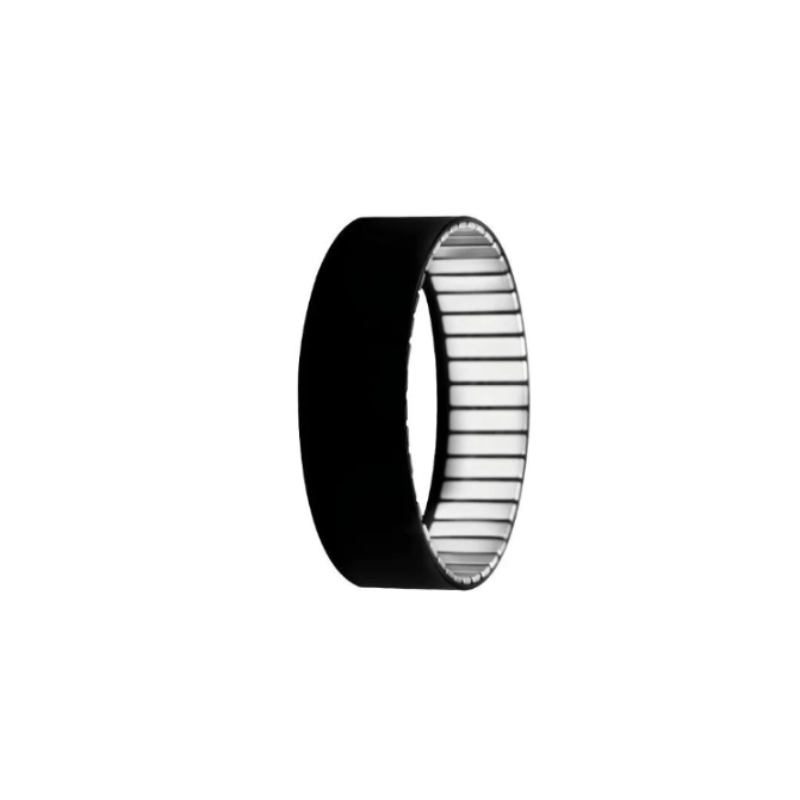

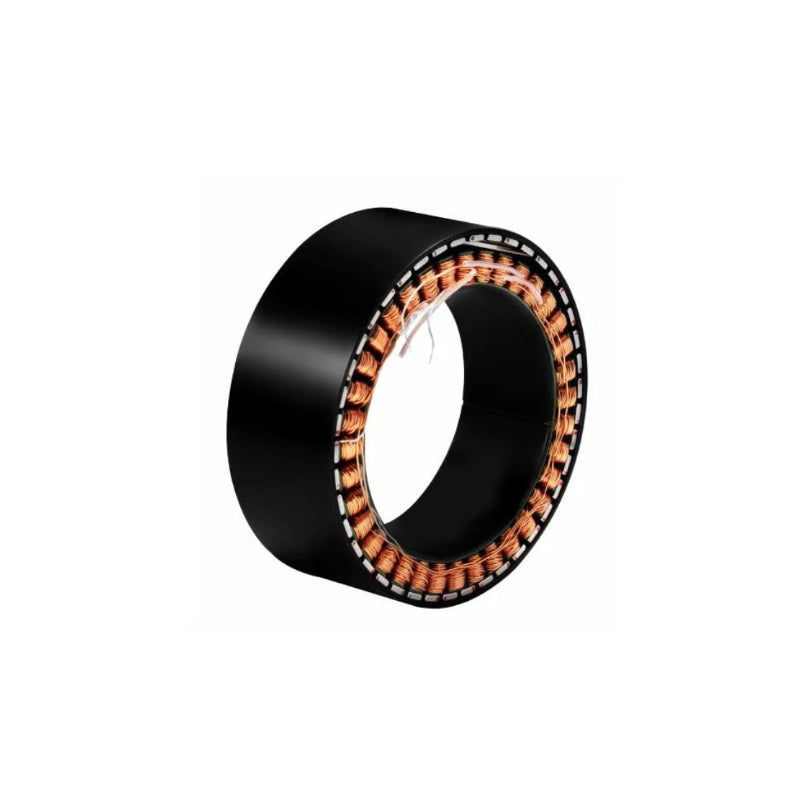

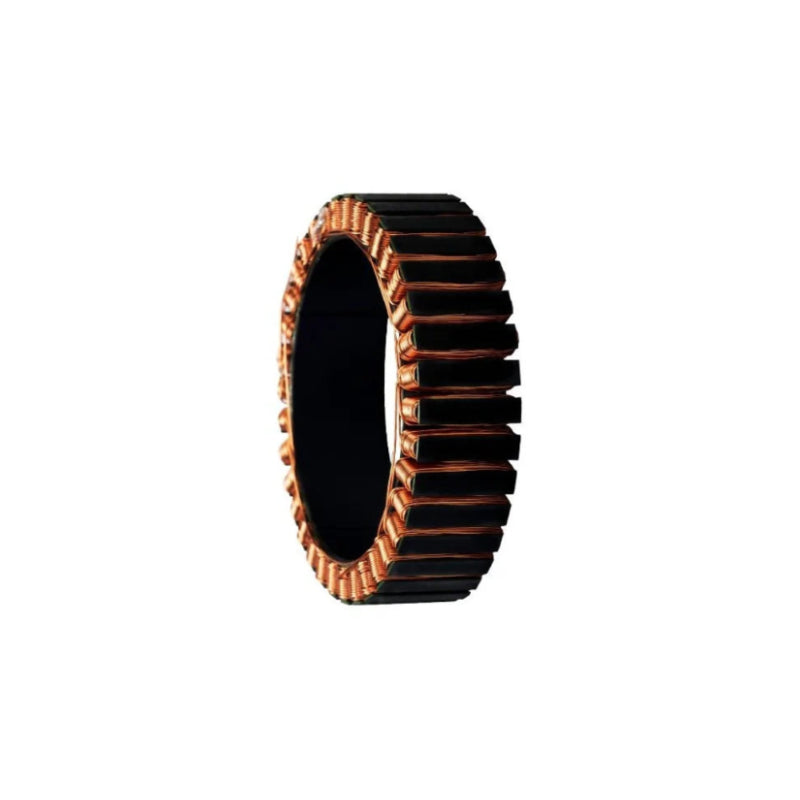

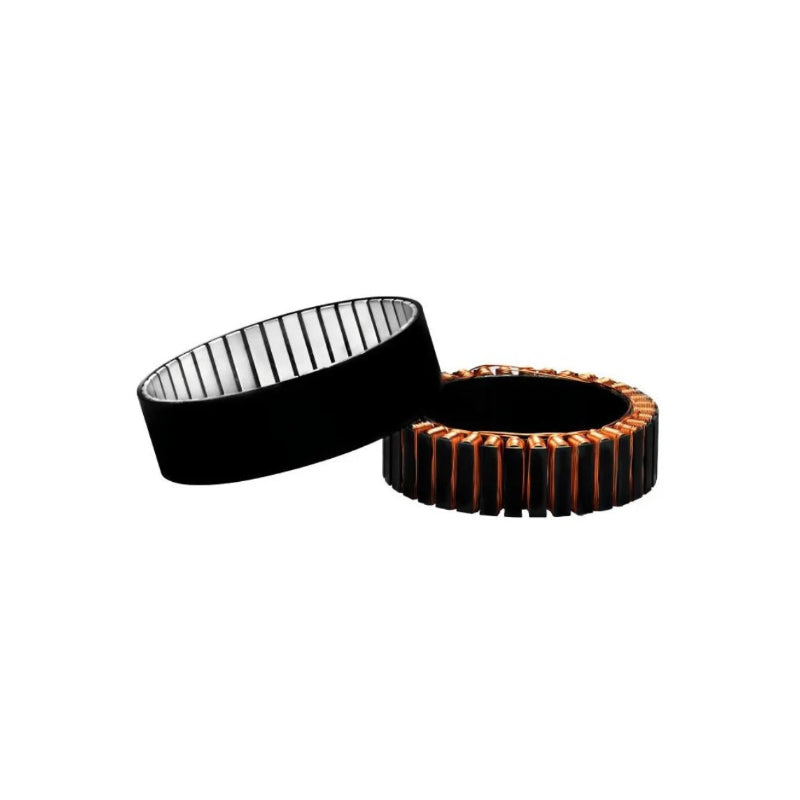

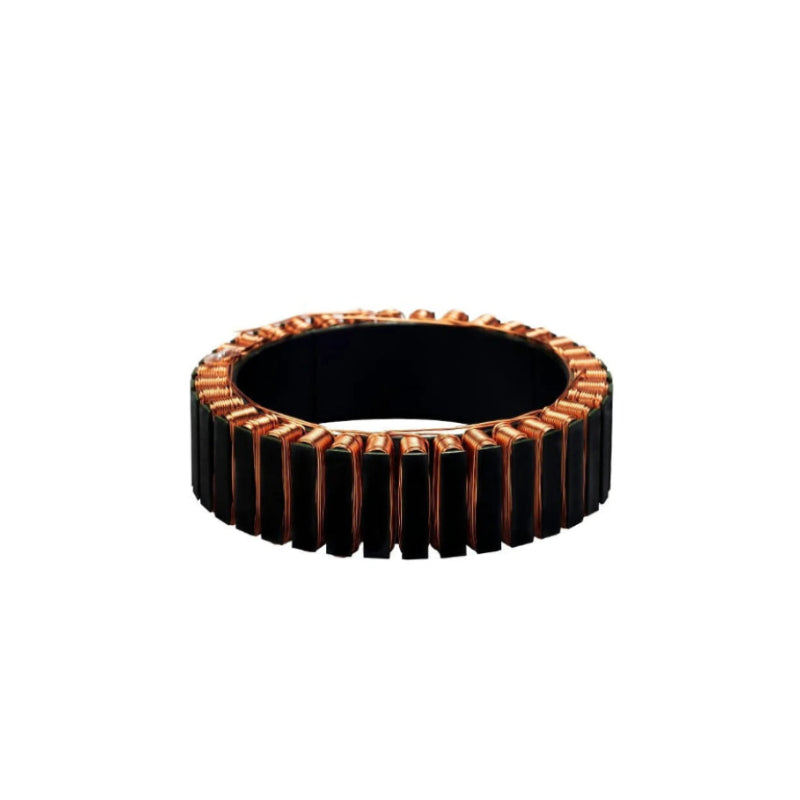

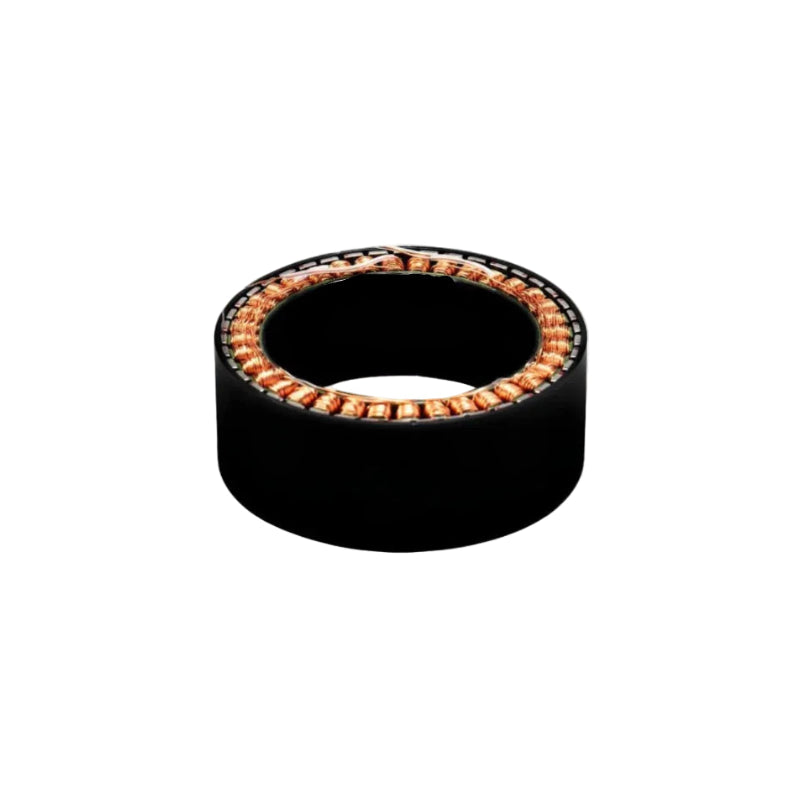

SteadyWin WK10025 Motor
Regular price
$73.00
Sale price
$73.00
Regular price
Unit price
SteadyWin WK10025 Motor
Product description
SteadyWin WK10025 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Nominal voltage | 36V |
| Nominal current | 3.8A |
| Nominal torque | 4N.M |
| Nominal speed | 168rpm |
| Max speed | 330rpm |
| Stall torque | 8.5N.m |
| Stall current | 16A |
| Winding turns of motor | 20T |
| Interphase resistance | 3.06Ω |
| Interphase inductance | 3.03mH |
| Speed constant | 9rpm/v |
| Torque constant | 1.03N.M/A |
| Rotor inertia | 6447gcm^2 |
| Number of pole pairs | 21Pairs |
| Working temperature | -20~80℃ |
| Max demagnetize temperature | 120℃ |
| Inner diameter of the stator | 78mm |
| Motor size | Ø109*33mm |
| Motor weight | 576g |
