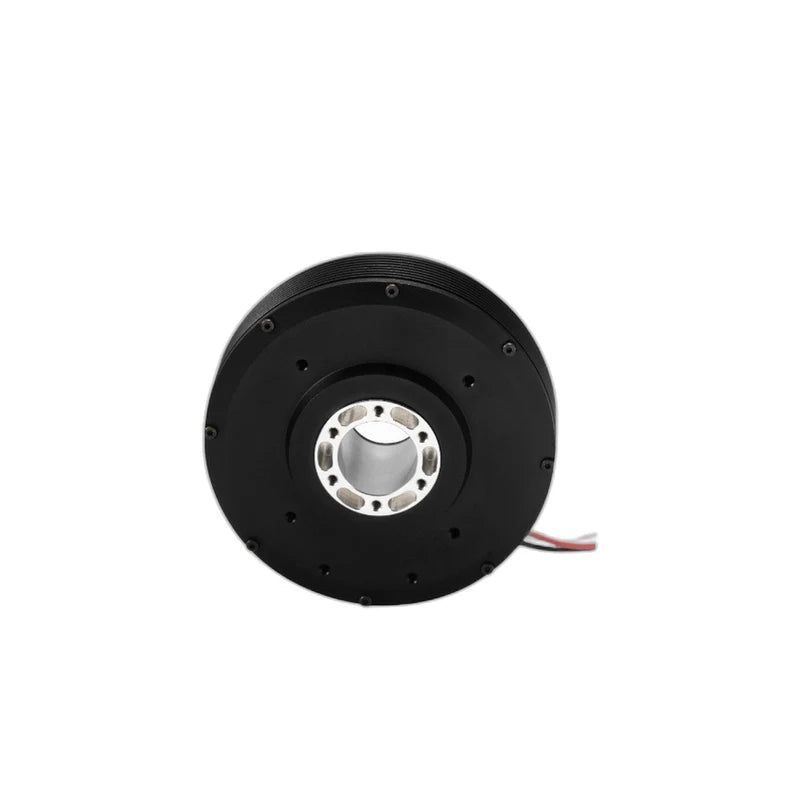

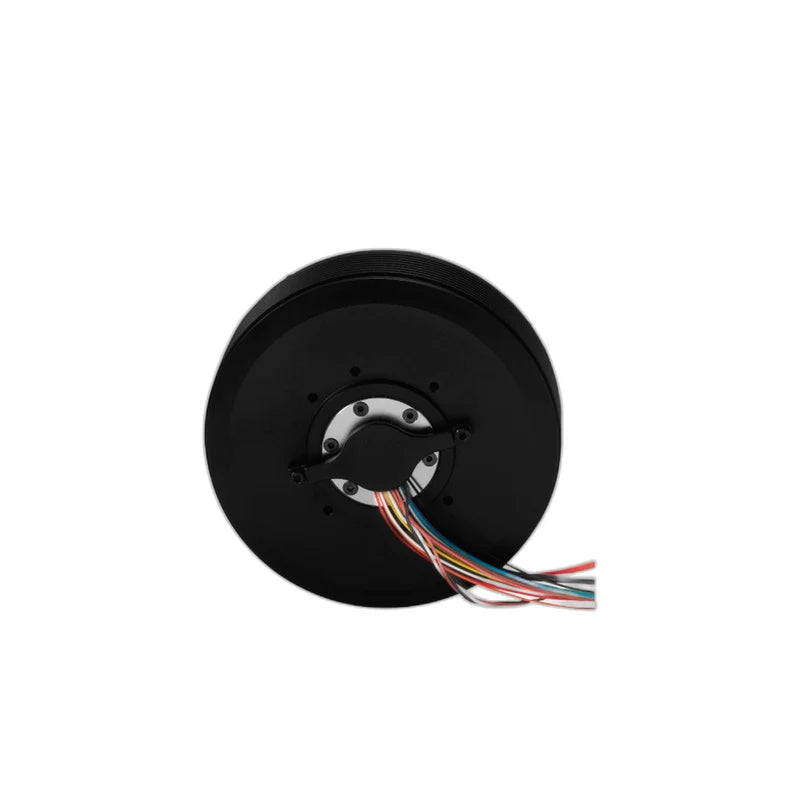

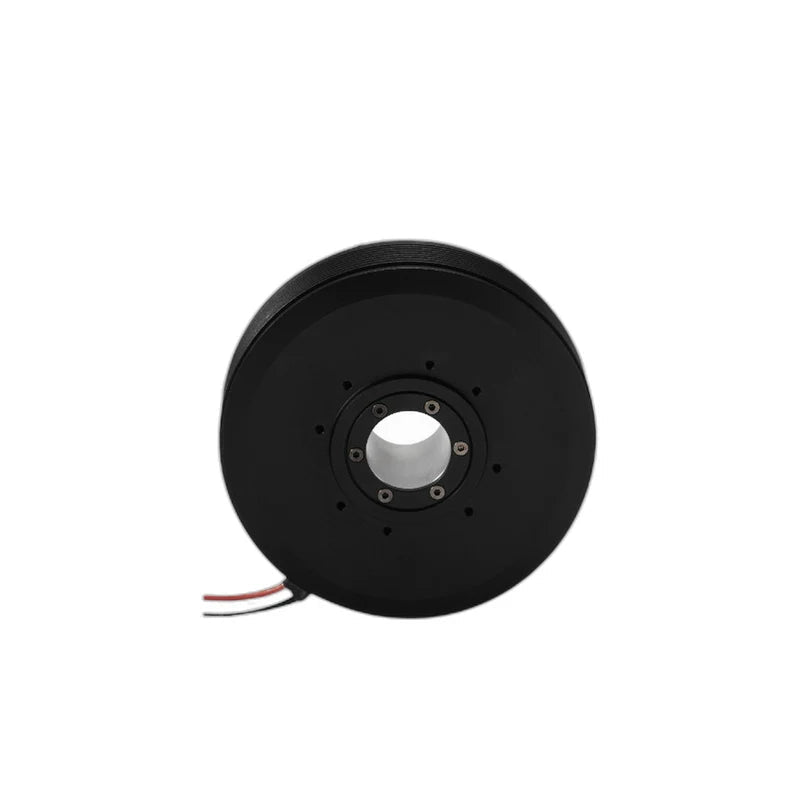

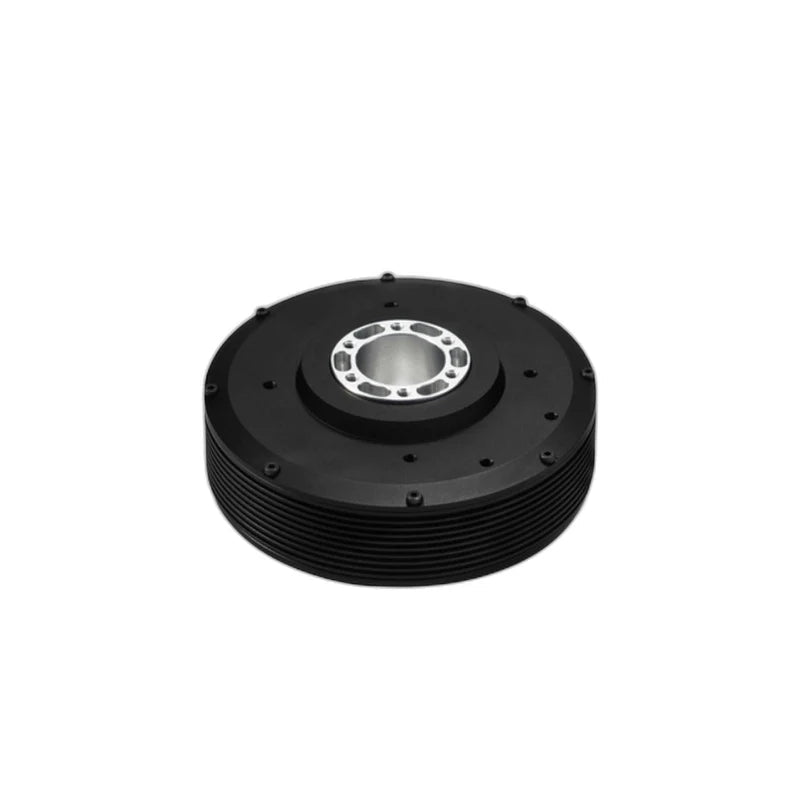

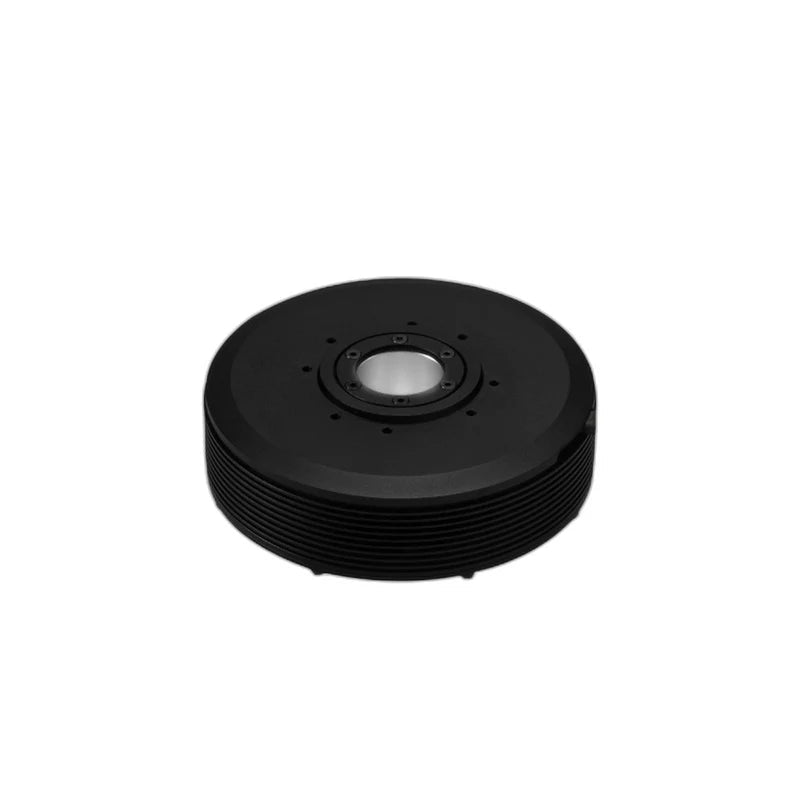

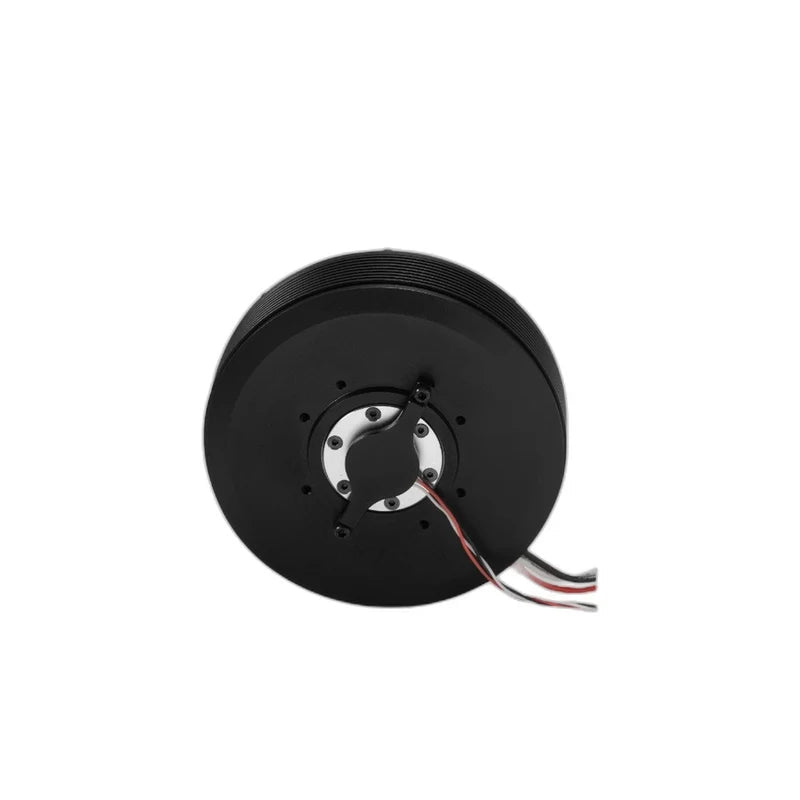

SteadyWin PM100 Motor
Product description
SteadyWin PM100 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | PM100 |
| Rated voltage | 24V |
| Rated current | 2.49A |
| Rated torque | 0.93N.M |
| Rated Speed | 349RPM |
| Peak Speed | 566RPM |
| Peak torque | 2.40N.M |
| Peak current | 6.51A |
| Interphase resistance | 2.29Ω |
| Interphase inductance | 2.32mH |
| Speed constant | 24rpm/v |
| Torque constant | 0.39N.M/A |
| Rotor inertia | 1716gcm^2 |
| Number of pole pairs | 21Pairs |
| Motor weight without Encoder | 454.0g |
| Motor weight with Encoder | 460.7g |
| Motor Size without Encoder | Ø98.5*28.5mm |
| Motor Size with Encoder | Ø98.5*36.5mm |
| Encoder type | AS5048a/AS5600 |
| Working temperature | -10~80℃ |
| Max demagnetize temperature | 120℃ |
