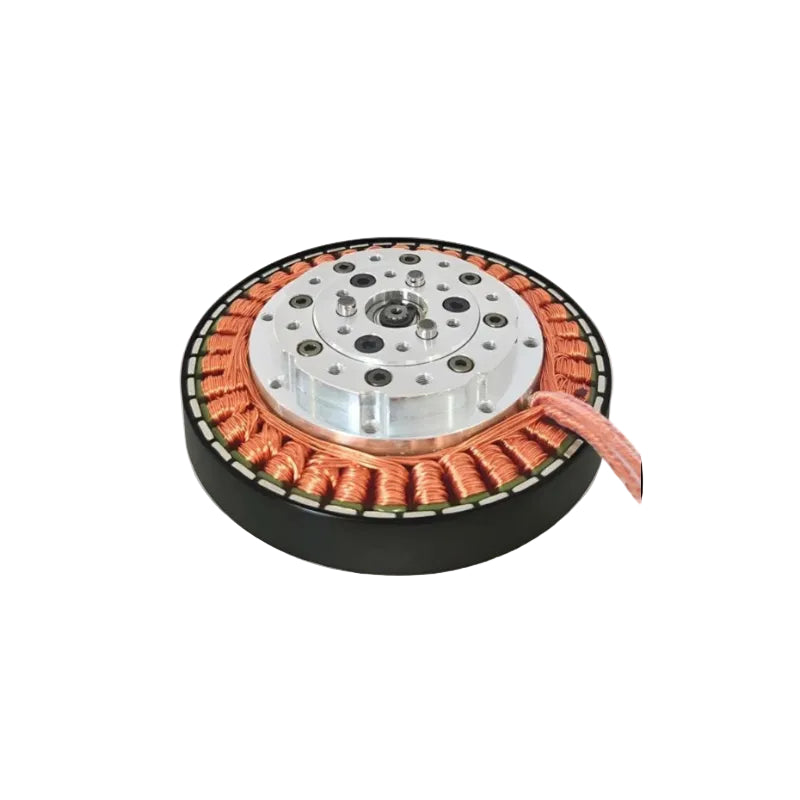

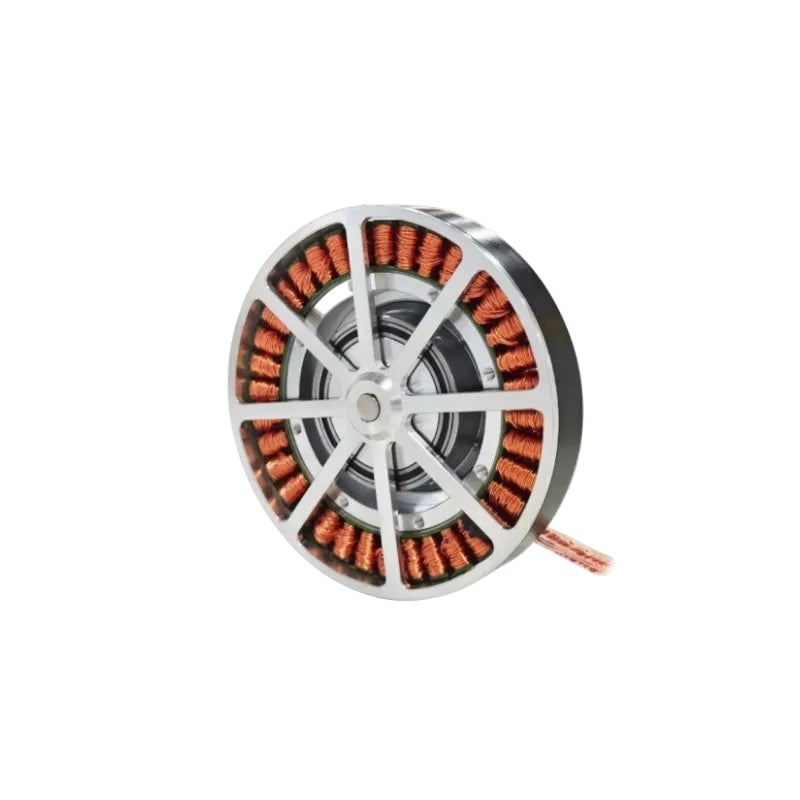

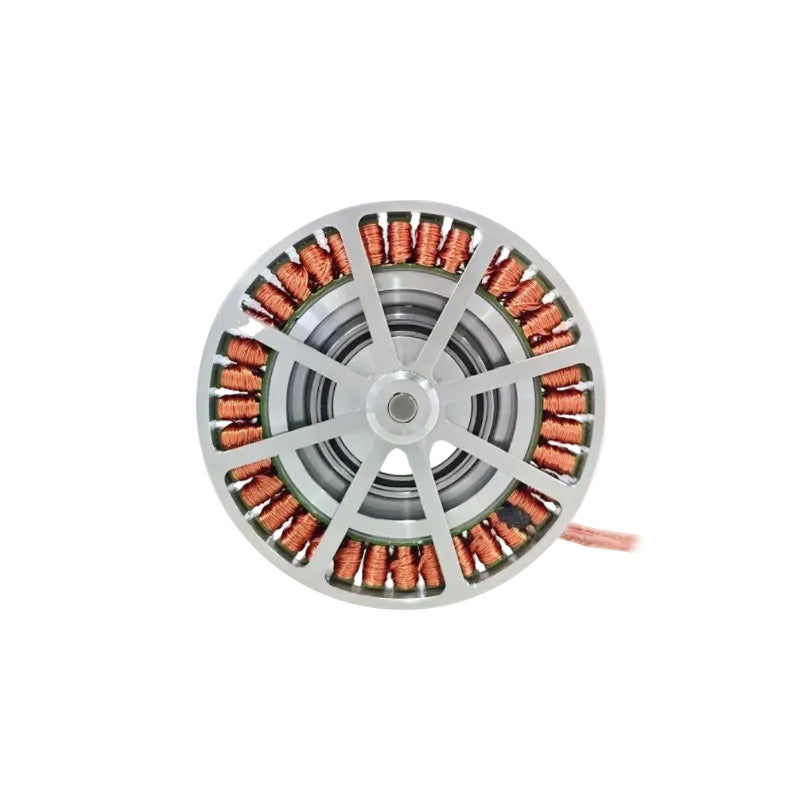

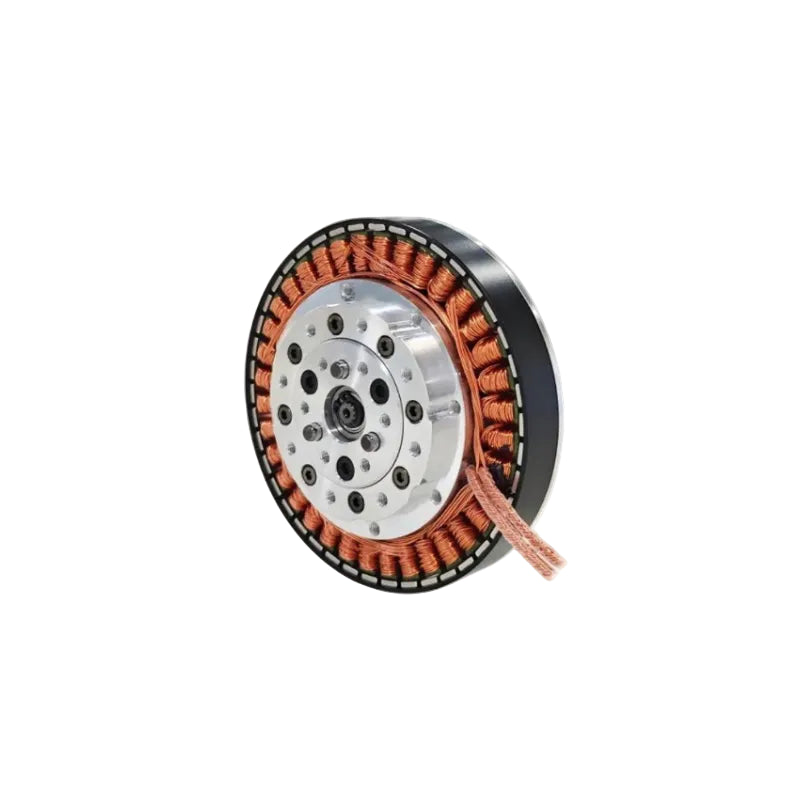

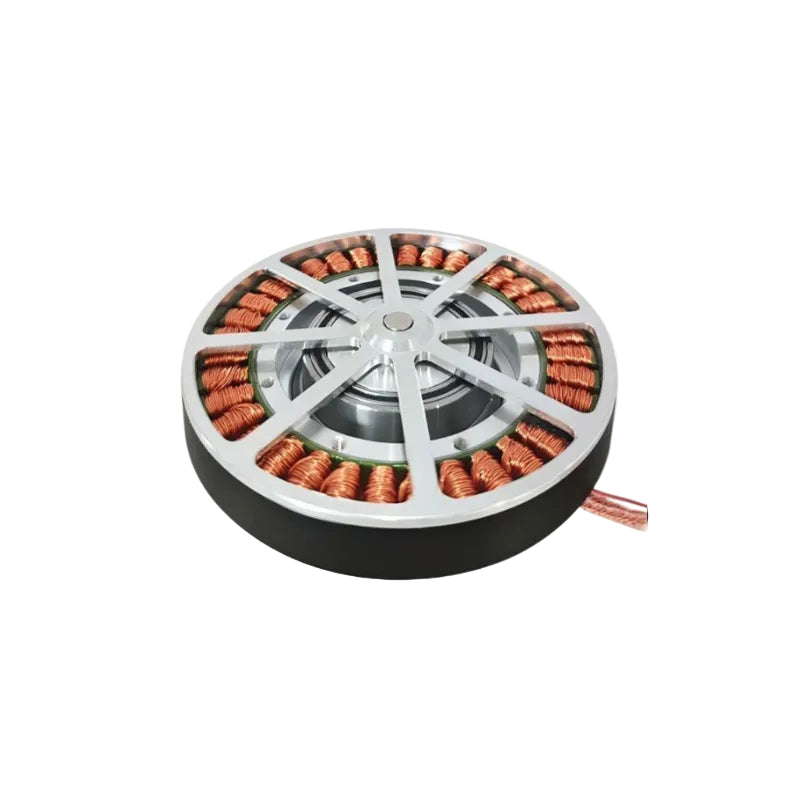

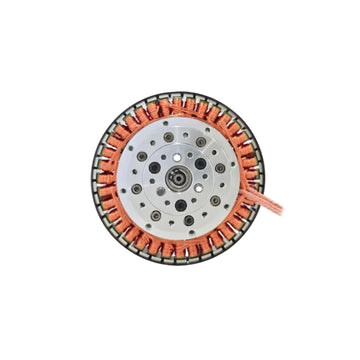

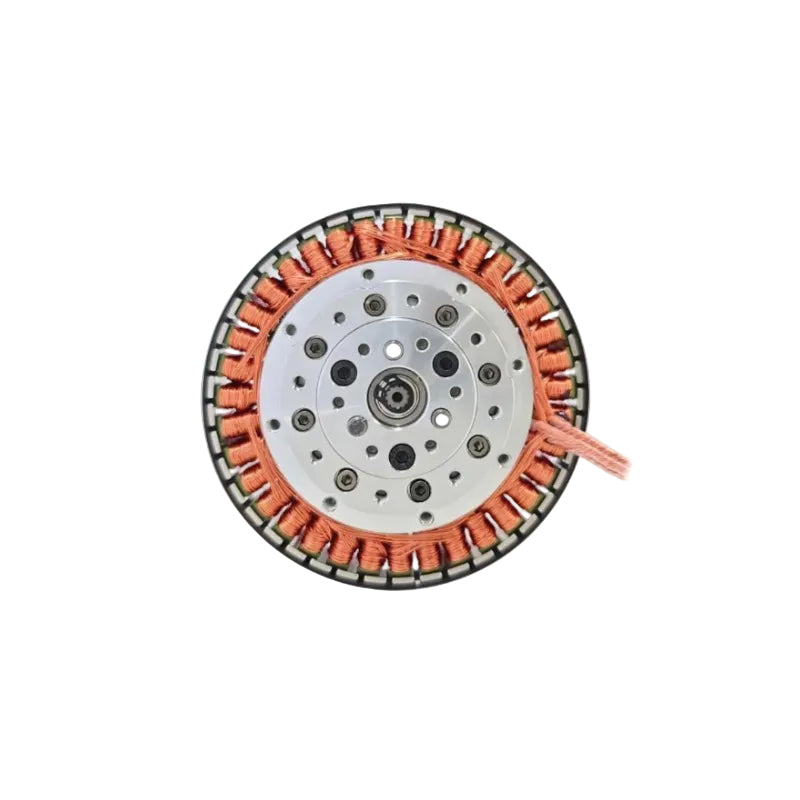

SteadyWin GWK8108-8 Motor
Regular price
$89.00
Sale price
$89.00
Regular price
Unit price
SteadyWin GWK8108-8 Motor
Product description
SteadyWin GWK8108-8 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Winding Type | Y |
| Testing Voltage | 24V |
| Rated Power | 410W |
| Nominal Torque | 10.2N.M |
| Stall Torque | 24.78N.M |
| Nominal Speed after Reducer | 288RPM |
| Max Speed after Reducer | 390RPM |
| Nominal Current | 17.1A |
| Stall Current | >60A |
| Phase to Phase Resistance | 0.06Ω |
| Phase to Phase Inductance | 0.03mH |
| Speed Constant | 16.25rpm/v |
| Torque Constant | 0.6N.M/A |
| Number of pole pairs | 21Pairs |
| Gear Rate | 1:8 |
| Gear Type | Planetary |
| Reducer Gear Material | STEEL |
| Reducer Gear Backlash | 15arcmin |
| Motor Weight without Driver | 327.3g |
| Size without Driver | Ø87*25.5mm |
| Max Axial Load | 225N |
| Max Radial Load | 900N |
| Protection Grade | IP54 |
| Working Temperature | -20~65℃ |
