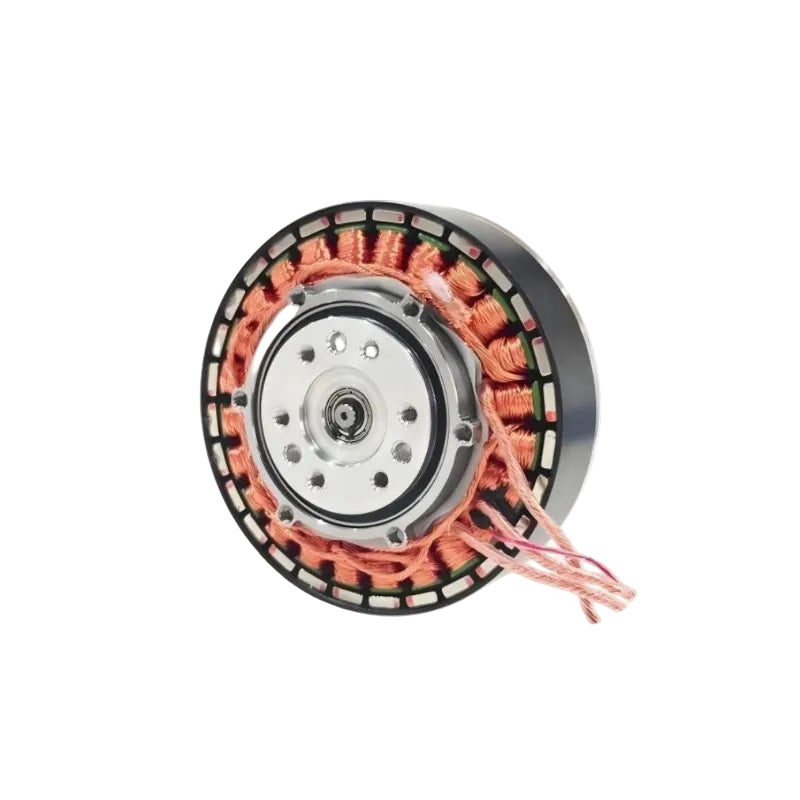

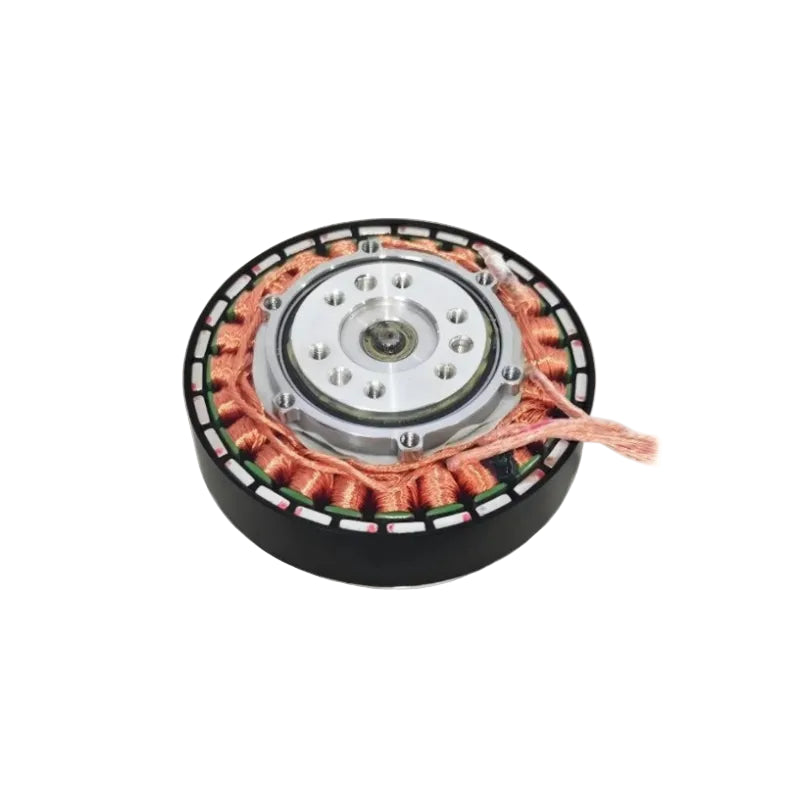

SteadyWin GWK6013-9 Motor
Regular price
$93.00
Sale price
$93.00
Regular price
Unit price
SteadyWin GWK6013-9 Motor
Product description
SteadyWin GWK6013-9 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Winding Type | Y |
| Testing Voltage | 24V |
| Rated Power | 331W |
| Nominal Torque | 9.8N.M |
| Stall Torque | 30.83N.M |
| Nominal Speed after Reducer | 247RPM |
| Max Speed after Reducer | 344RPM |
| Nominal Current | 13.8A |
| Stall Current | >30A |
| Phase to Phase Resistance | 0.074Ω |
| Phase to Phase Inductance | 0.046mH |
| Speed Constant | 14.33rpm/v |
| Torque Constant | 0.47N.M/A |
| Number of pole pairs | 14Pairs |
| Gear Rate | 1:9 |
| Gear Type | Planetary |
| Reducer Gear Material | STEEL |
| Reducer Gear Backlash | 15arcmin |
| Motor Weight without Driver | 319g |
| Size without Driver | Ø69*26.5mm |
| Max Axial Load | 225N |
| Max Radial Load | 900N |
| Protection Grade | IP54 |
| Working Temperature | -20~65℃ |
