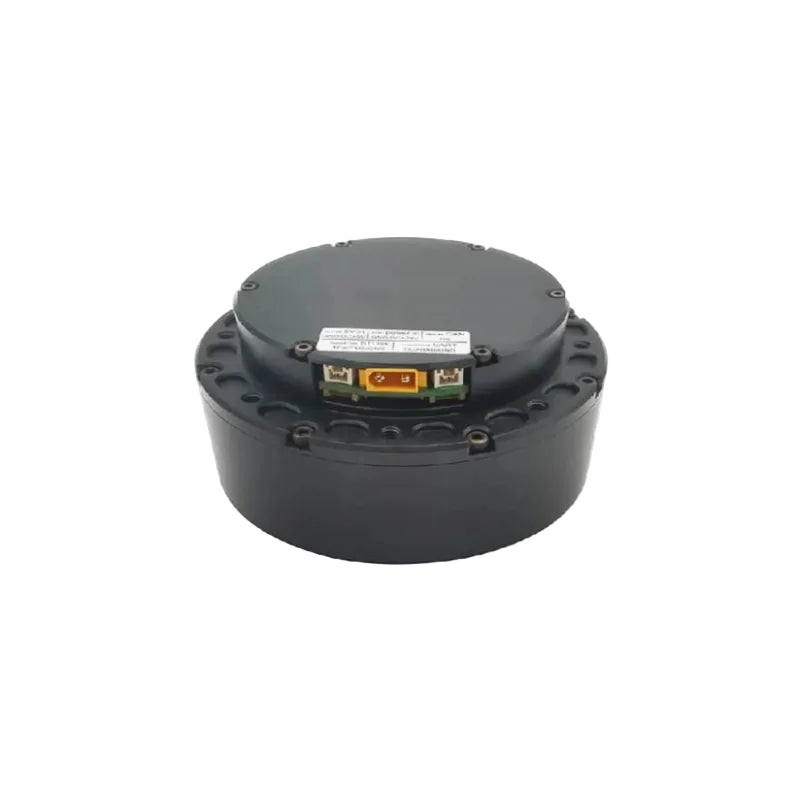

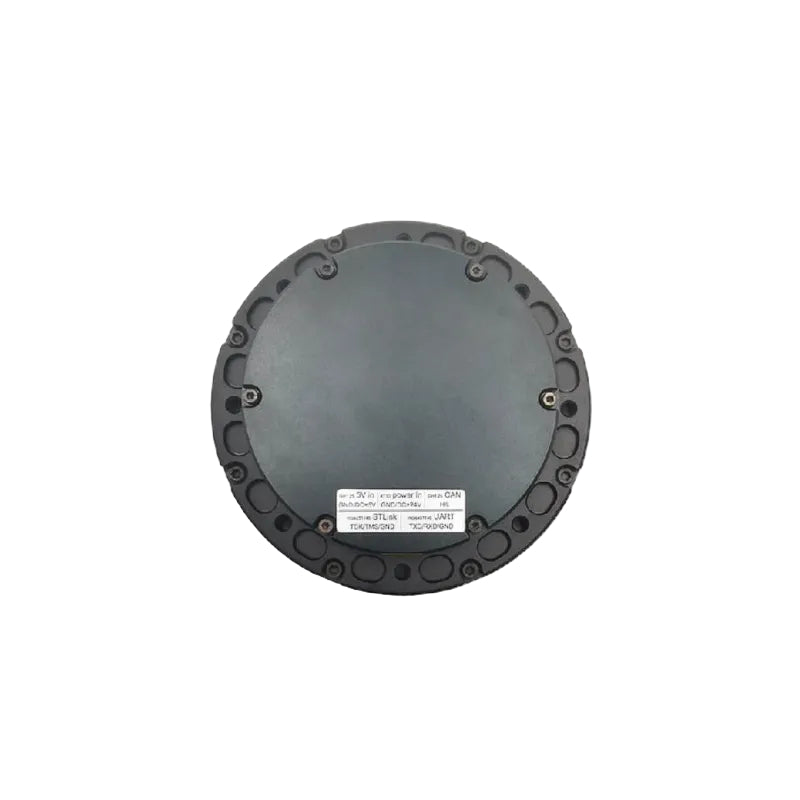

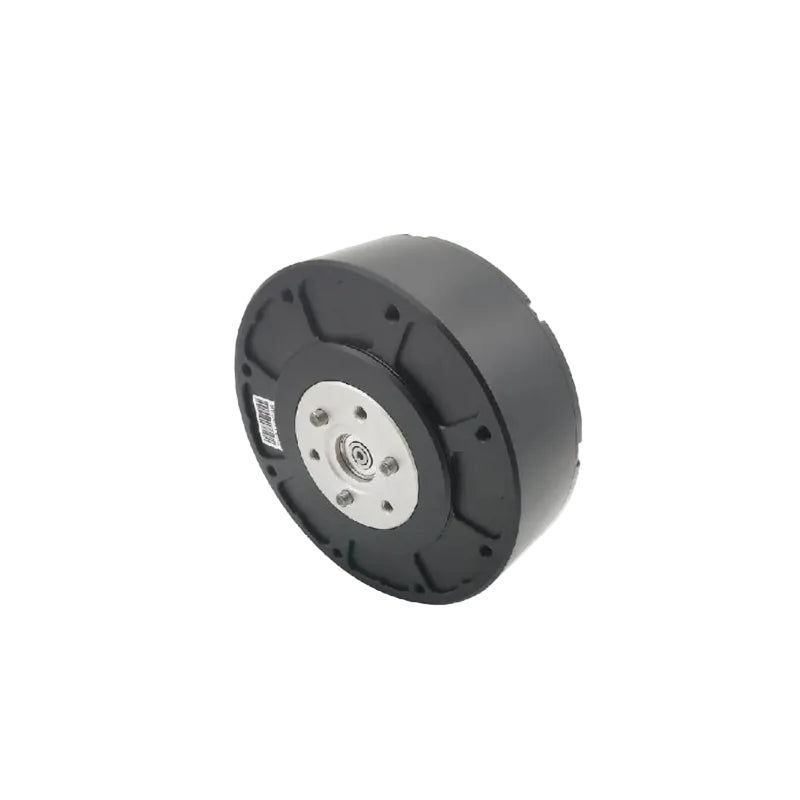

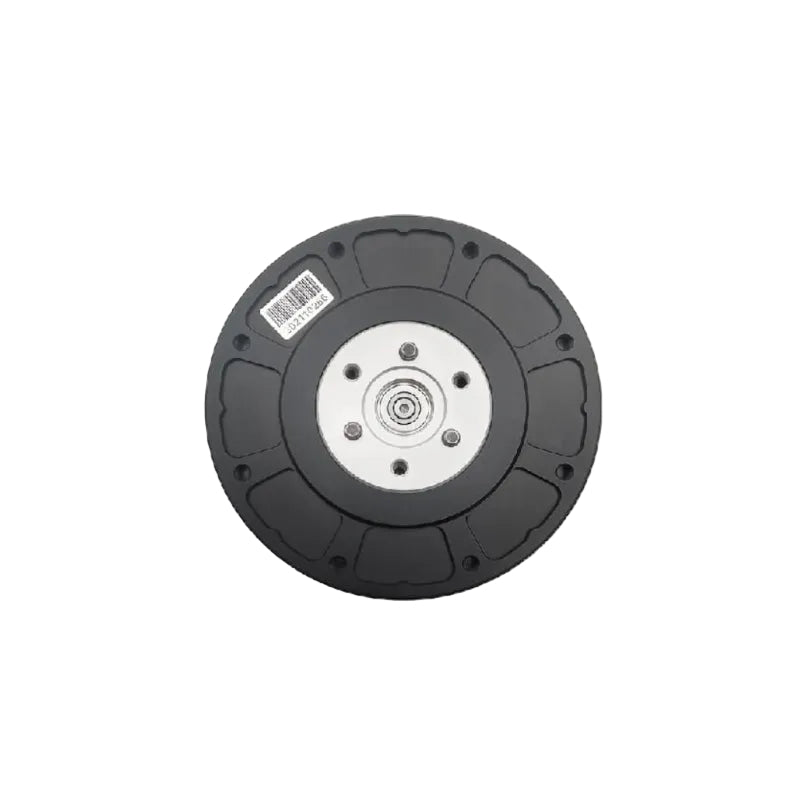

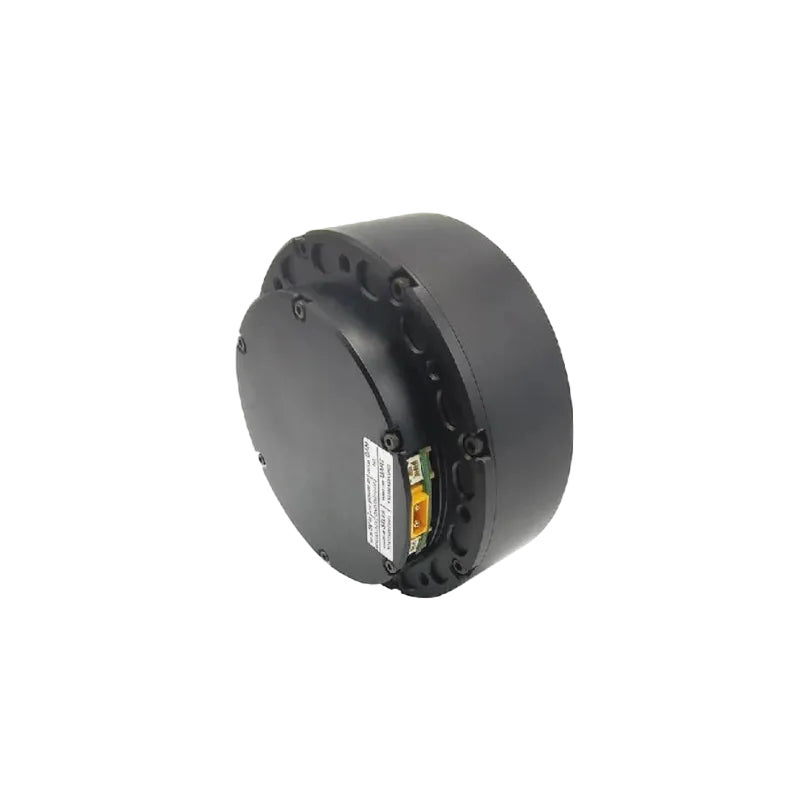

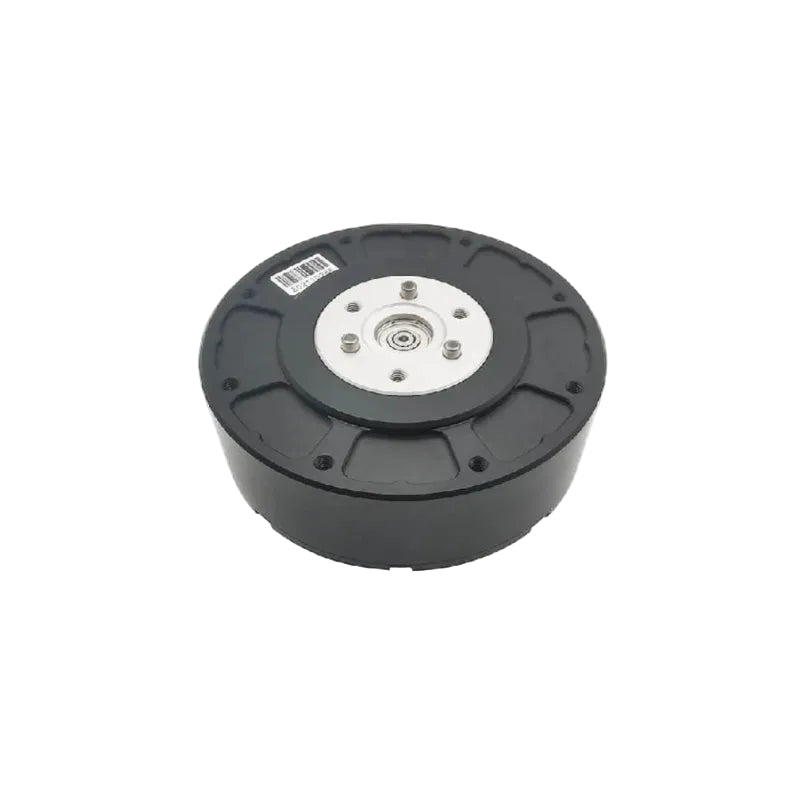

SteadyWin GIM8115-9 Planetary Reducer Motor
Regular price
$153.00
Sale price
$153.00
Regular price
Unit price
SteadyWin GIM8115-9 Planetary Reducer Motor
Product description
SteadyWin GIM8115-9 Planetary Reducer Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value | Value | Value | Value |
|---|---|---|---|---|
| Model | GIM8115-9 | GIM8115-9 | GIM8115-9 | GIM8115-9 |
| Driver Model | SDC103 | SDC103 | SDC303 | SDC303 |
| Nominal Voltage | 24V (24-48V range) | 48V (15-48V range) | 24V (24-48V range) | 48V (15-48V range) |
| Power | 190W | 221W | 202W | 245W |
| Nominal Torque | 13N.M | 13.8N.M | 12.9N.M | 13.5N.M |
| Stall Torque | 40N.M | 46N.M | 49N.M | 39N.M |
| Nominal Speed after Reduction | 100RPM | 118RPM | 117RPM | 136RPM |
| Max Speed after Reduction | 129RPM | 146RPM | 143RPM | 160RPM |
| Nominal Current | 7.9A | 4.6A | 8.4A | 5.1A |
| Stall Current | 24.69A | 16.55A | 16A | 15.79A |
| Phase Resistance | 0.28Ω | 0.98Ω | 0.28Ω | 0.98Ω |
| Phase Inductance | 0.26mH | 0.55mH | 0.26mH | 0.55mH |
| Speed Constant | 5.38rpm/v | 3.04rpm/v | 5.96rpm/v | 3.33rpm/v |
| Torque Constant | 1.62N.M/A | 2.78N.M/A | 1.48N.M/A | 2.47N.M/A |
| Number of Pole Pairs | 21Pairs | 21Pairs | 21Pairs | 21Pairs |
| Gear Ratio | 9:1 | 9:1 | 9:1 | 9:1 |
| Gear Type | Planetary | Planetary | Planetary | Planetary |
| Reducer Gear Material | STEEL | STEEL | STEEL | STEEL |
| Reducer Gear Backlash | 15arcmin | 15arcmin | 15arcmin | 15arcmin |
| Motor Weight (without Driver) | 660g | 660g | 660g | 660g |
| Motor Weight (with Driver) | 705g | 705g | 705g | 705g |
| Size (without Driver) | Ø96*41mm | Ø96*41mm | Ø96*41mm | Ø96*41mm |
| Size (with Driver) | Ø96*48.5mm | Ø96*48.5mm | Ø96*48.5mm | Ø96*48.5mm |
| Max Axial Load | 225N | 225N | 225N | 225N |
| Max Radial Load | 900N | 900N | 900N | 900N |
| Noise | <60dB | <60dB | <60dB | <60dB |
| Communication | CAN & 485 | CAN & 485 | CAN | CAN |
| Second Encoder | YES | YES | YES | YES |
| Protection Grade | IP54 | IP54 | IP54 | IP54 |
| Operating Temperature | -20℃ to +80℃ | -20℃ to +80℃ | -20℃ to +80℃ | -20℃ to +80℃ |
| Encoder Resolution | 14Bit | 14Bit | 14Bit | 14Bit |
| Separate Encoder Support | NO | NO | NO | NO |
| Custom Brake Support | YES | YES | YES | YES |
