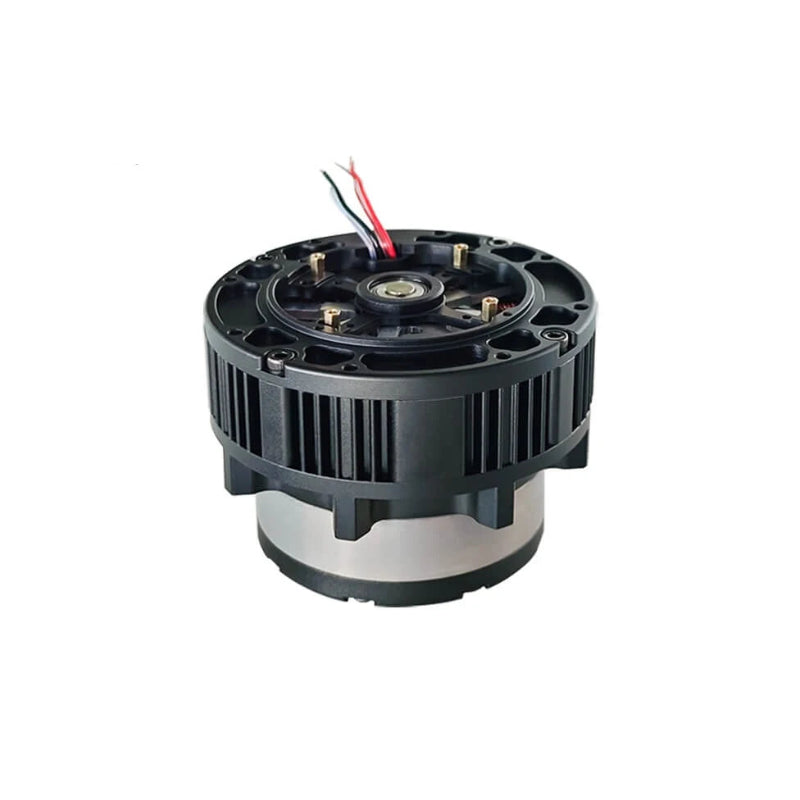

SteadyWin GIM6010-48 Planetary Reducer Motor
Product description
SteadyWin GIM6010-48 Planetary Reducer Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value | Value | Value |
|---|---|---|---|
| Model | GIM6010-48 | GIM6010-48 | GIM6010-48 |
| Driver Model | GDS68 | GDZ468 | GDZ468H |
| Nominal Voltage | 24V (12-56V range) | 24V (12-36V range) | 48V (12-48V range) |
| Power | 252W | 156W | 158W |
| Nominal Torque | 30N.M | 27N.M | 26.2N.M |
| Stall Torque | 66N.M | 55.9N.M | 74.8N.M |
| Nominal Speed after Reduce | 20RPM | 38RPM | 40RPM |
| Max Speed after Reduction | 70RPM | 49RPM | 95RPM |
| Nominal Current | 10.5A | 6.5A | 3.3A |
| Stall Current | 23.4A | 13.5A | 20.23A |
| Phase Resistance | 0.42Ω | 0.42Ω | 0.44Ω |
| Phase Inductance | 0.34mH | 0.34mH | 0.22mH |
| Speed Constant | 2.92rpm/v | 2.04rpm/v | 1.98rpm/v |
| Torque Constant | 2.82N.M/A | 4.53N.M/A | 4.7N.M/A |
| Number of Pole Pairs | 14Pairs | 14Pairs | 14Pairs |
| Gear Ratio | 48:1 | 48:1 | 48:1 |
| Gear Type | Planetary | Planetary | Planetary |
| Reducer Gear Material | STEEL | STEEL | STEEL |
| Reducer Gear Backlash | 15arcmin | 15arcmin | 15arcmin |
| Motor Weight (without Driver) | 758.9g | 758.9g | 758.9g |
| Motor Weight (with Driver) | 776.9g | 776.9g | 776.9g |
| Size (without Driver) | Ø80*56.5mm | Ø80*56.5mm | Ø80*56.5mm |
| Size (with Driver) | Ø80*67.5mm | Ø80*67.5mm | Ø80*67.5mm |
| Max Axial Load | 225N | 225N | 225N |
| Max Radial Load | 900N | 900N | 900N |
| Noise | <60dB | <60dB | <60dB |
| Communication | CAN | CAN & RS485 | CAN & RS485 |
| Second Encoder | YES | YES | YES |
| Protection Grade | IP54 | IP54 | IP54 |
| Operating Temperature | -20℃ to +80℃ | -20℃ to +80℃ | -20℃ to +80℃ |
| Encoder Resolution | 16Bit | 14Bit | 14Bit |
| Separate Encoder Support | NO | NO | NO |
| Custom Brake Support | YES | YES | YES |
