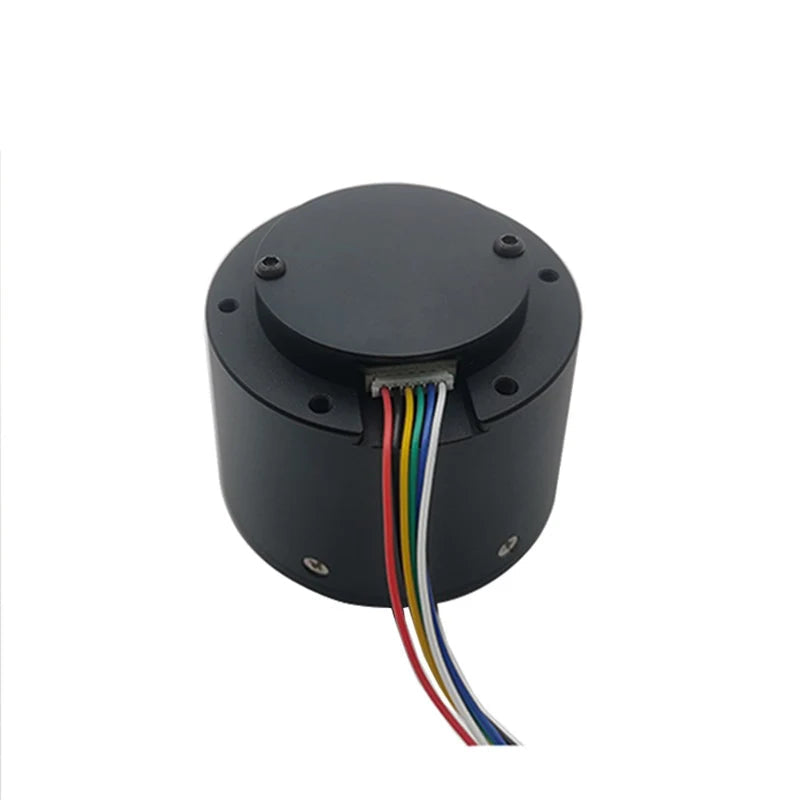

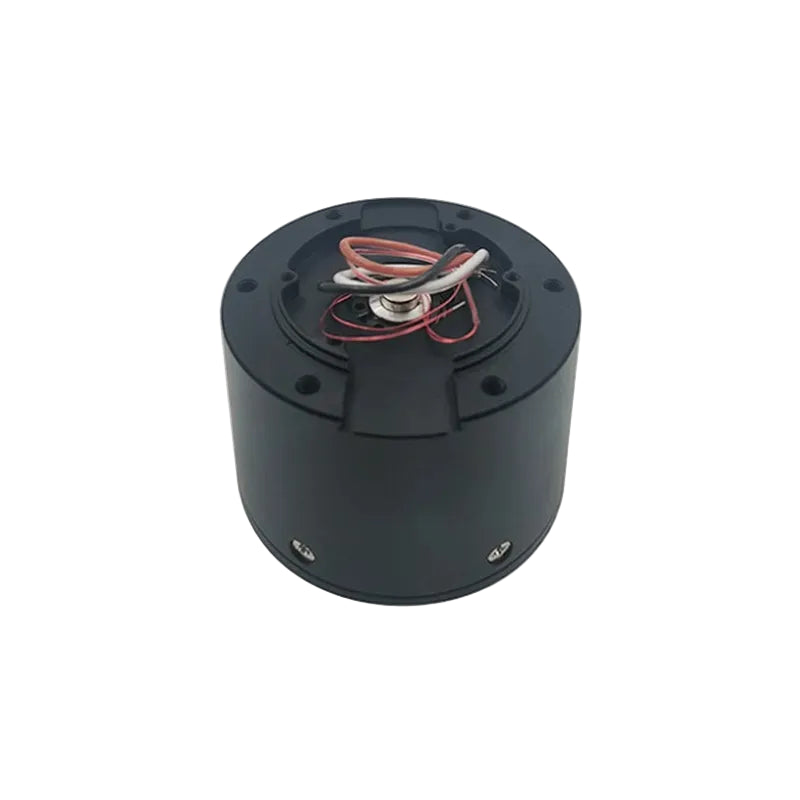

SteadyWin GIM4310-36 Planetary Reducer Motor
Regular price
$99.00
Sale price
$99.00
Regular price
Unit price
SteadyWin GIM4310-36 Planetary Reducer Motor
Product description
SteadyWin GIM4310-36 Planetary Reducer Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value | Value |
|---|---|---|
| Model | GIM4310-36 | GIM4310-36 |
| Driver Model | GDS34 | GDZ34 |
| Nominal Voltage | 24V (12-48V range) | 24V (12-40V range) |
| Power | 55W | 44W |
| Nominal Torque | 7.38N·m | 6.24N·m |
| Stall Torque | 20.16N·m | 20.16N·m |
| Nominal Speed after Reduction | 41RPM | 40RPM |
| Max Speed after Reduction | 63RPM | 64RPM |
| Nominal Current | 2.3A | 1.83A |
| Stall Current | 6.8A | 10.57A |
| Phase Resistance | 1.89Ω | 1.86Ω |
| Phase Inductance | 0.75mH | 0.66mH |
| Speed Constant | 2.63rpm/v | 2.68rpm/v |
| Torque Constant | 3.46N·m/A | 3.19N·m/A |
| Number of Pole Pairs | 14Pairs | 14Pairs |
| Gear Ratio | 36:1 | 36:1 |
| Gear Type | Planetary | Planetary |
| Reducer Gear Material | STEEL | STEEL |
| Reducer Gear Backlash | 15 arcmin | 15 arcmin |
| Motor Weight (without Driver) | 300g | 300g |
| Motor Weight (with Driver) | 310g | 310g |
| Size (without Driver) | Ø55*40mm | Ø55*40mm |
| Size (with Driver) | Ø55*47mm | Ø55*47mm |
| Max Axial Load | 125N | 125N |
| Max Radial Load | 500N | 500N |
| Noise | <60 dB | <60 dB |
| Communication | CAN | CAN & RS485 |
| Second Encoder | NO | NO |
| Protection Grade | IP54 | IP54 |
| Operating Temperature | -20℃ to +80℃ | -20℃ to +80℃ |
| Encoder Resolution | 14Bit | 14Bit |
| Separate Encoder Support | NO | NO |
| Custom Brake Support | YES | YES |
