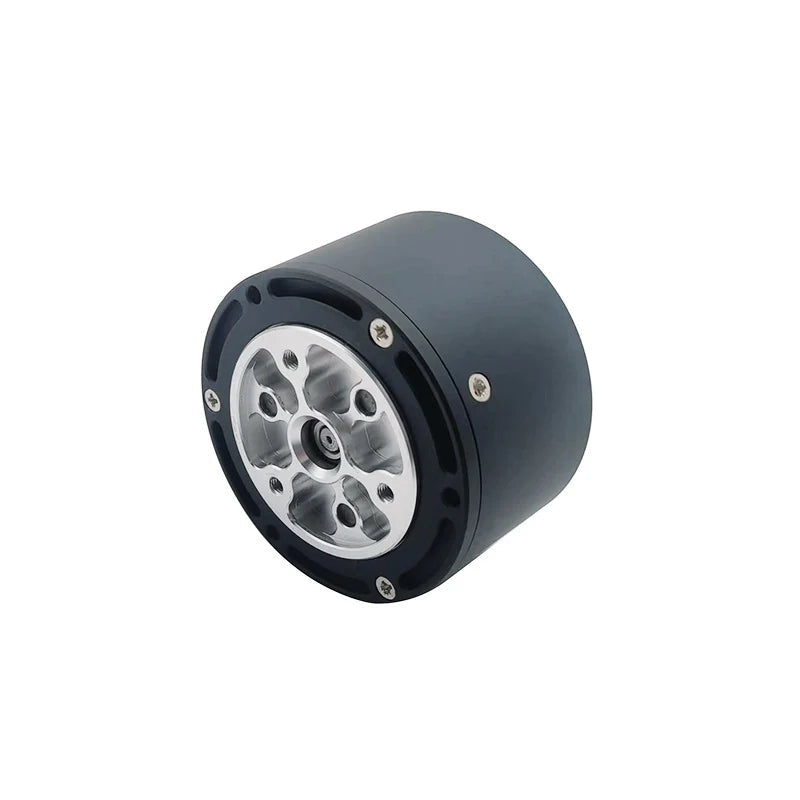

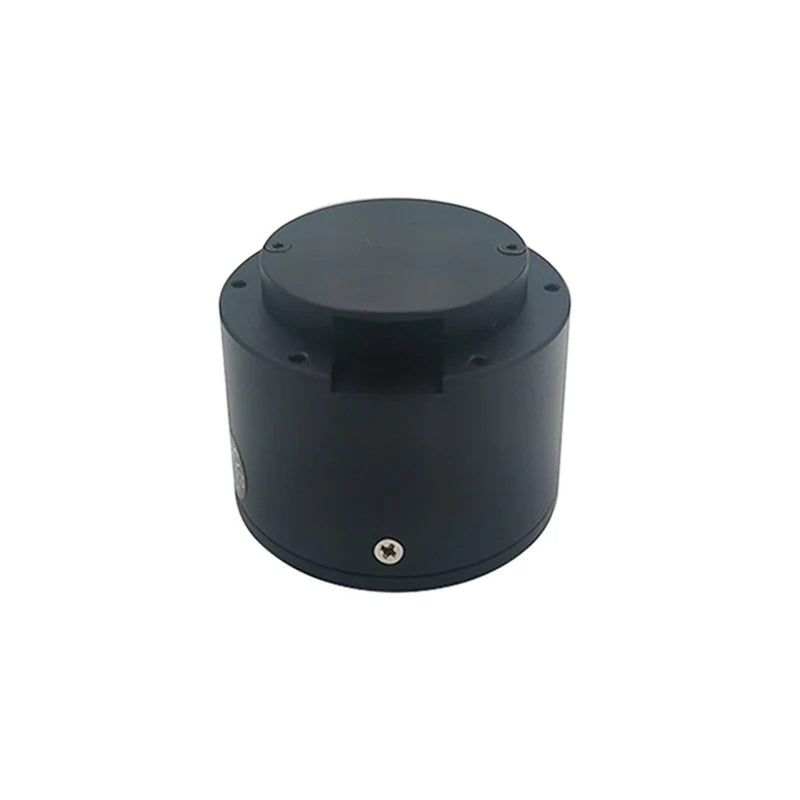

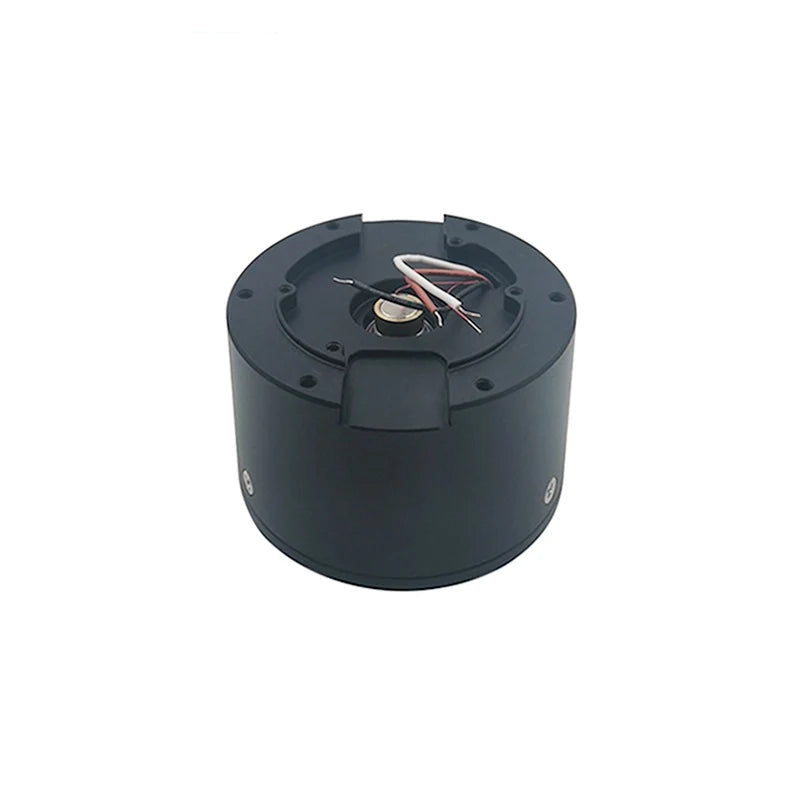

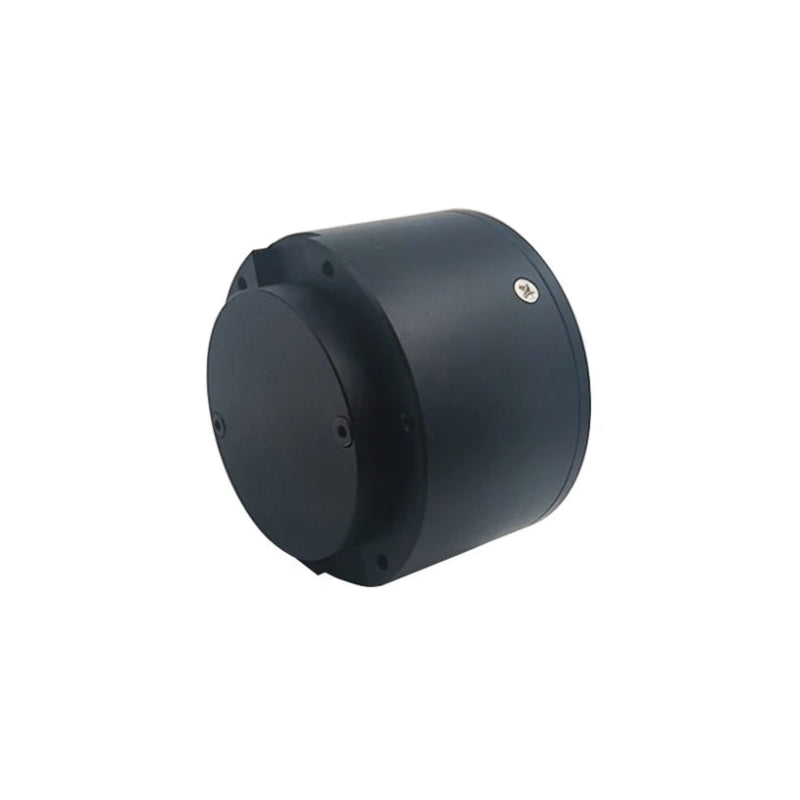

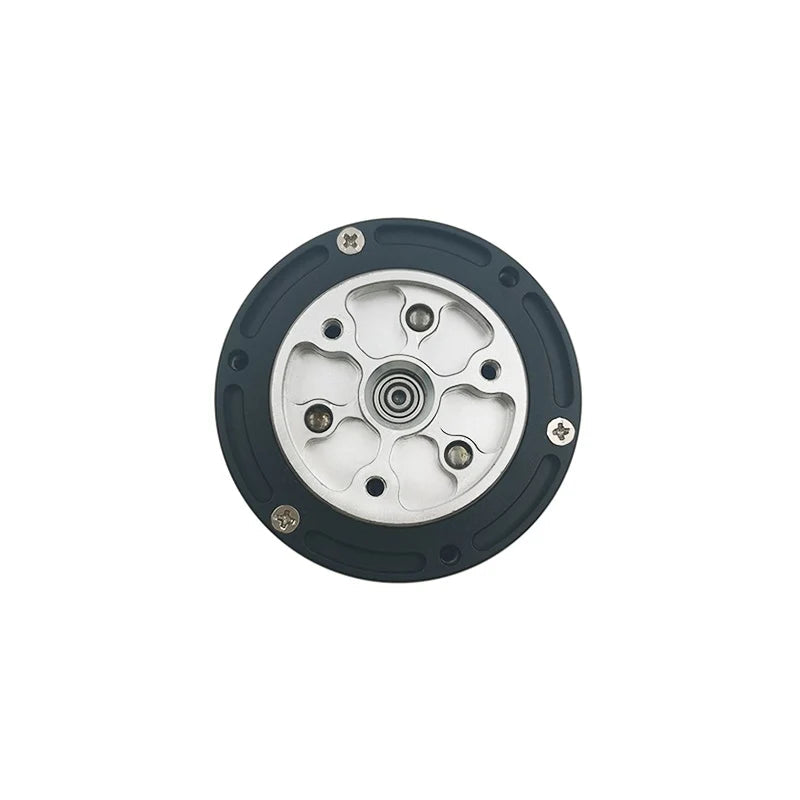

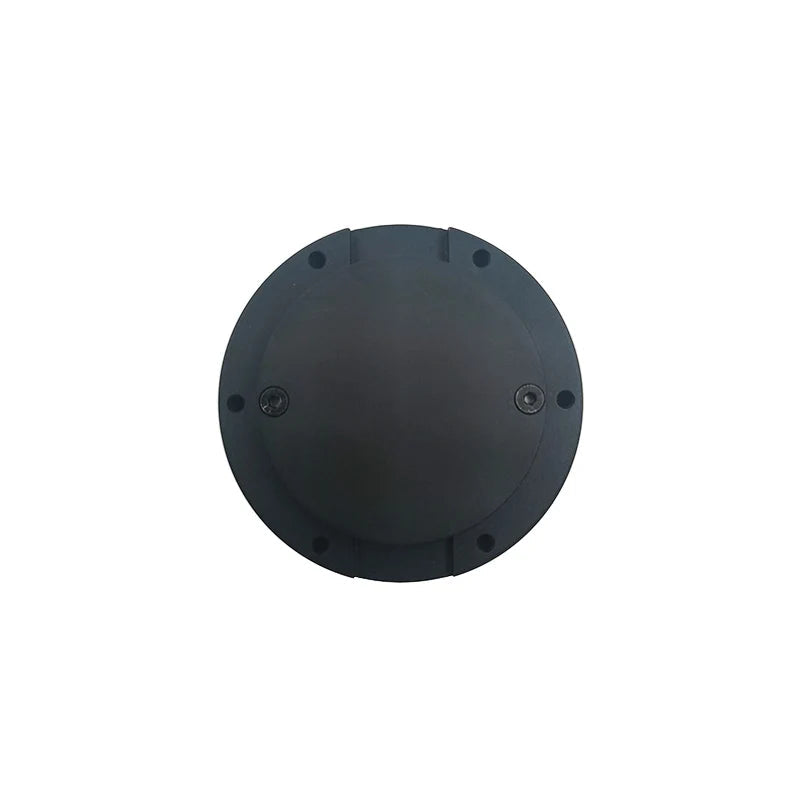

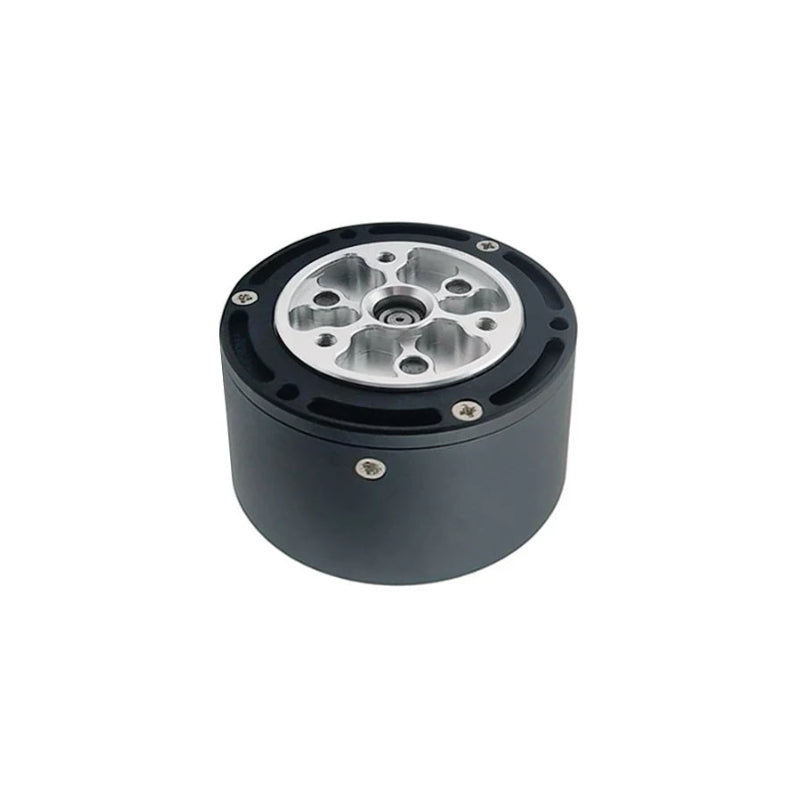

SteadyWin GIM4310-10 Planetary Reducer Motor
Regular price
$80.00
Sale price
$80.00
Regular price
Unit price
SteadyWin GIM4310-10 Planetary Reducer Motor
Product description
SteadyWin GIM4310-10 Planetary Reducer Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value | Value |
|---|---|---|
| Model | GIM4310-10 | GIM4310-10 |
| Driver Model | GDS34 | GDZ34 |
| Nominal Voltage | 24V (12-48V range) | 24V (12-40V range) |
| Power | 55W | 31W |
| Nominal Torque | 2.05N·m | 1.63N·m |
| Stall Torque | 5.6N·m | 7.98N·m |
| Nominal Speed after Reduction | 150RPM | 101RPM |
| Max Speed after Reduction | 228RPM | 212RPM |
| Nominal Current | 2.3A | 1.3A |
| Stall Current | 6.8A | 10.67A |
| Phase Resistance | 1.89Ω | 1.96Ω |
| Phase Inductance | 0.75mH | 0.67mH |
| Speed Constant | 9.5rpm/v | 8.83rpm/v |
| Torque Constant | 0.96N·m/A | 2.61N·m/A |
| Number of Pole Pairs | 14Pairs | 14Pairs |
| Gear Ratio | 10:1 | 10:1 |
| Gear Type | Planetary | Planetary |
| Reducer Gear Material | STEEL | STEELv |
| Reducer Gear Backlash | 15 arcmin | 15 arcmin |
| Motor Weight (without Driver) | 217g | 217g |
| Motor Weight (with Driver) | 227g | 227g |
| Size (without Driver) | Ø53*32mm | Ø53*32mm |
| Size (with Driver) | Ø53*32mm | Ø53*32mm |
| Max Axial Load | 125N | 125N |
| Max Radial Load | 500N | 500N |
| Noise | <60 dB | <60 dB |
| Communication | CAN | CAN & RS485 |
| Second Encoder | NO | NO |
| Protection Grade | IP54 | IP54 |
| Operating Temperature | -20℃ to +80℃ | -20℃ to +80℃ |
| Encoder Resolution | 14Bit | 14Bit |
| Separate Encoder Support | YES | YES |
| Custom Brake Support | YES | YES |
