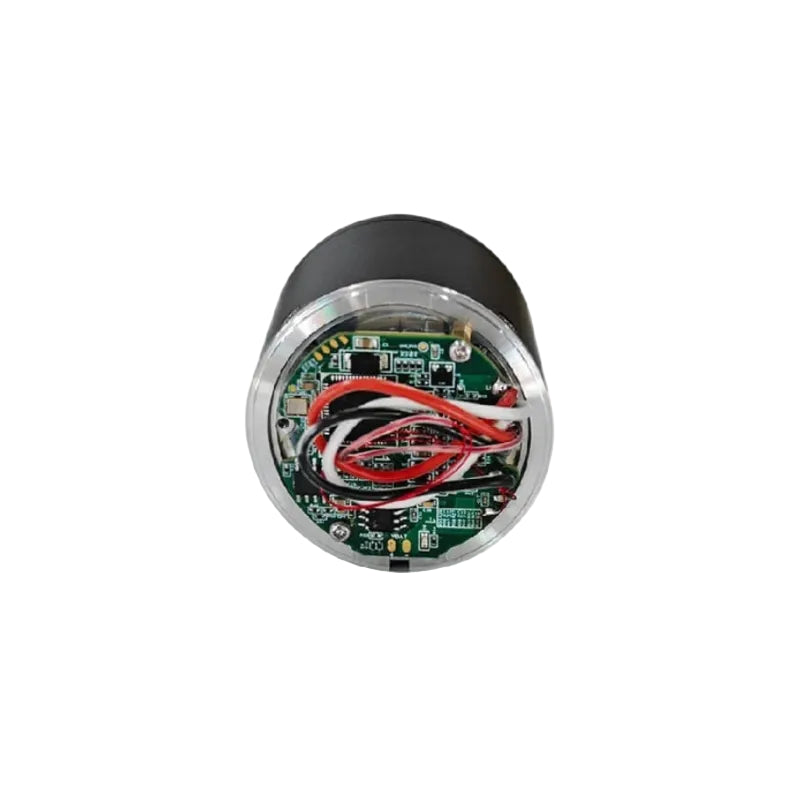

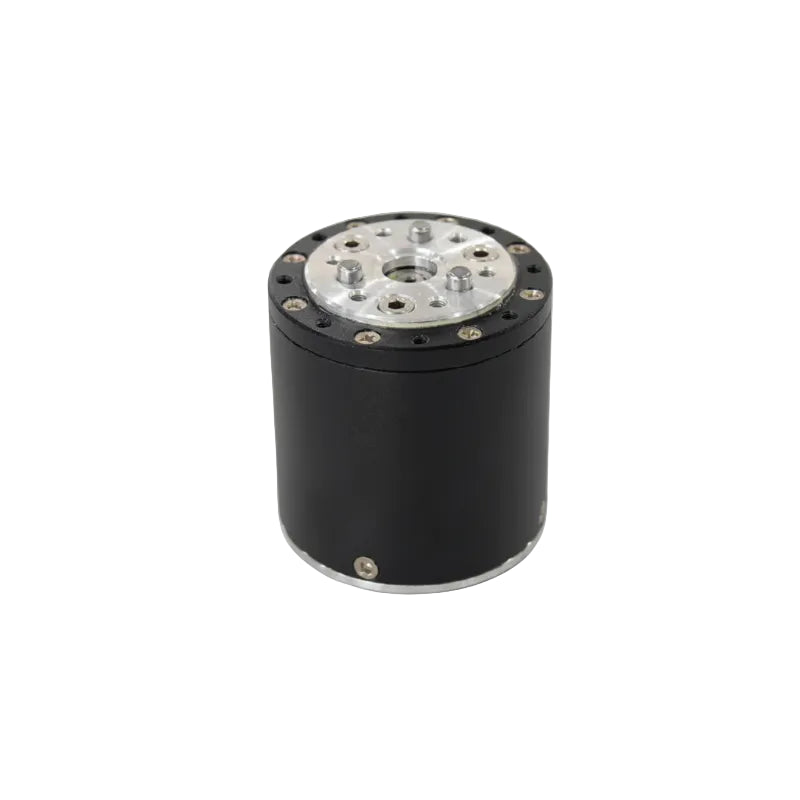

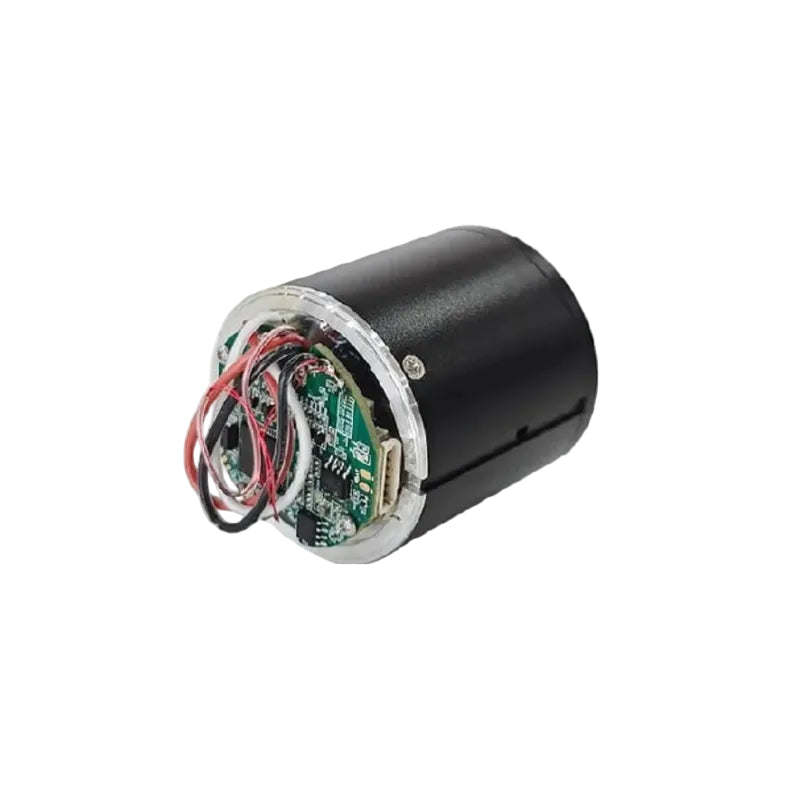

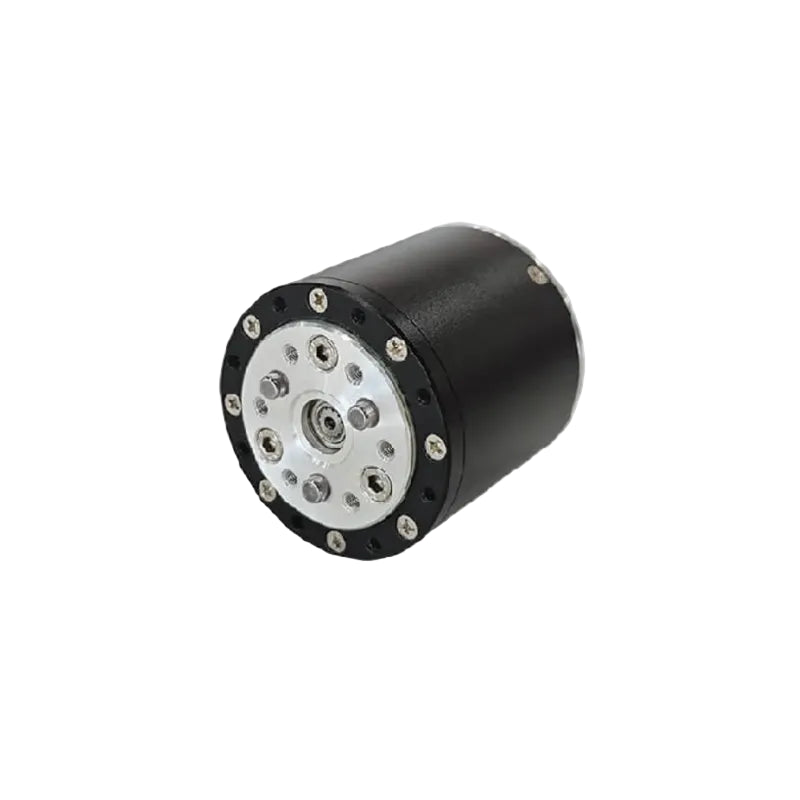

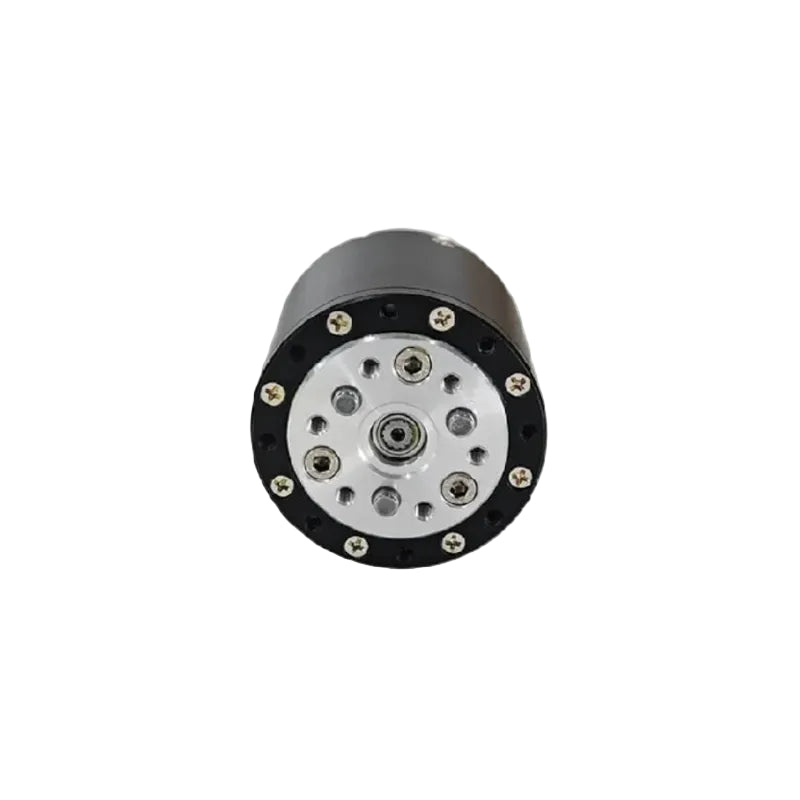

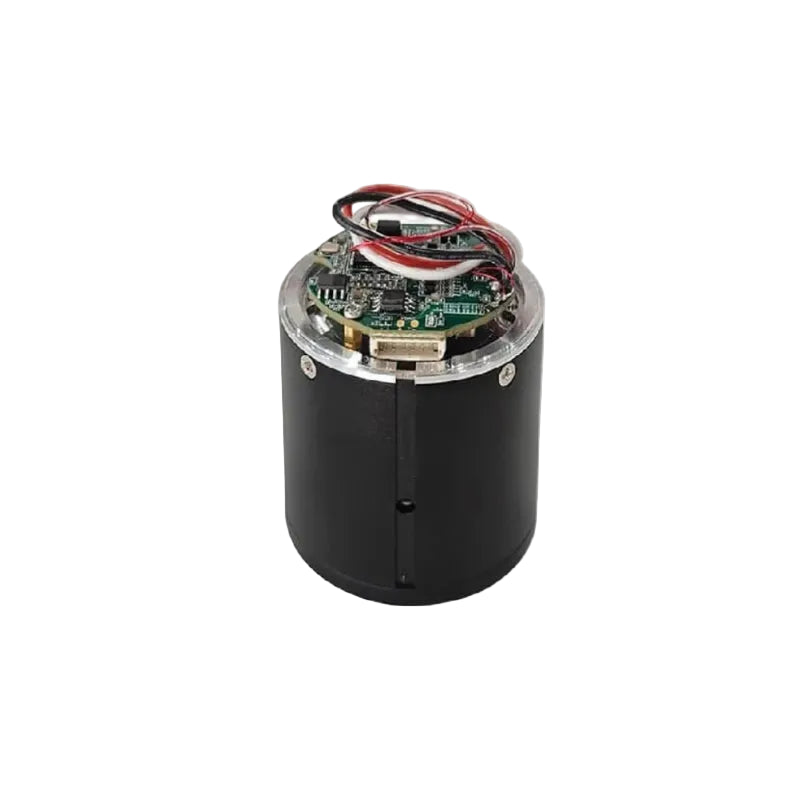

SteadyWin GIM3510-8 Planetary Reducer Motor
Regular price
$73.00
Sale price
$73.00
Regular price
Unit price
SteadyWin GIM3510-8 Planetary Reducer Motor
Product description
SteadyWin GIM3510-8 Planetary Reducer Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | GIM3510-8 |
| Driver Model | GDZ34 |
| Nominal Voltage | 24V (12-40V range) |
| Power | 79W |
| Nominal Torque | 1N·m |
| Stall Torque | 6.28N·m |
| Nominal Speed after Reduction | 534RPM |
| Max Speed after Reduction | 588RPM |
| Nominal Current | 3.3A |
| Stall Current | 28.94A |
| Phase Resistance | 0.52Ω |
| Phase Inductance | 0.29mH |
| Speed Constant | 24.5rpm/v |
| Torque Constant | 0.26N·m/A |
| Number of Pole Pairs | 7Pairs |
| Gear Ratio | 8:1 |
| Gear Type | Planetary |
| Reducer Gear Material | STEEL |
| Reducer Gear Backlash | 15 arcmin |
| Motor Weight (without Driver) | 247.6g |
| Motor Weight (with Driver) | 259.6g |
| Size (without Driver) | Ø46*46.5mm |
| Size (with Driver) | Ø46*51.5mm |
| Max Axial Load | 75N |
| Max Radial Load | 300N |
| Noise | <60 dB |
| Communication | CAN & RS485 |
| Second Encoder | YES |
| Protection Grade | IP54 |
| Operating Temperature | -20℃ to +80℃ |
| Encoder Resolution | 14Bit |
| Separate Encoder Support | NO |
| Custom Brake Support | YES |
