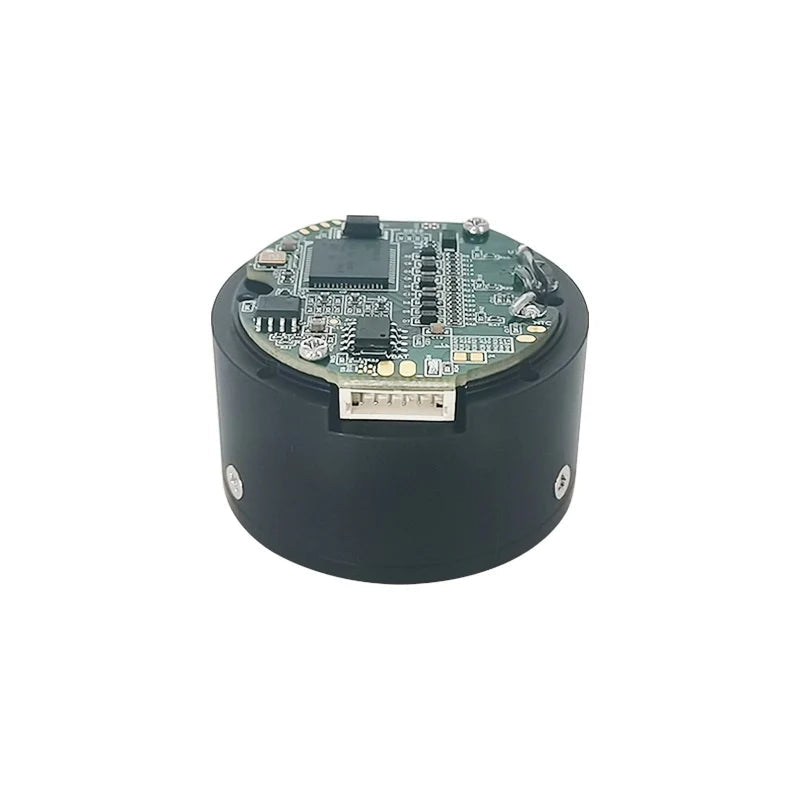

SteadyWin GIM3505-8 Planetary Reducer Motor
Regular price
$55.00
Sale price
$55.00
Regular price
Unit price
SteadyWin GIM3505-8 Planetary Reducer Motor
Product description
SteadyWin GIM3505-8 Planetary Reducer Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value | Value |
|---|---|---|
| Model | GIM3505-8 | GIM3505-8 |
| Driver Model | GDS34 | GDZ34 |
| Nominal Voltage | 24V (12-48V range) | 24V (12-40V range) |
| Power | 29W | 37W |
| Nominal Torque | 0.65N·m | 0.67N·m |
| Stall Torque | 1.27N·m | 1.79N·m |
| Nominal Speed after Reduction | 225RPM | 230RPM |
| Max Speed after Reduction | 384RPM | 400RPM |
| Nominal Current | 1.2A | 1.53A |
| Stall Current | 2.4A | 3.99A |
| Phase Resistance | 5.06Ω | 5.47Ω |
| Phase Inductance | 0.62mH | 0.48mH |
| Speed Constant | 16rpm/v | 16.67rpm/v |
| Torque Constant | 0.52N·m/A | 0.44N·m/A |
| Number of Pole Pairs | 11Pairs | 11Pairs |
| Gear Ratio | 8:1 | 8:1 |
| Gear Type | Planetary | Planetary |
| Reducer Gear Material | ALU | ALU |
| Reducer Gear Backlash | 15 arcmin | 15 arcmin |
| Motor Weight (without Driver) | 84g | 84g |
| Motor Weight (with Driver) | 97g | 97g |
| Size (without Driver) | Ø43*23.6mm | Ø43*23.6mm |
| Size (with Driver) | Ø43*30mm | Ø43*30mm |
| Max Axial Load | 75N | 75N |
| Max Radial Load | 300N | 300N |
| Noise | <60 dB | <60 dB |
| Communication | CAN | CAN & RS485 |
| Second Encoder | NO | NO |
| Protection Grade | IP54 | IP54 |
| Operating Temperature | -20℃ to +80℃ | -20℃ to +80℃ |
| Encoder Resolution | 14Bit | 14Bit |
| Separate Encoder Support | YES | YES |
| Custom Brake Support | YES | YES |
