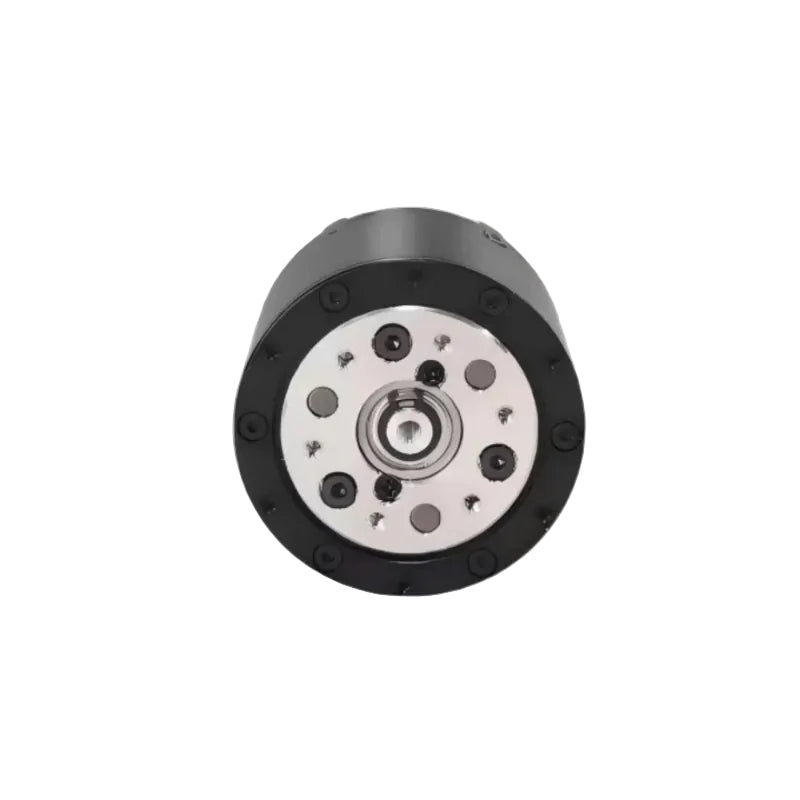

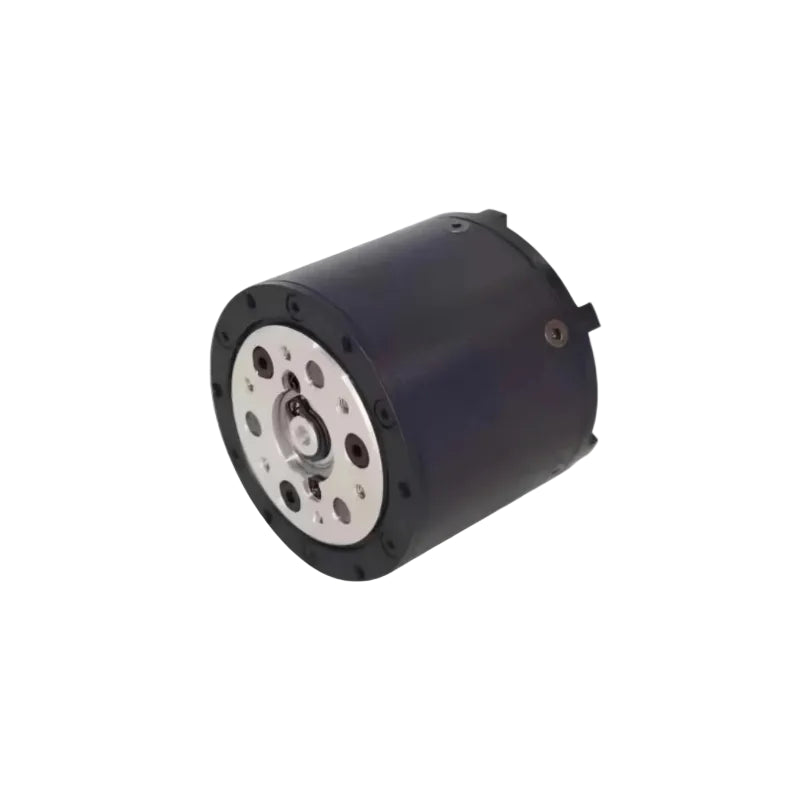

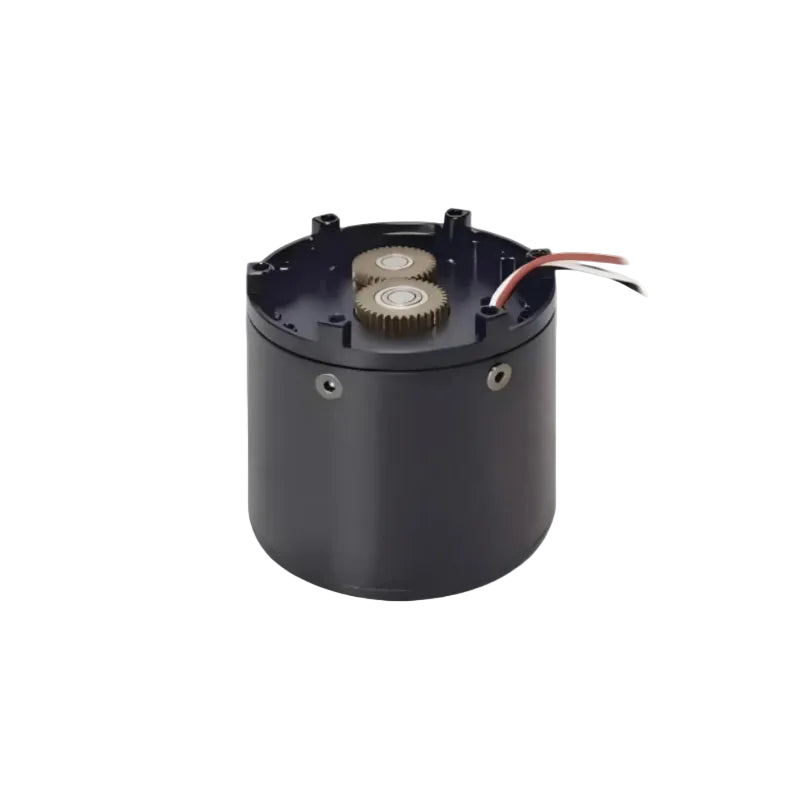

SteadyWin GIM3505-36 Planetary Reducer Motor
Regular price
$89.00
Sale price
$89.00
Regular price
Unit price
SteadyWin GIM3505-36 Planetary Reducer Motor
Product description
SteadyWin GIM3505-36 Planetary Reducer Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | GIM3505-36 |
| Winding method | Y |
| Rated voltage | 24V |
| Voltage Range | 12~40V |
| Rated Power | 40.80W |
| Rated torque | 3.12N·m |
| Peak torque | 8.01N·m |
| Rated Speed after reduce | 55RPM |
| Max Speed after reduce | 97RPM |
| Rated current | 1.70A |
| Peak current | 4.54A |
| Phase-to-phase resistance | 4.466Ω |
| Phase-to-phase inductance | 0.45mH |
| Speed constant | 4.04rpm/v |
| Torque constant | 2N·m/A |
| Number of pole pairs | 0:00 Pairs |
| Gear Rate | 36:1 |
| Gear type | Planetary |
| Reducer gear material | ALU |
| Reducer gear backlash | 15arcmin |
| Motor weight without driver | 165.3g |
| Motor weight with driver | 177g |
| Size without Driver | Ø45*40.3mm |
| Size with Driver | Ø45*44.1mm |
| Max.Axial load | 75N |
| Max.Radial load | 300N |
| Noise | <60dB |
| Communication | CAN&485 |
| the second encoder on the output shaft | YES |
| Protection grade | IP54 |
| Working temperature | -20~+80℃ |
| Resolution of the encoder on the driver | 14bit |
| Can support separate encoder or not | YES |
