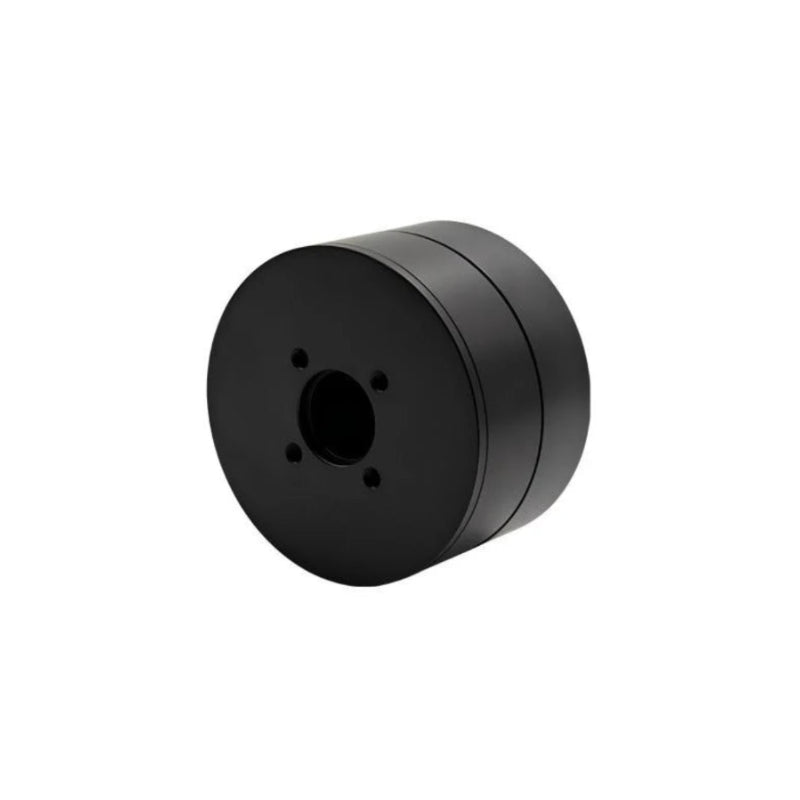

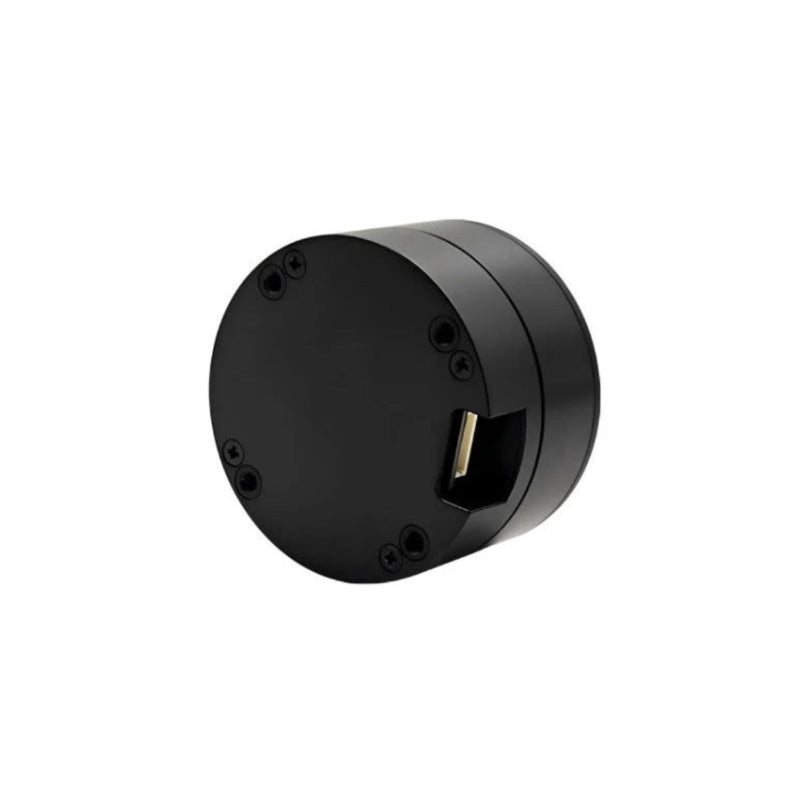

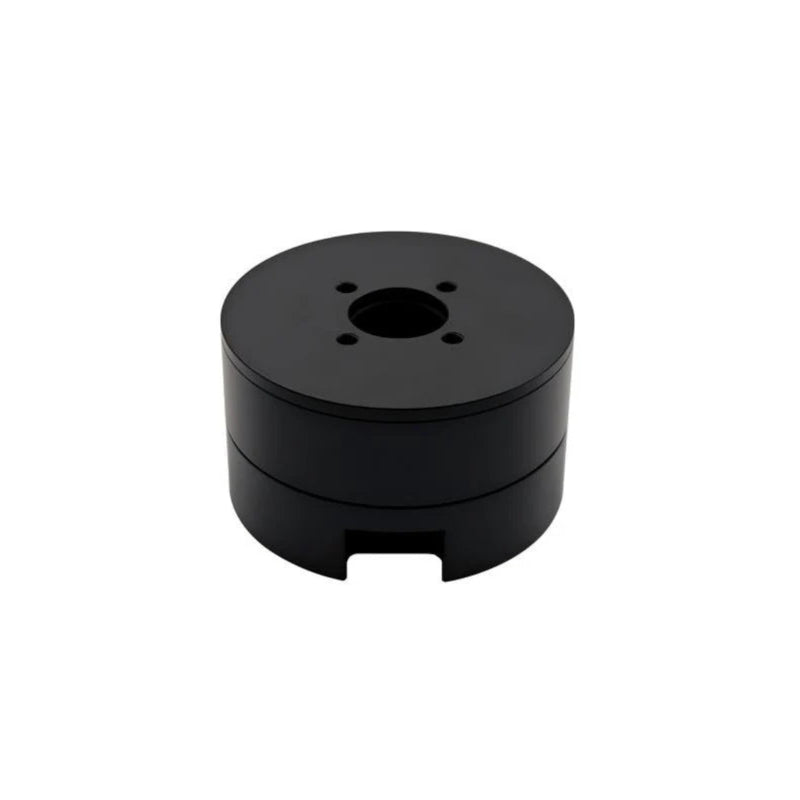

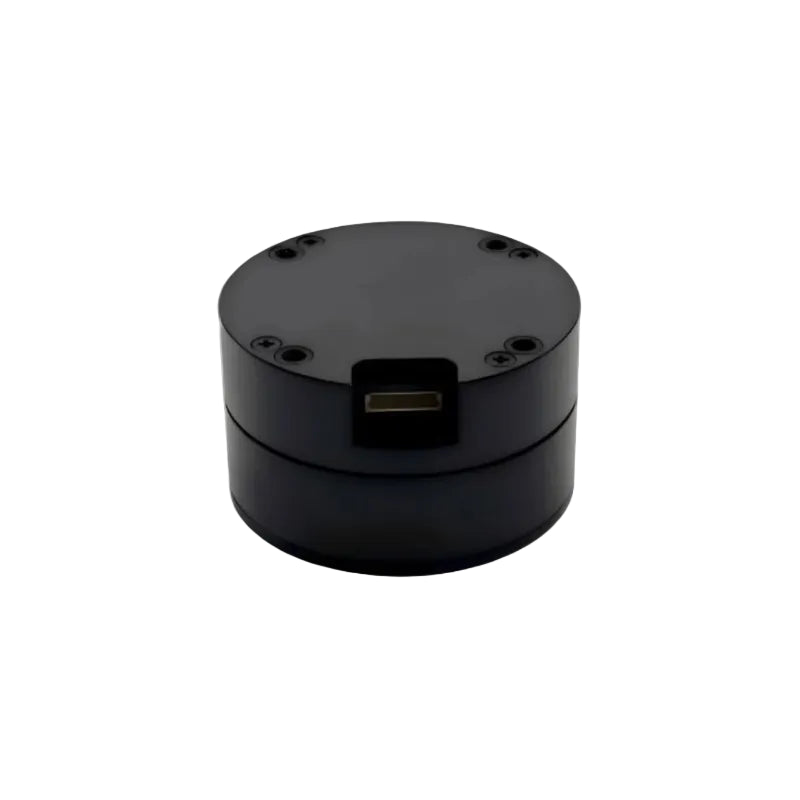

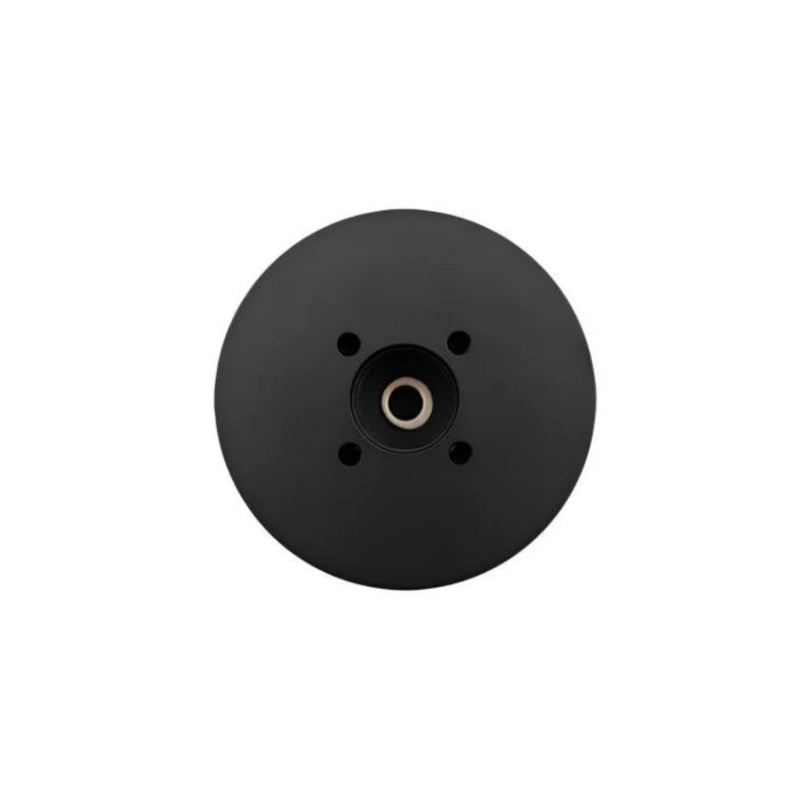

SteadyWin DD5010 Motor
Regular price
$73.00
Sale price
$73.00
Regular price
Unit price
SteadyWin DD5010 Motor
Product description
SteadyWin DD5010 Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Nominal voltage | 24V |
| Voltage range | 10~28V |
| Nominal current | 0.9A |
| Nominal power | 21.6W |
| Nominal torque | 0.2N.M |
| Nominal speed | 504rpm |
| No-load max speed | 828rpm |
| Peak torque | 0.49N.m |
| Peak current | 1.9A |
| Speed constant | 34.4rpm/v |
| Torque constant | 0.23N.M/A |
| Number of pole pairs | 14Pairs |
| Phase resistance | 5.16Ω |
| Phase inductance | 1.63mH |
| Rotor inertial | 195gcm^2 |
| Communication | RS485 & CAN |
| Encoder type | Single-turn absolute |
| Resolution | 14bit |
| Motor weight | 134g |
| Working temperature | -20~80℃ |
