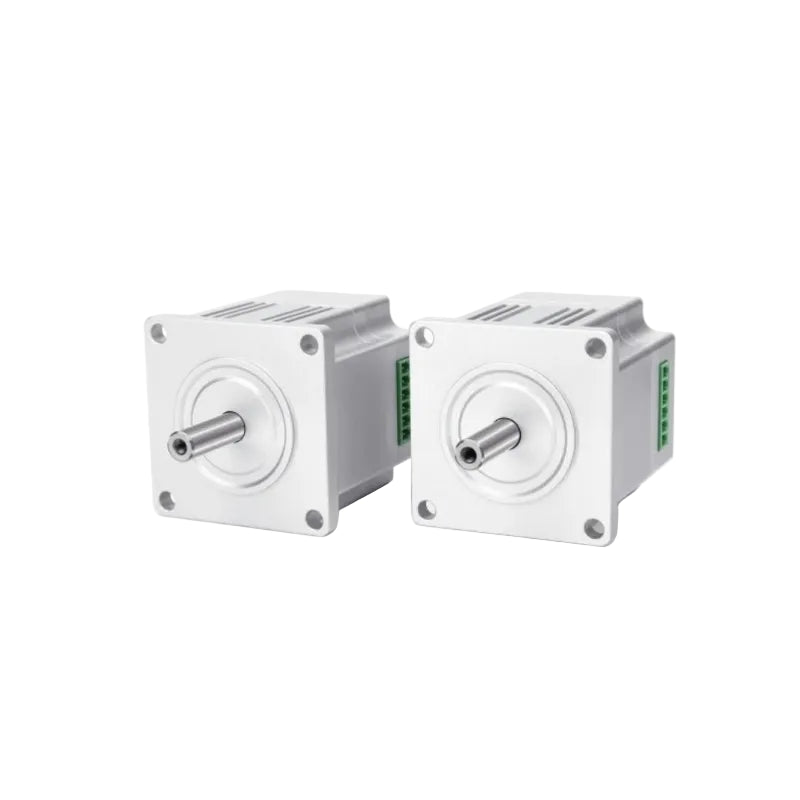

SteadyWin 5715AIO Servo Motor
Regular price
$93.00
Sale price
$93.00
Regular price
Unit price
SteadyWin 5715AIO Servo Motor
Product description
SteadyWin 5715AIO Servo Motor Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | 5715AIO |
| Nominal Voltage | 24~36V |
| Power | 50W |
| Nominal Torque | 0.48N·m |
| Nominal Speed | 1000RPM |
| Max Speed | 1500RPM |
| Nominal Current | 2.2A |
| Return Signal | multi-turn absolute value encoder(One lap 15 bits, multiple laps 9 bits, total 24 bits) |
| Communication Interface | CAN |
| Max Input Pulse Frequency | 500KHz |
| Pulse Command Mode | Pulse+ Direction, A+B |
| Position Sampling Frequency | 2KHz |
| Cooling-down Method | Natural cooling |
| Weight | 380g |
| Defencive Function | Blocking and turning alarm |
| Humidity | 5~95% |
| Working Temperature | 0~40℃ |
| Max Temperature | 85℃ |
