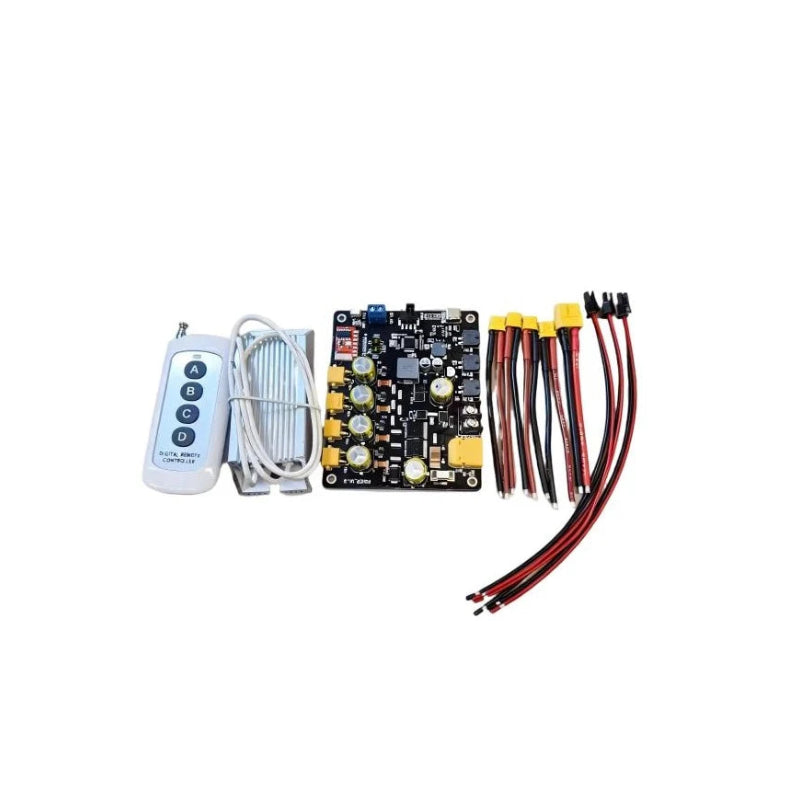

ROBSTRIDE Power-Board
Regular price
$150.00
Sale price
$150.00
Regular price
Unit price
ROBSTRIDE Power-Board
Product description
ROBSTRIDE Power-Board Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Product Name | Power Board |
| Max Height | 16.5mm |
| Input Voltage Range | 20V~65V (24V output disabled when <30V) |
| Under-Voltage Protection | <20V (recoverable fault) |
| Over-Voltage Protection | >65V (non-recoverable fault) |
| Main Branch Supply | Rated 20A, peak 40A |
| 24V Supply Interface | Rated 4A, current limit 6A, short-circuit protection |
| 12V Supply Interface | Rated 2A, current limit 3A, short-circuit protection |
| 5V Supply Interface | Rated 2A, current limit 3A, short-circuit protection |
| Main Branch Overcurrent Protection | 80A/30ms (software) 100A/1ms (hardware) 150A/1.2us |
| Main Branch Short-Circuit Protection | Additional disposable fuse A²S=5270 |
| Branch Overcurrent/Short-Circuit | Non-recoverable fault, requires power cycle to recover |
| 24V/12V/5V Overcurrent/Short-Circuit | Recoverable fault |
| Over-Temperature Protection | 100°C |
| Voltage Sampling Accuracy | ±1% |
| Total Current Sampling Accuracy | ±2% |
| Total Current Sampling Accuracy | ±1% |
| Communication Interface | CAN communication / COM communication (USB) |
| Pre-charge/Bleed Resistor | Recommended resistance 3~10Ω/50W+ (power to be adjusted according to actual situation) |
| Pre-charge/Bleed Resistor (Configurable) | Default turn-on voltage 64V, turn-off voltage 60V (configurable) |
| Remote Pairing | Pairing methods: long press pairing button + quick press any button twice, etc. |
| Power-up/down Mode | MODE00: Default power-up, 24V, 12V, 5V power up simultaneously, motor power after 1s MODE01: Default no power, power-up controlled by remote or communication command |
