Regular price $125.00
Sale price $125.00 Regular price
Unit price
RobStride Dynamics 00 Motor

RobStride Dynamics 00 Motor

Product description

Small but Strong, Beyond Imagination

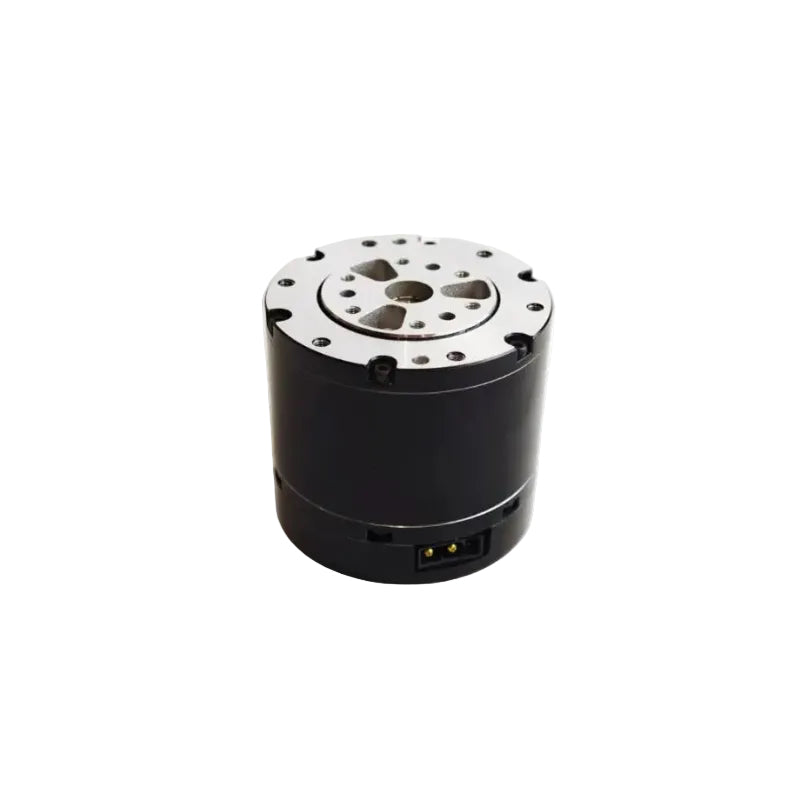

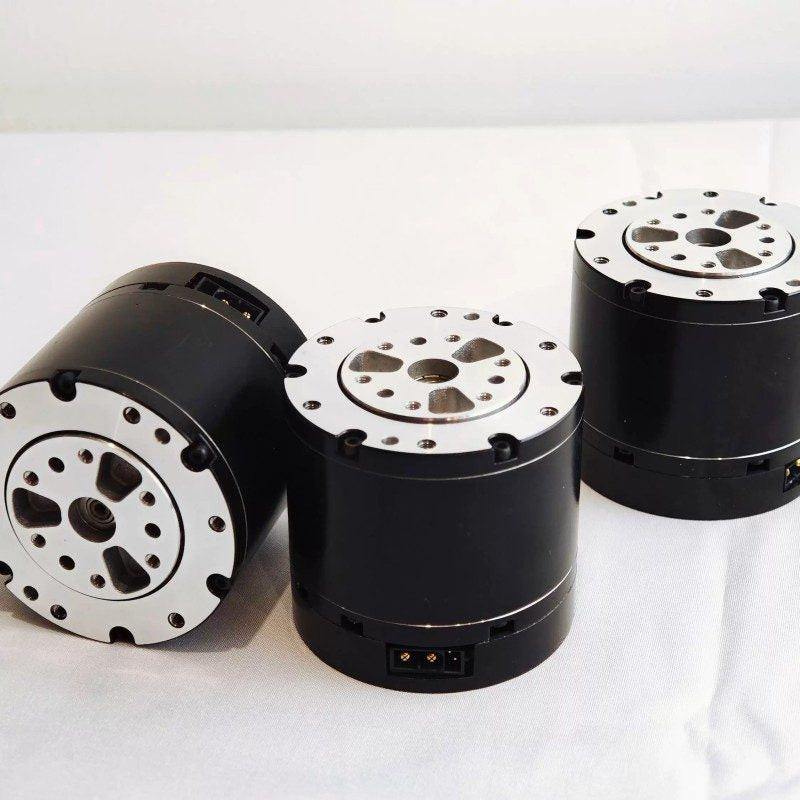

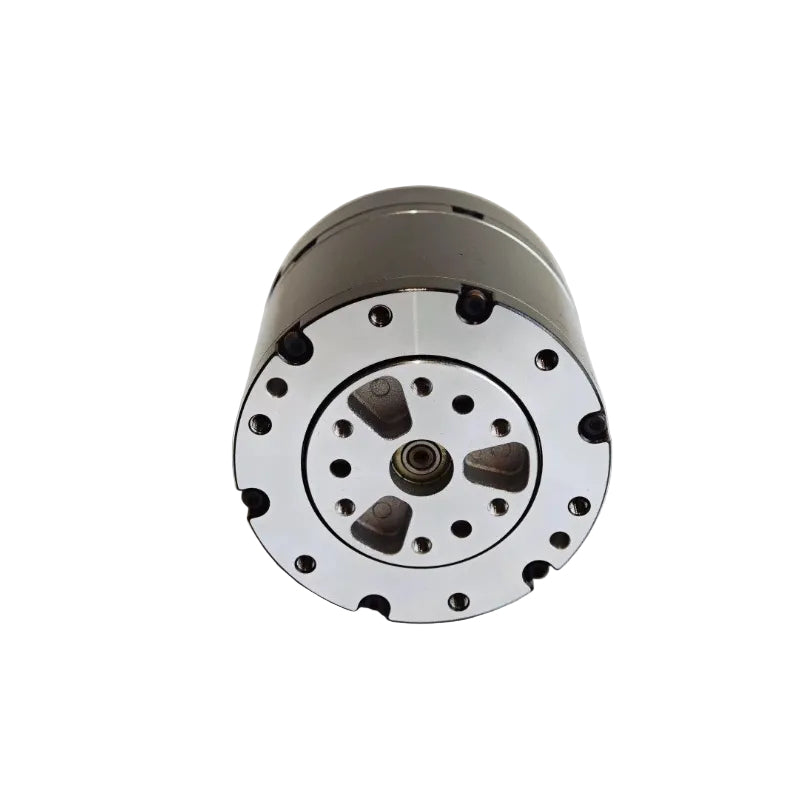

RobStride 00 is a compact QDD integrated actuator module that combines motor, planetary reducer, and driver into a single ultra-lightweight unit — weighing only 310 g.

Key Features

  • Integrated Design — Motor + Reducer + Driver (3-in-1)
  • Excellent Performance — Peak torque 14 N·m, high-performance electronic control with closed-loop temperature control algorithms
  • Easy Development — Complete debugging software and mass production capability provided

Applications

Robotics: Joints of quadruped robots, humanoid robots, robotic arms, AMR, AGV drive units, etc.

Consumer Products: Power steering units of electric vehicles/scooters, e-bike assist units, exoskeleton joints, lawn mowing robots, swimming pool cleaning robots, etc.

Automation Control: Automated production equipment, automated mobile equipment, automated gates, etc.

RobStride Dynamics-RobStride 00-User Manual.PDF

RobStride 00 Parameter
Mechanical Specs
Size 57 × 57 × 51 mm
Weight 310 g ± 10 g
Poles 28
Phases 3
Drive Method FOC
Reduction Ratio 10 : 1
Gear Material Machined Steel
Standard Using Status
Rated Voltage 48V
Voltage Range 24-60V
Rated Load (CW) 5 N·m
Running Direction CW/CCW
Using Temperature 25 ± 5°C
Using Humidity 65%
Humidity Range 5~85%
Temperature Range -20 ~ 50°C
Storage Temperature Range -30 ~ 70°C
Insulation Level Class B
Electrical Specs
No-load Speed 315 rpm ± 10%
No-load Current 0.5 Arms
Rated Load 5 N·m
Rated Load Speed 260 rpm ± 10%
Rated Load Phase Current (Peak) 4.7 Apk ± 10%
Peak Load 14 N·m
Max Load Phase Current (Peak) 15.5 Apk ± 10%
Insulation Resistance / Stator Winding DC 500VAC, 100M Ω
High Voltage Resistance / Stator and Casing 600VAC, 1s, 2mA
Back-EMF 9.5 Vrms/kRPM ±10%
Torque Constant 1.48 N·m/Arms
CAN Bus Baud Rate 1 Mbps
Encoder Resolution 14-bit (Single Absolute)
Encoder Type Magnetic Encoder
Encoder Number 2
Wire Design 1 in 1 out
