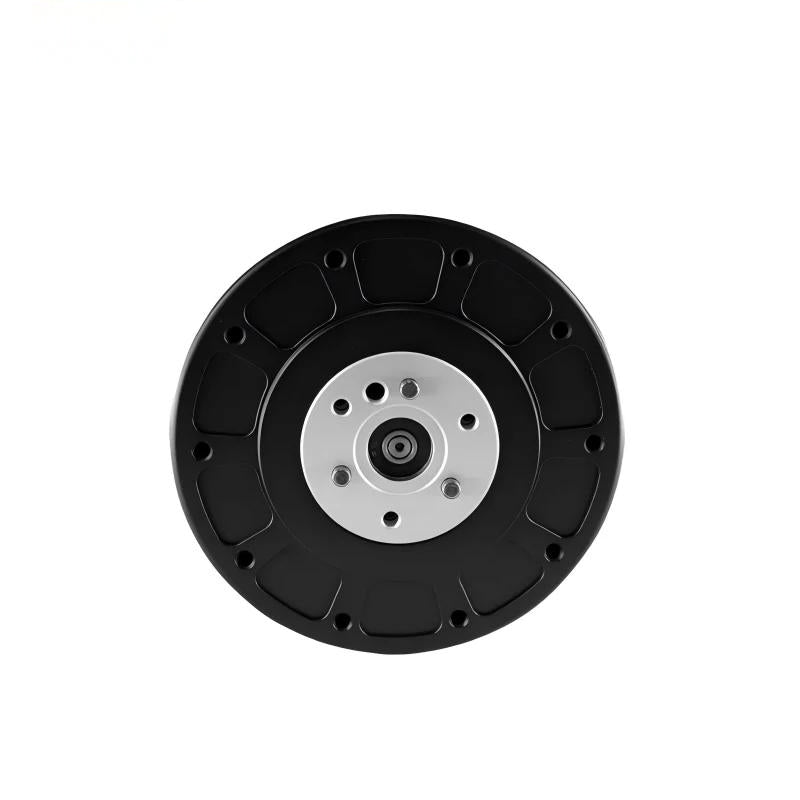

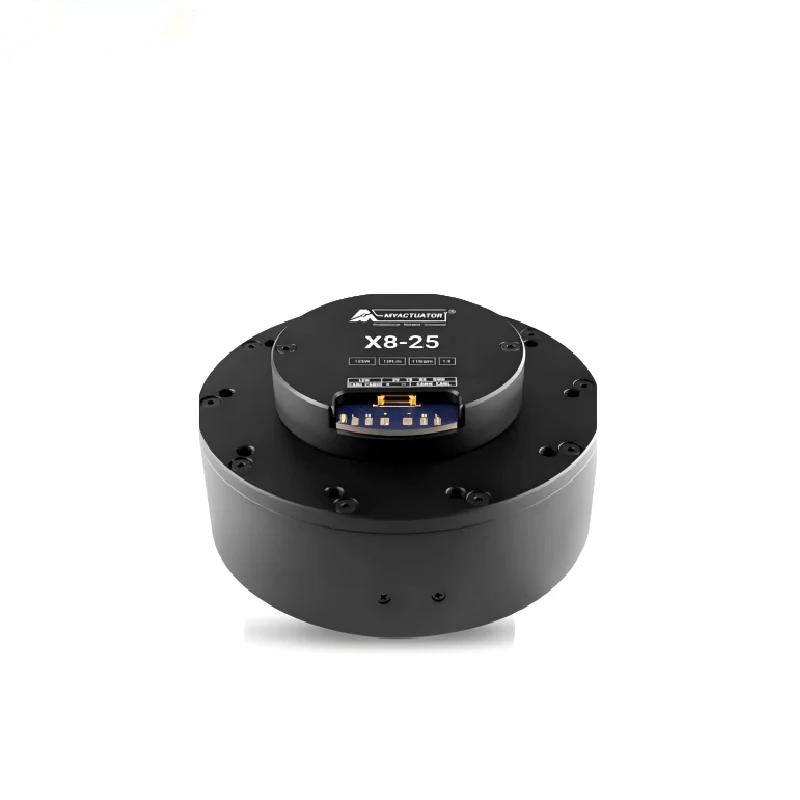

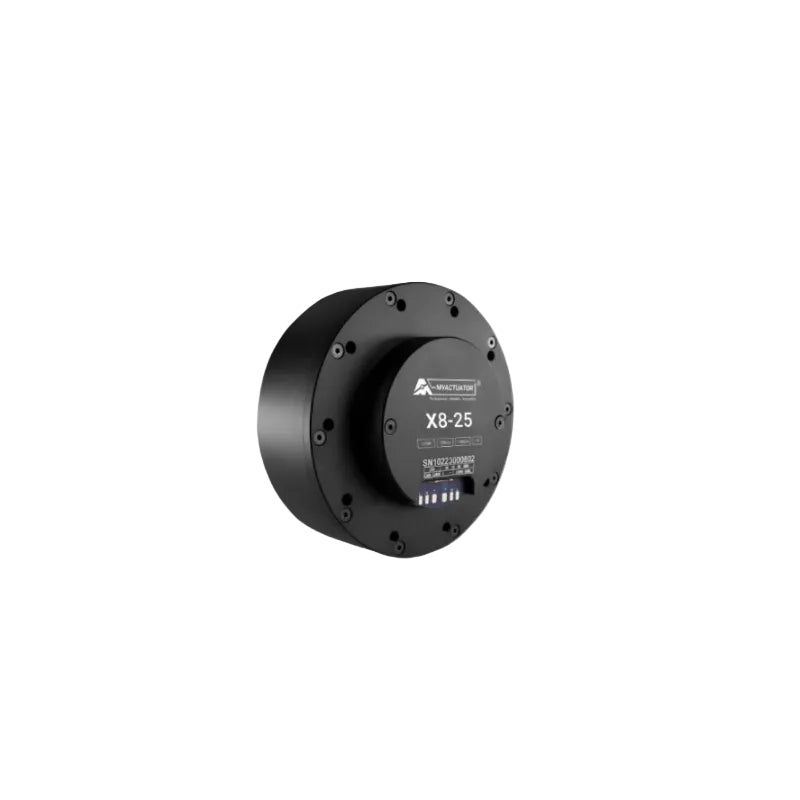

MyActuator RMD-X8-25- Brushless Servo Motor
Product description
MyActuator X8-25 Specifications
| PRODUCT PARAMETERS |
| Parameters | Unit | X8-25 |
|---|---|---|
| Gear ratio | — | 9 |
| Input Voltage | V | 48 |
| Rated Speed | RPM | 110 |
| Rated Torque | N.m | 10 |
| Rated Power | W | 125 |
| Rated Current | A | 3.2 |
| Peak Torque | N.m | 25 |
| Peak Current | A | 8 |
| Efficiency | % | 80 |
| Pole Pair | — | 21 |
| Anti-Force Torque | N.m | 0.61 |
| Backlash | Arcmin | 10 |
| Axial Payload | N | 985 |
| Radial Payload | N | 1250 |
| Inertia | Kg.cm² | 30.6 |
| Encoder Type | bit | 18 |
| Communication | — | CAN:1M/RS485:115200/500K/1M/2.5M |
| Weight | kg | 0.71 |
* Rated torque test method:
When the ambient temperature is 24 degrees Celsius (no other heat dissipation methods), the test is performed at the rated speed. The motor torque reaches temperature balance under the condition of a temperature rise of 60 degrees Celsius, and the long-term working point is the rated torque value of the motor.
