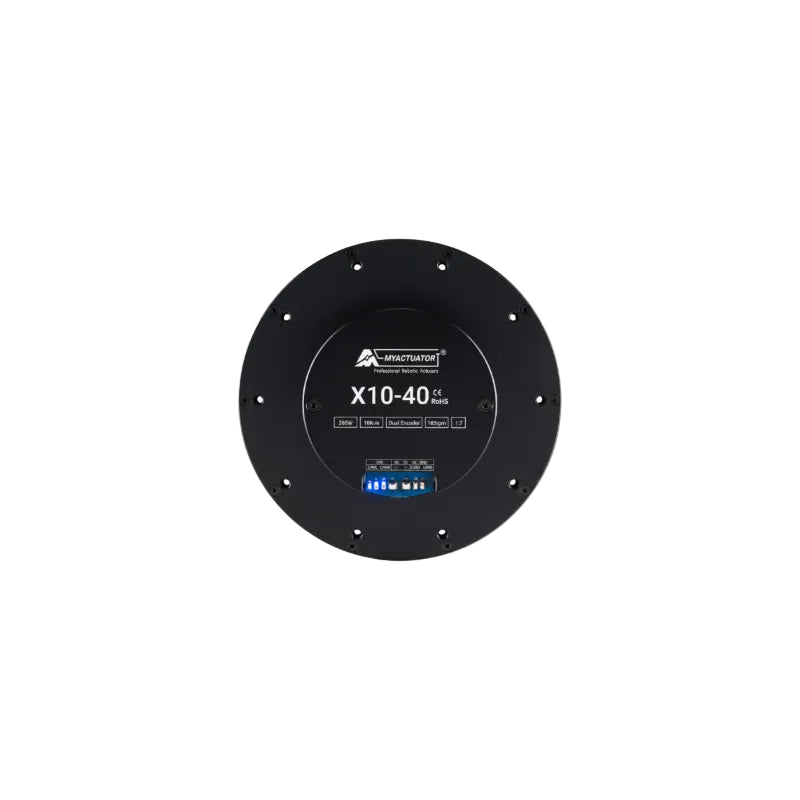

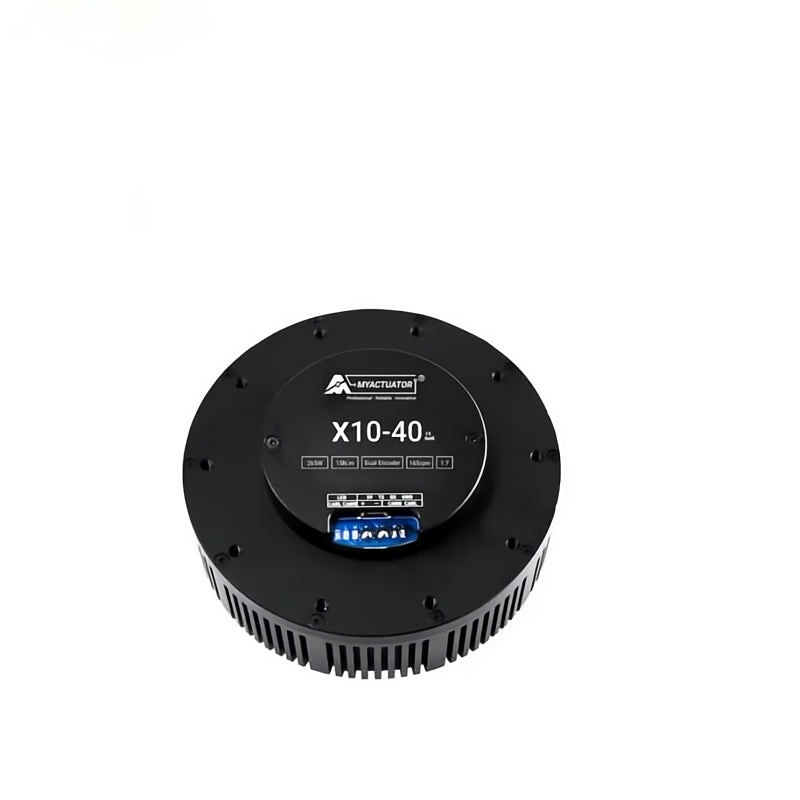

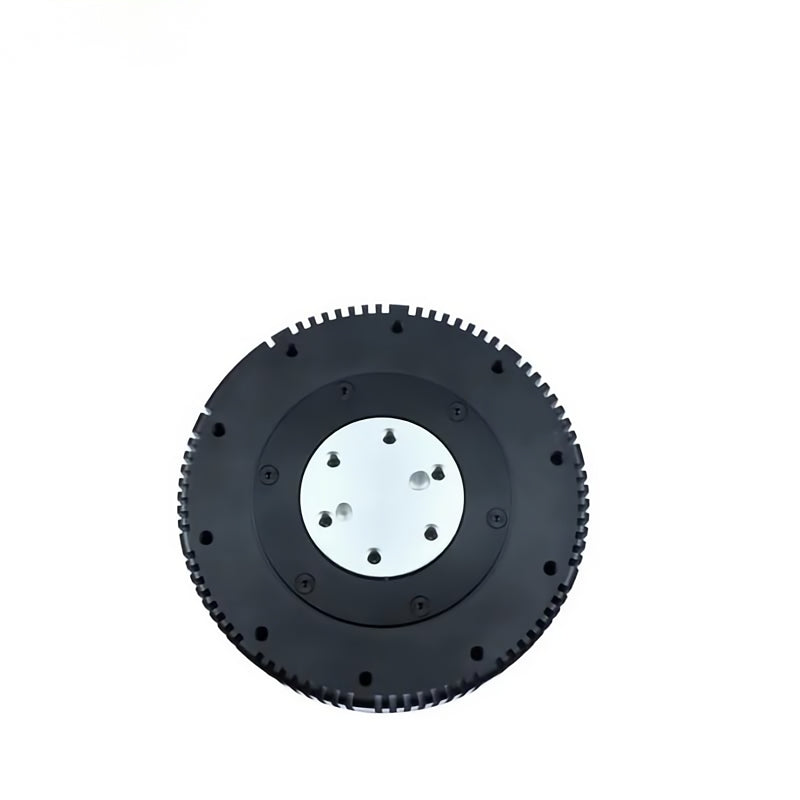

MyActuator RMD-X10-40- Brushless Servo Motor
MyActuator RMD-X10-40- Brushless Servo Motor
MyActuator RMD-X10-40- Brushless Servo Motor
MyActuator RMD-X10-40- Brushless Servo Motor
MyActuator RMD-X10-40- Brushless Servo Motor

MyActuator RMD-X10-40- Brushless Servo Motor

Regular price $620.00
Sale price $620.00 Regular price
Unit price
MyActuator RMD-X10-40- Brushless Servo Motor

MyActuator RMD-X10-40- Brushless Servo Motor

Product description



RMD-X V4 Series

Product Features

🔌
CAN BUS & EtherCAT
Supports high-speed industrial communication protocols
⚙️
Crossed Roller Bearings
Precision crossed roller bearings for superior rigidity and smooth rotation
📡
Dual Encoder
Dual encoder system delivers higher feedback accuracy and control precision
💪
High Torque Density
Exceptional torque output in a compact form factor
🎯
High Precision
Ultra-high positioning and motion control accuracy
⭕
Hollow Design
Hollow shaft structure for easy cable routing and system integration

Naming Conventions

RMD - X2 - P28 - 7 - E
① RMD: Brand Name
R-Reducer　M-Motor　D-Drive
② X2: Series Name - Integrated Planetary Actuator
2 represents motor model (X2, X4, X6, X8...)
③ P28: Planetary Gear Ratio
e.g. P12, P28, P32 etc.
④ 7: Peak Torque 7N·m
⑤ E: Communication - CAN BUS & EtherCAT
Example Model: RMD-X8-P20-120-E

RMD: Brand Name
X8: Motor model name
P20: Planetary gear ratio 20:1
120: Peak torque 120 N·m
E: Communication - CAN BUS & EtherCAT

MyActuator X10-40 Technical Data
PRODUCT PARAMETERS
Parameters Unit X10-40
Gear ratio — 7
Input Voltage V 48
Rated Speed RPM 165
Rated Torque N.m 15
Rated Power W 265
Rated Current A 6.5
Peak Torque N.m 40
Peak Current A 15
Efficiency % 82
Pole Pair — 21
Anti-Force Torque N.m 0.62
Backlash Arcmin 10
Axial Payload N 1625
Radial Payload N 2250
Inertia Kg.cm² 39.7
Encoder Type bit 14 / 14
Communication — CAN:1M/RS485:115200/500K/1M/2.5M
Weight kg 1.15
* Rated torque test method: When the ambient temperature is 24 degrees Celsius (no other heat dissipation methods), the test is performed at the rated speed. The motor torque reaches temperature balance under the condition of a temperature rise of 60 degrees Celsius, and the long-term working point is the rated torque value of the motor.
