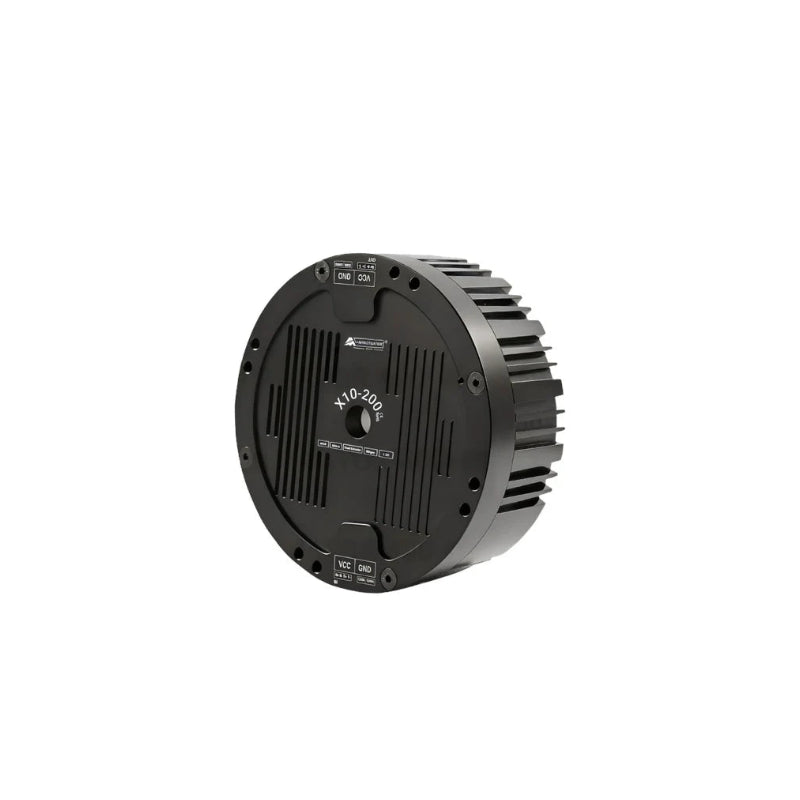

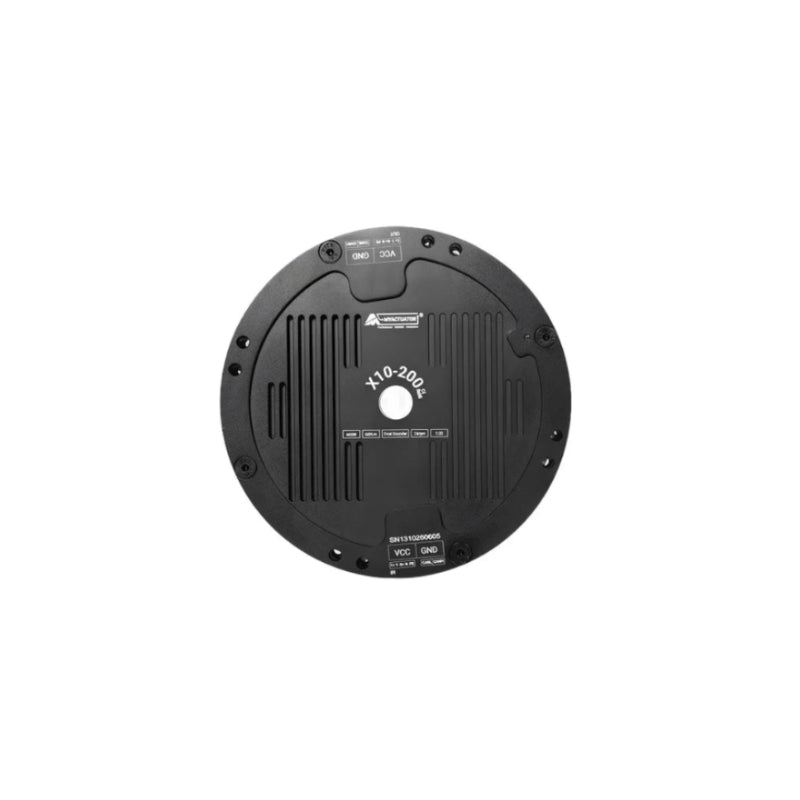

MyActuator RMD-X10-200-Brushless Servo Motor
Regular price
$895.00
Sale price
$895.00
Regular price
Unit price
MyActuator RMD-X10-200-Brushless Servo Motor
Product description
MyActuator RMD-X10-200 Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | RMD-X10-P20-200-E |
| Brake Type | Non-brake |
| Communication | EtherCAT / CANBUS |
| Reduction Ratio | 20 |
| Input Voltage | 48 V |
| No-Load Speed | 80 RPM |
| No-Load Current | 1 A |
| Rated Speed | 74 RPM |
| Rated Torque | 60 N-m |
| Rated Power | 465 W |
| Rated Current | 12.7 A(rms) |
| Peak Torque | 200 N-m |
| Peak Current | 80 A(rms) |
| Efficiency | 74 % |
| Motor Back-EMF Constant | 24.94 Vdc/krpm |
| Module Torque Constant | 4.6 N-m/A |
| Motor Phase Resistance | 0.27 Ω |
| Motor Phase Inductance | 0.3 mH |
| Pole Pairs | 20 |
| Backlash | ≤15 Arcmin |
| Output Bearing Type | Crossed Roller Bearing |
| Encoder Type | Dual Encoder ABS-17BIT / 19BIT |
| Control Accuracy | <0.01 Degree |
| Communication Interface | EtherCAT / CANBUS |
| Weight | 1.64 Kg |
| Insulation Class | F |
