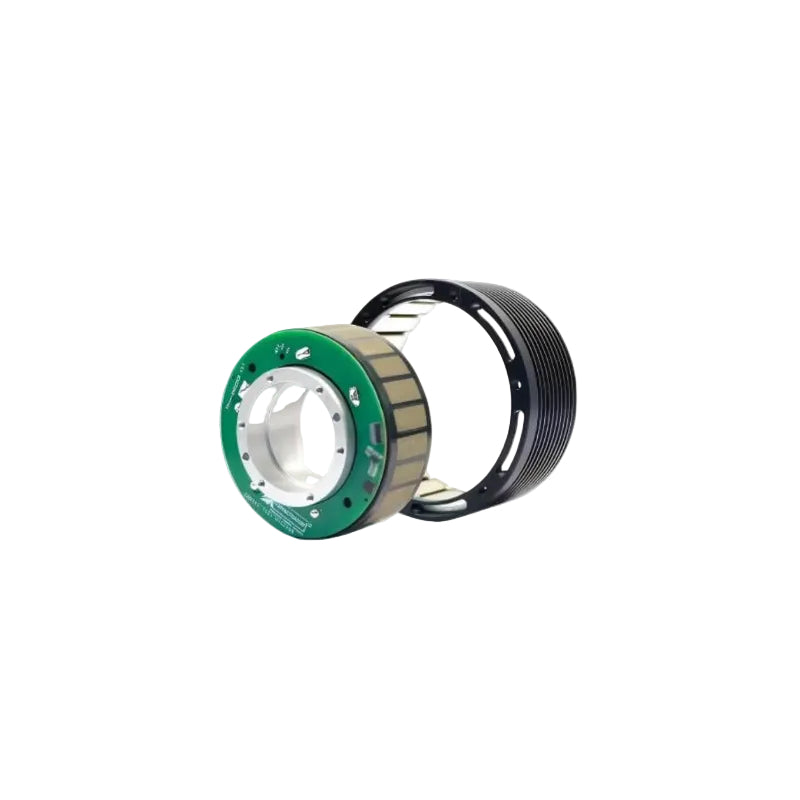

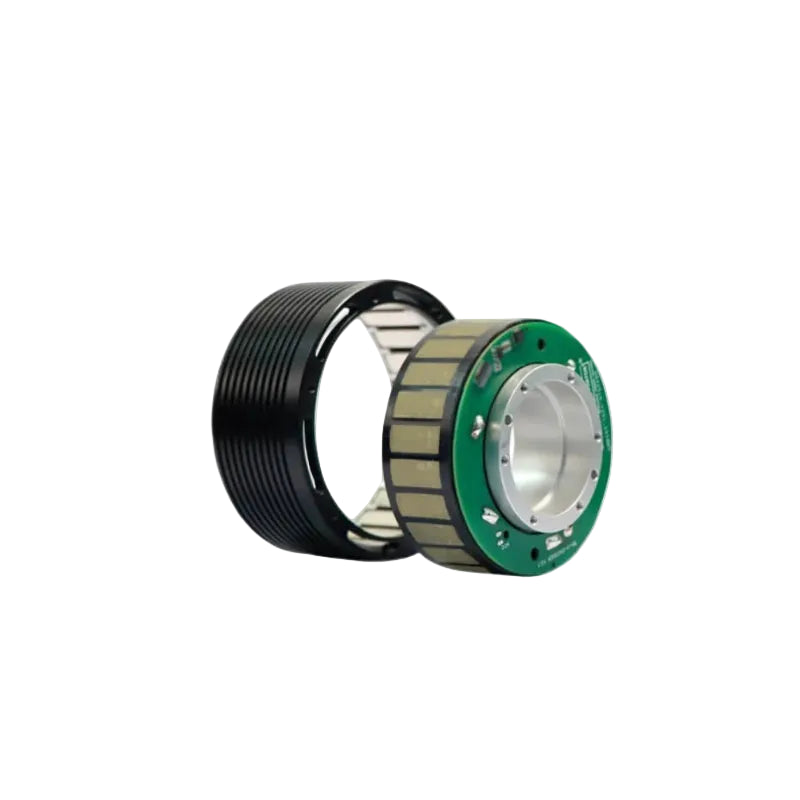

MyActuator RMD-FLO-50-15 Frameless Brushless Motor
MyActuator RMD-FLO-50-15 Frameless Brushless Motor
MyActuator RMD-FLO-50-15 Frameless Brushless Motor

MyActuator RMD-FLO-50-15 Frameless Brushless Motor

Regular price $105.00
Sale price $105.00 Regular price
Unit price
MyActuator RMD-FLO-50-15 Frameless Brushless Motor

MyActuator RMD-FLO-50-15 Frameless Brushless Motor

Regular price $105.00
Sale price $105.00 Regular price
Unit price
Product description

RMD-FLO Series

FLO Series Frameless Torque Motors

Outer Rotor Frameless Motor Modules / High-Efficiency & Integrated Motion Solutions

✦ FLO Series Product Features ✦

🧪

Vacuum Potting

Provides high structural insulation, moisture proofing, and severe environment resistance

❄️

Good Heat Dissipation

Optimized winding thermal conduction paths ensure extremely low temperature rises

⚡

High Efficiency

Advanced stator design minimizes electromagnetic and copper losses

💪

High Power

Delivers exceptional peak power and sustained torque metrics under load

🔄

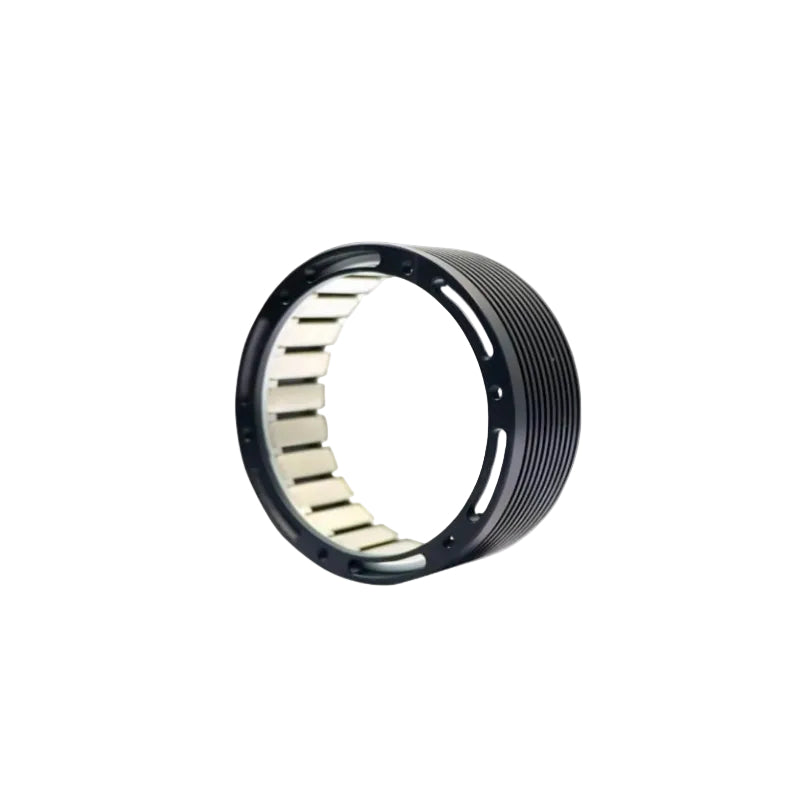

Outer Rotor

Large external inertia design provides robust structural output and load stability

⚙️

Flexible Setup

Open structure optimized for compact robotic and industrial integration

RMD-FLO Series Naming Conventions

Standard nomenclature rules and code identifier breakdown.

Standard Model Reference
RMD - FLO - 70 - 15 - 200
① ② ③ ④ ⑤
1 RMD
Brand Name
(R-Reducer M-Motor D-Drive)
2 FLO
Series Name
(Outer Rotor Frameless Torque Motor)
3 70
Rotor Outer Diameter
(70 mm)
4 15
Stator Stack Height
(15 mm)
5 200
Rated Power
(200 W)

Nomenclature Example

Model: RMD-FLO-90-15-400
RMDBrand Name
FLOExternal Rotating Frameless Torque Series
90Rotor Outer Diameter (90mm)
15Stator Stack Height (15mm)
400Rated Power (400W)

Engineering Selection Guide

RMD-FLO Frameless Torque Motors are engineered as external rotating frameless stator and rotor kits to deliver peak mechanical performance. Designed for direct drive applications, they offer high continuous output, low cogging torque, and maximized efficiency. This series is exceptionally suited for robotic joint applications, exoskeleton systems, direct drive rotating tables, and custom UAV gimbals where minimal payload margins and supreme torque are vital.

*Refer to the physical data sheets for exact mounting dimension guides, customized stator windings, and temperature monitoring sensor options.

MyActuator FLO-50-15 Specifications
PRODUCT PARAMETERS
Parameters Unit FLO-50-15
Input Voltage V 24
No Load Current A 0.32
Rated Speed RPM 2500
Rated Torque N.m 0.35
Rated Power W 91.6
Rated Current A 4.9
Peak Torque N.m 0.87
Peak Current A 14.7
Efficiency % >83%
Back-EMF Constant Vdc/Krpm 7.93
Torque Constant N.m/A 0.07
Phase to Phase Resistance Ω 0.4
Phase to Phase Inductance mH 0.19
Pole Pair — 13
Cogging Torque N.m 12
3 Phase Connection — Y
Encoder Type&Interface — Absolute (Multi-pole)
Weight Kg 0.19
Insulation grade — F

MyActuator-RMD-FLO-50-15.STEP

User-Manual-for-FLO-Series-Products-V1.0.PDF

Interface-Manual-for-FL-Frameless-Motor-Series-Absolute-Encoder-Version-V1.1-1.PDF

FLO-Series-Product-Manual.PDF
