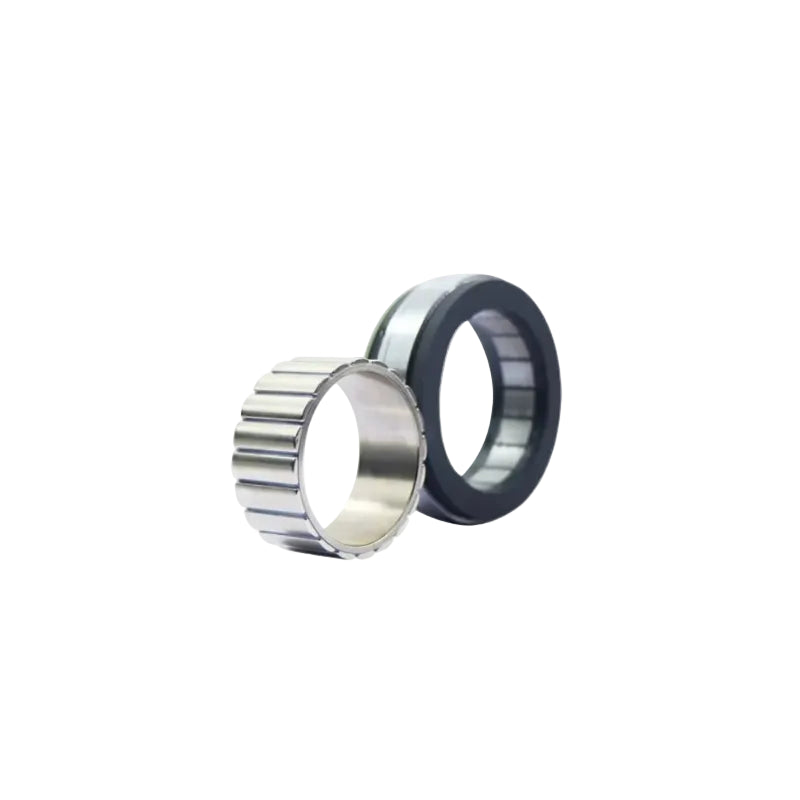

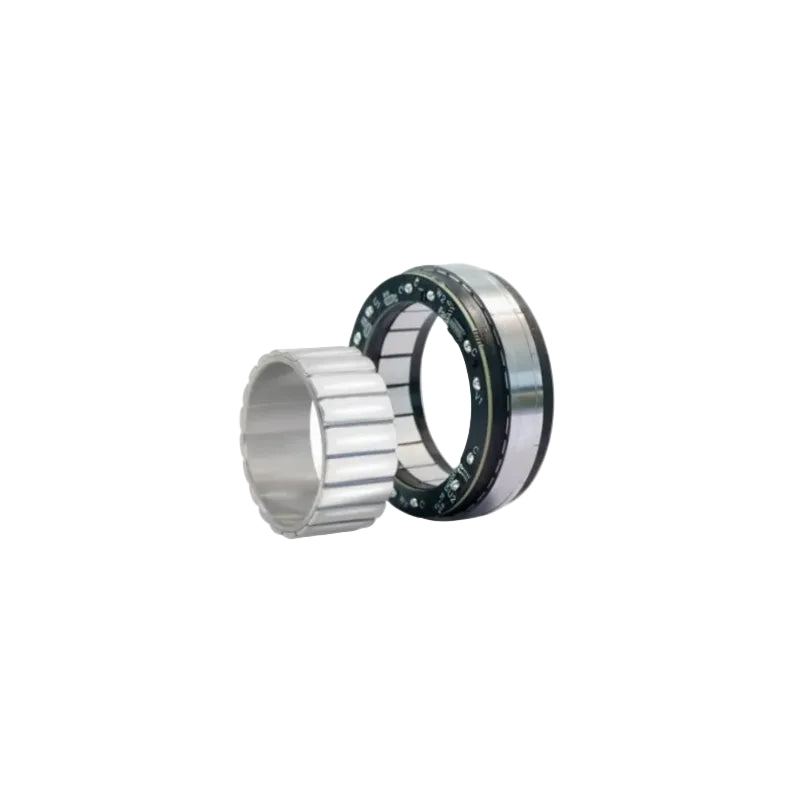

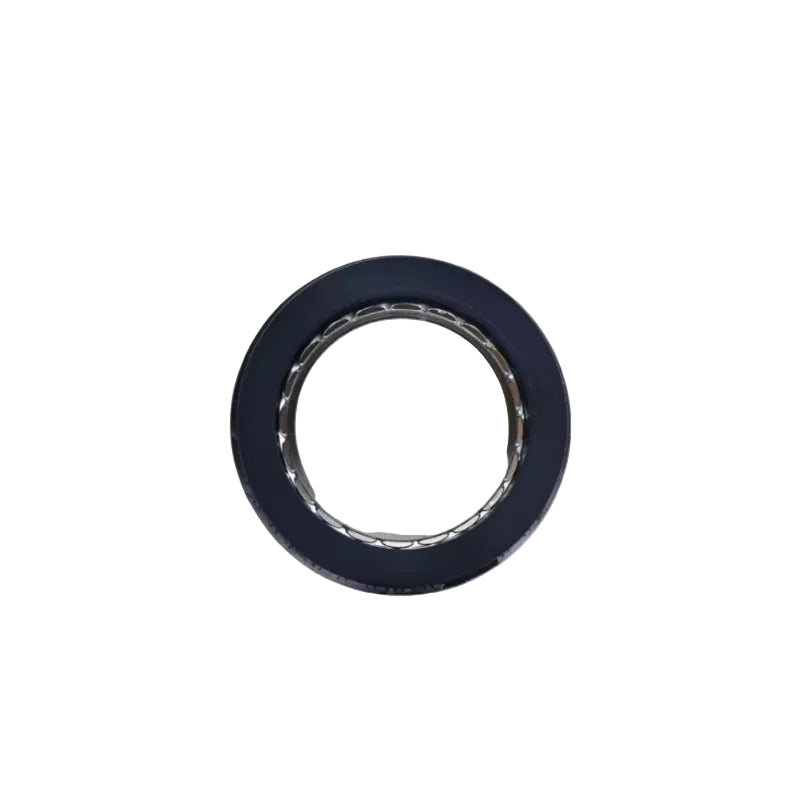

MyActuator RMD-FL-50-15 Frameless Brushless Motor
MyActuator RMD-FL-50-15 Frameless Brushless Motor
MyActuator RMD-FL-50-15 Frameless Brushless Motor

MyActuator RMD-FL-50-15 Frameless Brushless Motor

Regular price $145.00
Sale price $145.00 Regular price
Unit price
MyActuator RMD-FL-50-15 Frameless Brushless Motor

MyActuator RMD-FL-50-15 Frameless Brushless Motor

Regular price $145.00
Sale price $145.00 Regular price
Unit price
Product description

RMD-FL Series

FL Series Frameless Torque Motors

Inner Rotor Frameless Stator & Rotor Kits / High Power Density Motion Control

✦ FL Series Product Features ✦

🧩

Flexible Integration

Open kit design for seamless embedded mounting into custom joint structures

📈

High Power Density

Delivers exceptional continuous torque output within minimum physical space

❄️

Good Heat Dissipation

Direct structure integration allows highly efficient thermal transfer and cooling

🎯

High Precision

Backlash-free direct transmission provides maximum positioning accuracy

⭕

Hollow Design

Unobstructed central hollow core for easy routing of cables, pipes, or shafts

📡

Hall+INC

Equipped with integrated Hall sensors and Incremental encoder tracking

RMD-FL Series Naming Conventions

Standard nomenclature rules and code identifier breakdown.

Standard Model Reference
RMD - FL - 50 - 15 - 200
① ② ③ ④ ⑤
1 RMD
Brand Name
(R-Reducer M-Motor D-Drive)
2 FL
Series Name
(Inner Rotor Frameless Torque Motor)
3 50
Stator Diameter
(50 mm)
4 15
Stator Height
(15 mm)
5 200
Rated Power
(200 W)

Nomenclature Example

Model: RMD-FL-85-13-500
RMDBrand Name
FLInternal Rotation Frameless Torque Series
85Stator Diameter (85mm)
13Stator Height (13mm)
500Rated Power (500W)

Engineering Selection Guide

RMD-FL Frameless Torque Motors are engineered as direct drive stator and rotor component kits to provide the ultimate compact integration. Eliminating bulky housings, bearings, and couplings, these motors deliver supreme torque density, minimal inertia, and exceptional positioning accuracy. Perfect for AGVs, collaborative robotic joints, medical equipment, and precision gimbal systems.

*Refer to the physical data sheets for detailed thermal calculation models, custom winding configurations, and stator/rotor alignment tolerances.

MyActuator FL-50-15 Specifications
PRODUCT PARAMETERS
Parameters Unit FL-50-15
Input Voltage V 48
No Load Current A 0.38
Rated Speed RPM 3800
Rated Torque N.m 0.51
Rated Power W 203
Rated Current A 4.3
Peak Torque N.m 1.5
Peak Current A 12.9
Efficiency % >81%
Motor Back-EMF Constant Vdc/Krpm 8.12
Module Torque Constant N.m/A 0.12
Motor Phase Resistance Ω 0.7
Motor Phase Inductance mH 0.47
Pole Pair — 10
3 Phase Connection — Y
Encoder/Sensor Type — Hall+INC
Weight Kg 0.16
Insulation grade — F

MyActuator-RMD-FL-50-15.STEP

User-Manual-for-FL-Series-Products-V1.0.PDF

FL-Series-Product-Manual.PDF

Interface-Manual-for-FL-Frameless-Motor-Series-Hall-Incremental-Encoder-Version-V1.0.PDF

Interface-Manual-for-FL-Frameless-Motor-Series-Absolute-Encoder-Version-V1.1.PDF
