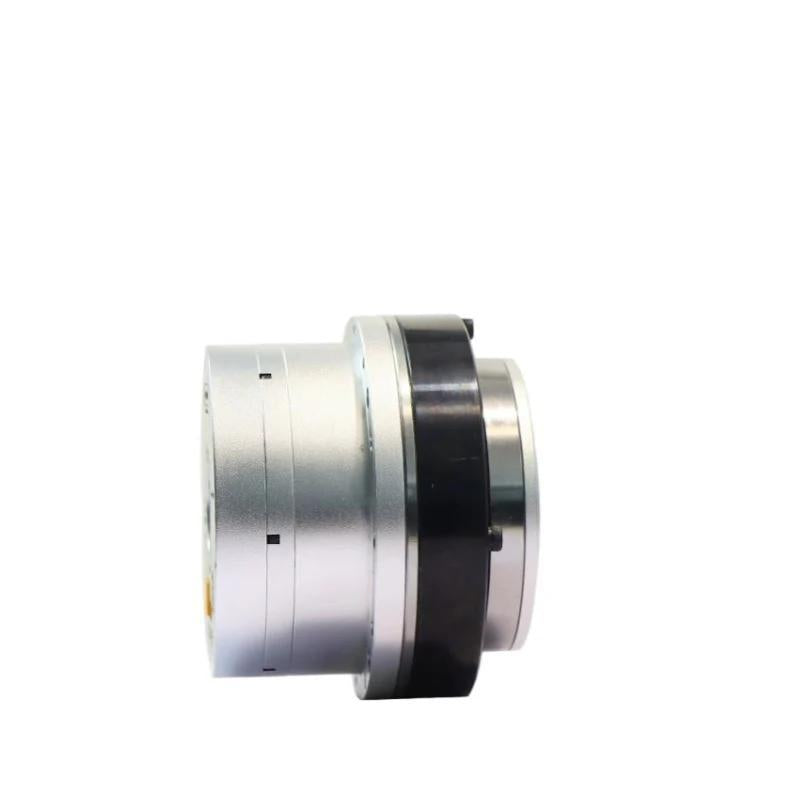

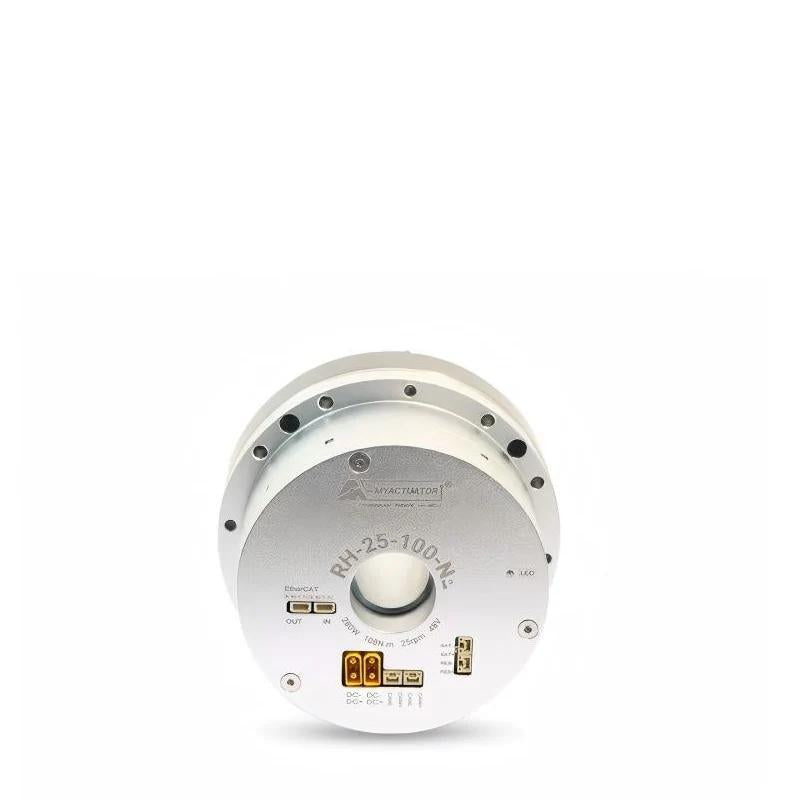

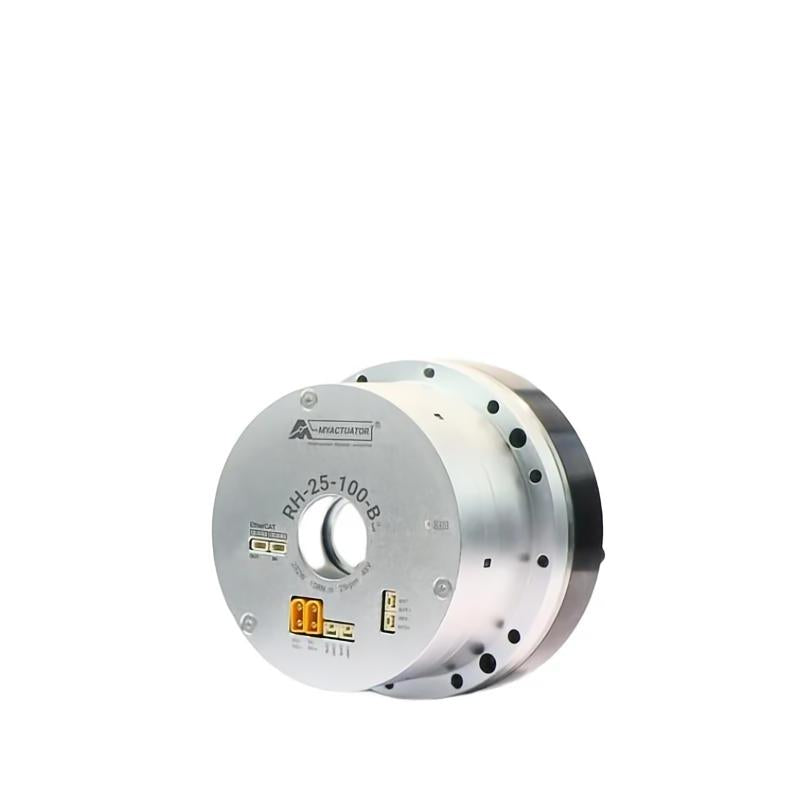

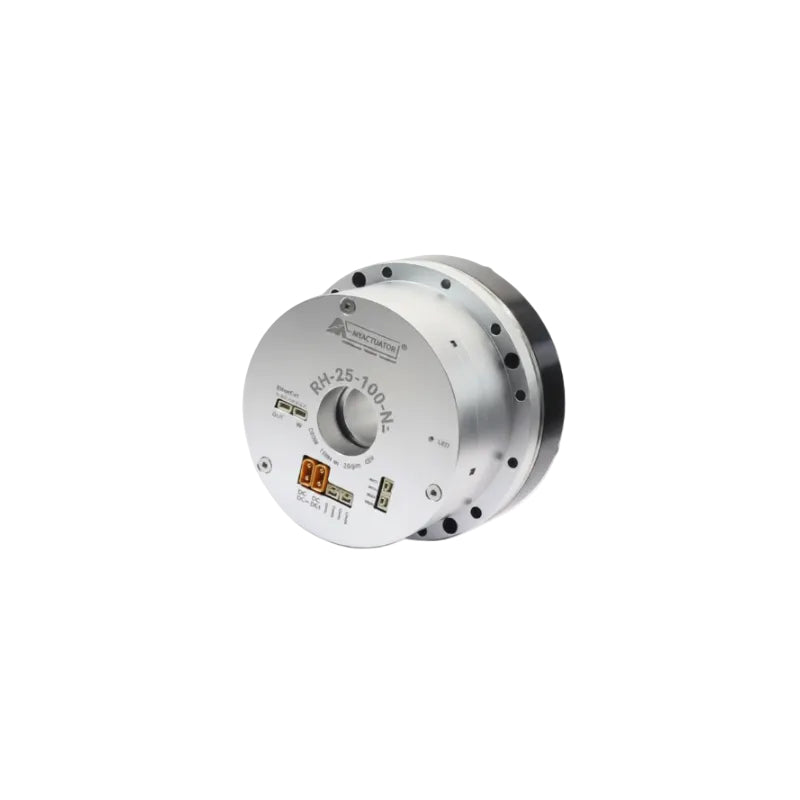

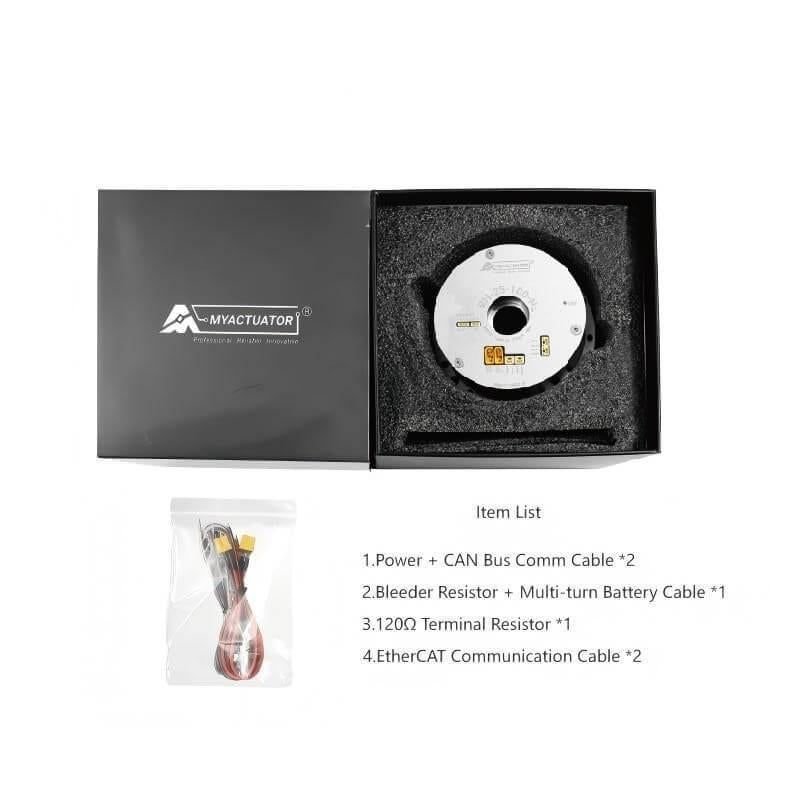

MyActuator RH-25 Harmonic Joint Motor
MyActuator RH-25 Harmonic Joint Motor
MyActuator RH-25 Harmonic Joint Motor
MyActuator RH-25 Harmonic Joint Motor
MyActuator RH-25 Harmonic Joint Motor
MyActuator RH-25 Harmonic Joint Motor

MyActuator RH-25 Harmonic Joint Motor

Regular price $1,295.00
Sale price $1,295.00 Regular price
Unit price
MyActuator RH-25 Harmonic Joint Motor

MyActuator RH-25 Harmonic Joint Motor

Product description

EPS-RH Series

RH Series Harmonic Actuators

EtherCAT & CAN BUS Integrated Precision Joint Motors / Harmonic Drive Actuators

✦ Product Features ✦

🎯

High Precision

Precision positioning with ultra-low backlash

🔇

Low Noise

Smooth, quiet operation with minimal vibration

⭕

Hollow Design

Large aperture hollow shaft for clean cabling

⚡

High Efficiency

Optimized power transmission and output density

🔌

EtherCAT & CAN BUS

Supports industrial protocols with built-in servo drive

📡

Dual Encoder

Absolute encoders for high-accuracy closed-loop control

EPS-RH Series Naming Conventions

Standard nomenclature rules and code identifier breakdown.

Standard Model Reference
EPS - RH - 17 - 100 - E - B - D
① ② ③ ④ ⑤ ⑥ ⑦
1 EPS
Brand Name
(E-Efficiency P-Precision S-Smart)
2 RH
Series Name
(Harmonic Actuator)
3 17
Harmonic Model
(e.g. 14/17/20/25/32)
4 100
Gear Ratio 100:1
(Reduction Ratio)
5 E
Bus Protocol
(EtherCAT & CAN BUS)
6 B
B: With Brake
(N: Without / B: With)
7 D
D: Dual Encoder
(D: Dual / S: Single)

Nomenclature Example

Model: EPS-RH-20-100-E-N-D
EPSBrand Name
RHHarmonic Module
20Harmonic Model 20
100Gear Ratio 100:1
EEtherCAT & CAN BUS
NWithout Brake
DDual Encoder

Engineering Selection Guide

EPS-RH Harmonic Actuators are highly integrated power units engineered specifically for robotic joints and precision automation applications. Each unit seamlessly consolidates a brushless motor, high-precision harmonic reducer, electromagnetic brake, multi-turn absolute dual encoders, and an advanced servo drive into an ultra-compact housing.

*Refer to the physical data sheets for exact mounting tolerances and payload limit graphs.

MyActuator RH-25 Specifications
PRODUCT PARAMETERS
Parameters Unit RH-25
Gear ratio — 100
Input Voltage V 48
No Load Speed RPM 30
No Load Current A 2.0
Rated Speed RPM 25
Rated Torque N.m 108
Rated Power W 282
Rated Current A(rms) 10.6
Peak Torque N.m 157
Peak Current A(rms) 14.1
Motor Back-EMF Constant Vdc/Krpm 19.2
Module Torque Constant N.m/A 10.1
Motor Phase Resistance Ω 0.16
Motor Phase Inductance mH 0.33
Pole Pair — 10
3 Phase Connection — Y
Backlash Arcsec < 40
Radial Load (Static load) KN 35.8
Radial Load (Dynamic load) KN 21.8
Axial Load (Static load) KN 198.2
Axial Load (Dynamic load) KN 49.1
Inertia (N) kg.m² 1.94
Inertia (B) kg.m² 2.32
Encoder Type — Dual Encoder ABS-17BIT (Input) | ABS-17BIT (Output)
Repeat Position Accuracy Degree < 0.01
Communication — EtherCAT & CAN BUS
Weight (N) Kg 2.42
Weight (B) Kg 2.74
Insulation Grade — F
* Rated torque test method: When the ambient temperature is 24 degrees Celsius (no other heat dissipation methods), the test is performed at the rated speed. The motor torque reaches temperature balance under the condition of a temperature rise of 60 degrees Celsius, and the long-term working point is the rated torque value of the motor.

STALL TORQUE DATA
Model Torque
(N.m)		 Temperature Rise
(°C)		 Stall Time
(s)		 Phase Current
(Arms)
RH-25 162 3 15 18
216 9 10 22.1
256 39 5 24.6



MyActuator-RH-25-100-E-B.STEP
MyActuator-RH-25-100-E-N.STEP

User-Manual-for-RH-Series-Products-V1.4.PDF

RH-Series-product-manual.PDF

CAN-BUS-Motor-Motion-Protocol-V4.4.PDF

EtherCAT-control-protocol.PDF
