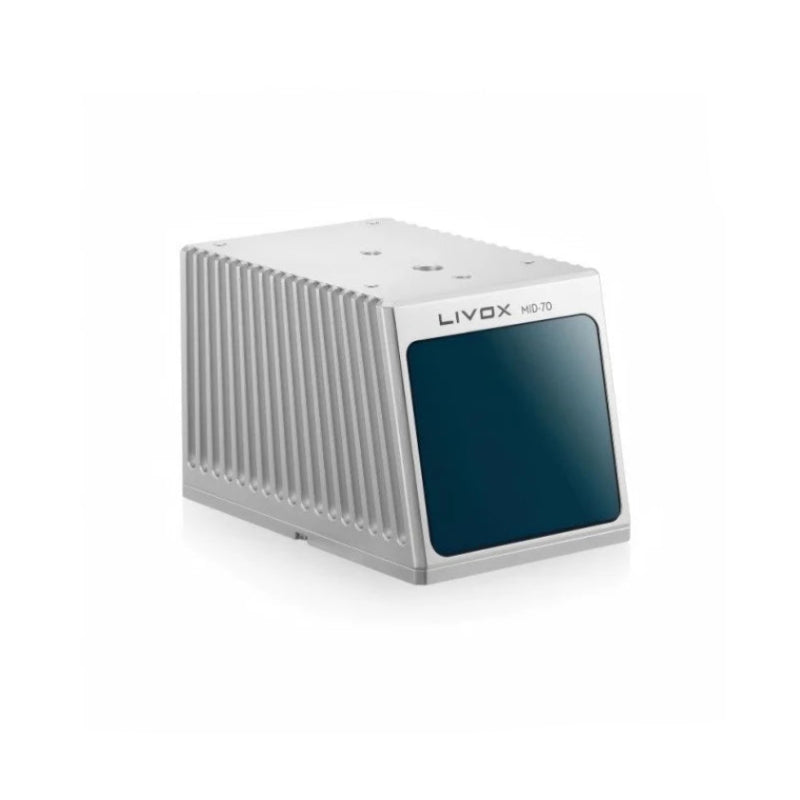

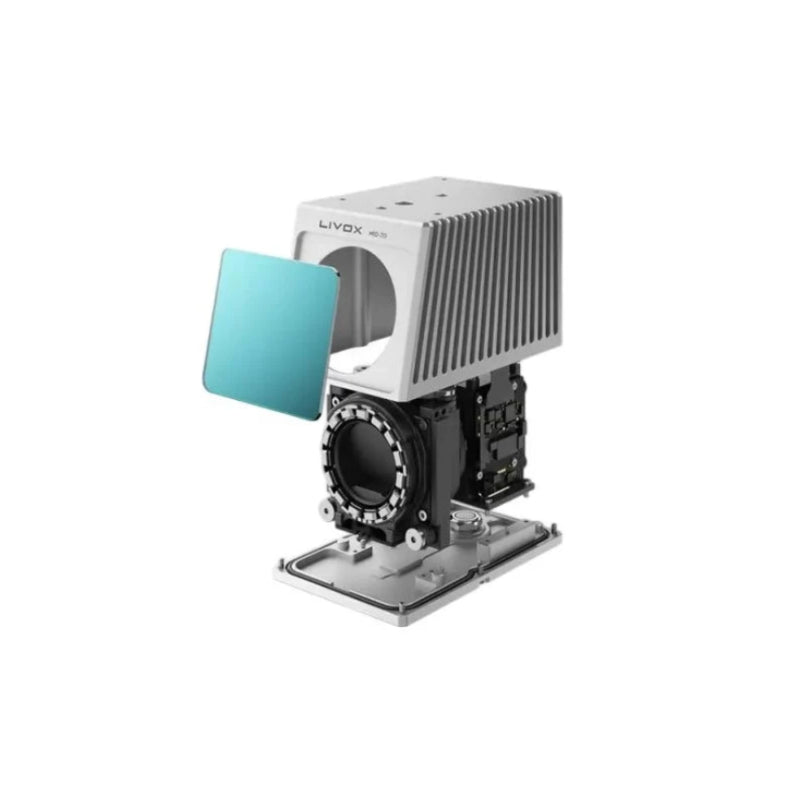

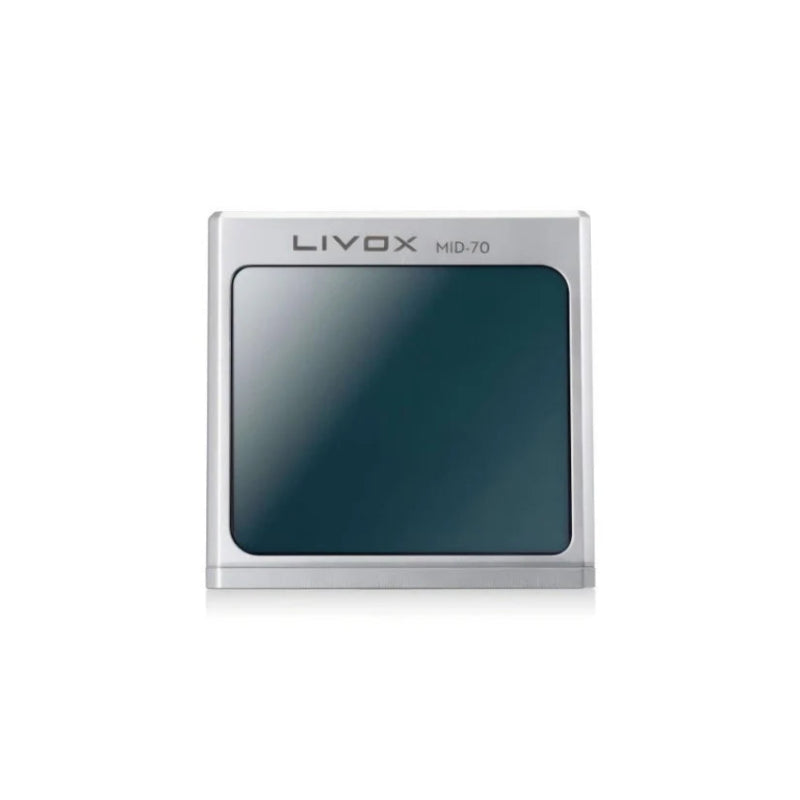

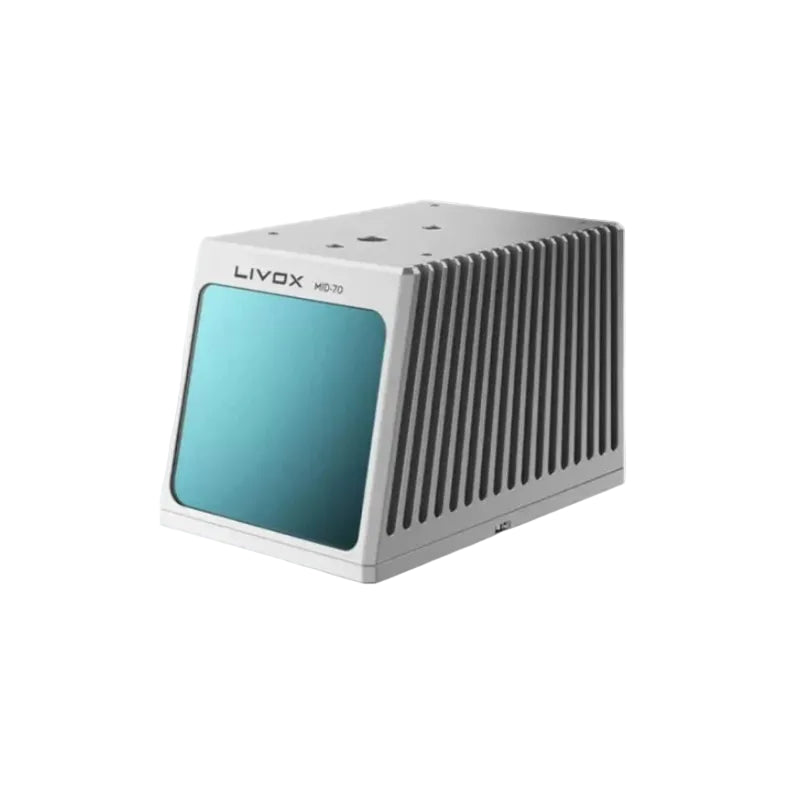

Livox MID-70 LiDAR
Regular price
$1,295.00
Sale price
$1,295.00
Regular price
Unit price
Livox MID-70 LiDAR
Product description
70° circular viewing angle
5 cm minimum detection range
Livox MID-70 LiDAR Specifications
| PRODUCT PARAMETERS | |
| Model | MID-70 |
| Laser Wavelength | 905 nm |
| Laser Safety | Class 1 (IEC60825-1:2014)(Eye Safety) |
| Detection Range (@100 klx) | 90 m @ 10% reflectivity 130 m @ 20% reflectivity 260 m @ 80% reflectivity |
| FOV | 70.4° (Circular) |
| Range Precision (1σ @ 20m) | 1σ (@ 20m) ≤ 2 cm¹ 1σ (@ 0.2~1m) ≤ 3 cm² |
| Angular Precision (1σ) | < 0.1° |
| Beam Divergence | 0.28° (Vertical) × 0.03° (Horizontal) |
| Point Rate | 100,000 points/s (first or strongest return) 200,000 points/s (dual return) |
| Data Latency | ≤ 2 ms |
| Data Port | 100 Mbps Ethernet |
| Data synchronization | IEEE 1588-2008 (PTPv2), PPS (Pulse Per Second), GPS (PPS+UTC) |
| False Alarm Rate (@100 klx)³ | < 0.01% |
| Operating Temperature | -4°F to 149°F (-20°C to 65°C) |
| IP Rating⁴ | IP67 |
| Power⁵ | 8 W (average) |
| Power Supply Voltage Range | 10 ~ 15 V DC (with Converter 2.0: 9~30V DC) |
| Dimensions | 97×64×62.7 mm |
| Weight | 580 g |
| Notes | 1. Measured in an environment of 25°C with a target (30% reflectivity) 20 meters away. The result may vary under different test conditions. 2. Measured in an environment of 25°C with a target (30% reflectivity) within the range of 0.2 to 1 meters away. The result may vary under different test conditions. 3. The false alarms ratio of the noise created by the stray light in a test environment of 100 klx at a temperature of 25°C. 4. The Livox Mid-70 has an overall IP rating of IP67 (not including Livox Converter 2.0 and cables) 5. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information. |
