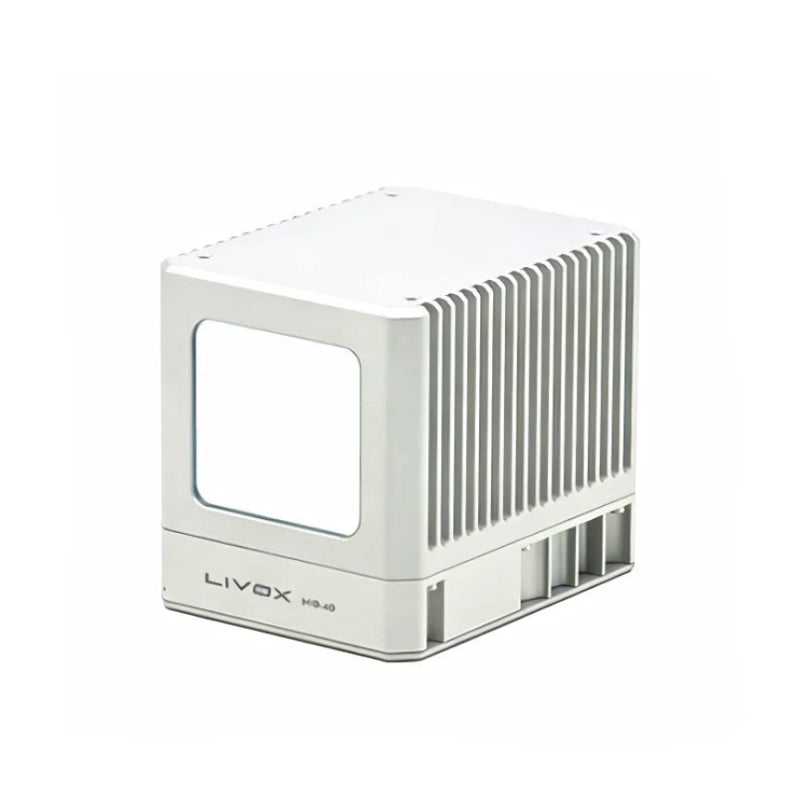

Livox MID-40 LiDAR
Regular price
$845.00
Sale price
$845.00
Regular price
Unit price
Livox MID-40 LiDAR
Product description
Livox MID-40 LiDAR Specifications
| PRODUCT PARAMETERS | |
| Model | Mid-40 |
| Laser Wavelength | 905 nm |
| Laser Safety | Class 1 (IEC60825-1) |
| Detection Range (@ 100 klx) | 90 m @ 10% reflectivity 130 m @ 20% reflectivity 260 m @ 80% reflectivity |
| FOV | 38.4° Circular (Mid-40) 98.4° (Horizontal) × 38.4° (Vertical) (Mid-100) |
| Range Precision (1σ @ 20 m) | 2 cm1 |
| Angular Precision | < 0.1° |
| Beam Divergence | 0.28° (Vertical) × 0.03° (Horizontal) |
| Point Rate | 100,000 points/s (Mid-40) |
| FOV Coverage | 20% @ 0.1 s, 68% @ 0.5 s, 93% @ 1 s2 |
| False Alarm Rate (@ 100 klx)3 | < 0.01% |
| Operating Temperature | -4° F to 149° F (-20° C to 65° C) |
| IP Rating | IP674 |
| Power | 10 W typical5 (Mid-40) |
| Voltage | 10 ~ 16 V DC (Typical 12 V DC) |
| Interface | Ethernet |
| Data synchronization | IEEE 1588-2008 (PTPv2), PPS (Pulse Per Second) |
| Dimensions | 88×69×76 mm (Mid-40) |
| Weight | Approx. 760 g (Mid-40) |
| Data Latency | 2 ms |
| Notes | 1. Measured in an environment of 25°C with a target (80% reflectivity) 20 meters away. The result may vary under different test conditions. 2. For more information, refer to the user manual. 3. The proportion of false alarms generated by ambient stray light in daylight conditions of 100 klx. 4. Operating fan is rated IP55. 5. Starting power, especially at low temperature, might be significantly larger than the typical power. Please refer to user manuals for detailed information. |
