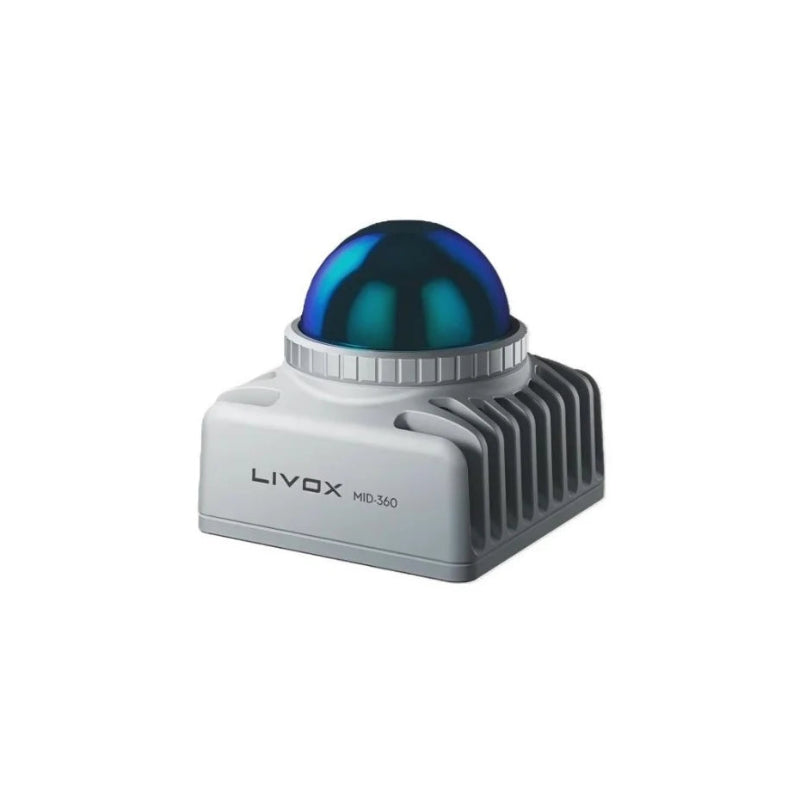

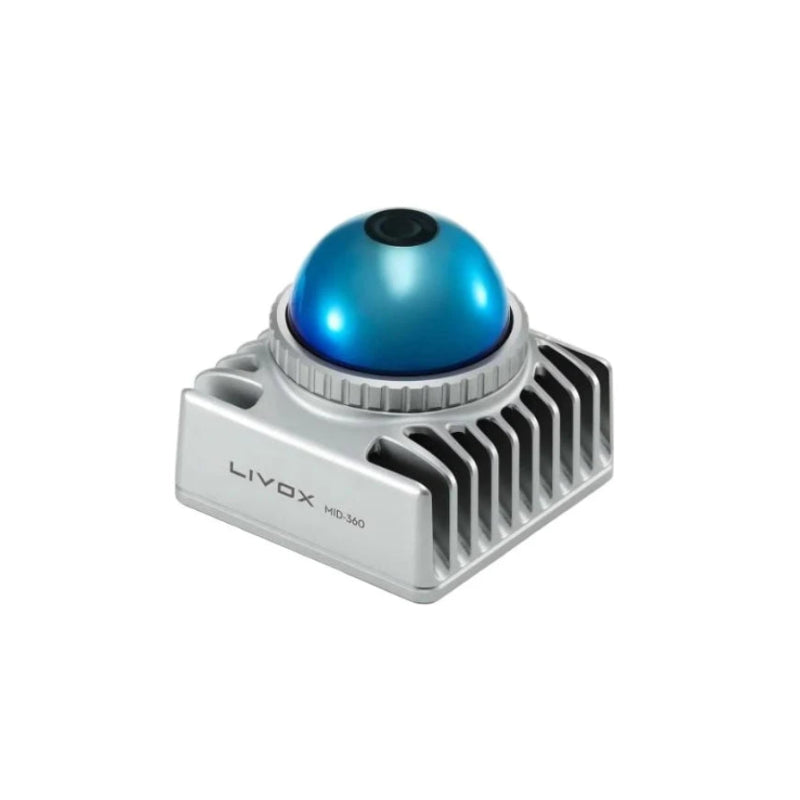

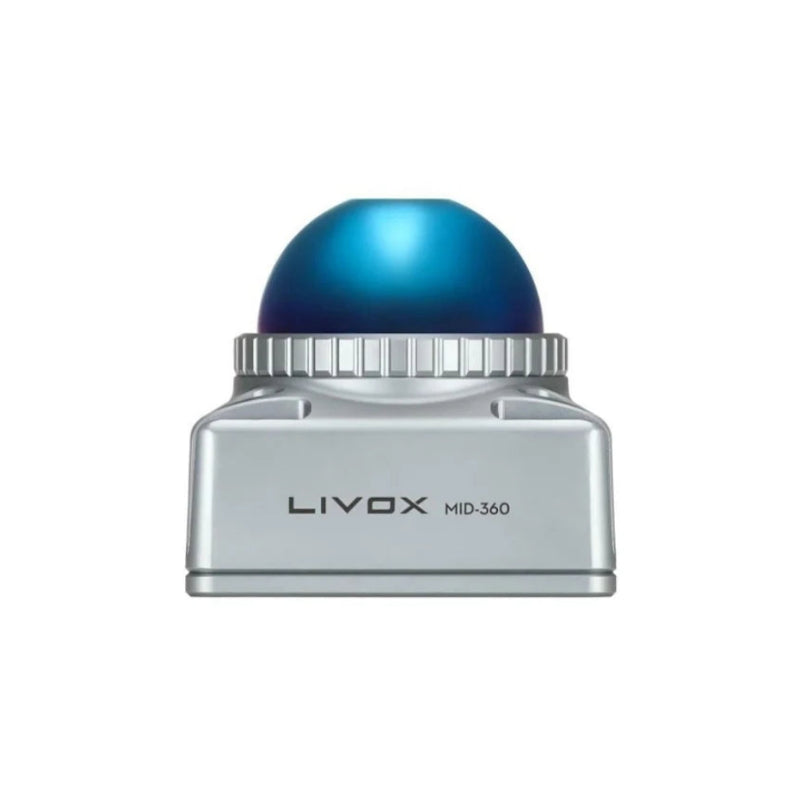

Livox MID-360/360S LiDAR
Livox MID-360/360S LiDAR
Greater Performance with Reduced Blind Spot
Minimum detection range of 10 cm
Mid-360S can detect objects as close as 10 cm. Its compact size makes it easy to mount and achieve zero blind spot coverage.
Active anti-interference
Mid-360S features an active anti-interference design, ensuring performance without disruption from multiple LiDAR signals, even in indoor environments.
Light or Dark
Unaffected by bright or low-light environments. Mid-360S offers consistently excellent performance with a detection range of up to 100 m (cut-off range).
Recommended Mounting Combinations
Autonomous Forklift
AMR Robot
Service Robot
Autonomous Vehicle
Enhanced indoor perception for greater efficiency
Compared with 2D single-line LiDAR sensors, Mid-360S delivers advanced 3D perception that enables mobile robots to collect sufficient environmental data for mapping and positioning. This eliminates the need to modify the spatial environment and greatly improves efficiency. In addition, the angular resolution of Mid-360S improves significantly with integration time. This greatly enhances small object detection to ensure safe operation.
Angular resolution changes over time
Compatibility with outdoor scenarios brings more possibilities
Mid-360S is not affected by ambient light either indoors or outdoors. Its rich point cloud data assists mobile robots in navigation, obstacle avoidance and even detection classification - fully unlocking the potential of AI.
| PRODUCT PARAMETERS | ||
| Parameter | MID-360 | MID-360S |
| Model | MID-360 | MID-360S |
| Laser Wavelength | 905 nm | 905 nm |
| Laser Safety | Class 1(IEC 60825-1:2014)(safe for eyes) | Class 1(IEC 60825-1:2014)(safe for eyes) |
| Detection Range (@100 klx) | 40 m @ 10% reflectivity 70 m @ 80% reflectivity |
40 m @ 10% reflectivity 100 m (range limit) |
| Close Proximity Blind Zone | 0.1 m | 0.1 m |
| FOV | Horizontal 360°, Vertical: -7°~52° | Horizontal 360°, Vertical: -7°~52° |
| Distance Random Error (1σ) | ≤2 cm (@10 m) ≤3 cm (@0.2 m) |
≤2 cm (@10 m) ≤4 cm (@0.2 m) |
| Angular Random Error (1σ) | ≤0.15° | ≤0.15° |
| Point Rate | 200,000 points/s | 200,000 points/s |
| Frame Rate | 10 Hz (typical value) | 10 Hz (typical value) |
| Data Port | 100 BASE-TX Ethernet | 100 BASE-TX Ethernet |
| Data Synchronization | IEEE 1588-2008(PTP v2),GPS | IEEE 1588-2008(PTP v2),GPS |
| Anti-interference Function | Available | Available |
| False Alarm Ratio (@100 klx) | <0.01% | <0.01% |
| IMU | Built-in IMU Model: ICM40609 | Built-in IMU Model: ICM40609 |
| Operating Temperature | -20° to 55° C (-4° to 131°F) | -20° to 55° C (-4° to 131°F) |
| Storage Temperature | -40° to 70° C (-40° to 158°F) | -40° to 70° C (-40° to 158°F) |
| IP Rating | IP67 | IP67 |
| Power | 6.5 W (environment temperature 25°C(77°F)) | 6.5 W (environment temperature 25°C(77°F)) |
| Power Supply Voltage Range | 9–27 V DC | 9–27 V DC |
| Dimensions | 65 (width) x 65 (depth)x 60 (height) mm | 65 (width) x 65 (depth)x 60 (height) mm |
| Weight | Approx. 265 g | Approx. 265 g |
