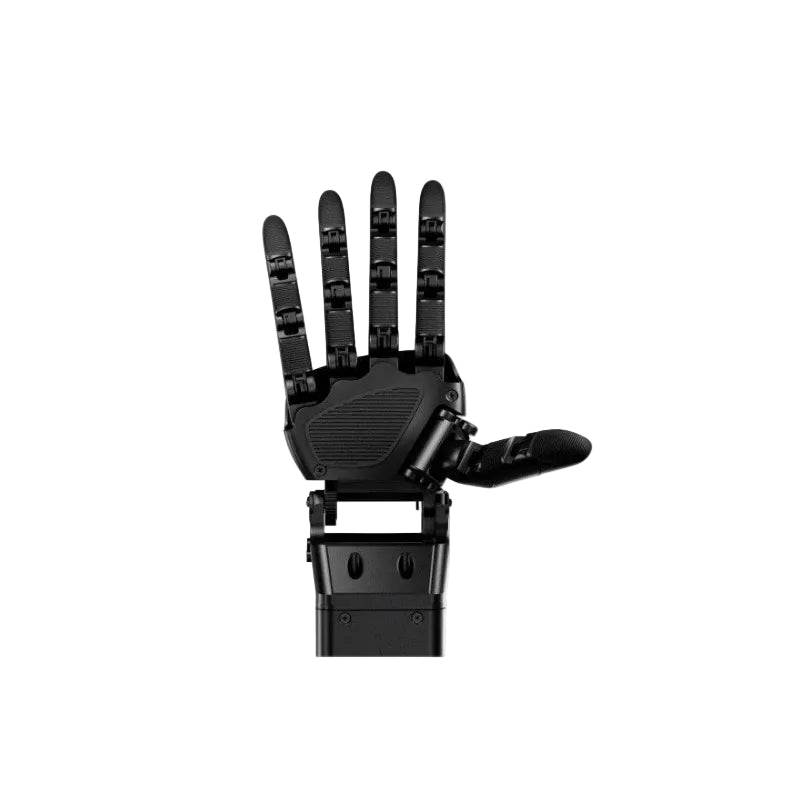

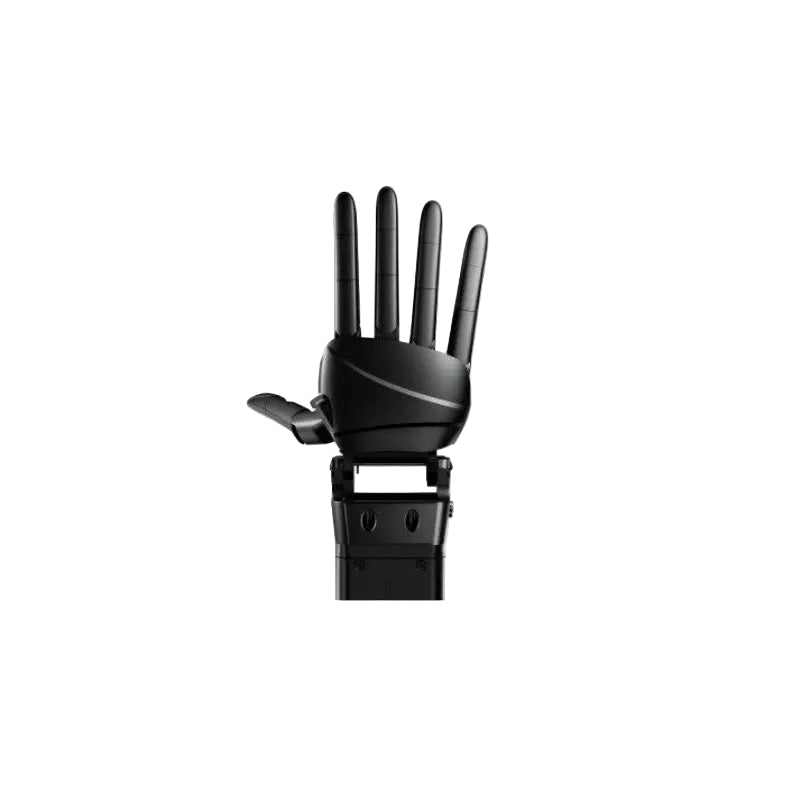

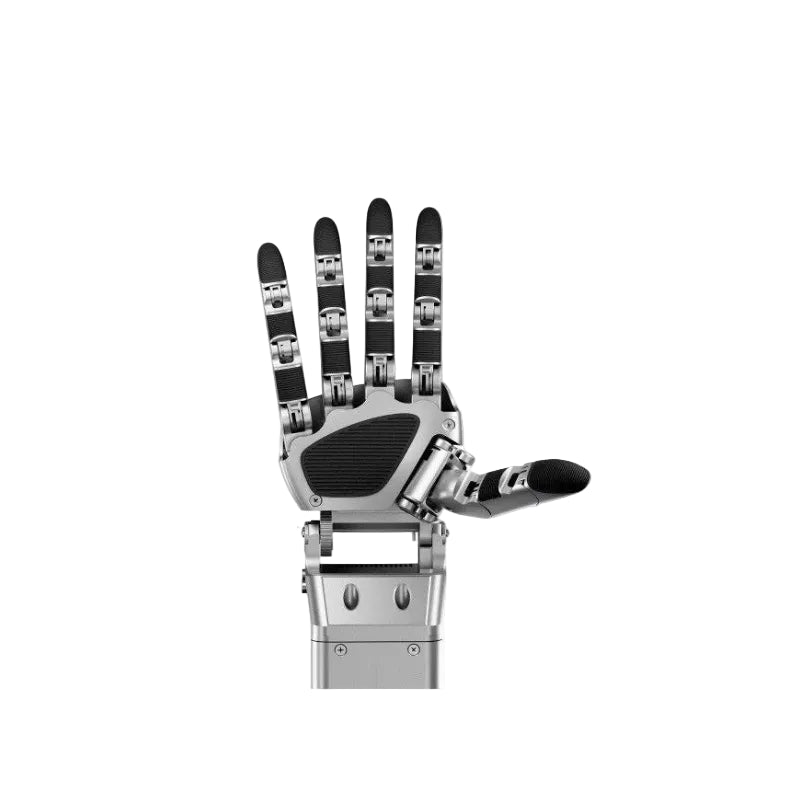

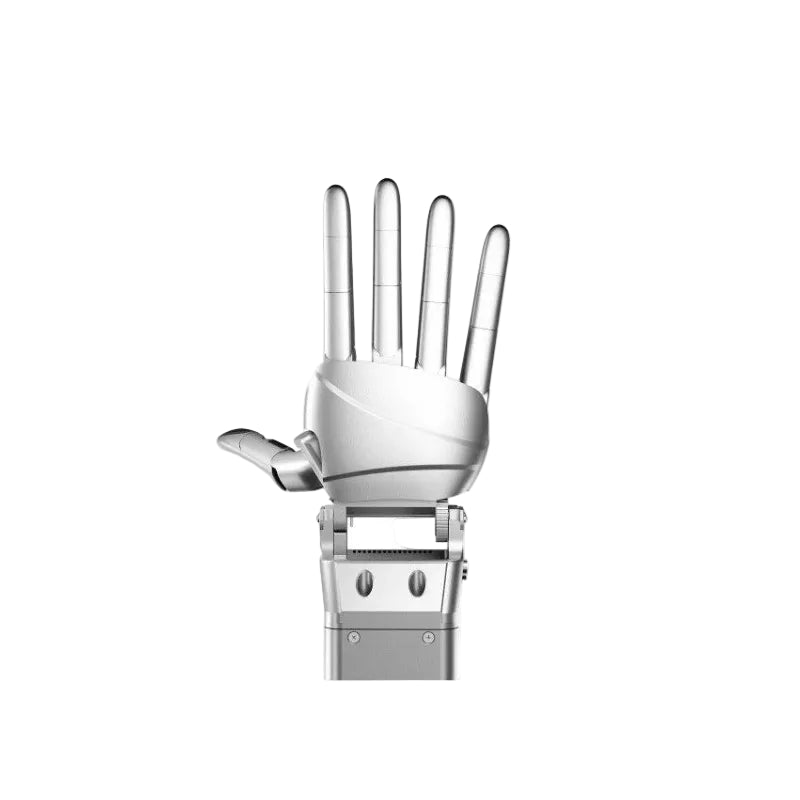

LINKERBOT Linker Hand L30 Robotic Dexterous Hand
Regular price
$19,989.00
Sale price
$19,989.00
Regular price
Unit price
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LINKERBOT Linker Hand L30 Robotic Dexterous Hand
Product description
LINKERBOT Linker Hand L30 Specifications
| PRODUCT PARAMETERS | |
| Degrees of Freedom (DoF) | 17 |
| Number of Joints | 21 (17 Active + 4 Passive) |
| Transmission Mode | Tendon-Driven |
| Control Interface | CAN FD |
| Communication Rate | 500kbps |
| Weight | ≈1400g |
| Maximum Load | 5kg |
| Operating Voltage | DC24V |
| Quiescent current | 0.45A |
| Average Current (No-Load Movement) | 0.63A |
| Maximum Current | 2.3A |
| opening and closing time | 0.2s |
| Repeat Positioning Accuracy | ±0.2mm |
| Maximum Tip Force of Thumb | 8N |
| Maximum Tip Force of Four Fingers | 7N |
| Maximum Grasping Force of Five Fingers | 12N |
