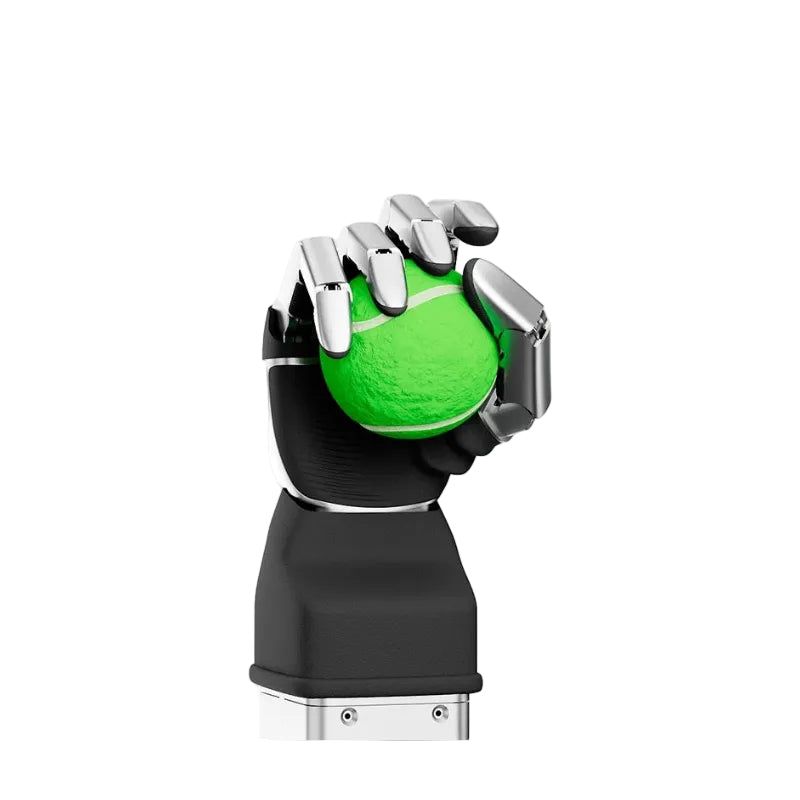

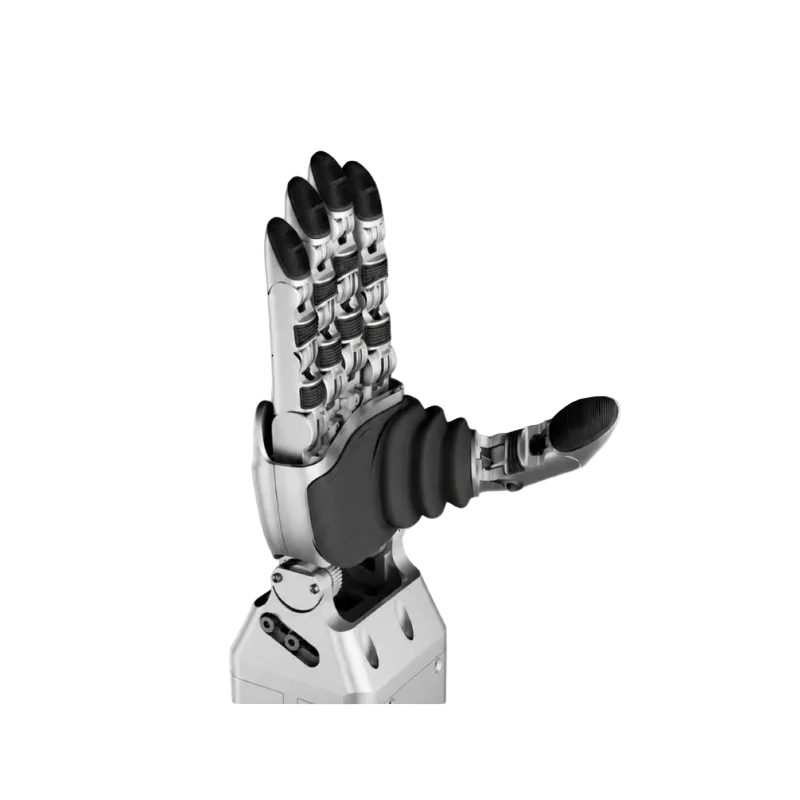

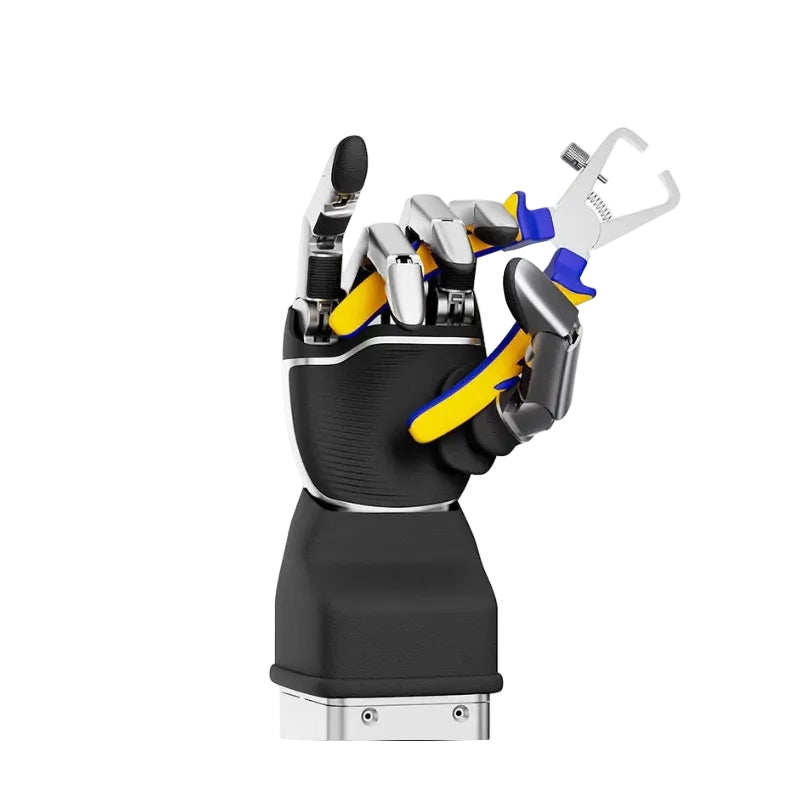

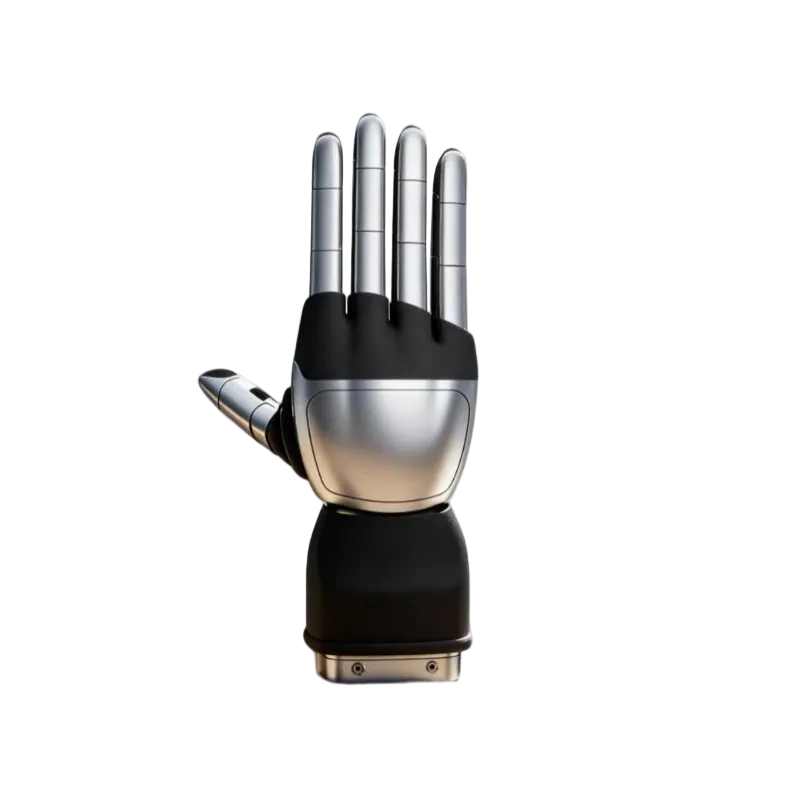

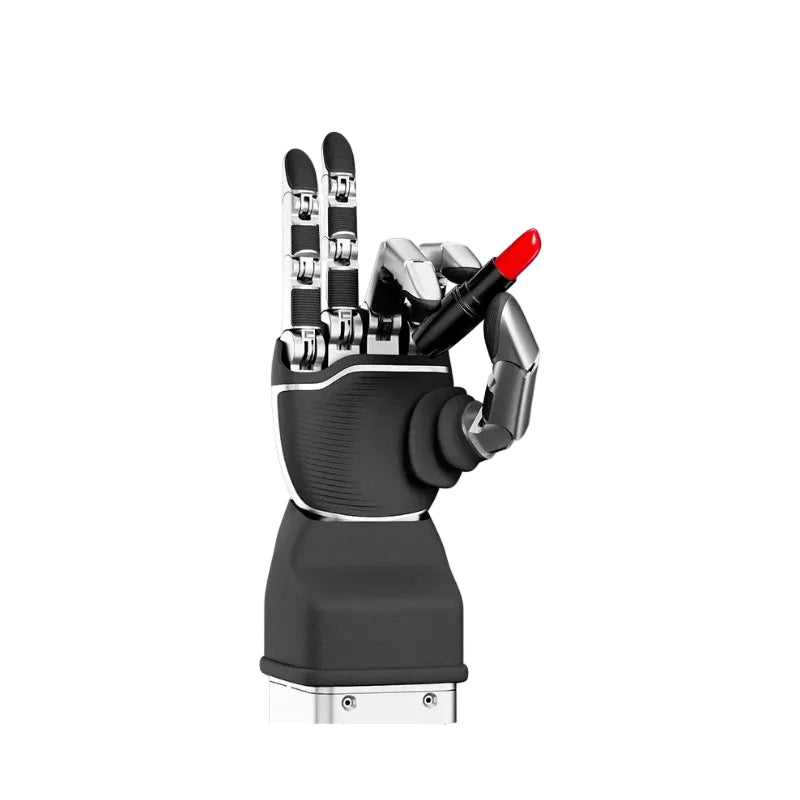

LINKERBOT Linker Hand L30 Pro Robotic Dexterous Hand
Regular price
$18,999.00
Sale price
$18,999.00
Regular price
Unit price
LINKERBOT Linker Hand L30 Pro Robotic Dexterous Hand
Product description
Linker Hand L30 Pro
Linker Hand L30 Pro features a high-DoF tendon-driven architecture that brings together biomimetic principles and advanced mechatronics. Its 22 degrees of freedom integrate high-precision control with real-time sensing, unifying agile motion and precise manipulation. Core finger-joint speed exceeds 400°/s, while full-hand opening and closing takes just 0.2s. L30 delivers exceptional responsiveness for advanced tendon-driven dexterous manipulation.
LINKERBOT Linker Hand L30 Pro Specifications
PRODUCT PARAMETERS
| Parameter | Value |
|---|---|
| Model | Linker Hand L30 Pro |
| Degrees of Freedom | 18 Active DOF + 4 Passive DOF |
| Drive Method | Bionic Tendon Drive (TendonDriven) |
| Communication Interface | CAN FD |
| Weight | ≈1200g |
| Max Load | 15kg |
| Operating Voltage | DC24V±10% |
| Static Current | 0.16A |
| Average No-Load Motion Current | 0.62A |
| Max Current | 2.7A |
| Repeat Positioning Accuracy | ±0.2mm |
| Opening / Closing Time | 0.2s |
| Max Thumb Fingertip Force | 6.5N |
| Max Four-Finger Fingertip Force | 9N |
| Max Five-Finger Grasp Force | 39N |
| Thumb Lateral Rotation Range | 0.61rad(35°) |
| Four-Finger Bending Angle | 1.52rad(87.2°) |
| Thumb Lateral Swing Speed | 4.92rad/s(282.4°/s) |
| Four-Finger Bending Speed | 6.343rad/s(363.6°/s) |
| Thumb Bending Speed | 7.85rad/s(450.35°/s) |
