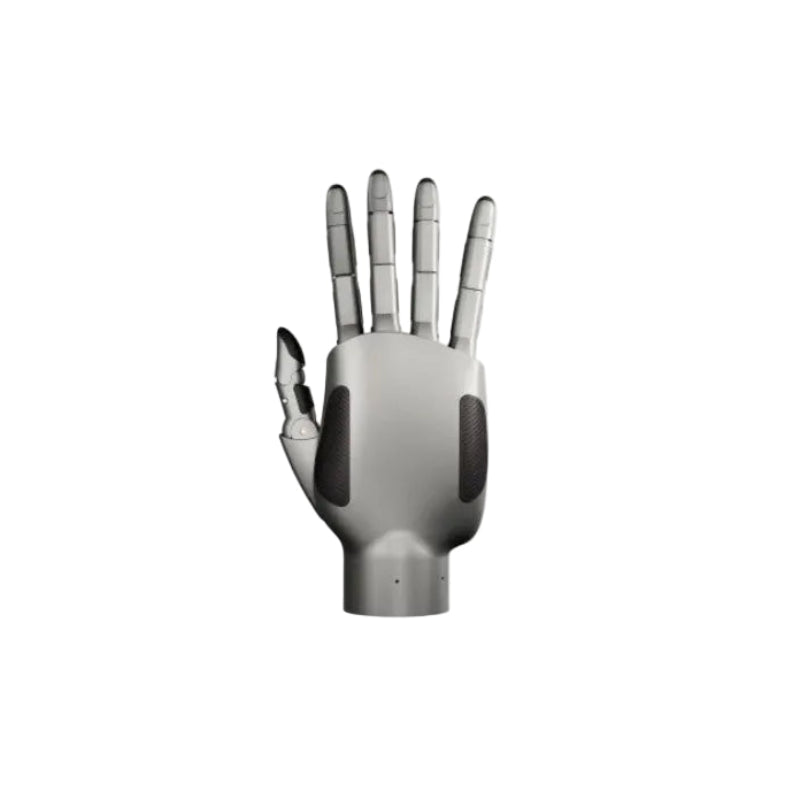

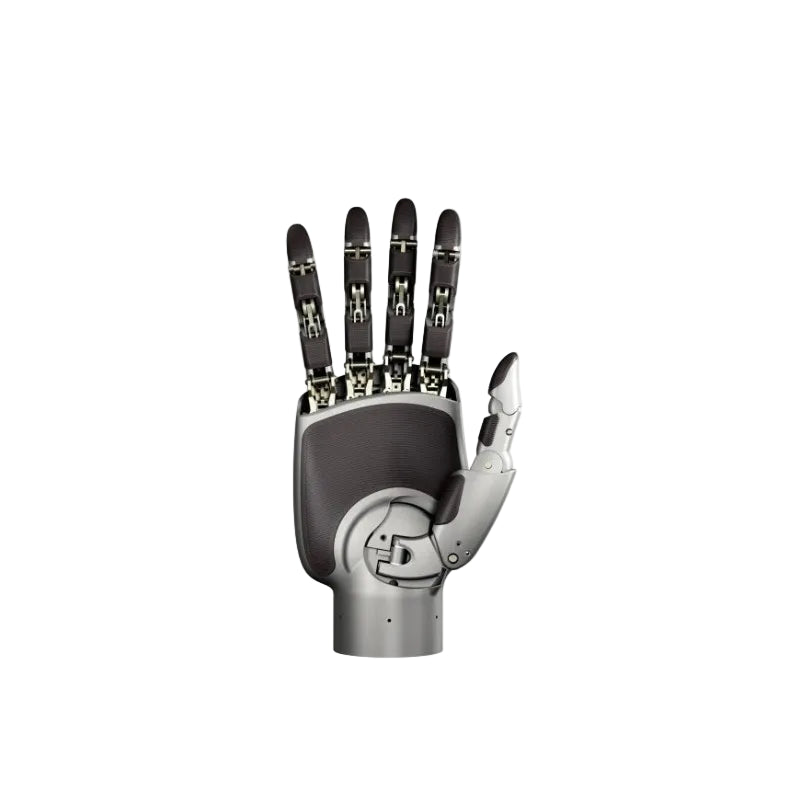

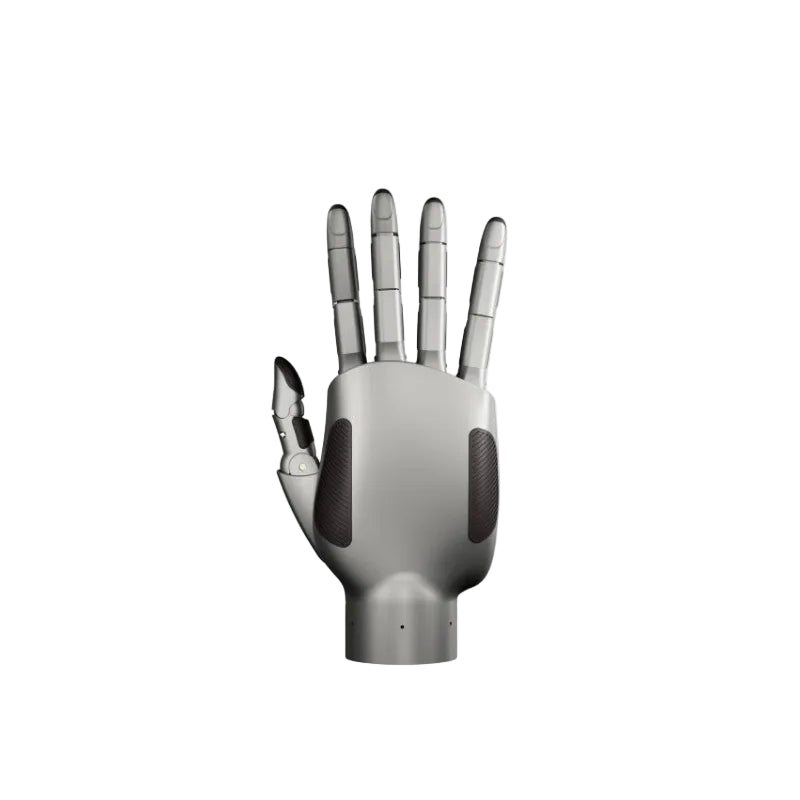

LINKERBOT Linker Hand L20 Robotic Dexterous Hand
Product description
LINKERBOT Linker Hand L20 Specifications
| PRODUCT PARAMETERS | |
| Degrees of Freedom | 16 |
| Number of Joints | 21 (16 Active + 5 Passive) |
| Transmission Mode | Linkage drive |
| Control Interface | CAN/RS485 |
| Communication Rate | 600kbps |
| Weight | 1100g |
| Maximum Payload | 10kg |
| Operating Voltage | DC24V ± 10% |
| Static Current | 0.2A |
| Average No-Load Current | 1A |
| Maximum Current | 3A |
| Repeatability | ± 0.2mm |
| Closing/Opening Time | 1.2s |
| Maximum Thumb Fingertip Force | 18N |
| Maximum 4-Finger Fingertip Force | 20N |
| Maximum 5-Finger Grip Force | 100N |
