LINKERBOT Linker Hand L10B Robotic Dexterous Hand
Regular price
$3,989.00
Sale price
$3,989.00
Regular price
Unit price
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

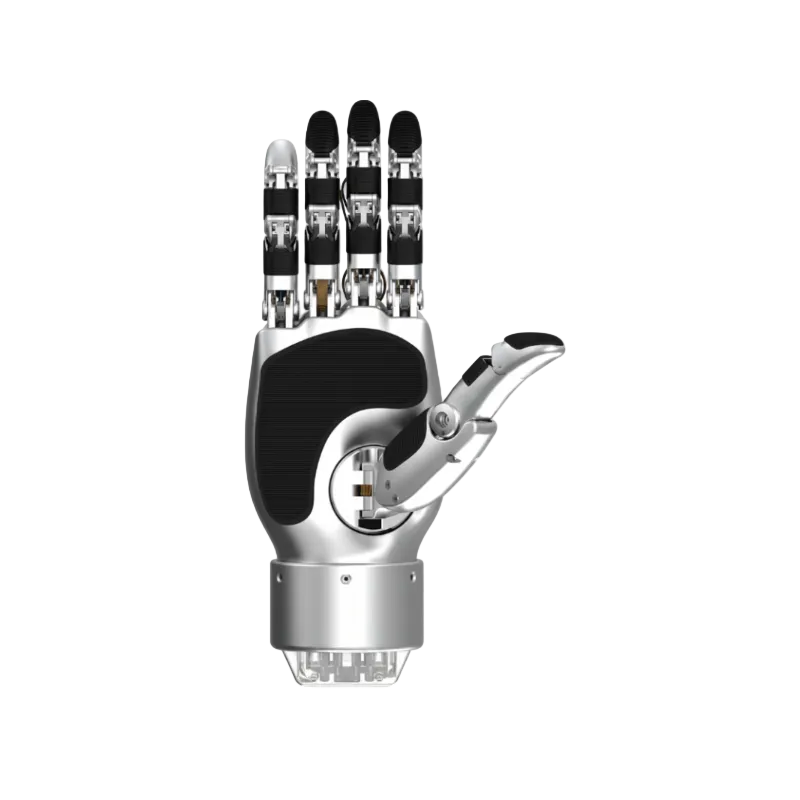

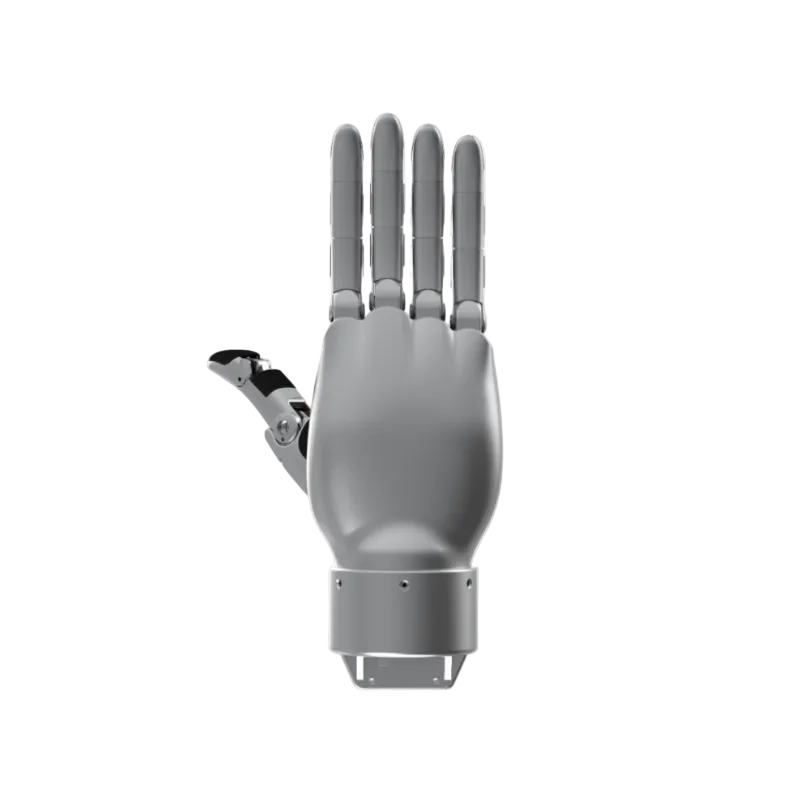

LINKERBOT Linker Hand L10B Robotic Dexterous Hand
Product description
LINKERBOT Linker Hand L10B Specifications
| PRODUCT PARAMETERS | |
| Transmission Mode | Linkage drive |
| Drive Mode | Self-developed joint module |
| Control Interface | CAN/RS485 |
| Weight | 750g |
| Maximum Payload | 5kg |
| Operating Voltage | DC24V ± 10% |
| Static Current | 0.2A |
| Average No-Load Current | 0.5A |
| Maximum Current | 2A |
| Repeatability | ± 0.20mm |
| Maximum Thumb Grip Force | 12N |
| Maximum 4-Finger Grip Force | 12N |
| Thumb Lateral Rotation Range | 1.65rad (95 ° ) |
| 4-Finger Bending Angle | 1.57rad (90 ° ) |
| Thumb Lateral Swing Speed | 2.35rad/s (135 ° /s) |
| 4-Finger Bending Speed | 2.6rad/s (150 ° /s) |
| Thumb Bending Speed | 2.6rad/s (150 ° /s) |
