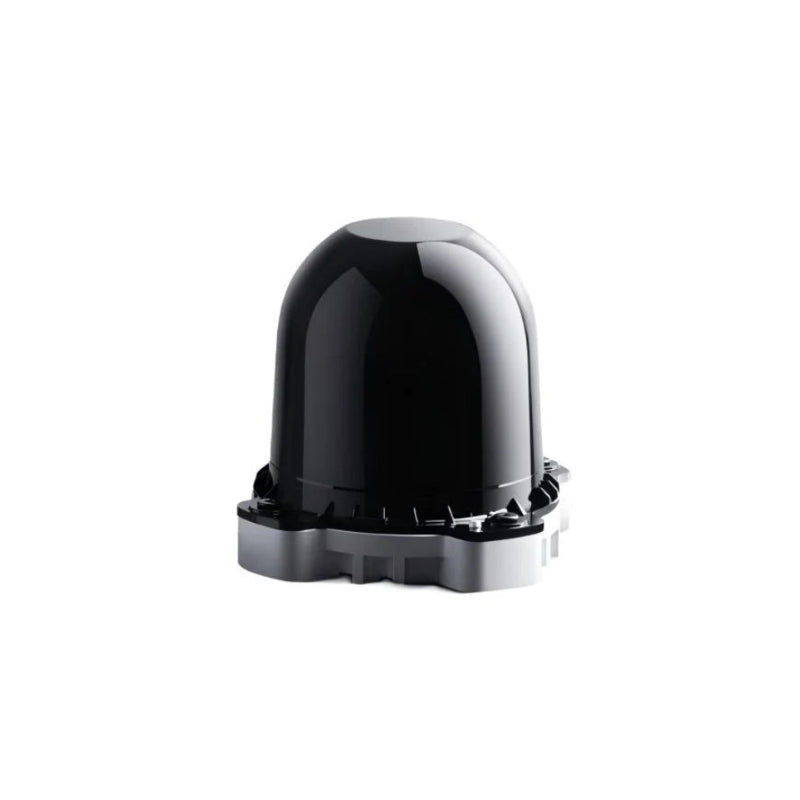

HESAI JT16 LiDAR
Product description
HESAI JT16 LiDAR Specifications
| PRODUCT PARAMETERS | |
| Model | JT16 |
| Scanning method | Mechanical rotation |
| Number of channels | 16 |
| Instrumented range | 0.15 to 100 m |
| Ranging capability | 30 m (at 10% reflectivity, for all channels) |
| Ranging accuracy | ±3 cm (typical) |
| Ranging precision | 3 cm (typical, 1σ) |
| Horizontal FOV | 360° |
| Horizontal resolution | 0.6° (5 Hz) 1.2° (10 Hz) |
| Vertical FOV | 40° (0° to 40°) |
| Vertical resolution | 2.67° (average) |
| Frame rate | 5/10 Hz |
| Return mode | Single return: Last/Strongest (default) |
| Wavelength | 905 nm |
| Laser class | Class 1 Eye Safe |
| Ingress protection | IP6K6 |
| Dimensions | Height: 64 mm Bottom: Φ 61.53/75.5 mm |
| Rated voltage range | DC 12 to 16 V |
| Power consumption | 4.3 W |
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -40℃ to 70℃ |
| Weight | 199.7 g |
| Data transmission | RS485 (3000000 8-N-1) |
| Measurements | Distance, azimuth, and reflectivity |
| Valid point rate | 48000 pts/sec |
| Point cloud data rate | 1.92 Mbp |
