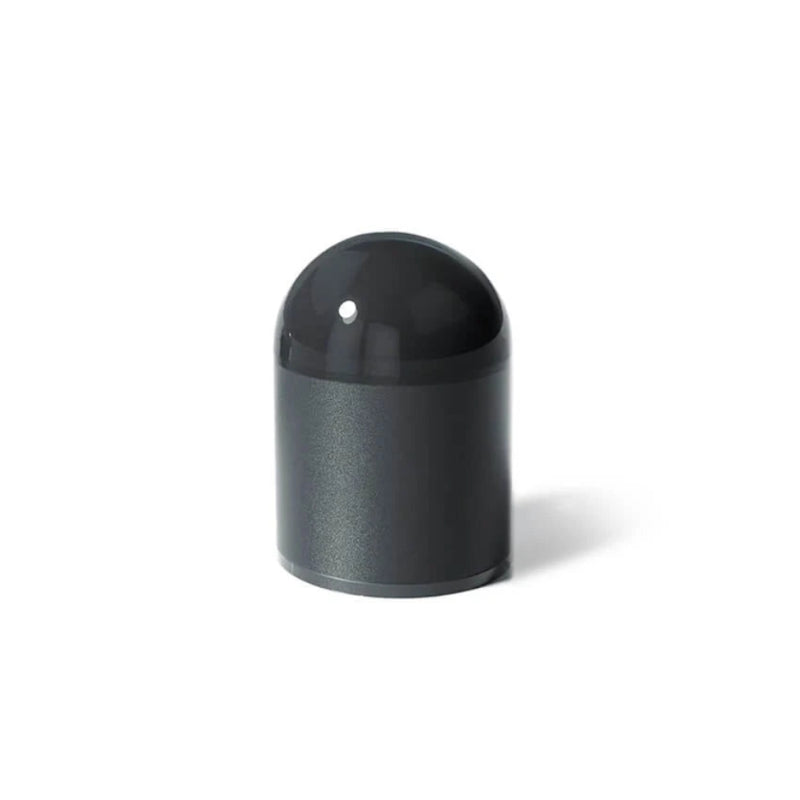

HESAI JT128 LiDAR
Regular price
$1,255.00
Sale price
$1,255.00
Regular price
Unit price
HESAI JT128 LiDAR
Product description
HESAI JT128 LiDAR Specifications
| PRODUCT PARAMETERS | |
| Model | JT128 |
| Scanning method | Mechanical rotation |
| Number of channels | 128 |
| Instrumented range | 0 to 60 m |
| Ranging capability | 40 m (at 10% reflectivity, for all channels) |
| Horizontal FOV | 360° |
| Horizontal resolution | Approx. 0.4° |
| Vertical FOV | 95° (-4.4° to 90.5°) |
| Vertical resolution | 0.74° (average) |
| Frame rate | 10/20 Hz |
| Return mode | Single return: First/Strongest/Last Dual return: Last and Strongest (default) / Last and First / First and Strongest |
| Wavelength | 905 nm |
| Laser class | Class 1 Eye Safe |
| Ingress protection | IP6K7 |
| Dimensions | Height: 73.0 mm Bottom: Φ62.5 mm |
| Rated voltage range | DC 9 to 32 V |
| Power consumption | 9.5 W |
| Operating temperature | -20℃ to 65℃ |
| Storage temperature | -40℃ to 85℃ |
| Weight | <250g |
| Data transmission | Standard 100Base-TX |
| Measurements | Distance, azimuth angle, and reflectivity |
| Point rate | Single Return: 1 152 000 points/sec Dual Return: 2 304 000 points/sec |
| Point cloud data rate | 82.3 Mbps |
| Clock source | GNSS/PTP (1588v2, 802.1AS) |
