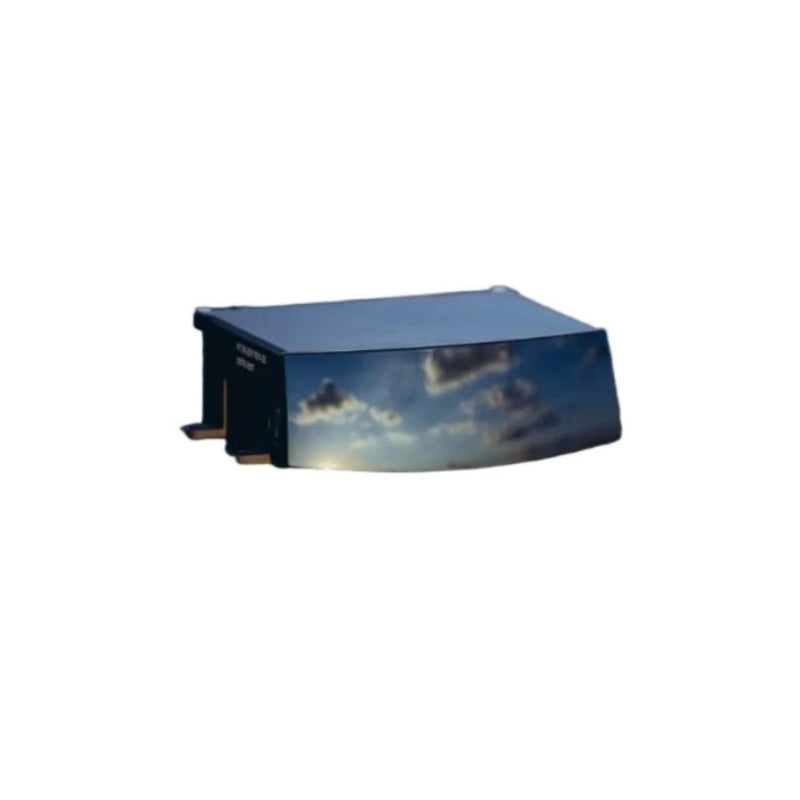

HESAI AT128P LiDAR
Regular price
$5,450.00
Sale price
$5,450.00
Regular price
Unit price
HESAI AT128P LiDAR
Product description
HESAI AT128P LiDAR Specifications
| PRODUCT PARAMETERS | |
| Model | AT128P |
| Scanning method | 1-D rotating mirror (hybrid solid-state) |
| Number of channels | 128 |
| Instrumented range | 0.5 to 260 m |
| Ranging capability | 1 to 210 m (at 10% reflectivity) |
| Ranging accuracy | ±5 cm (typical) |
| Horizontal FOV | 120° |
| Horizontal resolution | Far-field: 0.1° (10 Hz), 0.2° (20 Hz) Near-field: 0.2° (10 Hz), 0.4° (20 Hz) |
| Vertical FOV | 25.4° (-12.5° to 12.9°) |
| Vertical resolution | Far-field: 0.2° Near-field: 0.8° |
| Frame rate | 10 Hz, 20 Hz |
| Return mode | Single Return: Last/Strongest/First Dual Return: Last and Strongest, Strongest and First |
| Wavelength | 905 nm |
| Laser class | Class 1 Eye Safe |
| Ingress protection | IP6K7 & IP6K9K |
| Dimensions | 136 × 114 × 49 (WDH, mm) |
| Rated voltage range | DC 9 to 32 V |
| Power consumption | 13.5 W |
| Operating temperature | -40°C to 85°C |
| Storage temperature | -40°C to 105°C |
| Weight | 940 g |
| Data transmission | Automotive Ethernet, 1000BASE-T1, slave mode |
| Measurements | Distance, azimuth angle, and reflectivity |
| Valid point rate | Single Return: 1536000 pts/sec Dual Return: 3072000 pts/sec |
| Point cloud data rate | Single Return: 55.9/111.8 Mbps (avg/peak) Dual Return: 111.8/223.6 Mbps (avg/peak) |
| Clock source | PTP (802.1AS Automotive, 802.1AS AUTOSAR) |
| PTP clock accuracy | ≤1 µs |
| PTP clock drift | ≤5µs/s |
