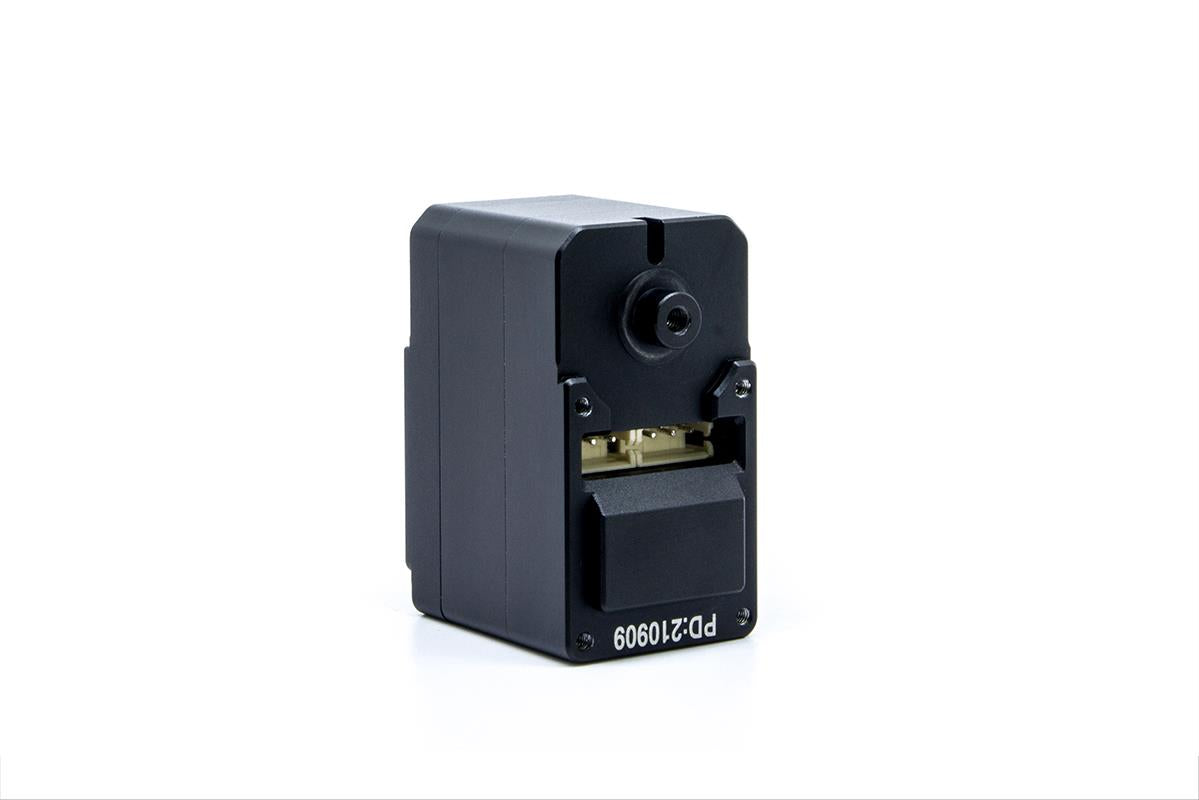

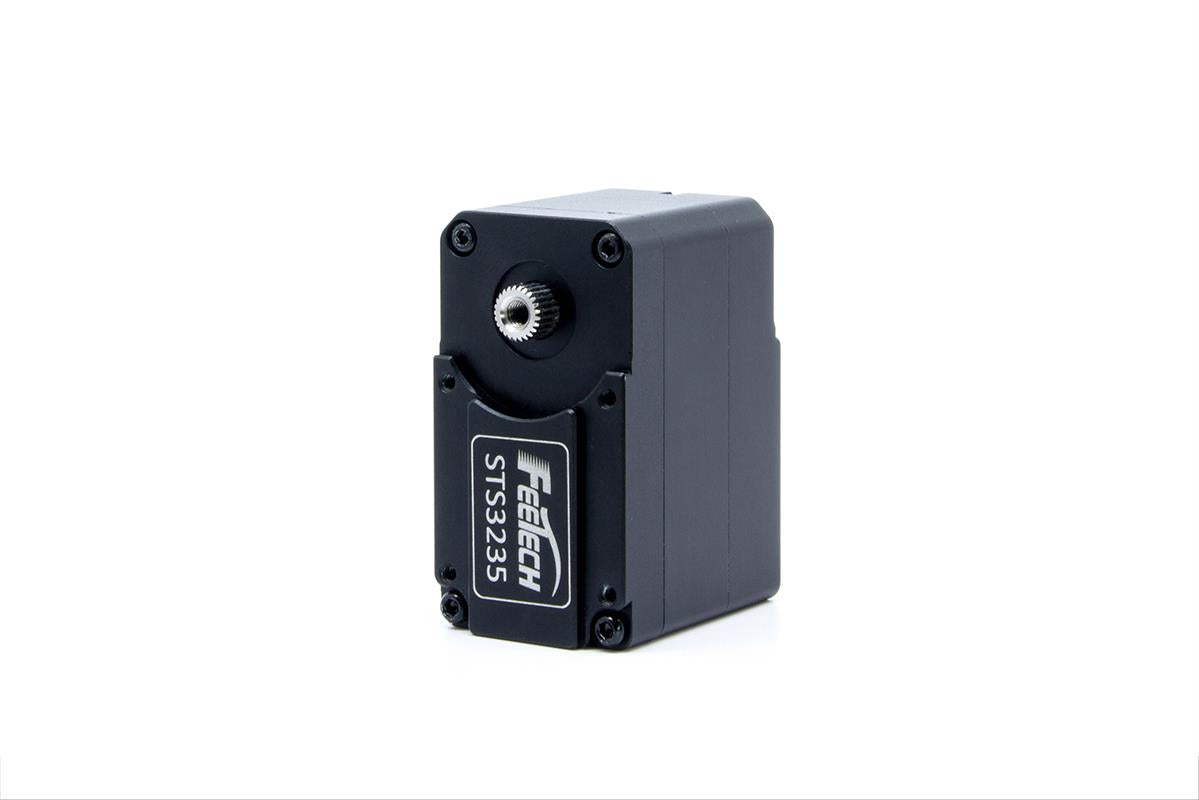

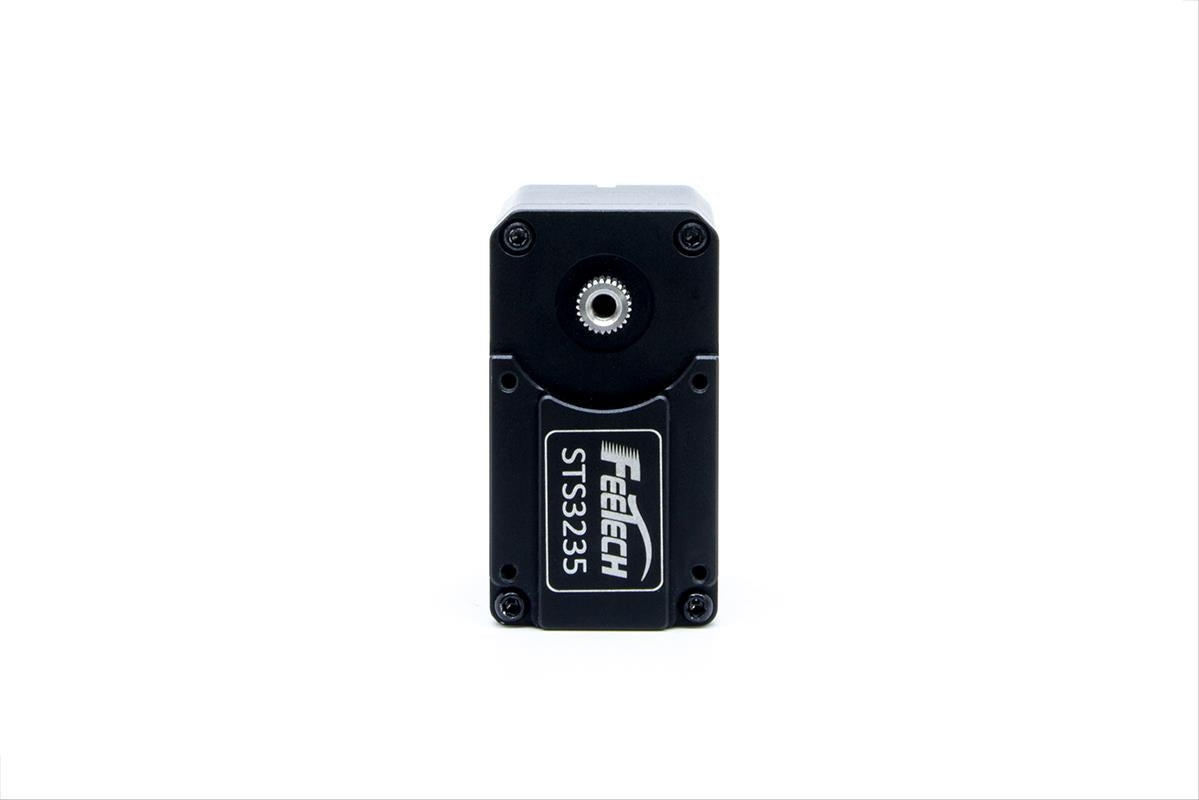

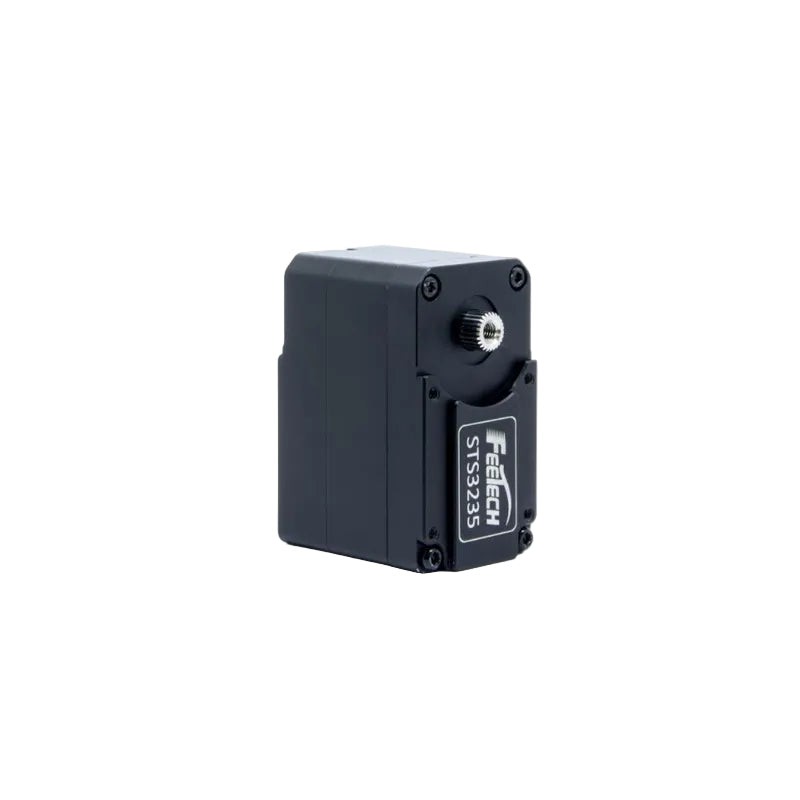

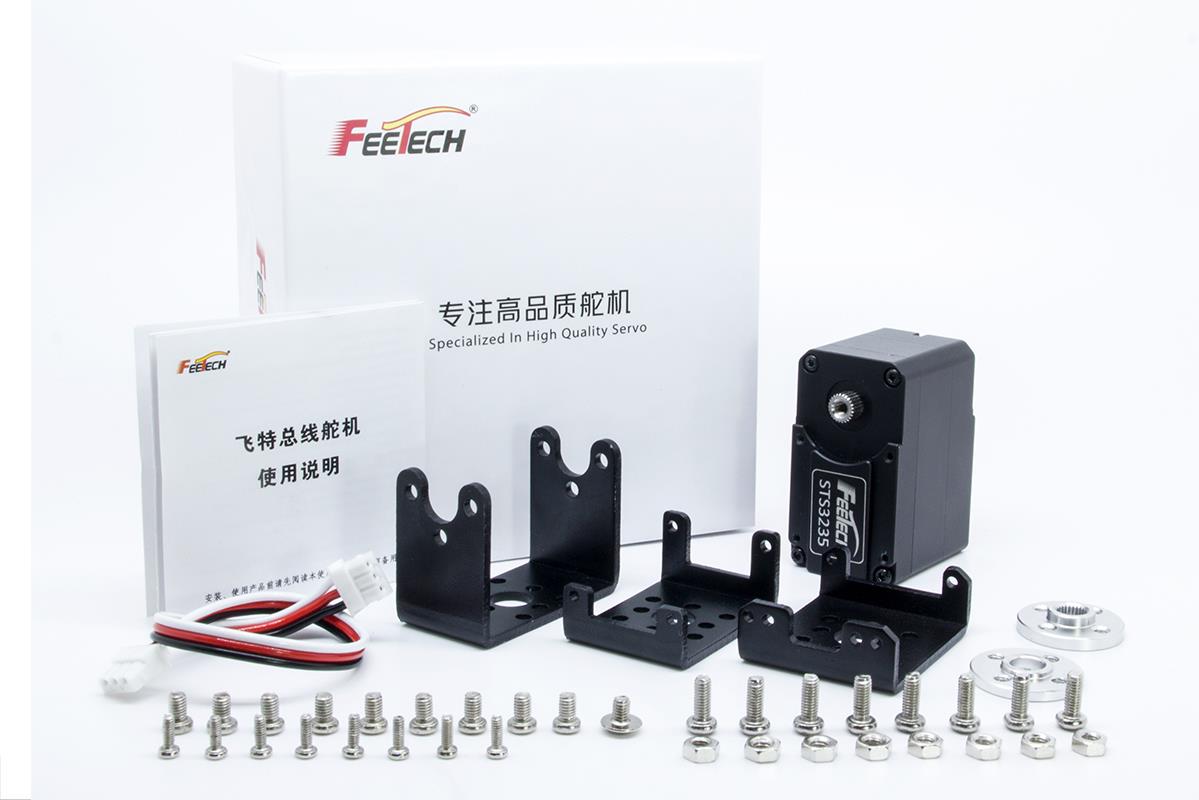

FEETECH STS3235 Servo Motor
The Feetech STS3235 is a high-torque 12V 30kg serial bus smart servo engineered for heavy-duty robotics, industrial automation, and medium-to-small torque drive applications. Featuring a rugged full aluminum alloy case, a premium coreless motor, and a resilient metal gearbox, it integrates Feetech’s proprietary TTL control board with a 12-bit high-precision magnetic coding sensor. Delivering a massive 30kg.cm stall torque, this intelligent servo provides 0-360° omnidirectional precise positioning and multi-turn continuous operation. It supports one-key midpoint calibration along with programmable acceleration for smooth slow-start and slow-stop motion. Offering comprehensive telemetry feedback—including position, speed, voltage, current, temperature, and load—the STS3235 ensures advanced overload and over-current protection for smart industrial systems.
| PRODUCT PARAMETERS | |
| Model | STS3235 |
| Product Name | 12V 30KG Magnetic Encoder Double Shaft TTL Servo |
| Storage Temperature Range | -30°C ~ 80°C |
| Operating Temperature Range | -20°C ~ 60°C |
| Size | A: 45.22mm B: 24.72mm C: 35mm |
| Weight | 70.5 ± 1g |
| Gear type | Steel Gear |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T / OD5.9mm |
| The rocker phantom | 0° |
| Case | Aluminium |
| Connector wire | 15CM |
| Motor | Core Motor |
| Operating Voltage Range | 6 - 12V |
| No load speed | 0.222sec/60° @ 12V |
| Running current (at no load) | 190mA @ 12V |
| Peak stall torque | 30kg.cm @ 12V |
| Rated torque | 10kg.cm @ 12V |
| Stall current | 2.7A @ 12V |
| Command signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID range | 0 - 253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0 ~ 4096) |
| Feedback | Load, Position, Speed, Input Voltage, Temperature |
