FEETECH STS3046 Servo Motor
FEETECH STS3046 Servo Motor

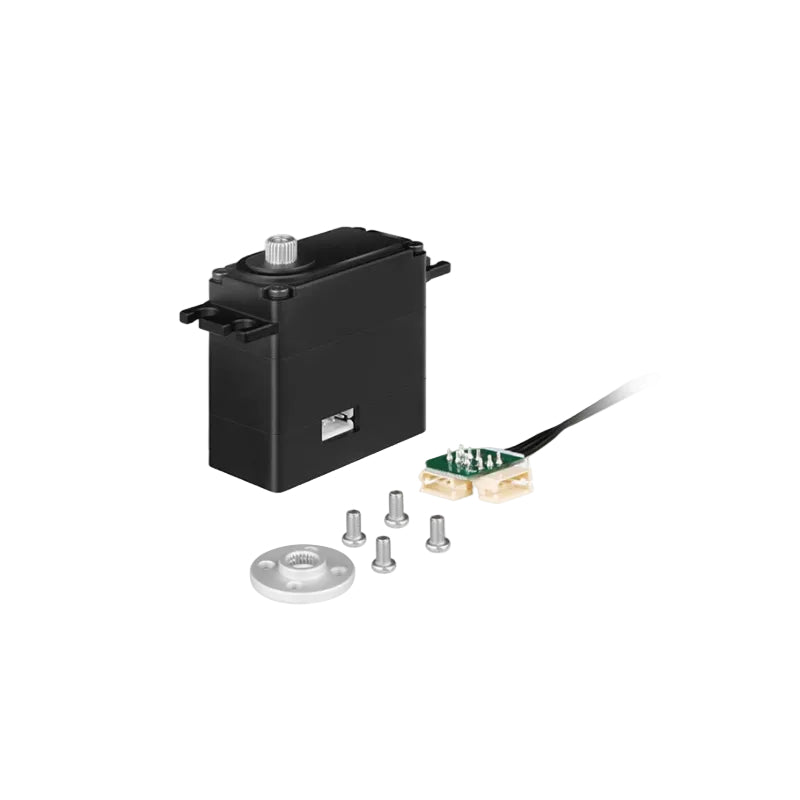

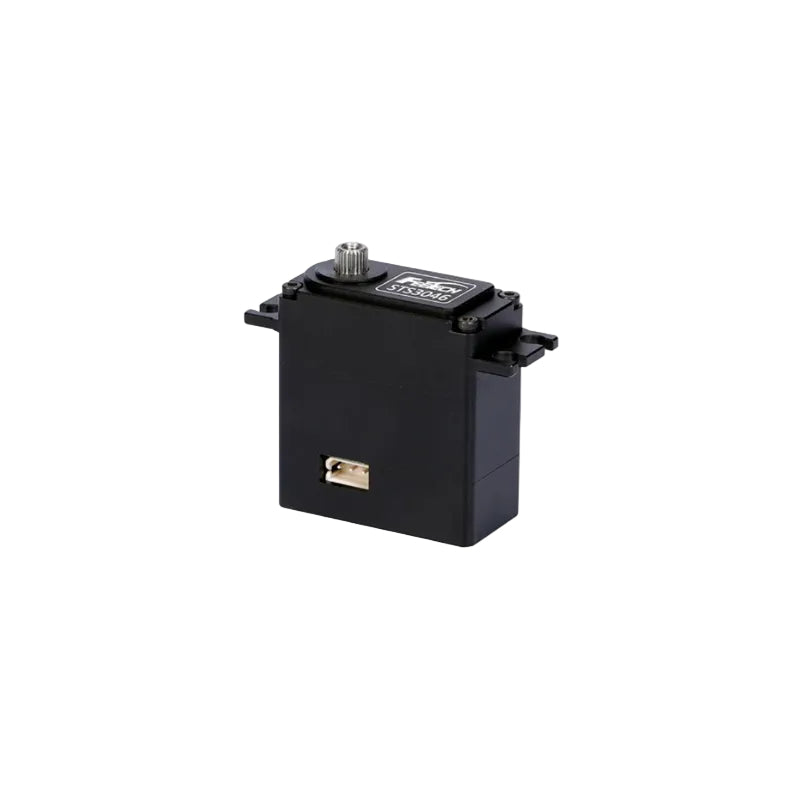

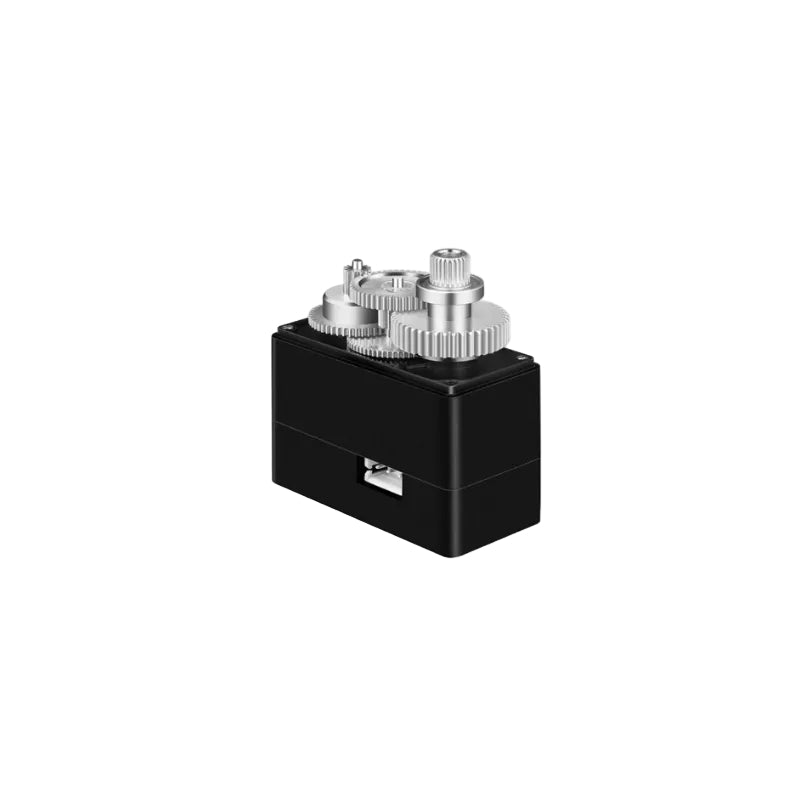

The ST-3046-C001 is a heavy-duty 7.4V 40kg 360-degree magnetic encoder single-shaft steering gear built with a durable aluminium alloy case, high-precision steel gears, ball bearings, and a Coreless motor. Measuring 40mm x 20mm x 43.05mm and weighing 89g, this serial bus servo features a 25T/OD5.9mm horn gear spline and Plastic/POM horn types with no mechanical limit. Operating within a 6-7.4V voltage range, it delivers a peak stall torque of 40kg.cm, a rated torque of 13.3kg.cm, a no-load speed of 0.22sec/60°, and a stall current of 3.1A at 7.4V. Controlled via digital packets, it utilizes half-duplex asynchronous serial communication (38400bps–1Mbps, ID range 0-253), providing a continuous 360° running degree (0–4096 steps). For integrated smart automation, it offers comprehensive real-time sensory feedback telemetry, tracking operating parameters including load, position, speed, input voltage, and current.
| PRODUCT PARAMETERS | |
| Model | ST-3046-C001 |
| Product Name | 7.4v 40kg 360 degree steering gear |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~60℃ |
| Size | A：40mm B：20mm C：43.05mm |
| Weight | 89± 1g |
| Gear type | Steel |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/OD5.9mm |
| Horn type | Plastic,POM |
| Case | Aluminium alloy |
| Connector wire | 15CM |
| Motor | Coreless motor |
| Operating Voltage Range | 6-7.4V |
| No load speed | 0.22sec/60°@7.4V |
| Runnig current(at no load) | 300 mA@7.4V |
| Peak stall torque | 40kg.cm@7.4V |
| Rated torque | 13.3kg.cm@7.4V |
| Stall current | 3.1A@7.4V |
| Command signal | Digital Packet |
| Protocol Type | HalfDuplex Asynchronous Serial( ommuni cati on |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0~4096) |
| Feedback | Load,Position ,Speed I nputVoltage, Current |
