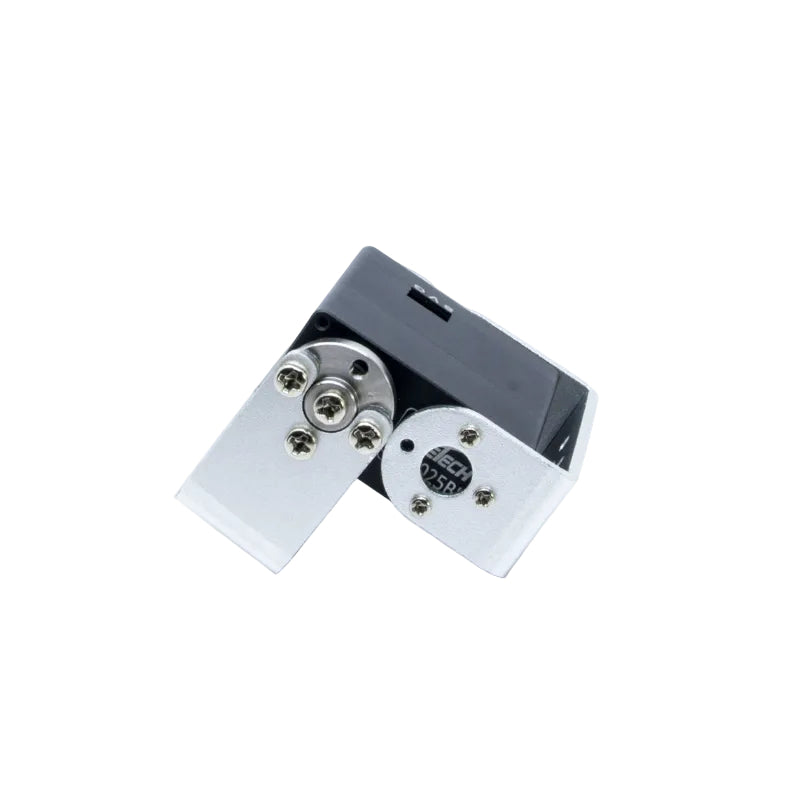

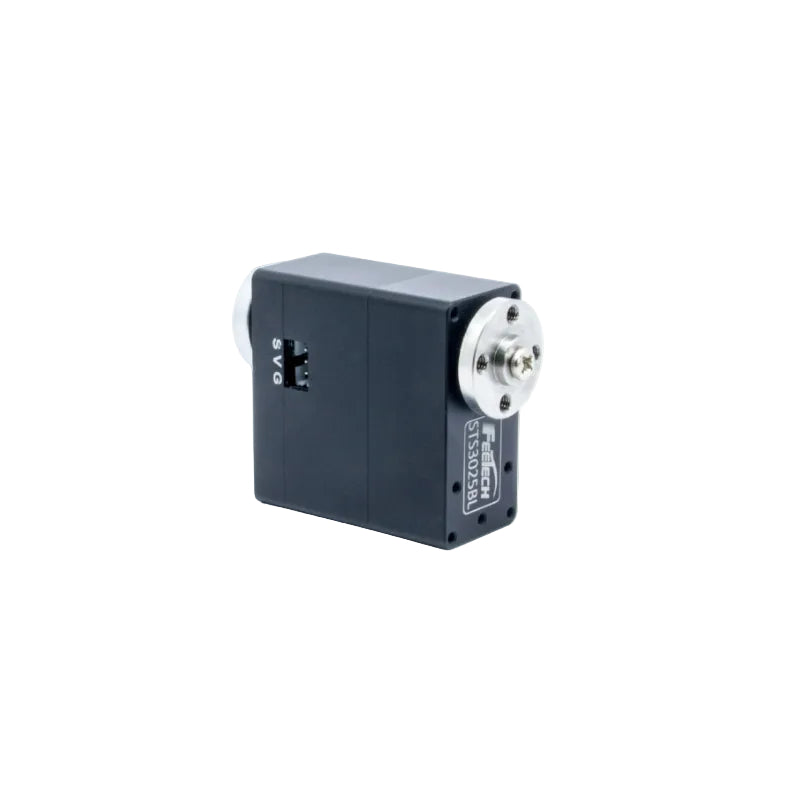

FEETECH STS3025BL Servo Motor
FEETECH STS3025BL Servo Motor
The Feetech ST-3025 Series (ST-3025-C001 & ST-3025-C002) consists of high-performance 12V TTL serial bus smart servos designed for industrial equipment, robotics, and precision drive applications. Housed in premium aluminum alloy cases for optimal heat dissipation, both models integrate a brushless motor, a durable metal gearbox, and a 12-bit high-precision magnetic coding sensor. While sharing a 20kg.cm stall torque, they offer tailored performance configurations: the ST-3025-C001 delivers a high speed of 170RPM, while the ST-3025-C002 operates at a balanced 85RPM. Both smart servos feature 0–360° any-angle control, multi-turn continuous operation, one-key midpoint calibration, and acceleration slow-start/slow-stop. They provide real-time multi-parameter feedback (position, speed, voltage, current, temperature, load) for advanced overload and over-current protection.
| PRODUCT PARAMETERS | ||
| Model | ST-3025-C001 | ST-3025-C002 |
| Product Name | 12V 20KG Magnetic Encoder Double Shaft TTL Servo | 12V 40KG Magnetic Encoder Double Shaft TTL Servo |
| Storage Temperature Range | -30℃~80℃ | -30℃~80℃ |
| Operating Temperature Range | -20℃~60℃ | -20℃~60℃ |
| Size | A：40mm B：20mm C：40mm | A：40mm B：20mm C：40mm |
| Weight | 89± 1g | 89± 1g |
| Gear type | steel Gear | steel Gear |
| Limit angle | NO limit | NO limit |
| Bearing | Ball bearings | Ball bearings |
| Horn gear spline | 25T/OD5.9mm | 25T/OD5.9mm |
| The rocker phantom | 0° | 0° |
| Case | Aluminium | Aluminium |
| Connector wire | 15CM | 15CM |
| Motor | Brushless Motor | Brushless Motor |
| Operating Voltage Range | 12V | 12V |
| No load speed | 0.059sec/60°（170RPM）@12V | 0.117sec/60°（85RPM）@12V |
| Runnig current(at no load) : | 380mA@12V | 380mA@12V |
| Peak stall torque | 20kg.cm@12V | 40kg.cm@12V |
| Rated torque | 6.5kg.cm@12V | 10kg.cm@12V |
| Stall current | 4.4A@12V | 4.4A@12V |
| Command signal | Digital Packet | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication | Half Duplex Asynchronous Serial Communication |
| ID range | 0-253 | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0~4096) | 360° (when 0~4096) |
| Feedback | Load , Position ,Speed , Input Voltage ,Current , Temperature | Load , Position ,Speed , Input Voltage ,Current , Temperature |
